AEM Fuel Ignition Controller: Master Your Engine

In the intricate world of automotive performance, optimising an engine for aftermarket modifications, particularly forced induction, presents a unique set of challenges. Modern vehicles, with their sophisticated Engine Control Units (ECUs) and complex emissions strategies, often resist significant changes to their factory programming. Traditional methods of boosting power often led to compromises, such as unreliable fuel delivery, incorrect ignition timing, or the dreaded “check engine” light illuminating your dashboard. Enthusiasts and professional tuners alike have long sought a solution that offers precision control without disrupting the vehicle's inherent reliability. This is where the AEM Fuel Ignition Controller (FIC) steps in, providing a sophisticated yet accessible pathway to unlocking your engine's true potential.

The AEM FIC is not merely another modification; it's a revolutionary piggy-back control unit designed to work in harmony with your vehicle’s factory ECU. It offers unparalleled capability to fine-tune critical engine parameters like fuel delivery and ignition timing, making it an indispensable tool for anyone looking to safely and effectively enhance their engine’s performance, especially when adding forced induction. Whether you're dealing with a complex variable cam timing engine or simply aiming for peak efficiency, the AEM FIC promises a seamless integration and remarkable results.

What is the AEM Fuel Ignition Controller (FIC)?

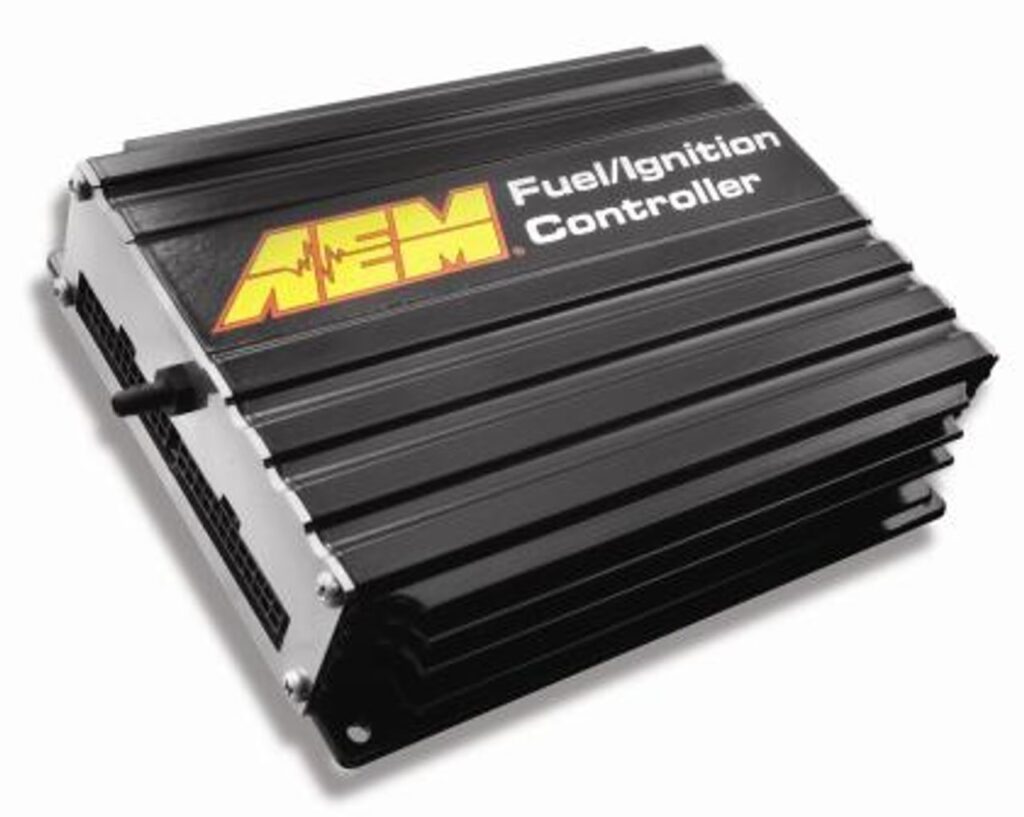

At its core, the AEM Fuel Ignition Controller (FIC) is a highly advanced, PC-programmable "piggy-back" module. Unlike a standalone ECU that completely replaces the factory unit, a piggy-back controller works in conjunction with the existing OEM ECU. This design philosophy is crucial because it allows the vehicle's original ECU to retain control over all its essential functions, such as cold starts, idle control, and emissions, while the AEM FIC precisely modifies specific signals related to fuel and ignition. This synergistic approach ensures that daily drivability and reliability are not compromised, a common concern with more aggressive tuning solutions.

The primary function of the AEM FIC is to provide granular control over two fundamental aspects of engine operation: fuel management and timing retard. When you introduce more air into an engine, typically via a turbocharger or supercharger, you must also increase the fuel to maintain a safe air-to-fuel ratio (AFR). Simultaneously, ignition timing often needs to be retarded (pulled back) under boost to prevent damaging pre-ignition or detonation. The FIC accomplishes this by intercepting and modifying the signals between the engine's sensors (like the crank and cam sensors) and the factory ECU, as well as altering the output signals from the ECU to the injectors and ignition coils.

One of the AEM FIC's standout features is its ability to handle modern engines equipped with variable cam timing systems (such as Honda's VTEC, Toyota's VVTi, Mitsubishi's MiVEC, and BMW's VANOS). These systems dynamically adjust valve lift and duration based on engine RPM and load, adding a layer of complexity to tuning. The FIC is specifically engineered to work seamlessly with these intricate systems, allowing for precise control of variable valve timing based on user-defined RPM and load parameters. This capability is vital for optimising power delivery across the entire rev range and ensuring the engine operates efficiently under various conditions.

Why the AEM FIC is Essential for Performance Upgrades

For decades, tuners faced significant hurdles when attempting to add forced induction to vehicles. Outdated methods like Fuel Management Units (FMUs) or "boost hiding" electronics were crude and often unreliable. FMUs would mechanically increase fuel pressure, leading to poor fuel atomisation and inconsistent delivery. "Boost hiding" devices would trick the ECU into thinking boost levels were lower than they actually were, a dangerous practice that could lead to lean conditions and catastrophic engine failure. The AEM FIC eliminates the need for such archaic and potentially damaging solutions by offering a sophisticated, digitally controlled alternative.

Modern vehicles, especially those with OBD-II compatibility and advanced knock detection systems, are highly sensitive to deviations from their factory programming. Adding non-factory forced induction without proper management can quickly trigger a "check engine" light, put the car into "limp mode," or worse, cause engine damage due to detonation. The AEM FIC is designed to bypass these issues. By intercepting and modifying the cam and crank inputs, the FIC ensures that the factory ECU receives signals that keep it within its operating parameters, thus preventing diagnostic trouble codes (DTCs) and maintaining normal vehicle operation. This is a critical advantage, as it allows for significant performance gains without sacrificing the daily usability or reliability of your vehicle.

Precision Fuel and Ignition Control

• Fuel Trimming: The FIC can trim the OEM ECU's fuel output by +200% to -100%, offering immense flexibility to either add significant amounts of fuel for forced induction or reduce fuel for economy or specific tuning scenarios.
• Additional Injector Drivers: For high-horsepower applications where the OEM injectors reach their limit, the AEM FIC provides up to six short-circuit protected, high-impedance injector driver outputs. These can be used as stand-alone extra injector drivers, allowing you to add supplementary fuel injectors that activate under specific boost or RPM conditions, ensuring your engine never runs lean. The FIC-6, for instance, can drive both high and low-impedance injectors with the use of an external Peak & Hold Injector Driver Box.
• Timing Retard: With multiple channels for timing retard (up to five channels on some models), the FIC allows for precise manipulation of ignition timing. This is crucial for preventing knock and detonation under boost, protecting your engine from damage while still extracting maximum power.

Sensor Recalibration and Management

Another powerful feature of the AEM FIC is its ability to recalibrate sensor signals. This is particularly useful when installing a MAP (Manifold Absolute Pressure) sensor for forced induction applications. Instead of affecting the signal to the factory ECU, which might cause errors, the FIC can process the new MAP sensor input and present a modified signal to the OEM ECU, ensuring it operates within its expected range while still providing the FIC with the accurate boost pressure data it needs for tuning. It also offers analog inputs and outputs for remapping or clamping MAF (Mass Air Flow) sensor signals, essential for preventing the OEM ECU from seeing overly high airflow readings that could trigger fault codes.

On-Board Data Logging and Convenience

The AEM FIC isn't just a control unit; it's also a valuable diagnostic and tuning tool. Equipped with on-board data acquisition capabilities (approximately two minutes of logging on the standard FIC, and 64kb on the FIC-6), it can record crucial engine parameters. This logged data can then be downloaded to a PC, allowing tuners to analyse engine behaviour under various conditions, identify potential issues, and refine their calibrations with greater accuracy. The convenience extends to its power source: the unit can be powered directly from a PC's USB port for calibration changes, even when it's removed from the vehicle, streamlining the tuning process.

AEM FIC vs. Traditional Tuning Methods: A Comparison

To truly appreciate the AEM FIC, it's helpful to compare its capabilities against older, less sophisticated tuning methods:

Frequently Asked Questions about the AEM FIC

Q1: What exactly does "piggy-back controller" mean?

A "piggy-back" controller, like the AEM FIC, works in conjunction with your vehicle's existing factory ECU (Engine Control Unit) rather than replacing it entirely. It intercepts and modifies signals to and from the ECU, allowing for fine-tuning of parameters like fuel delivery and ignition timing, without overriding the OEM ECU's core functions. This ensures that the vehicle's original drivability, emissions controls, and diagnostic capabilities remain intact, while still enabling significant performance enhancements.

Q2: Will the AEM FIC cause a "check engine" light to appear on my dashboard?

No, one of the significant advantages of the AEM FIC is that it is designed specifically to prevent the factory ECU from throwing a "check engine" light. It achieves this by carefully intercepting and modifying critical signals, such as cam and crank inputs, ensuring that the factory ECU always sees parameters within its expected operating range. This means you can enjoy enhanced performance without the hassle of persistent error codes or the car going into "limp mode."

Q3: Is the AEM FIC difficult to install and tune?

Installation typically involves wiring the FIC into various sensor and injector circuits of your vehicle, which usually requires a degree of automotive electrical knowledge or professional installation. For tuning, the AEM FIC is PC-programmable via a standard USB connection. Its software interface allows for detailed map adjustments, and because it works off the vehicle's factory base map, initial setup is often straightforward. While professional tuning is always recommended for optimal and safe results, the interface is designed to be user-friendly for those with tuning experience.

Q4: Can the AEM FIC control my engine's variable cam timing?

Yes, absolutely. The AEM FIC is specifically engineered to work with and control engines equipped with complex variable cam timing systems such as VTEC, VVTi, and MiVEC. It allows you to adjust variable valve timing based on engine RPM and load, providing precise control over when and how these systems engage. This capability is crucial for maximising power and efficiency across the entire rev range, especially in forced induction applications where cam timing can significantly impact performance.

Q5: Can I use the AEM FIC with my existing turbocharger or supercharger kit?

The AEM FIC is ideally suited for vehicles with non-factory forced induction systems. It provides the necessary fuel management and timing retard capabilities to safely and effectively run aftermarket turbochargers or superchargers. It can handle boost pressures up to approximately 25 PSI via its on-board manifold pressure sensor and offers features like additional injector drivers for high-horsepower setups, making it a comprehensive solution for boosting your engine.

Conclusion

The AEM Fuel Ignition Controller (FIC) stands as a testament to advanced automotive tuning technology. By offering precise fuel management and timing retard capabilities within a sophisticated piggy-back framework, it provides a safe, reliable, and highly effective solution for optimising engine performance, particularly for forced induction applications and vehicles with complex variable cam timing systems. Its ability to work seamlessly with the factory ECU, prevent "check engine" lights, and offer extensive programmability via a PC makes it an indispensable tool for tuners and enthusiasts alike.

Gone are the days of crude, unreliable tuning methods. The AEM FIC empowers you to unlock your engine's true potential, ensuring that every modification translates into tangible performance gains without compromising the long-term health or drivability of your vehicle. For anyone serious about elevating their automotive experience, the AEM FIC represents a smart, future-proof investment in precision engine control.
