V-Brake Adjustment Guide

Mastering Your Bicycle's V-Brakes: A Comprehensive Adjustment Guide

For cyclists not equipped with modern disc brake systems, the humble V-brake remains a cornerstone of control and safety. These powerful rim brakes are your primary means of slowing down and stopping, making their proper adjustment absolutely crucial. Neglecting them can lead to reduced stopping power, unpredictable performance, and even dangerous situations. This guide will walk you through the essential steps to inspect, adjust, and maintain your V-brakes, ensuring you can ride with confidence.

Assessing the Condition of Your V-Brakes

Before you even think about turning a wrench, a thorough inspection of your V-brake system is paramount. Think of it as a pre-flight check for your bike's most critical safety component.

Brake Arms and Springs

Begin by examining the brake arms themselves. Look for any signs of corrosion, particularly around the bolts and springs. Significant rust can weaken these components, increasing the risk of breakage during operation, which could lead to a sudden loss of braking. Also, check for any visible damage such as bent or cracked arms. The cradle on the left brake arm, designed to hold the brake noodle, is particularly important. If either the noodle or its cradle is bent, the brake cable won't be able to move freely, severely compromising your braking performance.

Brake Pads

Your brake pads are the direct interface with your wheel's rim. Removing the wheel often provides the best access for inspection. Most brake pads feature wear indicator lines. When the pad surface wears down to these lines, it's a clear signal that replacement is necessary. Additionally, carefully inspect the pad surface for any embedded metallic debris, such as small shards of glass or metal. These can act like sandpaper on your rims, causing premature wear and potential damage.

Cable and Housing Integrity

The smooth operation of your V-brakes relies heavily on the condition of the brake cable and its housing.

Cable Inspection

The brake cable is the steel wire that transmits the force from your brake lever to the brake arms. Look closely for any signs of rust, fraying, or kinks along its length. Any of these issues can lead to increased friction or even cable failure. If you spot any damage, it's best to replace the cable.

Housing Inspection

The brake housing is the protective sheath through which the cable runs. While it comes in various colours, its primary function is to protect the cable and guide its movement. Inspect the housing for any cracks, splits, or signs of deformation. Crucially, check that the cable moves smoothly within the housing. Resistance or sticking indicates a problem, possibly with the housing itself or debris lodged inside.

Rim Condition: The Foundation of Braking

Even the best-adjusted brakes are ineffective if your wheel rims are not in good condition. The rim is the surface your brake pads grip to slow your momentum.

Rim Straightness and Roundness

Spin your wheel and observe its rotation. Ideally, the rim should remain perfectly straight and round, never touching either brake pad as it spins. A wobbling or out-of-true rim can cause the brake pads to intermittently contact the rim, or worse, run off the rim entirely, leading to unpredictable braking or even a loss of control. If your wheel is not true, seek professional help from a local bike shop to have it trued.

Rim Wear Indicators

Over time, the braking surface of your rims will wear down. Many modern rims have built-in wear indicators, often in the form of a small recessed dot or a groove running around the rim's braking track. Once this indicator becomes flush with the rim surface or disappears, it signifies that the rim has reached the end of its safe lifespan and must be replaced to ensure effective braking.

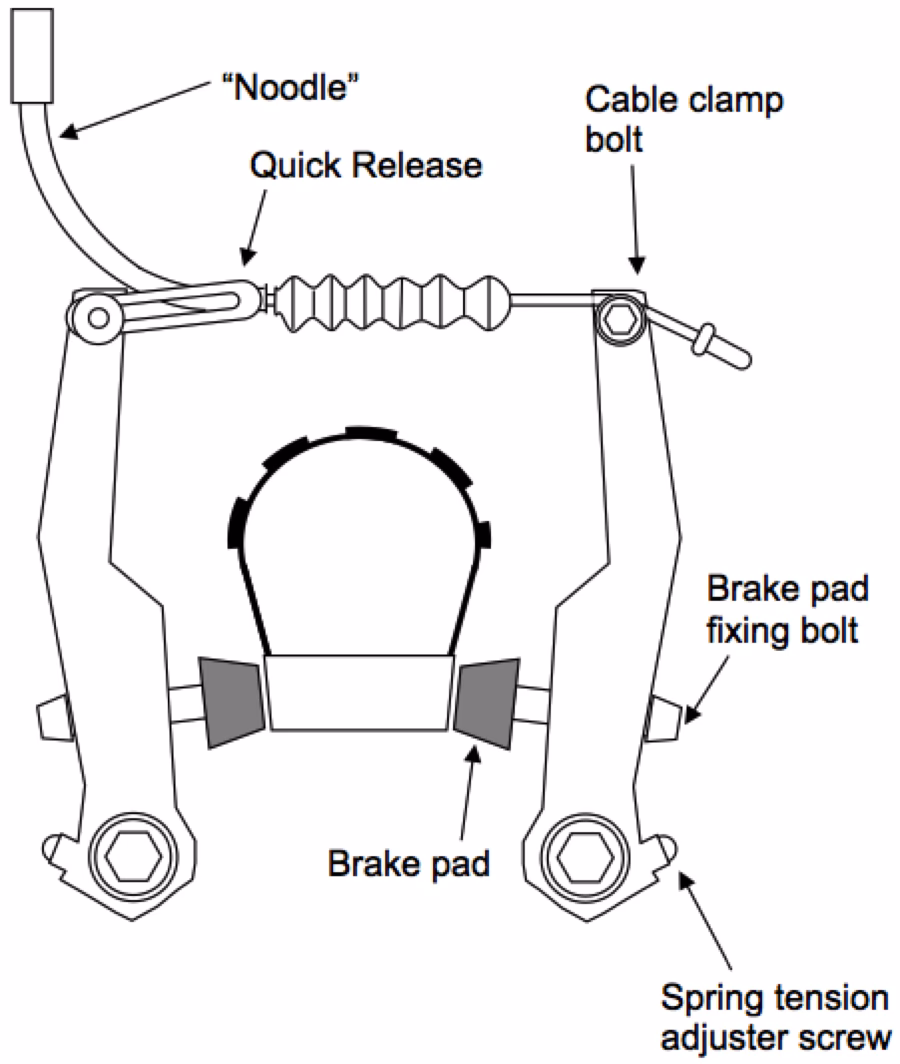

Pad Placement: The Art of Alignment

Properly positioning your V-brake pads is critical for optimal contact with the rim and preventing interference with the tyre.

The 5mm Fitting

Each V-brake pad is typically secured by a 5mm bolt on the back. This bolt passes through a stack of conical washers, which allow for precise adjustment of the pad's angle, offering up to 20 degrees of pivot. This adjustability is key to achieving perfect alignment.

Alignment Technique

A simple yet effective method for aligning the pads involves using your finger as a guide. Hold the brake arm steady (you might need to gently squeeze the brake lever to do this) and place your index finger along the bottom edge of the brake pad. Use your 5mm hex wrench to loosen the retaining bolt. With your finger acting as a guide against the rim's edge, carefully pivot the brake pad until it is centred relative to the rim's braking surface. The goal is to ensure the pad makes full contact with the rim's face without touching the tyre or any part of the rim missing the braking track. The pad should be parallel to the rim's surface.

Centering Your V-Brakes

Once the pads are correctly positioned, the next step is to centre the entire brake assembly. This ensures that both brake arms retract equally when the lever is released and apply pressure evenly.

The Role of Set Screws

Centering is achieved by adjusting small set screws located at the base of each brake arm. These screws control the tension of the return springs. To begin, identify the brake arm with the most available adjustment – this is usually indicated by how far in or out the set screw is already turned. You can fine-tune the spring tension by screwing these set screws in or out. A crucial point to remember is that tightening the set screw (turning it clockwise) moves the brake pad away from the rim, effectively increasing spring tension on that side. Conversely, loosening it moves the pad closer. Adjust both sides until the pads are equidistant from the rim when the brake is not applied.

Cable Tension: The Final Touch

With the pads aligned and the brakes centred, the final critical adjustment is cable tension. This determines how much lever travel is needed to engage the brakes effectively.

Achieving Optimal Tension

Start by positioning the end of the brake noodle into the cradle on the brake arm. Loosen the cable pinch bolt, which secures the brake cable to the arm. Firmly pull the brake cable taut – you want enough tension so that when you release the lever, the pads are close to the rim but not touching. A good starting point is to have the brake pads about 1-2mm away from the rim. Once the cable is pulled tight, securely tighten the cable pinch bolt. Finally, re-seat the noodle correctly into its cradle. Test the brake lever; it should feel firm and engage the brakes well before the lever reaches the handlebar.

Troubleshooting Common V-Brake Issues

Even after careful adjustment, you might encounter a few common V-brake problems. * Squealing or Grinding Noises: This is often caused by contaminated brake pads or rims, misaligned pads, or worn-out pads. Try cleaning the rim and pad surfaces with isopropyl alcohol. Ensure the pads are perfectly aligned and not catching the tyre. If the noise persists, consider replacing the brake pads. * Lack of Stopping Power: This can be due to loose cable tension, worn-out brake pads, or contaminated braking surfaces. Re-check your cable tension and adjust as needed. Inspect your pads for wear and replace them if necessary. Clean the rims and pads thoroughly. * Brakes Not Returning: If the brake arms don't retract fully after releasing the lever, check the centering set screws and ensure they are not over-tightened. Also, inspect the brake cable and housing for any binding or friction. Adjusting your V-brakes might seem daunting at first, but with a systematic approach and a little practice, it becomes a straightforward maintenance task. Regular checks and adjustments will not only ensure your safety but also enhance your riding experience, giving you the confidence to tackle any terrain.

Frequently Asked Questions (FAQs)

• Q: How often should I check my V-brakes?A: It's recommended to perform a visual inspection before every ride and a more thorough adjustment check every few months, or more frequently if you ride in wet or dirty conditions.
• Q: Can I use car brake cleaner on my bike rims?A: It's generally best to avoid automotive brake cleaners, as they can sometimes be too aggressive and damage rim coatings or anodizing. Isopropyl alcohol or a mild degreaser is usually sufficient.
• Q: My brake pads keep hitting the tyre. What's wrong?A: This typically indicates that the brake pads are misaligned or the wheel is out of true. Re-check your pad alignment and ensure the rim is straight.
• Q: What's the difference between V-brakes and caliper brakes?A: V-brakes are a type of cantilever brake that uses a wider cable spread, providing more power and better modulation. Caliper brakes, often found on road bikes, use a narrower cable spread and are typically mounted differently on the frame.
