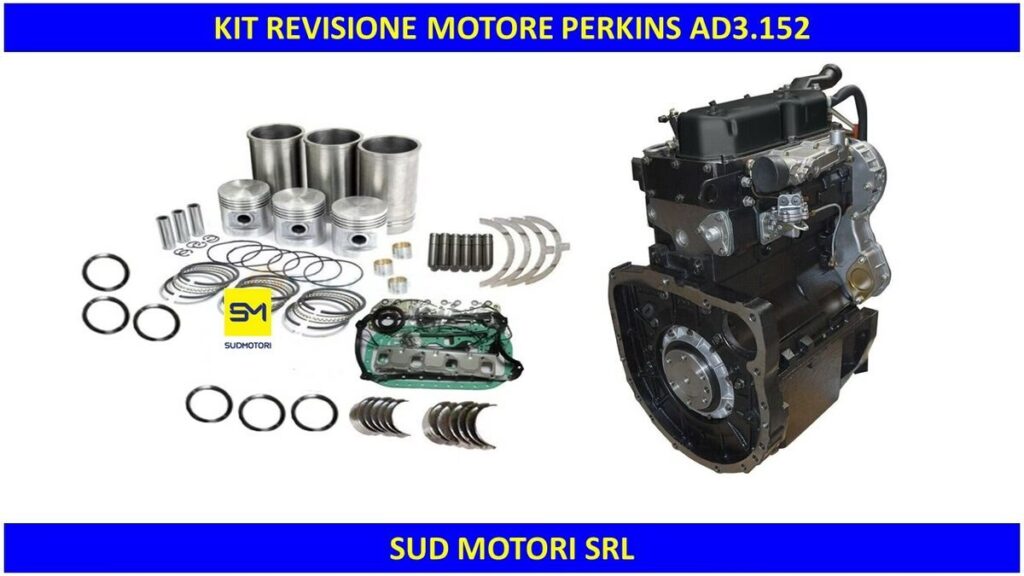

Perkins AD3.152 Rebuild Kit Contents

When it comes to maintaining the heart of your agricultural or industrial machinery, understanding the components of a rebuild kit is paramount. For owners of Massey Ferguson tractors and loader/backhoes equipped with the robust Perkins AD3.152 engine, a comprehensive rebuild kit can bring new life to your hardworking equipment. This guide delves into the specifics of what you can expect to find in a typical overhaul kit for the AD3.152, focusing on the direct injection diesel variant with a 5-ring piston, a common configuration for many popular models.

Understanding the Perkins AD3.152 Engine

The Perkins AD3.152 is a highly regarded 3-cylinder diesel engine, known for its reliability and durability across a wide range of applications. From powering the iconic Massey Ferguson 135 tractor to various industrial loader/backhoes and crawlers, this engine has proven its worth time and again. When an engine reaches a certain age or mileage, or if it has suffered a significant failure, an engine overhaul becomes a necessary procedure to restore its performance and extend its service life. A well-stocked rebuild kit is the foundation of a successful overhaul.

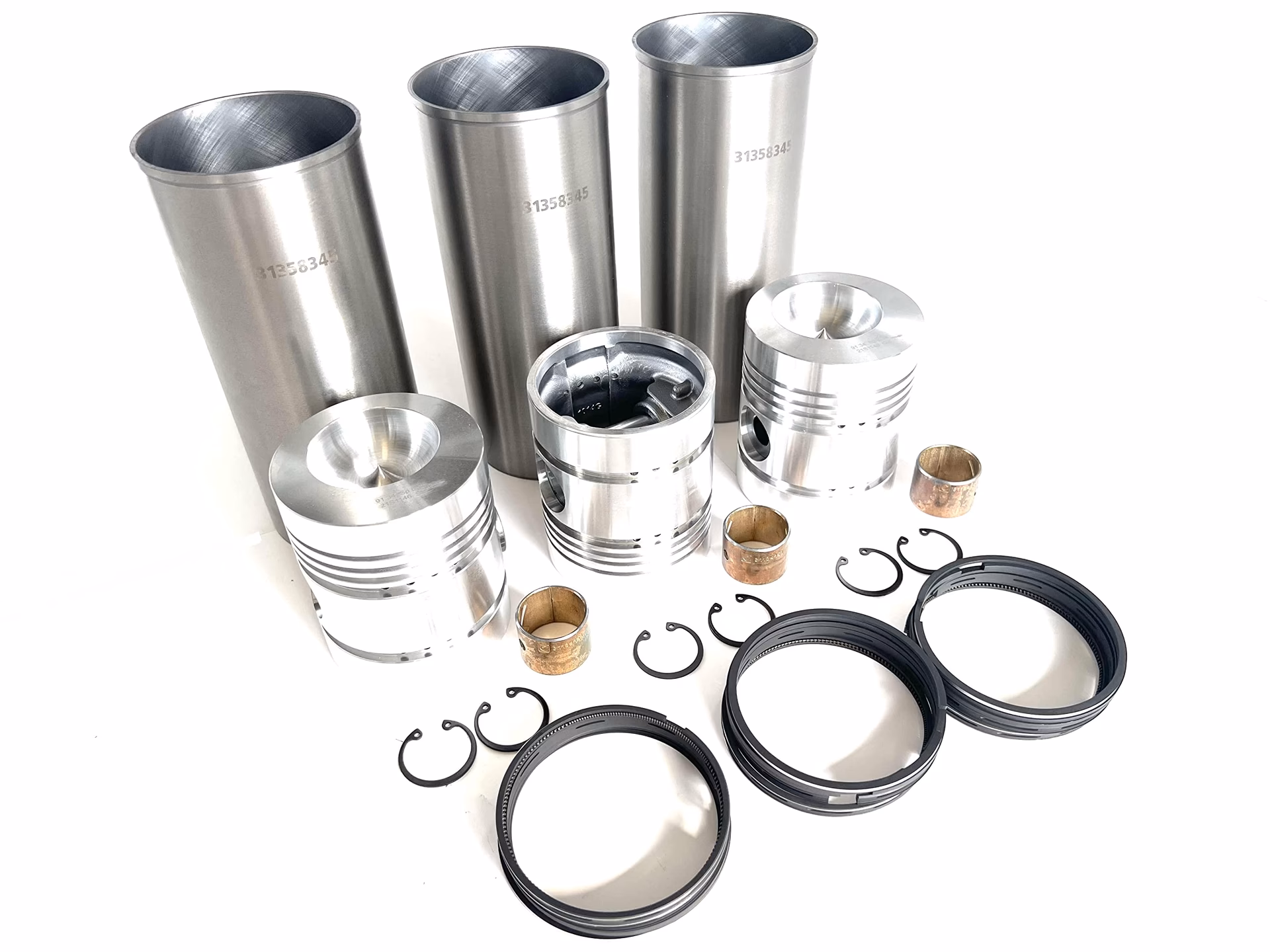

What's Inside a Typical AD3.152 Rebuild Kit (5-Ring Piston)?

The specific contents can vary slightly between manufacturers, but a comprehensive rebuild kit for a Perkins AD3.152 engine with a 5-ring piston will generally include the critical wear items needed to rebuild the core of the engine. Let's break down the essential components:

Pistons and Rings

The piston is the component that moves up and down within the cylinder, driven by the combustion of fuel. The rings, fitted into grooves on the piston, serve several vital functions: sealing the combustion chamber, regulating oil consumption, and transferring heat from the piston to the cylinder wall. A kit for the AD3.152 typically includes:

• (3) 5-Ring Pistons: These are precision-engineered pistons designed to fit the specific bore of the AD3.152 engine. The 5-ring configuration is a key identifier, distinguishing it from earlier or later designs.
• (3) Ring Sets: Each set contains the necessary compression and oil control rings to equip one piston. For a 5-ring piston, this means you'll receive five rings per cylinder, ensuring a tight seal and effective oil management.

Cylinder Liners

Cylinder liners are sleeves that form the inner walls of the engine cylinders. They are replaceable components that allow for easier and more cost-effective engine rebuilding. Instead of replacing the entire engine block, worn liners can be removed and new ones installed. In this kit, you'll find:

• (3) Finished Liners with 0.150" Flange: These liners are machined to precise specifications. The flange at the top of the liner helps to seat it correctly in the engine block. It's important to note that if you specifically require unfinished liners (which may offer a slightly different installation process or be preferred for certain machining procedures), these can sometimes be substituted upon request. Always confirm with your supplier if this is a critical requirement.

Connecting Rod Components

The connecting rod links the piston to the crankshaft, converting the linear motion of the piston into the rotational motion of the crankshaft. These components are subject to significant stress during operation.

• (3) Connecting Rod Bushings: These are small, hardened metal inserts that fit into the small end of the connecting rod, providing a bearing surface for the piston pin (gudgeon pin).
• (6) Connecting Rod Bolts & Nuts: These high-strength fasteners are used to secure the connecting rod caps to the connecting rods. They are critical for maintaining the integrity of the rotating assembly. It's important to use new, correctly torqued bolts and nuts during an overhaul.

Gasket Sets

Gaskets are essential for sealing the various components of the engine, preventing leaks of oil, coolant, and combustion gases. A comprehensive rebuild kit will provide the necessary gaskets for a complete engine assembly.

• (1) Top Gasket Set: This typically includes gaskets for the cylinder head, intake and exhaust manifolds, water pump, and other components located on the upper part of the engine.
• (1) Lower Gasket Set: This usually comprises gaskets for the oil pan, timing cover, rear main seal housing, and other parts found on the lower section of the engine.

Oil Seals

Oil seals are crucial for preventing lubricants from escaping the engine at points where rotating shafts exit the engine block, such as the crankshaft.

• (1) Front Crank Oil Seal: Located at the front of the crankshaft, where it connects to the crankshaft pulley and front pulley housing.
• (1) Rear Crank Rope Seal: This is a traditional rope-style seal found at the rear of the crankshaft, sealing against the flywheel housing.
• (1) Rear Crank Lip Seal: Some later or specific variants might use a lip seal instead of, or in addition to, a rope seal. It's important to identify which type your engine uses.

What's Typically NOT Included in a Rebuild Kit?

It's equally important to know what might be missing from a standard rebuild kit so you can plan your purchase accordingly. The kit described does not typically include:

• Rod Bearings (Big End Bearings): These are the bearings that sit between the connecting rod and the crankshaft journals.
• Main Bearings: These support the crankshaft within the engine block.
• Thrust Bearings: These manage the axial (end-to-end) movement of the crankshaft.
• Valves, Valve Guides, and Valve Springs: These are the components that control the flow of air, fuel, and exhaust gases into and out of the combustion chamber.

These critical components are often sold separately or as part of a more comprehensive "in-frame" or "out-of-frame" overhaul kit, depending on the extent of the rebuild required. It is highly recommended to inspect these parts thoroughly during the overhaul process and replace them as needed.

Confirming Fitment: Crucial Steps

Ensuring you have the correct kit for your specific Perkins AD3.152 engine is vital. The engine block casting numbers and specific engine identification (ID) codes are key to accurate part selection. For the AD3.152, pay close attention to the engine ID:

• Early Style (Starting with 152): If your engine ID begins with '152', you must check the ending. If it ends in 'D' or 'DL', this kit is likely correct. If it ends in 'DS' or 'DLS', you will need a kit designed for a 4-ring piston.
• Later Style (Starting with CE): If your engine ID starts with 'CE', it's advisable to contact your supplier with the complete engine ID. They can cross-reference this information to confirm the exact specification and ensure you receive the correct components.

Always double-check your engine's identification plate before ordering. Incorrect parts can lead to costly delays and further damage.

Applications of the AD3.152 Engine

This particular rebuild kit, designed for the 5-ring piston variant, is commonly found in a range of popular machinery:

Massey Ferguson Agricultural Tractors:

• MF 135
• MF 150
• MF 230
• MF 235 (early models)
• MF 240
• MF 250 (specifically with engine build CE22488U)

Massey Ferguson Industrial / Construction Equipment:

• MF 20, 40
• MF 200 / 2244 Crawler
• MF 203, 205
• MF 2135
• MF 2200 / 2500 Forklift
• Other industrial applications that utilise the 5-ring piston variant of the AD3.152 engine.

Where to Find Perkins Engine Parts

When embarking on an engine overhaul, sourcing high-quality replacement parts is essential. Specialist suppliers of agricultural and industrial machinery parts are your best bet. Many offer comprehensive catalogues, both online and in print, detailing a vast array of Perkins engine components. You can find individual parts like liners, oil seals, bushes, pistons, ring sets, and complete gasket sets, allowing you to tailor your rebuild precisely to your needs. Reputable brands like Sparex are known for providing reliable aftermarket parts that meet or exceed OEM specifications.

The Importance of a Professional Rebuild

While a rebuild kit contains the essential parts, a successful engine overhaul requires more than just new components. It demands meticulous cleaning, precise machining of the block and crankshaft (if necessary), careful measurement, and adherence to torque specifications. If you are not experienced in engine rebuilding, it is highly recommended to entrust the task to a qualified mechanic. They will have the specialised tools and expertise to ensure the job is done correctly, guaranteeing the longevity and optimal performance of your Perkins engine.

Frequently Asked Questions

Q1: How do I know if my AD3.152 has 4 or 5-ring pistons?

A1: The easiest way is to check your engine's identification plate. Engines with IDs starting in '152' and ending in 'DS' or 'DLS' typically use 4-ring pistons. Those ending in 'D' or 'DL' often use 5-ring pistons. If your ID starts with 'CE', you'll need to confirm with the supplier using the full ID.

Q2: Can I use a 4-ring piston kit on an engine that requires 5-ring pistons?

A2: No, you cannot interchange piston types. The bore, compression ratio, and ring groove configuration are specific. Using the wrong piston type will lead to improper sealing, poor performance, and potentially catastrophic engine damage.

Q3: Does the kit include the crankshaft or camshaft?

A3: No, standard rebuild kits do not include major rotating or valvetrain components like the crankshaft, camshaft, connecting rods, or cylinder head. These are typically inspected, measured, and replaced separately if they are worn or damaged.

Q4: What is the advantage of a finished liner over an unfinished liner?

A4: Finished liners are machined to their final dimensions and surface finish at the factory. This typically means they are ready for installation without further machining. Unfinished liners require honing or boring to achieve the correct size and finish, which is done after installation into the engine block by a machine shop. The choice often depends on the machinist's preference and the condition of the block.

Q5: Where can I find my engine ID number?

A5: The engine ID number is usually stamped or cast onto a metal plate affixed to the engine block itself. Common locations include the side of the engine, near the injection pump, or on a tag attached to the timing cover. Consult your tractor's service manual for the exact location on your specific model.

Investing in a quality rebuild kit for your Perkins AD3.152 engine is a crucial step towards a successful and lasting engine overhaul. By understanding the contents and confirming fitment, you can ensure your machinery continues to operate efficiently for years to come.
