Structural Car Repairs: The UK Acceptability Guide

When it comes to vehicle repair, particularly concerning the structural integrity of your car, understanding the acceptable methods is not just about aesthetics; it's fundamentally about safety and compliance with UK MOT regulations. A poorly executed structural repair can compromise the vehicle's crashworthiness, handling, and overall longevity, putting you and other road users at risk. This guide delves into the specifics of patch panel repairs, distinguishing between what is deemed acceptable by the authorities and what is strictly forbidden for load-bearing members of your vehicle.

The critical takeaway is that any repair to a structural component must be carried out to a standard that ensures it is as strong, if not stronger, than the original structure. This necessitates the use of appropriate materials and techniques, ensuring that any new plating or welding extends to a sound, undamaged part of the load-bearing member. Simply put, there's a strict rulebook to follow, and deviating from it can lead to an MOT failure and, more importantly, a hazardous vehicle.

The Cornerstone of Repair: Continuous Seam Welding

For most patch repairs on structural components, the requirement is clear and unambiguous: they must be continuously seam welded. This method involves creating a continuous, unbroken weld along the entire joint between the new patch panel and the existing structure. The objective is to achieve a completely sealed and robust connection that replicates the strength and rigidity of the original factory join. Unlike intermittent welds, a continuous seam weld distributes stress evenly, preventing potential weak points where cracks could form or corrosion could initiate.

This method is preferred because it offers superior strength, rigidity, and resistance to fatigue, all vital for components that endure constant stress and vibration. It ensures that the repaired section acts as an integral part of the vehicle's chassis, maintaining its designed crumple zones and overall structural integrity in the event of an impact.

Beyond the Seam: Spot, Stitch, and Plug Welding

While continuous seam welding is often the default, other welding techniques have their place under specific conditions:

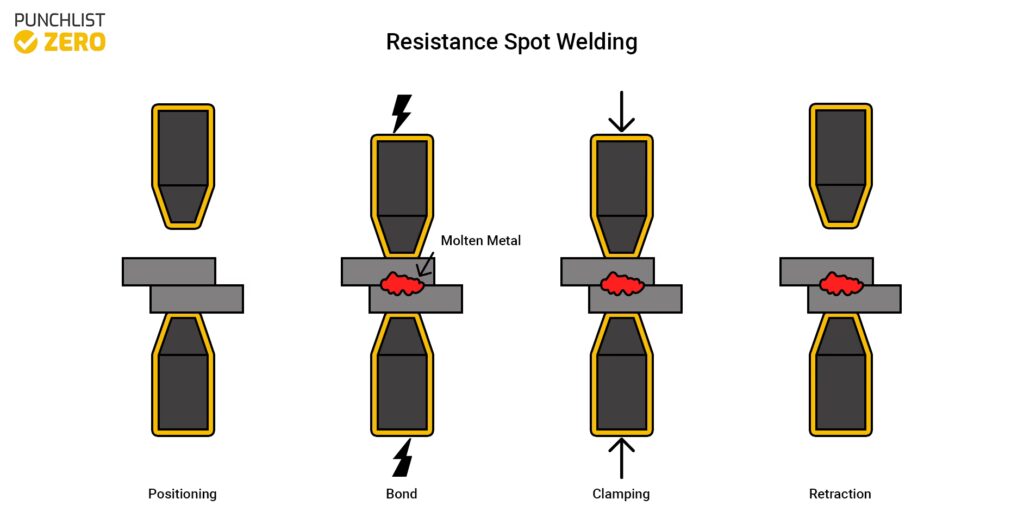

• Spot Welded Repairs: These are acceptable only if the original panel was initially spot welded and the entire original panel or section has been completely removed. The idea here is to replicate the original manufacturing process as closely as possible. It's not about adding a patch over a spot-welded area, but rather replacing a spot-welded section with a new one, also spot welded.
• Stitch or Plug Welding: In scenarios where spot welding would typically be used, stitch or plug welding can be employed as an alternative.

These methods involve creating a series of individual welds rather than a continuous bead. Plug welding, for instance, involves drilling holes in the new panel, then welding through these holes to the underlying panel, essentially creating a 'plug' of weld metal. Stitch welding is a series of short, intermittent welds. While not continuously sealed, these methods, when applied correctly in the right context, can provide adequate strength for non-continuously stressed areas or where they mimic original manufacturing.

Embracing Innovation: Manufacturer-Recommended Methods

The automotive industry is constantly evolving, and so are repair techniques. Some vehicle manufacturers have developed and recommended specific repair methods that deviate from traditional welding. These often involve a combination of advanced techniques:

• MIG Brazing: This process uses a filler metal that melts at a lower temperature than the base metal, creating a strong, clean bond with less heat distortion. It's particularly useful for joining high-strength steels that are sensitive to the heat of traditional welding.
• Adhesive Bonding and Riveting: Modern vehicles increasingly use structural adhesives in conjunction with mechanical fasteners like rivets. This combination provides excellent strength and rigidity, often surpassing traditional welding for certain applications, especially on modern lightweight alloys and composite materials.
• Amalgamations of Joining Methods: It's not uncommon for manufacturers to recommend complex repair procedures that combine several joining methods to achieve the desired structural integrity.

Crucially, these methods are acceptable for structural repairs *only if* they are explicitly recommended by the vehicle manufacturer and are applied according to their specifications. The onus is on the repairer to demonstrate that the method used is approved and that the repair is clearly not inadequate. If the manufacturer specifies it, and it's done correctly, it's generally good to go.

The Forbidden List: Unacceptable Repair Methods for Load-Bearing Members

Just as there are acceptable methods, there's a definitive list of processes that are strictly forbidden for repairs to load-bearing members. These methods are deemed insufficient to guarantee the required strength and durability, posing significant safety risks:

• Gas Brazing: While brazing can create a strong joint, gas brazing typically involves lower temperatures and a different metallurgical bond than welding. For structural components, it simply doesn't provide the necessary shear strength or fatigue resistance required to withstand the forces a vehicle experiences. The heat input can also weaken surrounding material without achieving a full fusion bond.
• Soldering: This process uses a filler metal with an even lower melting point than brazing, creating a much weaker joint. Soldering is entirely unsuitable for any load-bearing application on a vehicle due to its minimal strength and susceptibility to vibration and stress.
• Adhesive Bonding (Standalone): While adhesive bonding is part of modern manufacturer-approved methods, using it as a standalone repair without the specified combination of riveting or other mechanical fasteners is generally unacceptable for structural components. Adhesives require very specific surface preparation, curing conditions, and joint designs to achieve their full strength, and without manufacturer backing or mechanical reinforcement, their long-term reliability in structural roles is questionable.
• Fibre Reinforcement: Methods involving fibre-reinforced resins (like fibreglass or carbon fibre patches) are not considered suitable for repairing metallic structural components. While strong in tension, they lack the stiffness, impact resistance, and long-term durability required for vehicle chassis components and cannot replicate the original metallic structure's properties. They may also conceal underlying damage rather than truly repairing it.
• Body Filler: This is a cosmetic material designed to smooth out imperfections. It has no structural properties whatsoever. Using body filler to bridge gaps, cover rust holes, or provide structural support on a load-bearing member is completely unacceptable and dangerously misleading. It will crack, absorb moisture, and offers absolutely no structural reinforcement.

If the method of repair cannot be determined, the general guidance is to accept the repair but inform the vehicle presenter. However, if any of these explicitly unacceptable methods are clearly identified on a load-bearing component, the repair will lead to an MOT failure.

Understanding 'Load-Bearing Members'

What exactly constitutes a 'load-bearing member'? These are the crucial components of your vehicle's chassis or monocoque structure that are designed to withstand the forces of driving, braking, cornering, and most importantly, impact. Examples include:

• Chassis rails
• Sills (inner and outer)
• Crossmembers
• Suspension mounting points
• Floor pans (especially in areas connecting to other structural elements)
• Pillars (A, B, C, D)
• Seat belt anchorages
• Body components that form part of the vehicle's safety cage

A repair to any of these components must meet the highest standards to ensure the vehicle's overall safety and performance.

The Importance of Skilled Execution

Even with an acceptable method, the quality of the repair hinges entirely on the skill and expertise of the technician. A continuous seam weld, for example, must be free from porosity, lack of fusion, and undercut. It must penetrate adequately and be applied to properly prepared, clean metal. Similarly, manufacturer-approved adhesive bonding requires precise mixing, application, and curing. A shoddy repair, regardless of the method, is a dangerous one.

Comparative Overview of Repair Methods for Structural Components

Frequently Asked Questions (FAQs)

Q1: What exactly qualifies as a 'structural component' for MOT purposes?

A1: Structural components are parts of the vehicle's chassis or monocoque body that are essential for maintaining its overall strength, rigidity, and crash protection. This includes areas like chassis rails, sills, suspension mounting points, subframe attachment points, floor pans (particularly where they connect to other structural elements), and body pillars (A, B, C, D posts). If a part contributes significantly to the vehicle's ability to resist forces or protect occupants in a collision, it's likely structural.

Q2: Can I use body filler on a structural repair if I've already welded it?

A2: Body filler is purely for cosmetic finishing. While it's acceptable to use a thin layer of filler over a properly welded structural repair to smooth the surface, it must not be used to bridge gaps, cover up poor welding, or provide any form of structural integrity itself. The underlying repair must be structurally sound without any reliance on the filler. Any significant amount of filler on a structural area might raise suspicion during an MOT.

Q3: Is MIG brazing always acceptable for structural repairs?

A3: MIG brazing is only acceptable for structural repairs if it is explicitly recommended by the vehicle manufacturer for that specific repair. It's an advanced technique that offers advantages for certain modern materials, but its use must align with the manufacturer's approved repair procedures to ensure the repair's long-term integrity and compliance.

Q4: What if my car manufacturer recommends a repair method not listed here?

A4: If a vehicle manufacturer recommends a specific repair method that isn't explicitly listed as 'acceptable' or 'unacceptable' in general guidance, it is generally considered acceptable, provided it is carried out strictly according to the manufacturer's detailed instructions and appears to be as strong as the original structure. Manufacturer recommendations often account for specific vehicle designs and materials. Always refer to official manufacturer repair manuals.

Q5: What happens if an unacceptable repair is found on my car during an MOT?

A5: If an unacceptable repair method (such as gas brazing, soldering, or the use of body filler for structural purposes) is detected on a load-bearing member during an MOT, your vehicle will fail the test. The repair will need to be rectified using an approved method before the vehicle can pass its MOT and be deemed roadworthy. This is a critical safety issue and should be addressed immediately by a qualified professional.

Q6: How can I tell if a repair is adequate or likely to pass an MOT?

A6: For the average car owner, visually assessing the adequacy of a structural repair can be challenging. Look for signs of proper welding (smooth, consistent beads, no obvious gaps or holes), good panel alignment, and the absence of excessive body filler. The best way to ensure an adequate repair is to use a reputable garage or body shop that specialises in structural repairs and adheres to industry standards and manufacturer guidelines. Always ask for documentation of the repair process if you are unsure.

Final Thoughts on Safety and Compliance

The rules and regulations surrounding structural vehicle repairs are in place for one paramount reason: safety. A car's structural integrity is its primary defence against impact, and any compromise in this area can have catastrophic consequences. Whether you're undertaking a DIY project or entrusting your vehicle to a professional, it is imperative to understand and adhere to these guidelines. Always prioritise safety, use approved methods, and when in doubt, consult with a qualified automotive repair specialist. Ensuring your vehicle meets MOT standards is not just a legal requirement; it's a commitment to your safety and the safety of everyone on the road.
