When to Replace Your AC Compressor Clutch

html

The air conditioning system in your vehicle is responsible for keeping you cool and comfortable, especially during those sweltering summer months. At the heart of this system lies the AC compressor, and a crucial component that allows it to function is the compressor clutch. This electromagnetic device engages and disengages the compressor pulley, allowing the AC system to operate only when needed, thus saving fuel and reducing wear. Understanding when this vital part requires replacement is key to maintaining your vehicle's climate control.

Understanding the AC Compressor Clutch

The AC compressor clutch is an electromagnetic device. When the air conditioning system is activated, an electrical signal is sent to the clutch. This signal energizes a coil within the clutch, creating a magnetic field. This magnetic field attracts a pressure plate, which is connected to the compressor shaft. When the plate is pulled in, it locks the pulley to the compressor shaft, and the compressor begins to spin, circulating refrigerant. When the AC system is turned off, or when certain sensors detect issues, the electrical signal is cut, the magnetic field dissipates, and the clutch disengages, allowing the pulley to spin freely without driving the compressor.

When Should a Compressor Clutch Be Replaced?

Several symptoms can indicate that your AC compressor clutch is failing or has failed and requires replacement. The most common indicators revolve around the AC system's performance and the clutch's engagement.

1. The AC System Fails to Blow Cold Air

This is often the most obvious sign. If you've turned on your air conditioning and are only receiving warm or ambient air, a faulty compressor clutch could be the culprit. If there is sufficient refrigerant in the system and the electrical components leading to the clutch are functioning correctly, the lack of cooling points towards a problem with the clutch itself or the compressor it's attached to.

2. The Clutch Does Not Engage

A properly functioning compressor clutch should engage (you might hear a distinct 'click' sound) when the AC is switched on and the system conditions are met. If you turn on the AC and hear no such sound, and the compressor pulley is not spinning, the clutch may not be engaging. This can happen due to a failed coil, a burnt-out electrical connection, or a problem with the engagement mechanism itself.

Crucially, if there is power to the clutch, but the clutch will not engage, the clutch or compressor must be replaced. This indicates that the electromagnetic coil within the clutch is likely burnt out or the internal components have seized, preventing it from attracting the pressure plate.

3. The Clutch Will Not Disengage

Conversely, a clutch that will not disengage is also a problem. This means that even when the AC is turned off, the compressor pulley continues to spin. This can lead to unnecessary wear on the compressor and can also drain your vehicle's battery if the compressor is constantly running.

However, if there is no power to the clutch, yet the clutch will not disengage, the clutch or compressor will be replaced as well. This scenario is less common but can occur if the internal components of the clutch are physically stuck or damaged, preventing the pressure plate from retracting from the pulley.

4. Unusual Noises

A failing clutch can sometimes produce unusual noises. This might include grinding, squealing, or rattling sounds that occur when the AC is on or when the engine is running. These noises often stem from worn bearings within the clutch assembly or from the pressure plate not engaging smoothly.

5. Visual Inspection

In some cases, a visual inspection might reveal issues. Look for signs of burning or melting on the clutch assembly, particularly around the electrical connector. Damaged or worn-out clutch facings can also be a sign of a problem.

How Are Air Conditioning Compressor Clutch Assemblies Replaced?

Replacing an AC compressor clutch assembly is a moderately complex task that typically requires specialized tools and knowledge of automotive AC systems. It's often recommended to have this work performed by a qualified mechanic. However, understanding the process can be beneficial.

1. Recovery of Refrigerant

Before any work can be done on the AC system, the refrigerant must be safely recovered using a certified recovery machine. Venting refrigerant into the atmosphere is harmful to the environment and illegal.

2. Belt Removal

The serpentine belt or V-belt that drives the AC compressor pulley will need to be removed. This typically involves releasing tension on the belt using a tensioner tool.

3. Clutch Assembly Removal

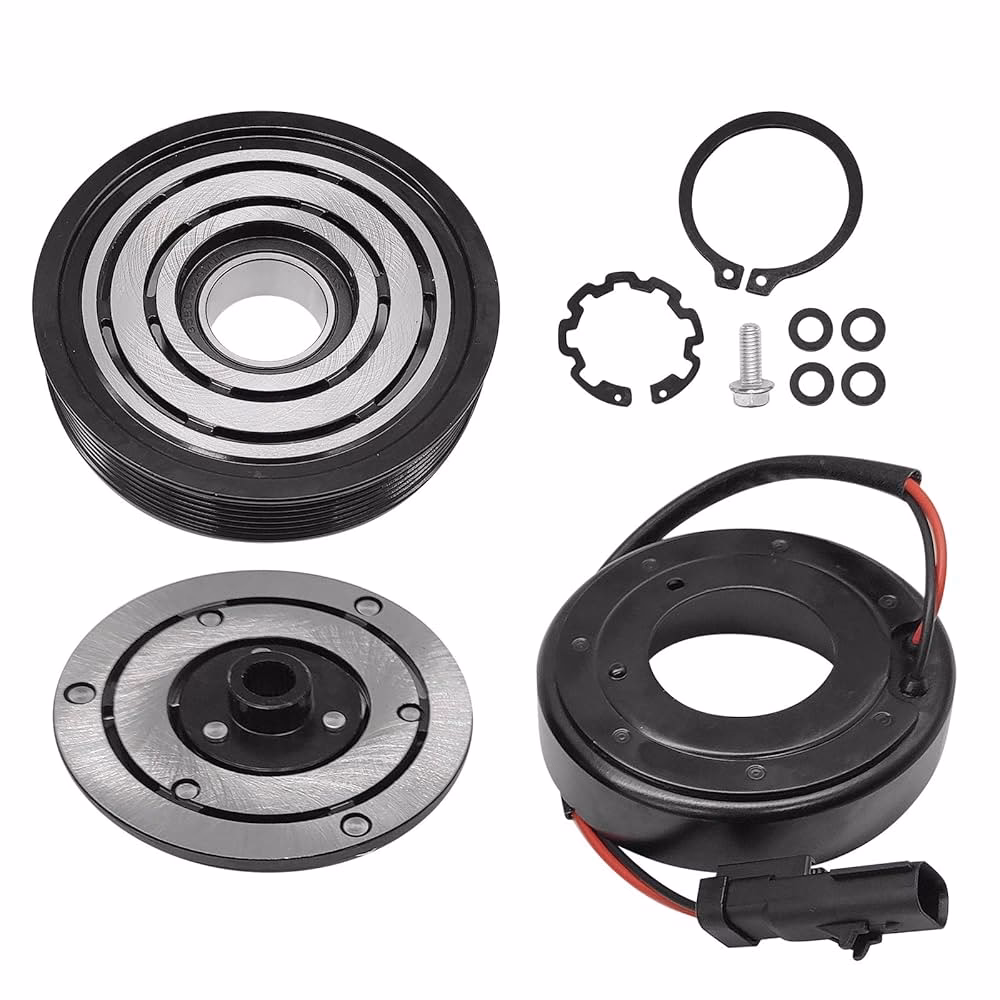

The clutch assembly typically consists of several parts: the pulley, the clutch coil, and the pressure plate.

• Pulley: The pulley is usually held in place by a large nut on the center shaft. This nut often requires a special tool to hold the pulley stationary while the nut is loosened.
• Clutch Coil: The coil is typically secured by several bolts that thread into the front of the compressor body. Once these bolts are removed, the coil can be pulled away. It's important to note if the coil has a shim behind it, as this shim is crucial for proper air gap adjustment.
• Pressure Plate: The pressure plate is usually held onto the shaft by a snap ring or a retaining clip. Once removed, the pressure plate can be slid off the shaft.

4. Installation of New Clutch Assembly

The process is reversed for installation:

• Pressure Plate: Slide the new pressure plate onto the compressor shaft and secure it with the snap ring or clip.
• Clutch Coil: Position the new coil onto the compressor body, ensuring any shims are correctly placed. Secure the coil with its bolts. The air gap between the pressure plate and the coil is critical for proper engagement. This gap is typically measured with feeler gauges and adjusted by adding or removing shims. The correct air gap is usually specified by the vehicle manufacturer.
• Pulley: Place the new pulley onto the compressor shaft and tighten the center nut securely.

5. Belt and Refrigerant Reinstallation

Reinstall the serpentine belt, ensuring it's properly tensioned. The AC system then needs to be evacuated (vacuumed) to remove any air and moisture, and then recharged with the correct amount of refrigerant and oil according to manufacturer specifications.

6. Testing

Finally, the AC system should be tested to ensure it is operating correctly and blowing cold air. Check for proper clutch engagement and disengagement.

Factors Affecting Clutch Lifespan

Several factors can influence how long your AC compressor clutch lasts:

• Usage: Frequent use of the AC system, especially in extreme climates, will naturally lead to more wear and tear.
• System Health: If the AC system has issues like low refrigerant, blockages, or over-pressurization, it can put extra strain on the compressor clutch, potentially shortening its life.
• Manufacturing Defects: While less common, manufacturing defects can cause premature failure.
• Environmental Factors: Exposure to road salt, moisture, and debris can contribute to corrosion and wear on the clutch components.

Preventative Measures

While a compressor clutch is a wear-and-tear item, some preventative measures can help prolong its life:

• Regular AC Servicing: Having your AC system checked periodically can identify potential issues before they impact the clutch.
• Proper Usage: Avoid running the AC on maximum settings for extended periods if not necessary.
• Cleanliness: Keeping the front of your engine bay clean can reduce the amount of debris that can reach the clutch assembly.

Frequently Asked Questions (FAQs)

Q1: Can I drive my car if the AC compressor clutch is broken?

A1: Yes, you can typically drive your car if the AC compressor clutch is broken. The AC system will simply not function, meaning you won't have cold air. However, if the clutch has seized and is causing the pulley to remain engaged, it could lead to the serpentine belt breaking or the compressor seizing, which would prevent the car from running. In such a case, it's best to avoid driving.

Q2: How much does it cost to replace an AC compressor clutch?

A2: The cost can vary significantly depending on the vehicle make and model, as well as your location and whether you use a dealership or an independent mechanic. Parts alone can range from £100 to £300, with labour adding another £200 to £600. It's always best to get a quote from a reputable garage.

Q3: Is it possible to replace just the clutch and not the entire compressor?

A3: Yes, in many cases, it is possible to replace just the clutch assembly (pulley, coil, and pressure plate) without needing to replace the entire AC compressor. This is often a more cost-effective solution if the compressor itself is still in good working order. However, if the compressor has been damaged due to the clutch failure, or if the clutch failure was a symptom of a larger compressor issue, then the entire compressor may need to be replaced.

Q4: What is the 'air gap' on an AC compressor clutch?

A4: The air gap is the small space between the clutch's pressure plate and the electromagnetic coil when the clutch is disengaged. This gap is critical for proper clutch operation. If the gap is too large, the magnetic field may not be strong enough to pull the pressure plate in, preventing engagement. If the gap is too small, the clutch may drag or not disengage fully, leading to premature wear or overheating. This gap is usually adjusted using shims during installation.

In conclusion, a malfunctioning AC compressor clutch can render your car's air conditioning useless. By understanding the symptoms of a failing clutch and knowing when it requires replacement, you can ensure your vehicle's climate control system remains in optimal condition, providing you with comfortable journeys regardless of the weather outside.
