AC Compressor Clutch: When to Replace

Should You Replace Your AC Compressor Clutch?

The air conditioning system in your vehicle is a complex network of components working in harmony to keep you cool on even the hottest days. At the heart of this system lies the AC compressor, and crucially, its clutch. This small but vital part acts as the gatekeeper, connecting the compressor to the engine's power source when the air conditioning is activated. Understanding its function, how it fails, and the signs that indicate a problem is essential for maintaining your car's comfort and preventing more serious damage.

When your car's air conditioning system is turned on, a signal is sent to the AC compressor clutch. This engagement allows the engine's serpentine belt to transfer rotational force to the compressor's driveshaft, initiating the process of cooling your cabin. Conversely, when the AC is switched off, the clutch disengages, decoupling the compressor from the engine and conserving power. This on-and-off cycling is normal operation. However, issues can arise, such as a clutch that engages and disengages rapidly, often a symptom of low refrigerant levels. This article will delve into the intricacies of the AC compressor clutch, covering its function, location, common failure points, diagnostic symptoms, and the implications for your wallet.

What Exactly is an AC Compressor Clutch?

The AC compressor clutch is a sophisticated electro-mechanical device responsible for the crucial task of connecting and disconnecting the AC compressor from the engine's crankshaft. Think of it as a sophisticated switch. When the driver activates the air conditioning, the system's control unit sends electrical power to the clutch. This power energises an electromagnetic coil within the clutch assembly. The resulting magnetic field pulls an armature plate, which is attached to the compressor's pulley, firmly against the clutch's friction disc. This engagement forces the compressor's internal components to spin in sync with the engine's serpentine belt, thereby compressing and circulating the refrigerant necessary for cooling.

The clutch's operation is meticulously managed by the vehicle's onboard computer, often in conjunction with pressure switches within the AC system. These pressure switches act as safety mechanisms, monitoring the refrigerant pressure. If the pressure becomes excessively high or too low, they signal the control unit to disengage the clutch, protecting the compressor and other sensitive components from damage. This precise control ensures the AC system operates efficiently and safely.

A properly functioning AC compressor clutch is paramount. It's not just about cool air; it's about the longevity of the entire AC system. A worn or damaged clutch can lead to a cascade of problems. For instance, if the clutch fails to engage, the compressor won't receive power, rendering your AC useless. Conversely, if it seizes or slips, it can cause excessive wear on the compressor itself, potentially leading to a much more expensive repair or replacement of the entire compressor unit. While it's sometimes possible to replace just the clutch assembly, many mechanics advise against this if the compressor shows signs of wear, as other internal components may also be nearing failure.

The Crucial Function of the AC Compressor Clutch

The primary function of the AC compressor clutch is to transmit the engine's rotational energy to the AC compressor only when needed. This selective engagement is vital for several reasons. Firstly, it prevents the compressor from running continuously, which would place an unnecessary and constant load on the engine. This load would directly translate to reduced fuel efficiency and increased wear on the engine's components. Secondly, by allowing the compressor to cycle on and off, the clutch helps to maintain the desired cabin temperature without overworking the system. This cycling action also contributes to the overall longevity of the AC system's parts, including the compressor itself.

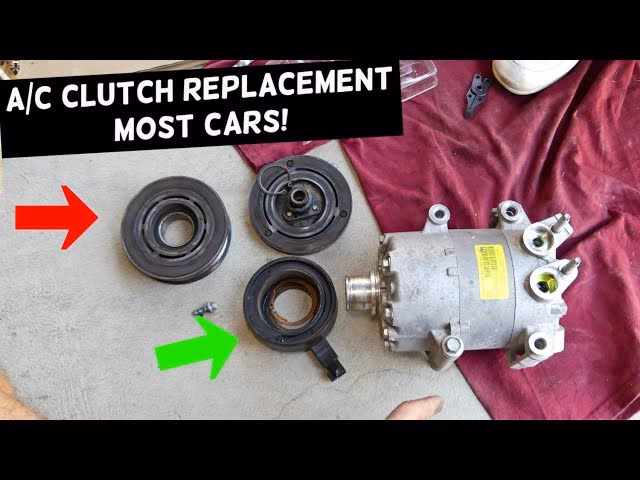

The clutch assembly typically consists of a friction disc, an electromagnetic coil, and an armature plate. When current flows through the coil, it generates a magnetic field. This field attracts the armature plate, which is mounted on the compressor shaft, towards the friction disc, which is connected to the pulley driven by the serpentine belt. The resulting friction between these surfaces causes the compressor shaft to spin along with the pulley. When the AC is switched off, the electrical current to the coil is interrupted, the magnetic field dissipates, and the armature plate springs back, disengaging the compressor. This elegant mechanism allows for efficient and controlled operation of your vehicle's air conditioning.

Locating Your AC Compressor Clutch

Pinpointing the AC compressor clutch is generally straightforward. It's situated at the very front of the AC compressor unit. The compressor itself is typically mounted towards the front of the engine bay and is driven by the serpentine belt, much like the alternator or power steering pump. The clutch is a distinct circular component mounted directly onto the compressor's pulley. You can often identify it by a central bolt or snap ring that secures it in place.

To get a clearer view, you might need to remove the serpentine belt. Once the belt is off, you'll be able to see the front face of the compressor pulley and the clutch assembly clearly. While the general location is consistent across most vehicles, the exact positioning of the compressor and its clutch can vary slightly depending on the make and model of your car. For precise identification, consulting your vehicle's owner's manual or a dedicated service manual is always the best course of action.

Common Reasons for AC Compressor Clutch Failure

Several factors can contribute to the demise of an AC compressor clutch. Understanding these common culprits can help in diagnosing and resolving AC issues:

Symptoms of a Failing AC Compressor Clutch

Recognising the signs of a failing AC compressor clutch is key to addressing the problem before it escalates. Be on the lookout for the following:

• Unusual Noises: A failing clutch can produce a range of noises. A high-pitched squeal or screech when the AC is turned on often indicates worn bearings or a slipping clutch. Grinding noises can suggest a seized bearing or internal component damage. A distinct clicking sound when engaging, followed by no rotation, is another common indicator.
• Reduced Cooling Performance: If your AC isn't blowing as cold as it used to, especially on warmer days, a faulty compressor clutch is a prime suspect. The clutch's inability to properly engage or maintain engagement means the compressor isn't circulating refrigerant effectively.
• Clutch Not Engaging: The most obvious sign is when the compressor clutch simply refuses to spin when the AC is turned on. You might see the pulley spinning, but the central clutch plate remains stationary. This indicates a failure in the electromagnetic engagement mechanism.
• Intermittent AC Operation: If your AC blows cold air one moment and warm the next, or if it cycles on and off erratically, it could be a sign of a clutch that's slipping or a low refrigerant charge causing rapid cycling.
• Refrigerant Leaks: While not a direct symptom of the clutch itself, a failing clutch can sometimes lead to damage to the compressor's front seal, resulting in refrigerant leakage. You might notice oily residue around the compressor.
• AC System Not Turning On or Off: A severely damaged clutch might seize, preventing the compressor from engaging at all. In rarer cases, a faulty clutch might fail to disengage, causing the compressor to run continuously, which can lead to overheating and damage to other AC components.

Why Won't My AC Compressor Clutch Engage?

Several issues can prevent your AC compressor clutch from engaging. Let's explore the most common:

• Incorrect Refrigerant Levels: Both too little and too much refrigerant can prevent engagement. Modern systems have pressure switches that will disable the clutch if the pressure is outside the operational range. Low pressure indicates a leak, while high pressure can result from overcharging or a blockage.
• Damaged or Worn Clutch: Like any mechanical component, the clutch itself can wear out. The friction material on the clutch plate can become thin, or the electromagnetic coil may fail, preventing it from generating the magnetic field needed for engagement.
• Faulty Pressure Switches: The high and low-pressure switches in the AC system are critical for clutch operation. If either of these switches fails or sends incorrect readings, it can stop the clutch from engaging, even if the refrigerant pressure is correct.
• Bad Electrical Connections: A loose, corroded, or broken wire, particularly the main power wire to the clutch, will prevent it from receiving the necessary voltage. This also includes issues with the AC clutch relay.
• Blown Fuse: The AC clutch circuit is protected by a fuse. If an electrical fault causes a surge in voltage, the fuse will blow to protect the system. A blown fuse will obviously prevent the clutch from engaging.
• Evaporator Coil Issues: While less common, a faulty or leaking evaporator coil can sometimes lead to the AC compressor clutch not engaging. This might be accompanied by hissing sounds or unusual odours from the vents.

Diagnosing an Unresponsive AC Compressor Clutch

To diagnose why your AC compressor clutch isn't engaging, follow these steps:

1. Visual Inspection: With the engine running and the AC set to maximum cooling, open the bonnet and locate the AC compressor. Observe the compressor pulley and the central clutch plate. If the pulley is spinning but the clutch plate is not, the clutch is not engaging.
2. Check the Belt: Ensure the serpentine belt is in good condition, properly tensioned, and not slipping on the compressor pulley. A worn or loose belt can prevent the pulley from turning the clutch.
3. Inspect Wiring: Examine the wiring connected to the AC compressor clutch. Look for any signs of damage, corrosion, or loose connections. Ensure the power wire is securely connected and in good condition.
4. Check Fuses and Relays: Consult your owner's manual to locate the fuse and relay for the AC compressor clutch. Visually inspect the fuse for a break in the filament. You can also test the relay using a multimeter or by swapping it with a known good relay of the same type.
5. Test Clutch Voltage: Using a multimeter, measure the voltage at the AC clutch connector with the AC system engaged. You should typically see around 12-14 volts. If there is no voltage, the problem lies upstream in the electrical circuit (e.g., pressure switches, control module, wiring). If voltage is present but the clutch doesn't engage, the clutch coil or the clutch itself is likely faulty.
6. Test Pressure Switches: You can test the high and low-pressure switches for proper operation, but this often requires a service manual for specific resistance or continuity values. An OBD-II scanner might also be able to read pressure sensor data on newer vehicles.

Fixing a Non-Engaging AC Compressor Clutch

Once you've diagnosed the issue, here's how to address it:

• Adjust Refrigerant Levels: If the refrigerant charge is incorrect, it needs to be corrected. This involves either adding refrigerant (if low) or recovering excess refrigerant (if overcharged). It's highly recommended to have this done by a qualified technician using proper equipment to avoid damage and environmental contamination.
• Repair or Replace Wiring: If you find damaged or corroded wiring or connectors, repair or replace them as necessary. Ensure all connections are clean and secure.
• Replace Blown Fuses: If a fuse is blown, replace it with a new one of the same amperage. If the fuse blows again immediately, there's a more significant electrical fault that needs to be investigated.
• Replace Faulty Pressure Switches: If a pressure switch is found to be faulty, it needs to be replaced.
• Replace the Clutch Assembly: If the clutch itself is worn or the coil has failed, the clutch assembly can be replaced. This is a more involved repair.
• Jump-Starting the Clutch (Advanced): In some diagnostic scenarios, a mechanic might temporarily bypass certain components to see if the clutch engages. This should only be attempted by experienced individuals with a proper understanding of the vehicle's electrical system, as incorrect wiring can cause further damage.

How Much Does an AC Compressor Clutch Replacement Cost?

The cost of replacing an AC compressor clutch can vary significantly based on several factors, including the make and model of your vehicle, the specific parts required, and your location. Generally, you can expect the cost to range from £200 to £600.

This estimate typically includes:

• Parts: The AC compressor clutch kit itself, which may include the clutch disc, coil, and bearing. In some cases, the entire compressor pulley might need replacement.
• Labour: The cost of labour will depend on the complexity of the job and the hourly rates of the mechanic or garage. Replacing just the clutch is usually less labour-intensive than replacing the entire compressor.

It's important to note that if the compressor itself has been damaged due to the clutch failure (e.g., seized bearings), the cost will be considerably higher, potentially ranging from £500 to £1500 or more for a complete compressor replacement. Always obtain multiple quotes from reputable garages to ensure you're getting a fair price.

Frequently Asked Questions (FAQs)

Q1: How do I know if my AC compressor clutch is bad?
Common signs include unusual noises (squealing, grinding, clicking), reduced cooling performance, the clutch not spinning when the AC is on, or intermittent AC operation. A visual inspection of the clutch engagement is often the most telling diagnostic step.

Q2: Is it worth replacing just the AC compressor clutch?
It can be worth it if the compressor unit itself is still in good working order. Replacing only the clutch is significantly cheaper than replacing the entire compressor. However, if the compressor has already suffered damage due to the clutch failure, replacing the whole unit might be more cost-effective in the long run.

Q3: What does the AC compressor clutch do?
It acts as an electromagnetic switch, connecting the engine's drive pulley to the AC compressor's internal mechanism. This allows the compressor to operate only when the air conditioning is turned on, thereby cooling the vehicle's cabin.

Q4: What causes AC compressor clutch failure?
Common causes include low refrigerant levels, electrical faults (wiring, relays, fuses), worn clutch components (friction material, coil), excessive dirt on the condenser, and overcharging the AC system.

Q5: Can I drive with a bad AC compressor clutch?
Yes, in most cases, you can drive your vehicle with a bad AC compressor clutch. The AC system simply won't function. However, if the clutch has seized, it can put a strain on the serpentine belt, potentially leading to belt failure and affecting other engine functions. It's best to get it repaired promptly.

Q6: What does a bad AC clutch sound like?
A bad AC clutch can produce various sounds, including a high-pitched squeal or screech (often from worn bearings), a grinding noise (indicating seized components), or a repetitive clicking sound if it's attempting to engage but failing.

Q7: Can a car run without an AC compressor?
Yes, a car can run perfectly fine without a functioning AC compressor. The compressor is an accessory component. As long as the serpentine belt is intact and the compressor isn't seized (which could cause belt failure), the engine will continue to operate normally.

Q8: How long should an AC compressor last?
The lifespan of an AC compressor can vary greatly depending on usage, climate, and maintenance. However, a well-maintained compressor can typically last anywhere from 8 to 15 years or around 100,000 to 150,000 miles.

Conclusion

The AC compressor clutch is an indispensable part of your vehicle's air conditioning system. Its ability to engage and disengage the compressor efficiently is crucial for both comfort and system longevity. By understanding the symptoms of a failing clutch, knowing its common causes, and being aware of the diagnostic and repair processes, you can ensure your AC system continues to provide cool, refreshing air. Regular inspections and prompt attention to any unusual noises or performance issues will help you avoid more costly repairs down the line and keep your journeys comfortable, no matter the outside temperature.
