Toyota A960E Manual: Your Gearbox Companion

For any dedicated technician or automotive enthusiast, having the right information at your fingertips is paramount, especially when tackling the intricate world of automatic transmissions. The Toyota A960E automatic transmission, a sophisticated 6-speed unit found in various popular Toyota and Lexus models, is no exception. Understanding its complexities and ensuring its longevity requires a reliable source of knowledge. This is where the Toyota A960E Transmission Repair Manual becomes an indispensable tool, serving as a comprehensive guide to servicing and repairing this particular gearbox.

This detailed workshop manual is meticulously crafted to provide in-depth information, ensuring that every step, from routine maintenance to complex overhauls, is performed with precision and accuracy. It’s not just a collection of instructions; it’s a blueprint for understanding the very heart of your vehicle's power delivery system. For those working on the 4GR-FSE engine models (2WD) where the A960E, also known as the 6 Super ECT (Electronic Controlled Transmission), is commonly found, this manual is the cornerstone of effective repair and maintenance.

Understanding the Toyota A960E Transmission Repair Manual

The Toyota A960E Transmission Repair Manual is far more than a simple instruction booklet; it’s a comprehensive guide designed to empower users with the knowledge needed to maintain and repair one of Toyota’s robust automatic transmissions. Its purpose is to demystify the inner workings of the A960E, providing clarity and actionable steps for a wide range of tasks.

Key Features and What They Offer

The manual is structured to cover every conceivable aspect of the A960E, making it an invaluable asset:

• Technical Information: This section delves into the core of the transmission, offering detailed specifications, construction diagrams, and explanations of its operating principles. Understanding how each component interacts and contributes to the overall function is crucial for effective diagnosis. Technicians gain insight into gear ratios, clutch pack configurations, and the hydraulic circuits that govern shifts, allowing for a deeper understanding beyond simple parts replacement.
• Disassembly and Assembly Procedures: Perhaps the most critical aspect for any hands-on repair, these step-by-step instructions are accompanied by detailed diagrams and illustrations. They guide technicians through every stage of taking the transmission apart and putting it back together, ensuring that components are removed and installed in the correct sequence and with the appropriate torque specifications. This level of detail minimises errors and enhances the efficiency of the repair process.
• Component Identification: With numerous intricate parts within an automatic transmission, accurate identification is key. The manual provides comprehensive charts and visual aids that allow users to easily identify and differentiate between various transmission components. This is particularly useful when sourcing replacement parts, ensuring the correct component is ordered and installed, preventing costly mistakes and rework.
• Maintenance and Adjustment Procedures: Regular maintenance is vital for the longevity of any transmission. This section outlines specific procedures for the A960E, including checking automatic transmission fluid (ATF) levels, adjusting shift linkages for optimal performance, and ensuring proper clutch operation. Adhering to these guidelines helps prevent premature wear and maintains the transmission's smooth operation.
• Troubleshooting and Diagnostic Procedures: When issues arise, the manual provides effective troubleshooting trees and diagnostic flowcharts. It offers insights into common symptoms—such as harsh shifts, slipping, or delayed engagement—and links them to potential causes. Recommended repair strategies are provided, enabling technicians to swiftly identify and rectify problems, saving time and effort.

The Toyota A960E Transmission Repair Manual is published in English, often available in PDF format, and typically encompasses around 20 pages of focused, practical information, making it accessible and straightforward for immediate reference.

Key Features of the A960E Manual

To summarise the utility of this essential guide, here's a quick overview:

Applications of the A960E Transmission

The A960E is a robust 6-speed automatic transmission designed to enhance both fuel economy and driving performance. Its versatility and reliability have led to its adoption in several notable Toyota and Lexus models, making the repair manual relevant for a specific range of vehicles. These include:

• 2006 Toyota Lexus GS 300
• 2007 Toyota Lexus IS 250
• 2012 – present Toyota 86/Scion FR-S/Subaru BRZ

The inclusion of a multi-mode automatic transmission with paddle shifters in some of these applications underscores the performance-oriented nature of the A960E, which, while offering an engaging driving experience, also introduces specific wear patterns that technicians need to be aware of.

Common Technical Issues and Repair Guidelines for the A960E

While the A960E is a durable transmission, like any complex mechanical system, it is subject to specific wear and tear, particularly under certain driving conditions. Understanding these common issues is crucial for timely diagnosis and repair, extending the lifespan of the gearbox significantly.

Torque Converter and Fluid Contamination

One of the most frequently encountered issues, especially with vehicles that utilise the sports mode or experience aggressive driving, is the accelerated wear of the torque converter friction material. This wear leads to several cascading problems:

• Friction Wear: The A960E's torque converter, unlike some multi-clutch designs, typically uses a single friction disc glued to the piston for its lock-up mechanism. When this friction wears out, it generates debris and adhesive components that contaminate the transmission fluid.
• Fluid Contamination: Contaminated fluid becomes less effective at lubricating and cooling, and the suspended particles can cause abrasive wear throughout the transmission. Critically, these contaminants can significantly impair the functionality of the valve body, leading to erratic shifting and engagement issues.
• Lack of Lock-up: A worn torque converter friction often results in a lack of proper lock-up, manifesting as excessive slip, increased engine RPM for a given speed, and reduced fuel economy. Timely diagnostics and replacement of the torque converter components are essential to prevent further damage.

Oil Pump Unit Vulnerabilities

Another common soft point in the A960E is the oil pump unit. Vibrations from a worn torque converter lock-up mechanism can transmit to the pump, causing damage:

• Pump Seal Leakage: A common symptom is a leaking oil pump seal. If neglected, this issue can quickly escalate.
• Bushing Wear: Persistent leakage and vibration can lead to wear of the pump bushing itself. Continued driving with a compromised pump can ultimately result in the complete failure of the oil pump, leading to a loss of hydraulic pressure and severe transmission malfunction. This problem is often accompanied by wear of the torque converter lock-up solenoid, which controls the lock-up mechanism.

Essential Parts for an A960E Overhaul

When an A960E transmission requires an overhaul, certain parts are almost universally replaced to ensure a complete and lasting repair. Proactive replacement of these components can dramatically increase the transmission's resource before another major service is needed.

• Kit of Gaskets and Seals (without pistons): After the frictions burn, all rubber seals are typically replaced. Contaminated fluid is a primary culprit for the wear of Teflon rings, which, if worn, further contribute to fluid contamination. Replacing these prevents future leaks and maintains hydraulic integrity.
• Kit of Frictions: These are the primary wear items in the clutch packs. Once they are burnt or excessively worn, they must be replaced to restore proper engagement and prevent slipping.
• Kit of Steel Discs: Working in conjunction with the friction discs, steel discs are also prone to wear and heat damage. Replacing them along with the frictions and the gasket/seal kit constitutes a comprehensive 'Masterkit' for a thorough rebuild.
• Pan Gasket: This is a consumable item that should be replaced every time the transmission pan is removed, such as during an ATF change or filter replacement, to ensure a leak-free seal.
• Torque Converter Rebuilding Parts: Given that torque converter components are often the first to exhaust their resource, rebuilding the converter is almost always implied when the valve body or solenoids are repaired. This includes replacing the friction material and any worn bearings or seals within the converter.

Complete and timely replacement of these spare parts can add up to 70% of increased resource before the next overhaul, highlighting the economic benefit of thorough repair.

Electrics in the A960E: Solenoids and Diagnostics

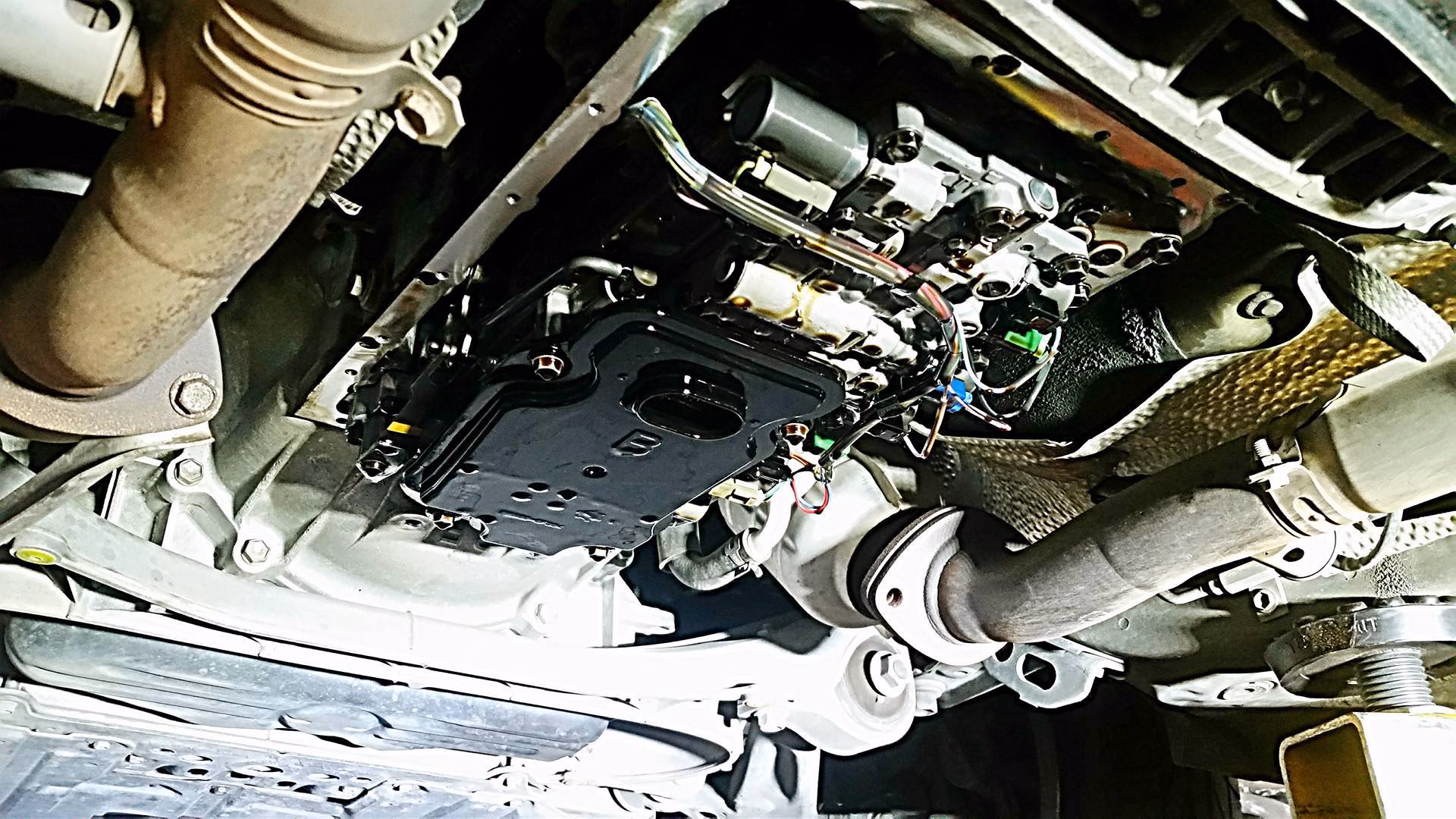

The electrical components play a vital role in the precise operation of the A960E. The rebuilding of an older A960 unit often necessitates the replacement of its linear solenoids. These solenoids are critical for regulating hydraulic pressure and controlling shift points.

• Solenoid Selection: It's crucial that the selection of solenoids for the A960 unit is performed in accordance with the vehicle’s VIN-code. This ensures compatibility and correct calibration, as there can be subtle variations between different production runs or vehicle specific tuning.
• Lack of Driver Feedback: A peculiar characteristic of this reliable 6-speed automatic transmission is that drivers often do not receive noticeable signals indicating the necessity to replace worn-out spare parts, particularly the torque converter friction and solenoids. This is especially true for those who frequently engage in aggressive accelerations or driving with the torque converter clutch in a 'slipping mode'. This lack of obvious symptoms means that regular, preventative diagnostics are even more important to catch issues before they lead to major failures.

Maintaining Your A960E: Fluid Checks and Refill

Proper transmission fluid levels and quality are fundamental to the A960E's health. The process for checking and refilling the fluid, specifically the WS type ATF, requires careful attention to detail.

How to Fill a Transmission Overflow Plug

The A960E, like many modern sealed transmissions, often uses an overflow plug method for setting the correct fluid level. This process is critical for ensuring the transmission operates efficiently and avoids damage from under or overfilling.

1. Raise the Vehicle and Keep it Level: It is imperative that the vehicle is raised on a lift or jack stands and maintained perfectly level. Any tilt will result in an inaccurate fluid level reading, leading to either under-filling or over-filling, both of which can cause significant transmission problems.
2. Remove the Refill Plug and Overflow Plug: Locate both the refill plug and the overflow plug on the transmission pan or casing. Remove both. The overflow plug is typically positioned lower than the refill plug, allowing excess fluid to drain once the correct level is reached.
3. Fill with WS Type ATF: Using a suitable pump or filler tool, begin to fill the transmission with the specified WS type ATF from the refill plug hole. Continue filling until the fluid begins to overflow steadily from the overflow plug hole. This indicates that the fluid level has reached the bottom of the overflow tube.
4. Install the Overflow Plug: Once the fluid starts to overflow, immediately install the overflow plug. This prevents further fluid loss and sets the level correctly.
5. Install the Refill Plug: After the overflow plug is secured, install the refill plug. Ensure both plugs are tightened to their manufacturer-specified torque settings to prevent leaks.

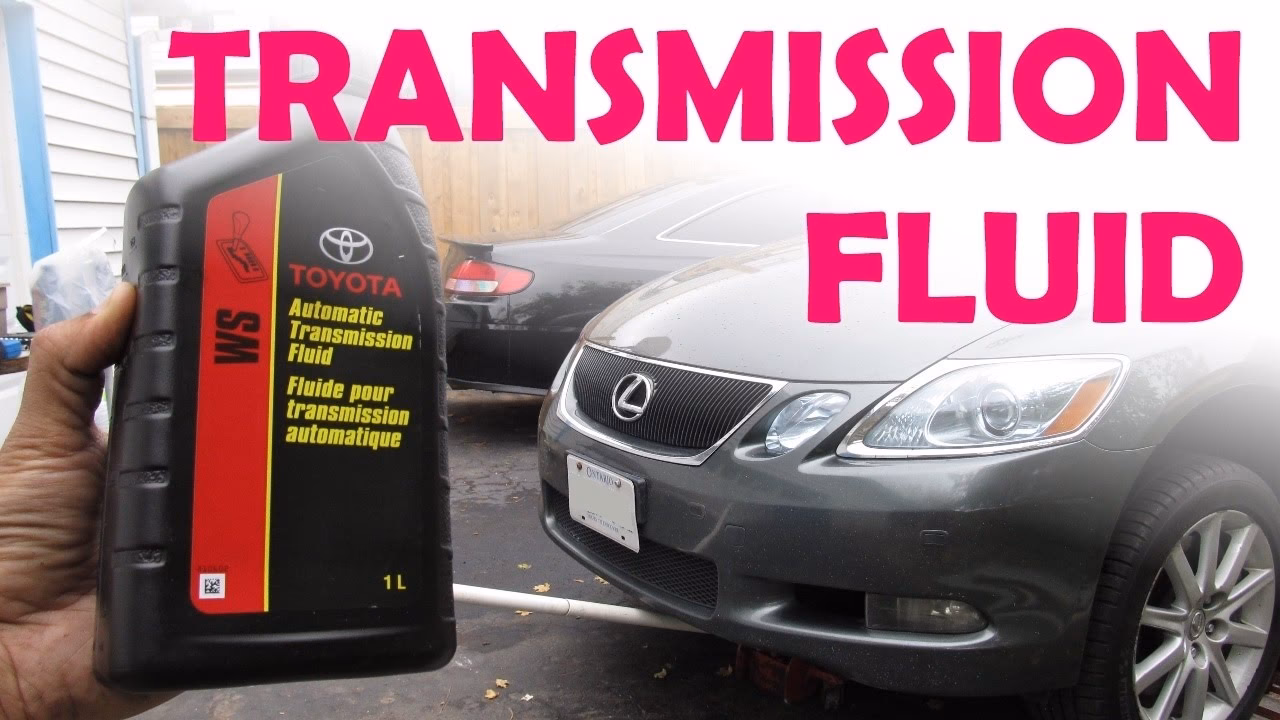

It's crucial to use only genuine Toyota WS type ATF. Using an incorrect fluid type can lead to severe damage to the transmission's internal components, including clutches, seals, and solenoids, as it may not provide the correct friction characteristics or lubrication properties required by the A960E.

Why a Genuine Repair Manual is Crucial

In an age where information is readily available, the value of a genuine, manufacturer-approved repair manual cannot be overstated. While free online resources like PDF versions of the Toyota A960E Transmission Repair Manual can provide a starting point, relying solely on unverified information carries risks. A proper workshop manual:

• Ensures Accuracy: It provides precise, factory-backed specifications and procedures, eliminating guesswork.
• Promotes Safety: It outlines necessary safety precautions, protecting both the technician and the vehicle.
• Saves Time and Money: By guiding accurate repairs, it prevents costly mistakes and rework, leading to more efficient service.
• Extends Transmission Life: Following proper maintenance and repair protocols ensures the longevity and optimal performance of the A960E.

It is important to note that while the manual is an invaluable guide, it assumes a certain level of technical expertise and familiarity with automatic transmissions. Technicians should always utilise this manual in conjunction with other relevant technical resources and adhere to appropriate safety precautions when working with the A960E transmission.

Frequently Asked Questions (FAQs)

What is the Toyota A960E transmission?

The Toyota A960E is a 6-speed automatic transmission (also known as 6 Super ECT) used in various Toyota and Lexus vehicles, primarily with the 4GR-FSE engine models (2WD). It's designed to improve both fuel economy and driving performance.

Which vehicles commonly use the A960E transmission?

The A960E can be found in models such as the 2006 Toyota Lexus GS 300, 2007 Toyota Lexus IS 250, and the 2012 – present Toyota 86/Scion FR-S/Subaru BRZ.

What are the most common problems associated with the A960E?

Common issues include wear of the torque converter friction, leading to fluid contamination and valve body problems, as well as oil pump seal leaks and bushing wear. Aggressive driving, especially in sports mode, can accelerate these issues.

How often should the A960E transmission fluid be checked or changed?

While Toyota often suggests 'lifetime' fluid, it's generally recommended to inspect the fluid level and condition regularly. Many experts advise changing the ATF every 60,000 to 100,000 miles, or more frequently if the vehicle is used for heavy-duty driving or in aggressive conditions. Always refer to your specific vehicle's owner's manual for recommended service intervals.

Can I repair the A960E transmission myself using the manual?

The manual provides detailed instructions, but repairing an automatic transmission like the A960E requires a high level of technical expertise, specialised tools, and a clean working environment. While enthusiasts can use it for guidance, complex repairs are generally best left to qualified professionals.

Where can I find the Toyota A960E Transmission Repair Manual?

Official repair manuals can be purchased from Toyota dealerships or authorised service information providers. Unofficial PDF versions are also sometimes available online, though their accuracy and completeness may vary. Always seek the most reliable source for critical repair information.

Conclusion

The Toyota A960E Transmission Repair Manual stands as a critical resource for anyone involved in the maintenance and repair of vehicles equipped with this particular automatic gearbox. With its rich technical information, precise disassembly and assembly procedures, comprehensive component identification charts, and robust troubleshooting guidelines, it provides the necessary roadmap for efficient and accurate transmission service. By understanding its intricacies and adhering to the detailed instructions within the manual, technicians and enthusiasts alike can ensure the longevity and optimal performance of the A960E, keeping these reliable transmissions running smoothly for miles to come. Investing in and utilising this manual is not just about fixing problems; it's about mastering the mechanics and preserving the integrity of a vital automotive component.
