UDS: The Backbone of Modern Vehicle Diagnostics

In the ever-evolving landscape of automotive engineering, the ability to effectively communicate with and diagnose a vehicle's myriad electronic control units (ECUs) is paramount. Modern vehicles are sophisticated networks of interconnected computers, each responsible for a specific function, from engine management and transmission control to infotainment and advanced driver-assistance systems (ADAS). Ensuring these systems operate optimally and can be efficiently serviced requires a robust and standardised communication protocol. This is where Unified Diagnostic Services (UDS), defined by the ISO 14229 standard, plays a absolutely critical role.

What Exactly is UDS (ISO 14229)?

Unified Diagnostic Services (UDS) is a diagnostic communication protocol that establishes a standardised method for interaction between diagnostic tools (often referred to as testers) and the various ECUs within a vehicle. At its core, UDS is designed to facilitate a comprehensive range of diagnostic tasks, including reading and clearing diagnostic trouble codes (DTCs), accessing live data, performing actuator tests, and, crucially, undertaking firmware flashing (also known as software updates or re-flashing). The protocol is built upon the higher layers of the Open Systems Interconnection (OSI) model, specifically the Application Layer, which allows for a rich and flexible set of diagnostic services to be defined and utilised. This layered approach ensures that UDS can be implemented over various underlying communication networks, such as CAN (Controller Area Network), FlexRay, and LIN (Local Interconnect Network), making it incredibly versatile across different automotive architectures.

The Importance of Standardisation in Vehicle Diagnostics

Before the widespread adoption of protocols like UDS, vehicle diagnostics could be a fragmented and often proprietary affair. Each manufacturer might have its own unique diagnostic procedures and communication methods, leading to significant challenges for independent repair shops and a lack of interoperability. The ISO 14229 standard, by providing a unified set of diagnostic services, addresses this issue head-on. This standardisation ensures that a diagnostic tool designed to work with one UDS-compliant vehicle from a particular manufacturer can, with appropriate support for the underlying network, communicate with UDS-compliant vehicles from other manufacturers. This interoperability not only simplifies the diagnostic process for technicians but also fosters a more competitive and efficient automotive aftermarket.

Key Components and How They Work

Understanding the fundamental building blocks of UDS is key to appreciating its power and flexibility. The protocol defines a clear structure for diagnostic requests and responses:

• Service Identifiers (SIDs): These are numerical codes that specify the diagnostic service being requested. For example, a specific SID might be used to request the reading of DTCs, while another might initiate a diagnostic session or request a specific parameter.
• Data Identifiers (DIDs): DIDs are used to identify specific pieces of data or diagnostic parameters within an ECU. When a diagnostic tool requests information, it will often specify the DIDs for the data it requires, such as engine RPM, coolant temperature, or vehicle speed.
• Sub-functions: Many UDS services can be further refined by sub-functions, which provide more granular control. For instance, a DTC reading service might have sub-functions to read all DTCs, read DTCs by status, or clear DTCs.

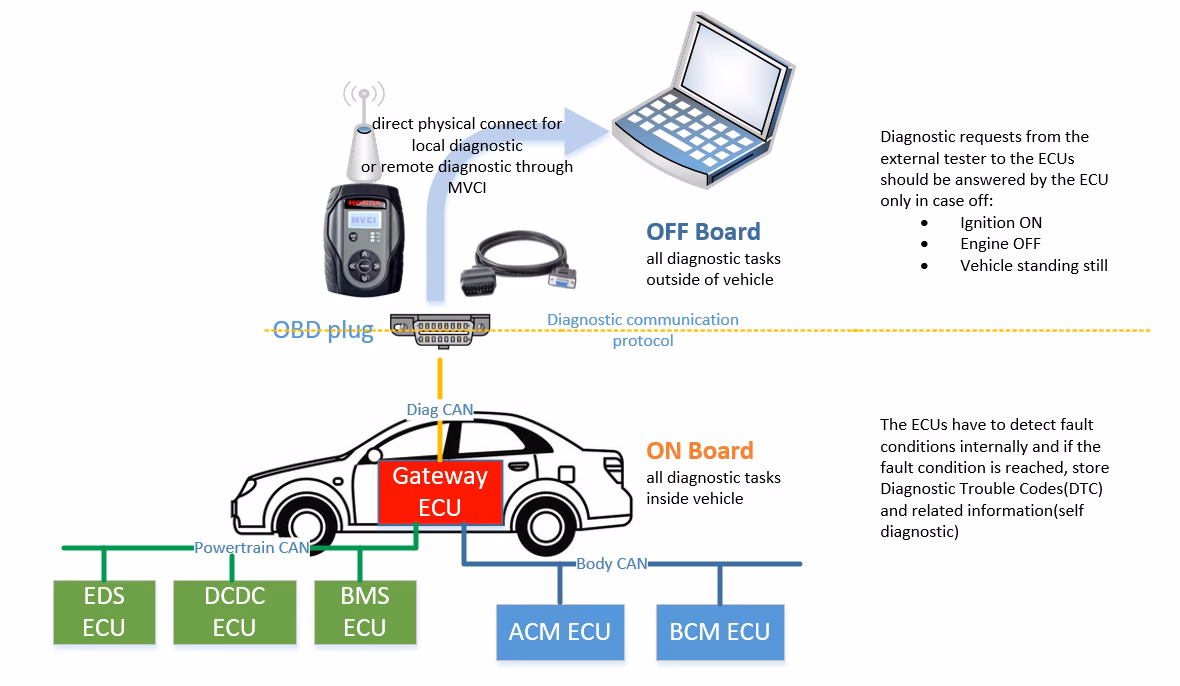

The interaction typically begins with a diagnostic tool establishing a communication session with an ECU. This session can be of different types, such as a 'default session' for routine checks or a 'programming session' for firmware updates. Once the session is established, the tool can send requests to the ECU using specific SIDs and DIDs. The ECU processes the request and sends back a response, which could be the requested data, a confirmation of an action, or an error code if the request could not be fulfilled. This structured approach ensures that diagnostic operations are both clear and efficient.

UDS and its Relationship with Other Standards

It's important to note that UDS doesn't operate in isolation. It often leverages other industry standards for its transport and network layers. A particularly common and significant integration is with ISO 15765.

UDS and ISO 15765: A Powerful Combination

ISO 15765, titled "Road vehicles --- Diagnostic communication over Controller Area Network (DoCAN) --- Part 2: Network Layer and Transport Layer protocols," defines how diagnostic messages are transported over the CAN bus. UDS, as the service layer protocol, defines what diagnostic information is exchanged and how it is interpreted, while ISO 15765 defines how these UDS messages are segmented, addressed, and transmitted across the CAN network, especially when messages exceed the standard CAN frame size. This symbiotic relationship allows for robust and efficient diagnostic communication even on the widely adopted CAN bus.

The table below illustrates the relationship:

Beyond Basic Diagnostics: Firmware Flashing

One of the most significant capabilities enabled by UDS is the ability to perform firmware flashing. As vehicle software becomes increasingly complex, the need for over-the-air (OTA) updates or in-person software upgrades is essential for improving performance, fixing bugs, and introducing new features. UDS provides the structured services required to securely and reliably transfer new firmware to an ECU. This typically involves entering a specific programming session, verifying the ECU's identity and current software version, transferring the new firmware in manageable chunks, and then verifying the integrity of the update. The protocol's robustness is key here to prevent data corruption during this critical process.

Statistical Data and Timing for Reliability

To ensure the reliability and efficiency of UDS communications, the standard also considers aspects like statistical data and timing values. This can include information on the expected response times for certain services, the maximum number of retries for a request, and the structure of diagnostic messages to minimise errors. By defining these parameters, manufacturers and tool developers can create diagnostic systems that are not only functional but also perform predictably and reliably, even under challenging network conditions. This attention to detail in timing and data structuring is what separates a truly robust diagnostic solution from a merely functional one.

UDS API Development for Seamless Integration

For software developers and automotive application creators, UDS offers the potential for the development of easy-to-use Application Programming Interfaces (APIs). These APIs abstract the complexities of the UDS protocol, allowing developers to integrate diagnostic capabilities into their applications without needing to be experts in the intricacies of ISO 14229. This can include building custom diagnostic dashboards, developing mobile apps for remote vehicle monitoring, or creating advanced fleet management tools. The availability of well-designed UDS APIs significantly lowers the barrier to entry for leveraging powerful vehicle diagnostic data, driving innovation across the automotive software ecosystem.

Frequently Asked Questions about UDS

Is UDS the same as OBD-II?

No, UDS is not the same as OBD-II (On-Board Diagnostics II). OBD-II is a US standard focused primarily on emissions-related diagnostics and is a more limited set of diagnostic capabilities. UDS is a more comprehensive, international standard (ISO 14229) that covers a much broader range of vehicle systems, functions, and diagnostics, including firmware flashing, and is designed to be more flexible and extensible.

Can any diagnostic tool use UDS?

A diagnostic tool must be specifically designed and programmed to support the UDS protocol (ISO 14229) and the particular communication interfaces (like CAN, UDS over IP, etc.) used by the vehicle. While UDS provides a standard, the specific services and data supported can vary between vehicle manufacturers and even between different models from the same manufacturer.

What are the benefits of using UDS?

The primary benefits of UDS include standardisation across different vehicle brands, comprehensive diagnostic capabilities beyond emissions, support for firmware updates, flexibility in communication interfaces, and a structured approach for efficient troubleshooting and maintenance.

How does UDS relate to diagnostic trouble codes (DTCs)?

UDS defines the services (using SIDs) that allow diagnostic tools to read, write, and clear DTCs from a vehicle's ECUs. While DTCs are the codes that indicate a problem, UDS is the protocol used to access and manage those codes.

Is UDS used in all modern cars?

UDS is widely adopted in most modern vehicles manufactured for global markets, particularly in Europe and increasingly in North America and Asia, due to its comprehensive capabilities and adherence to international standards. It has largely superseded older, proprietary diagnostic protocols.

In conclusion, Unified Diagnostic Services (UDS) is an indispensable protocol in modern automotive engineering. Its adherence to ISO 14229 provides the necessary standardisation for effective communication, enabling everything from routine checks to complex software updates. By understanding its components, its relationship with other standards like ISO 15765, and its broad capabilities, automotive professionals can better leverage this powerful tool to maintain and improve vehicle performance and reliability.
