Warped Rotors & Steering Wheel Wobble

The Unsettling Wobble: When Your Steering Wheel Starts to Dance

Ever been driving along, only for your steering wheel to start juddering or vibrating, particularly when you apply the brakes? This common and rather unsettling sensation is often a tell-tale sign of a more significant issue lurking within your braking system. While many factors can contribute to steering wheel vibrations, one of the most frequent culprits is the humble, yet crucial, brake rotor. A warped rotor can transform a smooth drive into a disconcerting experience, and understanding why this happens is key to maintaining your vehicle's safety and performance.

What Exactly is a Warped Rotor?

Brake rotors, also known as brake discs, are the large, metal discs that your brake pads clamp onto to slow and stop your vehicle. They are designed to withstand immense heat generated by friction. However, under certain conditions, this heat can cause the metal of the rotor to expand unevenly. When the brakes are applied repeatedly or forcefully, especially after being heated significantly (such as during heavy braking or driving downhill for extended periods), the rotors can cool unevenly. This uneven cooling leads to minor distortions or warping in the rotor's surface. Instead of being perfectly flat, the surface develops slight high and low spots.

The Link Between Warped Rotors and Steering Wheel Wobble

So, how does a slightly uneven metal disc translate to vibrations in your steering wheel? It all comes down to the mechanics of braking. When you press the brake pedal, the hydraulic system forces the brake pads to grip the rotor. If the rotor is warped, its surface is no longer consistently flat. As the rotor spins with the wheel, the high and low spots on its surface come into contact with the brake pads. This creates an inconsistent clamping force. Each time a high spot on the rotor passes between the brake pads, it momentarily pushes the pads away, and consequently, pushes back on the brake caliper and the steering knuckle. These rapid, repeated push-and-pull forces are transmitted through the suspension and steering components, ultimately manifesting as a vibration or wobble in the steering wheel. The faster you are travelling, the more pronounced this effect will be, as the high and low spots pass the brake pads more frequently.

Identifying the Signs of Warped Rotors

Beyond the steering wheel wobble, several other symptoms can point towards warped brake rotors:

• Juddering Brake Pedal: Similar to the steering wheel vibration, a pulsing sensation felt in the brake pedal when you apply it is a classic sign of warped rotors.
• Squealing or Grinding Noises: While not exclusively caused by warped rotors, uneven rotor surfaces can sometimes lead to increased noise during braking as the pads struggle to make consistent contact.
• Reduced Braking Performance: In severe cases, warped rotors can reduce the effectiveness of your braking system, leading to longer stopping distances.

What Causes Rotors to Warp?

Several factors can contribute to rotor warping:

1. Overheating

This is the most common cause. Excessive heat, generated by prolonged or heavy braking, can cause the metal to distort. This can happen during:

• Aggressive Driving: Frequent hard braking from high speeds.
• Driving Downhill: Riding the brakes continuously on long descents can overheat them.
• Towing or Heavy Loads: Vehicles carrying heavy loads or towing trailers put extra strain on the braking system.

2. Uneven Material Composition

The quality of the rotor material itself plays a role. Cheaper or lower-quality rotors may be more susceptible to warping due to variations in their metal composition and heat treatment.

3. Improper Installation or Overtightening

As mentioned in the user's initial query, overtightening lug nuts or caliper bolts during wheel or brake maintenance can put uneven stress on the rotor, leading to warping over time. This can create localized stress points that are prone to distortion when heated.

4. Contamination

While less common, certain contaminants or foreign debris trapped between the pad and rotor can cause localized hot spots and contribute to warping.

Troubleshooting and Diagnosis: A Step-by-Step Approach

If you're experiencing steering wheel wobble, here's a methodical way to approach the diagnosis:

1. Visual Inspection: With the vehicle safely supported, remove the wheels and inspect the brake rotors. Look for any obvious signs of discoloration (blueish or purplish spots indicate overheating), scoring, or a generally uneven surface.
2. Feel for Runout: A more precise method involves using a dial indicator. This tool can be attached to the suspension or caliper bracket and brought into contact with the rotor surface. As you slowly rotate the wheel, the dial indicator will measure any lateral runout (side-to-side movement) or thickness variation, confirming if the rotor is indeed warped. A typical acceptable runout is usually around 0.002 inches (0.05 mm) or less, but it's best to consult your vehicle's service manual for specific tolerances.
3. Check Other Components: While warped rotors are a prime suspect, it's essential to rule out other issues that can cause similar symptoms.

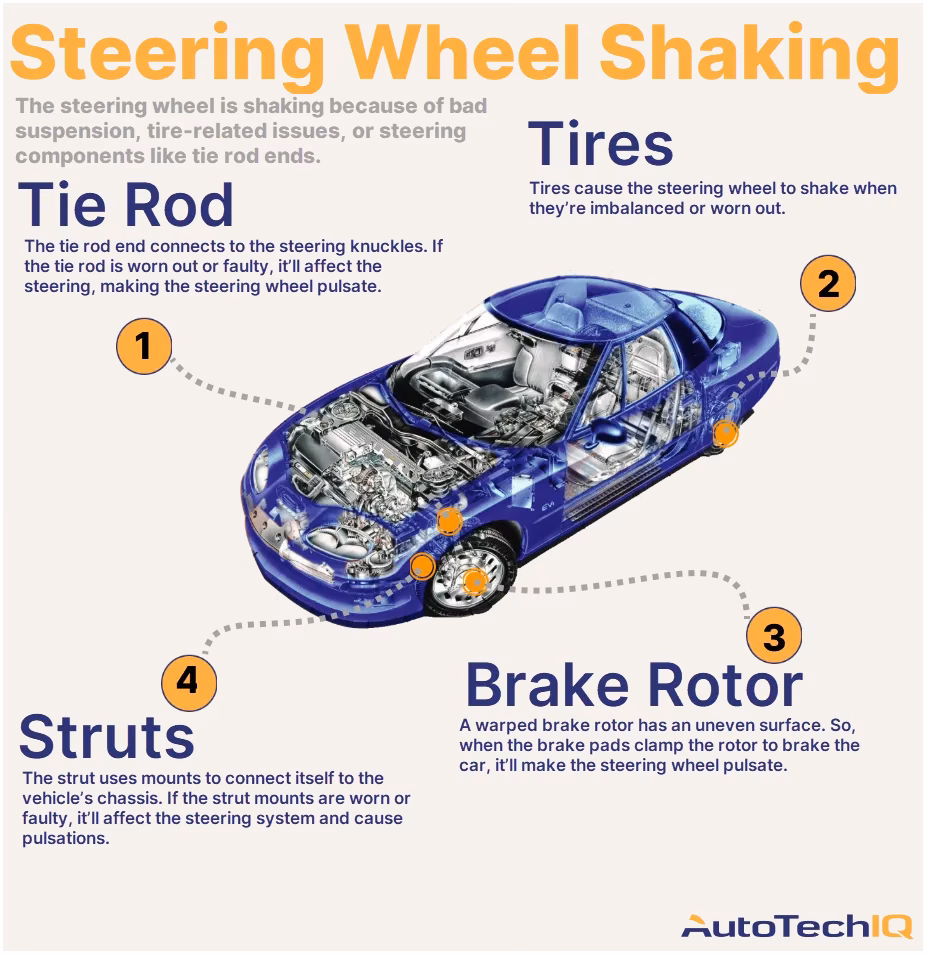

Comparing Potential Causes of Steering Wheel Wobble

It's important to differentiate warped rotors from other potential causes of steering wheel vibration:

Addressing the Problem: Repair or Replacement?

Unfortunately, warped brake rotors cannot be effectively "trued" or resurfaced to a point where they are reliably flat and safe. While some mechanics might offer resurfacing, it often removes too much material, compromising the rotor's integrity and its ability to dissipate heat. The recommended solution for warped rotors is replacement. It's also crucial to replace rotors in pairs (both left and right on the same axle) to ensure balanced braking performance. When replacing rotors, it's good practice to also inspect and potentially replace the brake pads, as worn or uneven pads can exacerbate rotor issues or be damaged by the warped surface.

The Role of Power Steering in Steering Feel

While the primary cause of wobble during braking is usually rotor-related, it's worth briefly touching upon power steering systems, as they significantly influence steering feel. As noted in the provided text, issues like air in the system, low fluid levels, or a worn power steering pump can cause noises (whining, growling) and make steering feel heavier or less responsive. However, these power steering issues typically do not directly cause the *juddering* or *wobble* felt specifically when the brakes are applied. They affect the general ease of steering and can sometimes introduce vibrations, but the distinct pulsing during braking is almost always a brake system symptom.

Preventative Measures to Avoid Warped Rotors

Protecting your brake rotors and ensuring a smooth driving experience involves a few key practices:

• Brake Gently: Avoid aggressive, sudden braking whenever possible. Anticipate stops and brake smoothly.
• Avoid Riding the Brakes: When descending hills, use lower gears to control your speed rather than constantly applying the brakes.
• Allow Brakes to Cool: After prolonged hard braking, try to avoid immediately stopping and holding the brake pedal down for an extended period, as this can trap heat against the rotors.
• Proper Lug Nut Tightening: Ensure that when wheels are installed, lug nuts are tightened to the manufacturer's specified torque using a torque wrench.
• Choose Quality Components: Opt for reputable brands for replacement rotors and pads.

Frequently Asked Questions

Q1: Can I continue driving with warped rotors?
While you might be able to drive, it's not recommended. Warped rotors compromise your braking effectiveness and can lead to further damage to other brake components. It's a safety issue that needs prompt attention.

Q2: How much does it cost to replace warped rotors?
The cost can vary depending on your vehicle, the quality of parts used, and labour rates. Generally, expect to pay for two new rotors and new brake pads, plus the mechanic's labour. It's best to get a quote from a reputable garage.

Q3: Is it possible for low-profile tyres and bigger wheels to cause rotor warping?
While larger wheels and low-profile tyres can sometimes alter how the suspension and brakes respond, they don't directly cause rotors to warp. The warping is typically due to heat and stress on the rotor itself. However, changes in unsprung weight and brake cooling could indirectly influence how the braking system is stressed.

Q4: Could my brake pads or calipers be causing the wobble instead of the rotors?
Yes, it's possible, though less common for the specific symptom of pulsing during braking. Sticking or dragging brake pads or a partially seized caliper can cause uneven pressure and heat buildup, potentially leading to rotor damage or causing vibrations. A thorough inspection by a mechanic is the best way to confirm the exact cause.

Conclusion

That unnerving vibration in your steering wheel when you brake is more than just an annoyance; it's a critical warning sign from your vehicle's braking system. Warped brake rotors, caused primarily by excessive heat and uneven cooling, are the most frequent culprits behind this symptom. By understanding the causes, recognizing the signs, and taking preventative measures, you can ensure your braking system remains in optimal condition, keeping you and others on the road safe. Don't ignore that wobble – get it checked out by a professional to maintain braking confidence and driving safety.
