Reinstalling Your 2020 GMC Sierra Brake Caliper: A DIY Guide

Embarking on the task of changing your own brakes can be a rewarding experience, especially when it comes to saving money and gaining valuable mechanical knowledge. For owners of a 2020 GMC Sierra, understanding the process of reinstalling a brake caliper is a crucial step in ensuring your vehicle stops effectively and safely. While the prospect might seem intimidating, with the right tools and a methodical approach, you can confidently tackle this maintenance job. This guide will walk you through each stage of the process, from preparing your vehicle to the final checks, ensuring a successful brake caliper reinstallation.

Essential Tools for the Job

Before you begin, gathering the correct tools is paramount. Having everything readily available will streamline the process and prevent unnecessary frustration. For the 2020 GMC Sierra brake caliper reinstallation, you will need:

• Floor jack and jack stands: For safely lifting and supporting the vehicle.
• Socket wrench/ratchet: With a 14mm socket for the caliper bolts.
• Brake piston kit: Specifically, a tool designed to retract the caliper piston.
• Pliers: Useful for handling brake hardware and clips.
• OBD2 scanner: Essential for engaging the electronic parking brake's service mode.
• Loctite threadlocker: To ensure the caliper bolts are securely fastened.
• New brake pads: Ensure they are compatible with your 2020 GMC Sierra.
• Bleeder screw wrench: For potential brake fluid management during piston retraction.

Safety First: Lifting and Supporting Your Sierra

The foundation of any automotive maintenance is safety. Properly lifting and supporting your truck is non-negotiable. Begin by parking your 2020 GMC Sierra on a level surface and engaging the parking brake. Place wheel chocks securely in front of the tires to prevent rolling. Position your floor jack beneath the axle and carefully raise the truck. Once lifted to a sufficient height, place jack stands under the frame to provide stable support. Slowly lower the truck onto the jack stands, ensuring they are firmly seated. Never work under a vehicle supported only by a jack; always rely on jack stands.

Engaging the Electronic Parking Brake Service Mode

Modern trucks like the 2020 GMC Sierra often feature an electronic parking brake (EPB). Before you can access the brake caliper, the EPB must be placed in service mode. This prevents the system from attempting to adjust the brake pads while you are working on them, which could damage the EPB motor or make piston retraction difficult. Connect your OBD2 scanner to the vehicle's diagnostic port. Navigate through the scanner's menu to the ABS control module. Follow the on-screen instructions to engage the parking brake service mode. Once activated, confirm that the parking brake is deactivated before proceeding. This crucial step ensures the caliper piston can be retracted smoothly.

Accessing the Brakes: Wheel and Caliper Removal

With the truck safely supported and the EPB in service mode, you can now proceed to remove the wheel and gain access to the brake caliper. Remove the lug nuts from the wheel using your socket wrench. Carefully pull the wheel off the hub and set it aside. Locate the two 14mm bolts that secure the brake caliper carrier to the steering knuckle. Use your ratchet and the 14mm socket to loosen and remove these bolts. Once the bolts are out, you should be able to lift the caliper assembly away from the brake pads and rotor. It's important to secure the caliper aside; do not let it hang by the brake line, as this can damage the line. Inspect the brake rotor for any signs of wear, such as grooves, cracks, or uneven surfaces, which might necessitate its replacement as well.

Retracting the Caliper Piston

With the caliper removed, you'll need to retract the caliper piston to create space for the new, thicker brake pads. Grab your brake piston retraction tool. Position the tool onto the protruding piston. Slowly rotate the tool clockwise, applying steady pressure, to push the piston back into the caliper housing. Continue turning until the piston is fully retracted. If you encounter significant resistance, you can try slightly loosening the bleeder screw on the caliper to release some brake fluid pressure. Be prepared for a small amount of brake fluid to leak out if you do this. Once retracted, ensure the bleeder screw is tightened again and wipe away any spilled fluid.

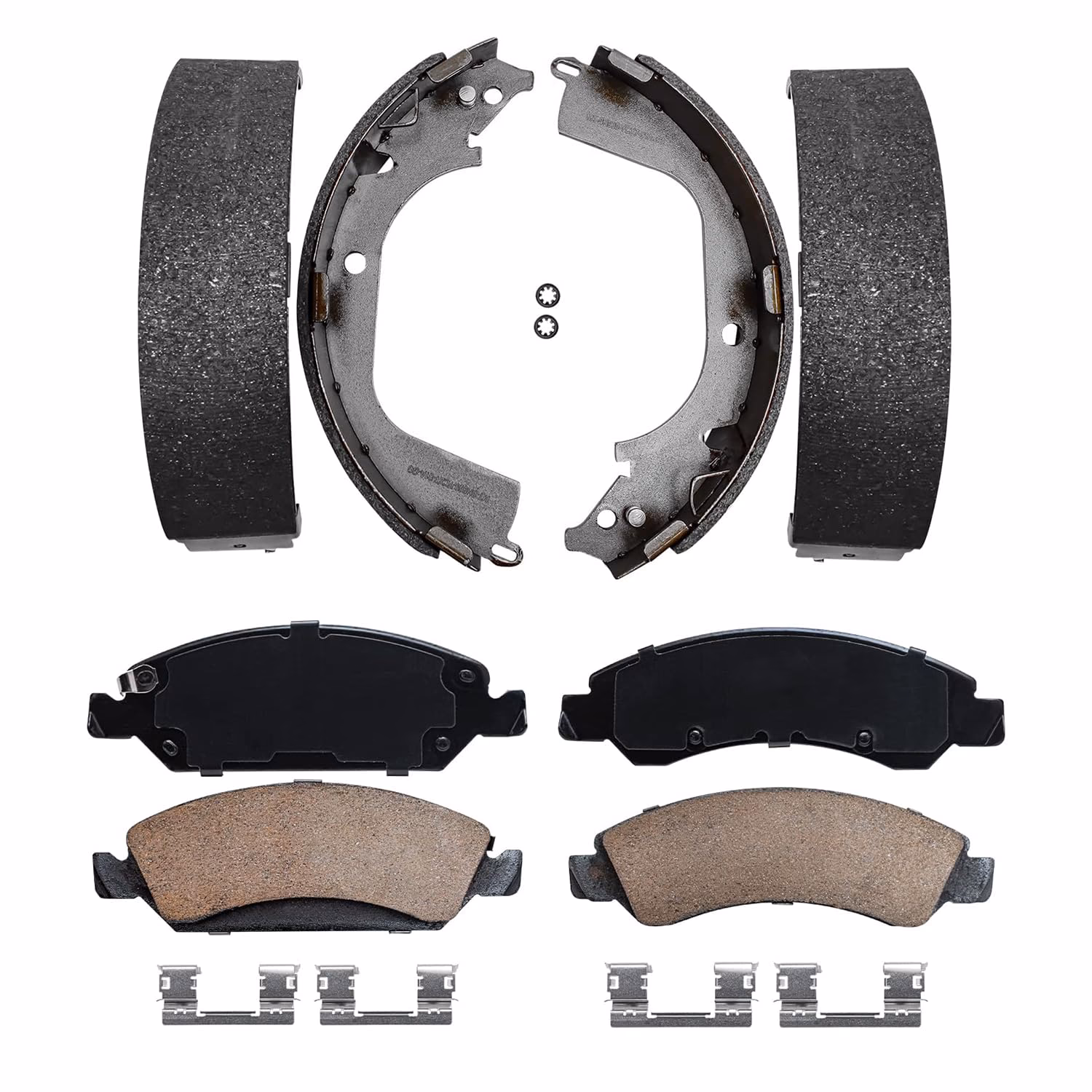

Swapping Out the Old Brake Pads

Now that the piston is retracted, you can remove the old brake pads. They usually slide out of the caliper carrier. If they are stuck, a gentle pry with a screwdriver might be needed. Most modern brake pads have a wear sensor, typically a small metal tab. You'll need to disconnect the wire from the old pad's sensor. Remove the sensor and any retaining clips from the old pad. Attach the sensor and clips to your new brake pads. Ensure they are properly seated. Insert the new brake pads into the caliper carrier, making sure they sit flush and are oriented correctly. Reconnect the sensor wire, clipping it securely into its designated bracket on the caliper.

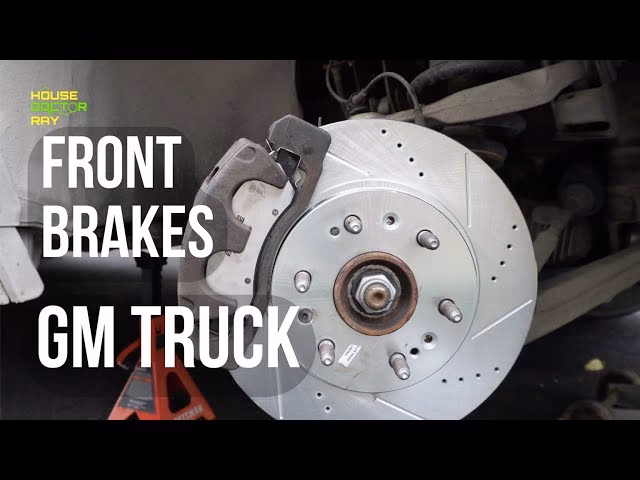

Reinstalling the Brake Caliper

With the new pads in place, it's time to reinstall the brake caliper. Before reattaching the caliper, apply a small amount of Loctite threadlocker to the threads of the caliper bolts. This will help prevent them from loosening due to vibration. Carefully slide the caliper back over the new brake pads and rotor. Ensure it aligns correctly with the mounting holes. Begin threading the caliper bolts by hand to avoid cross-threading. Once they are started, use your ratchet and the 14mm socket to tighten the bolts. Torque the bolts to the manufacturer's specified value, typically around 25 ft-lbs for caliper bracket bolts. Ensure the sensor wire is securely clipped into its bracket on the caliper. Finally, replace the dust cap on the bleeder screw to protect it from dirt and moisture.

Resetting the Electronic Parking Brake and Final Checks

After the caliper reinstallation, you must reset the electronic parking brake system and check for any system faults. Connect your OBD2 scanner again. Navigate to the EPB or ABS module section and select the option to exit service mode. Some systems also have a function to reset the brake pad life monitor. Execute this function if available. Clear any diagnostic trouble codes (DTCs) that may have been generated during the process. Once done, disconnect the scanner. Reinstall the wheel, ensuring the lug nuts are snug. Carefully lower the truck off the jack stands. Start the engine. You should observe that the brake pad life indicator on your dashboard has reset. Before driving, pump the brake pedal several times. The pedal should feel firm and responsive. If it feels spongy, there may be air in the brake lines, and further bleeding might be necessary.

Bedding In Your New Brake Pads

Properly 'bedding in' your new brake pads is crucial for their longevity and optimal performance. This process allows the pad material to transfer evenly onto the rotor surface, creating a consistent braking interface. For the first 50-100 miles after installation:

• Avoid hard braking: Refrain from sudden, forceful stops.
• Limit prolonged braking: Try not to hold the brakes for extended periods, such as on long descents.
• Use light to medium braking: Engage the brakes gently and intermittently to help the pads mate with the rotors.

Expect some minor squealing or increased brake dust during this initial period; this is normal. After the first day of driving, it's also a good idea to check your brake fluid level and top it up if necessary. Taking it easy during the initial break-in period ensures your new brakes perform at their best and last as long as possible.

Frequently Asked Questions (FAQ)

Q1: How long does it typically take to replace brake pads and calipers?
For an experienced DIYer, replacing brake pads and reinstalling a caliper can take about 1-2 hours per axle. For a first-timer, it might take longer, potentially 2-4 hours, due to unfamiliarity with the process and the need for careful adherence to steps.

Q2: Do I need to replace the brake rotors when changing pads?
It's not always necessary, but it's highly recommended if your rotors show signs of significant wear, such as deep grooves, cracks, warping (indicated by steering wheel vibrations), or if they are below the minimum thickness specification (usually stamped on the rotor hub). Replacing pads on worn rotors can reduce braking performance and the lifespan of the new pads.

Q3: What is the significance of the brake pad wear sensor?
The brake pad wear sensor is a small metal tab integrated into some brake pads. When the pad material wears down to a certain point, the sensor makes contact with the rotor, creating a high-pitched squealing sound. This is an audible warning that your brake pads need to be replaced soon. It's important to transfer the old sensor to the new pads or install a new one if it was damaged.

Q4: Can I reuse the old caliper bolts?
While technically possible, it's strongly advised to use new caliper mounting bolts, especially if they show any signs of damage or stretching. Many manufacturers recommend replacing these critical fasteners. Always apply a threadlocker compound like Loctite to ensure they remain secure.

Final Thoughts

Successfully reinstalling your brake caliper on a 2020 GMC Sierra is an achievable DIY project that offers significant cost savings and a sense of accomplishment. By carefully following these steps, using the correct tools, and prioritizing safety, you can maintain your truck's braking system effectively. Remember to always consult your vehicle's owner's manual for specific torque specifications and any model-specific procedures. Drive safely!
