Understanding Your Car's Exhaust Manifold

In the intricate symphony of your car's engine, every component plays a crucial role in ensuring smooth operation and optimal performance. While many focus on the engine block, pistons, or even the shiny exhaust tips, there's a less visible but equally vital part tucked away: the exhaust manifold. Often overlooked until it causes a problem, the exhaust manifold is the very first step in your vehicle's exhaust system, quietly working to manage the fiery by-products of combustion.

Think of the exhaust manifold as the engine's primary waste disposal unit. After the fuel-air mixture ignites within the cylinders, producing power, it also generates hot, toxic gases. These gases need to be efficiently channelled away from the engine to prevent them from building up and causing damage. This is precisely where the exhaust manifold comes into play, acting as a collector for these noxious fumes before they embark on their journey through the rest of the exhaust system and out into the atmosphere.

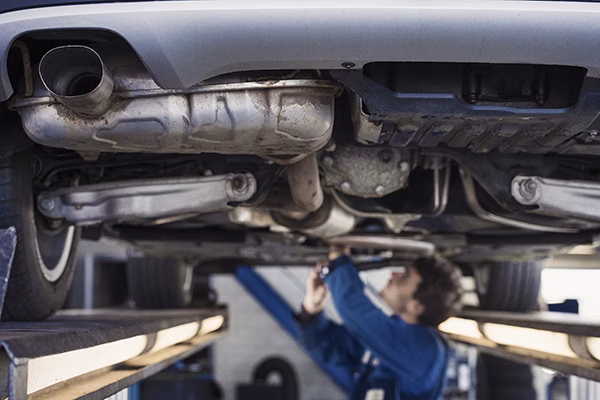

What Exactly Is an Exhaust Manifold?

At its core, an exhaust manifold is a cast metal component, typically made from cast iron or stainless steel, that bolts directly to the engine's cylinder head. It features multiple inlets, or ports, each corresponding to an exhaust port on the engine's cylinders. These individual ports converge into a single, larger outlet pipe. Its primary function is to collect the exhaust gases from each cylinder as they are expelled and then consolidate them into one stream, directing them towards the catalytic converter and subsequently the muffler and tailpipe.

Without a properly functioning exhaust manifold, these hot gases would simply escape directly from the engine, creating an unbearable noise, posing a significant fire risk due to extreme heat, and allowing harmful emissions to pollute the environment unchecked. It's a critical component in ensuring both the vehicle's operational efficiency and its compliance with environmental regulations.

How Does the Exhaust Manifold Work?

The process begins the moment combustion occurs in each cylinder. As the exhaust valve opens, the high-pressure, hot exhaust gases are pushed out of the cylinder into the corresponding port of the exhaust manifold. The manifold's design is crucial here; it's engineered to efficiently scavenge these gases from all cylinders, minimising back pressure that could impede engine performance. Once collected, these gases are funnelled into the manifold's single outlet, which then connects to the front pipe of the exhaust system. This integrated design ensures a smooth flow of gases away from the engine, preparing them for further treatment by the catalytic converter.

Common Materials and Designs

Exhaust manifolds are typically constructed from materials that can withstand extreme temperatures and corrosive gases. The two most common materials are:

• Cast Iron: This is a very common choice due to its excellent heat retention properties and durability. Cast iron manifolds are robust and can absorb a lot of heat, which helps in warming up the catalytic converter quickly. However, they can be brittle and are susceptible to cracking under extreme thermal stress, especially during rapid heating and cooling cycles.
• Stainless Steel: Found more commonly in modern vehicles and performance applications, stainless steel manifolds offer superior corrosion resistance and are lighter than cast iron. They are also less prone to cracking from thermal shock. Performance-oriented manifolds, often called 'headers', are usually made from stainless steel and are designed to optimise exhaust flow for maximum engine power.

While the basic function remains the same, designs can vary:

• Log Manifolds: These are the simplest and most compact designs, resembling a 'log' with individual pipes branching off into it. They are common in production vehicles due to their cost-effectiveness and ease of packaging.
• Tubular Manifolds (Headers): These are more complex, often featuring individual, equal-length pipes for each cylinder that merge further downstream. This design is engineered to optimise exhaust gas scavenging, leading to improved engine breathing and horsepower, particularly at higher RPMs. They are popular in aftermarket performance upgrades.

Signs of a Failing Exhaust Manifold

Given the extreme conditions an exhaust manifold operates under, it's not uncommon for them to develop issues over time. Recognising the symptoms early can prevent more significant problems and costly repairs. Here are the tell-tale signs to look out for:

• Loud Exhaust Noise: This is arguably the most common and noticeable symptom. A crack or a failing gasket in the manifold will allow exhaust gases to escape prematurely, creating a distinctive ticking, hissing, or puffing sound, especially when the engine is cold and first started. The sound often becomes less noticeable as the engine warms up and the metal expands, temporarily sealing the crack.
• Exhaust Smell in the Cabin: If you start smelling exhaust fumes inside your car, especially when stationary or at low speeds, it's a serious indicator of a leak. Exhaust gases contain carbon monoxide, which is highly toxic, making this a significant safety concern.
• Reduced Engine Performance or Fuel Economy: While not always immediately obvious, a significant exhaust leak can affect engine performance. The leak can disrupt the exhaust gas flow and, more importantly, can cause the oxygen sensor (which is usually located upstream or within the manifold) to read inaccurate data. This can lead to the engine's computer adjusting the fuel-air mixture incorrectly, resulting in reduced power, rough idling, or decreased fuel efficiency.
• Check Engine Light (CEL): An exhaust leak, particularly one affecting oxygen sensor readings, will often trigger the check engine light on your dashboard. Diagnostic trouble codes related to oxygen sensor performance or exhaust system leaks are common.
• Visible Cracks or Soot Marks: In some cases, a visual inspection of the manifold (when the engine is cool!) might reveal cracks on the cast iron or discolouration/soot marks around the manifold or gasket area, indicating where gases are escaping.

Causes of Exhaust Manifold Failure

Several factors can contribute to the degradation and eventual failure of an exhaust manifold:

• Thermal Stress: This is the primary culprit. Exhaust manifolds are subjected to extreme temperature fluctuations – from ambient temperatures to hundreds of degrees Celsius in a matter of seconds. This constant expansion and contraction can lead to metal fatigue and cracking over time.
• Vibrations: Engine vibrations, especially in older or poorly maintained vehicles, can put stress on the manifold and its mounting points, leading to cracks or loosening of bolts.
• Corrosion: Although exhaust gases are hot, they also contain moisture and corrosive by-products that can contribute to rust and material degradation, especially in areas where exhaust gases condense.
• Impact Damage: While less common for the manifold itself, impacts to the underside of the vehicle can damage exhaust pipes, and in severe cases, the force can transmit up to the manifold, causing cracks.
• Faulty Gaskets: Sometimes, it's not the manifold itself but the gasket between the manifold and the cylinder head that fails. Gaskets can degrade, warp, or crack, leading to leaks.

Consequences of Driving with a Faulty Manifold

Ignoring a failing exhaust manifold is never a good idea. The consequences can range from minor annoyances to significant safety hazards and costly repairs:

• Safety Risk: The most critical concern is the potential for carbon monoxide poisoning. Leaking exhaust gases can enter the vehicle's cabin, especially when stationary, posing a serious health risk to occupants.
• Increased Emissions: A leaking manifold means untreated exhaust gases are escaping before reaching the catalytic converter, leading to higher levels of harmful pollutants being released into the atmosphere. This can also cause your vehicle to fail emissions tests.
• Damage to Other Components: The extreme heat from escaping exhaust gases can damage surrounding engine components, wiring, or plastic parts in the engine bay.
• Reduced Performance and Fuel Economy: As mentioned, inaccurate oxygen sensor readings due to leaks can lead to sub-optimal engine performance and increased fuel consumption.
• Annoying Noise: While not a critical issue, the loud ticking or hissing sound can be quite irritating, especially on longer journeys.

Maintenance and Prevention

While exhaust manifolds are designed for durability, a few simple practices can help prolong their life and catch issues early:

• Regular Inspections: During routine servicing, ask your mechanic to visually inspect the exhaust manifold for any signs of cracks, rust, or soot marks.
• Listen for Unusual Noises: Pay attention to any new ticking, hissing, or puffing sounds coming from the engine bay, especially on cold starts.
• Address Check Engine Lights Promptly: If your check engine light illuminates, have the diagnostic codes read and address the underlying issue, as it could be related to an exhaust leak.
• Avoid Hard Impacts: Be mindful of speed bumps, potholes, and off-road driving that could lead to impacts on the underside of your vehicle, potentially damaging the exhaust system.

Repair vs. Replacement: What's the Best Option?

When an exhaust manifold fails, the decision often comes down to repairing the existing one or replacing it entirely. This depends on the nature and severity of the damage:

Repair:

• Minor Cracks: Small, hairline cracks in cast iron manifolds can sometimes be welded. However, due to the extreme heat and stress, these welds are not always a permanent solution and may crack again.
• Gasket Replacement: If the issue is solely a faulty gasket, then replacing the gasket is usually a straightforward and much less expensive repair.

Replacement:

• Severe Cracks or Warping: For larger cracks, multiple cracks, or a warped manifold (which can prevent a proper seal), replacement is almost always the recommended solution. Welding a severely cracked or warped manifold often proves ineffective and can lead to recurring issues.
• Cost-Effectiveness: While replacement is more expensive upfront, it often provides a more reliable and long-lasting fix, saving money and hassle in the long run compared to repeated attempts at welding a failing manifold.

Given the precision required and the often seized bolts due to heat exposure, exhaust manifold repair or replacement is typically a job best left to professional mechanics. They have the right tools, experience, and knowledge to safely and effectively carry out the work.

Comparison of Manifold Types

Frequently Asked Questions (FAQs)

How long do exhaust manifolds typically last?

The lifespan of an exhaust manifold can vary greatly depending on the material, driving conditions, and maintenance. Cast iron manifolds on production vehicles can last for well over 100,000 miles, but they are also prone to cracking earlier. Stainless steel headers can last even longer. However, extreme temperature cycles and vibrations are constant stressors.

Can I drive with a cracked exhaust manifold?

While it might be possible to drive with a minor crack, it is strongly advised against. A cracked exhaust manifold can lead to serious issues, including dangerous carbon monoxide leaks into the cabin, increased harmful emissions, reduced engine performance, and potential damage to other engine bay components due to escaping hot gases. It's a safety and environmental concern that should be addressed promptly.

What's the difference between an exhaust manifold and a header?

Functionally, they are the same: they collect exhaust gases from the engine. However, 'header' typically refers to an aftermarket, performance-oriented tubular manifold made from stainless steel or similar high-performance materials. Headers are designed with individual, often equal-length runners to optimise exhaust gas scavenging and improve engine breathing for increased horsepower, especially at higher RPMs, whereas a standard exhaust manifold is designed for durability, cost-effectiveness, and compact packaging.

Is replacing an exhaust manifold an expensive repair?

The cost of replacing an exhaust manifold can vary significantly depending on the make and model of your vehicle, the type of manifold (OEM vs. aftermarket performance), and labour costs. It can be a labour-intensive job, especially if bolts are seized or difficult to access, which often adds to the expense. It is generally considered a moderately expensive repair.

Why does my exhaust sound louder than usual?

A sudden increase in exhaust noise, especially a ticking, hissing, or puffing sound from the engine bay, is a very strong indicator of an exhaust leak. This leak is often at the exhaust manifold itself, or at the gasket where it connects to the cylinder head. The sound is typically most noticeable on cold starts and may lessen as the engine warms up due to metal expansion temporarily sealing the leak.

Can a faulty exhaust manifold affect fuel economy?

Yes, it absolutely can. An exhaust leak at the manifold can affect the readings from the oxygen sensor, which is crucial for the engine's computer (ECU) to accurately calculate the correct fuel-air mixture. If the oxygen sensor gets an inaccurate reading due to a leak, the ECU might enrich or lean out the mixture incorrectly, leading to less efficient combustion and thus poorer fuel economy.

In conclusion, the exhaust manifold might not be the most glamorous part of your car, but its role in managing combustion by-products is absolutely critical. From ensuring efficient engine performance and good fuel economy to preventing harmful emissions and carbon monoxide leaks, a properly functioning exhaust manifold is essential for both your vehicle's health and your safety. Regular checks and prompt attention to any warning signs will help keep this unsung hero of your exhaust system performing as it should, ensuring your vehicle runs cleanly and efficiently for miles to come.
