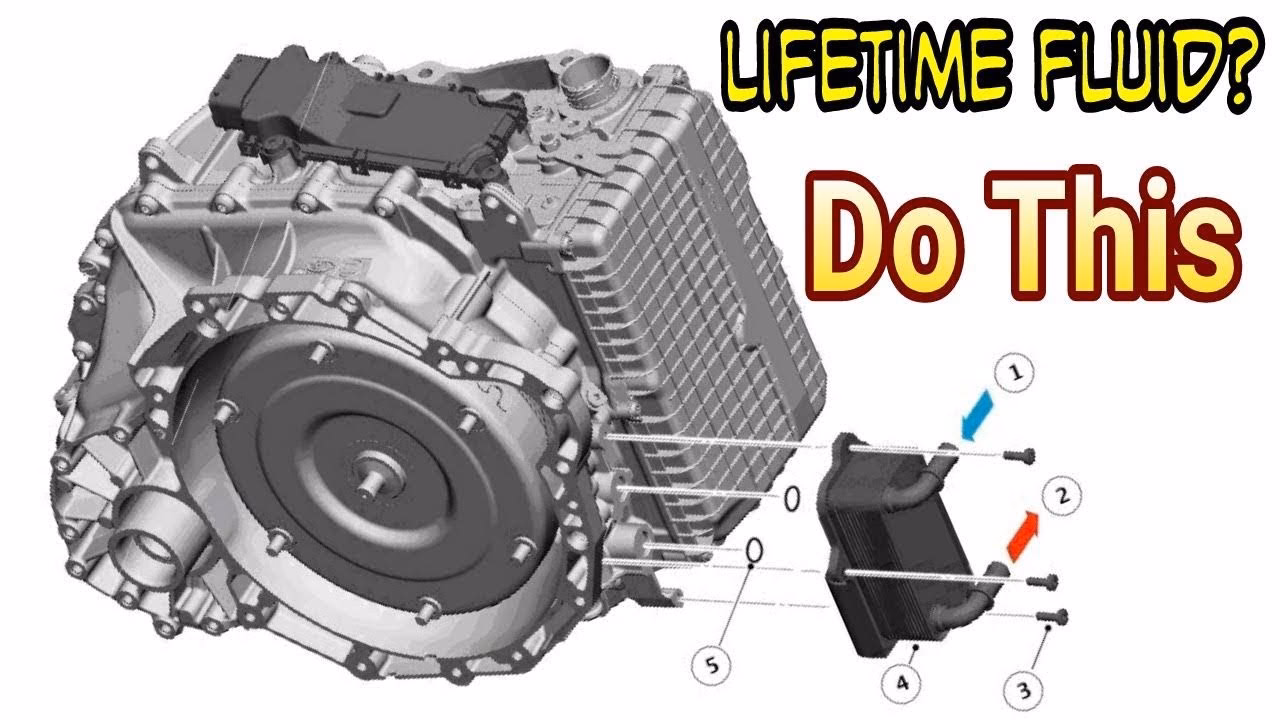

9HP48 Transmission Fluid: A Comprehensive Guide

The 9HP48, also known as the 948TE, is a nine-speed automatic transmission found in a variety of vehicles, including Jeep Renegades, Fiat 500Xs, and other Chrysler/FCA models. When it comes to maintaining this complex piece of engineering, one of the most common questions revolves around its transmission fluid. Many owners are confused by conflicting information, with some claiming it's a 'lifetime' fluid while others insist on regular changes. This article aims to demystify the 9HP48 transmission fluid situation, providing you with the most accurate and practical advice.

Understanding the 9HP48 Transmission Fluid Dilemma

The core of the confusion stems from several factors. Firstly, unlike older transmissions, the 9HP48 often lacks a traditional dipstick, making it difficult for owners to visually inspect the fluid level and condition. Secondly, manufacturers sometimes label fluids as 'lifetime,' which can be misinterpreted as 'never needs changing.' In reality, 'lifetime' often refers to the expected lifespan of the transmission *under optimal conditions* and with regular maintenance. Thirdly, the complexity of accessing the filter (often requiring transmission removal) leads many to believe a fluid change is an insurmountable task, or that it's simply not necessary.

Is the 9HP48 a 'Lifetime' Fluid?

The short answer is: it's complicated, but it's highly recommended to change the fluid. While some manufacturers may market it as a 'lifetime' fluid, this is generally a misleading term in the automotive world. Transmission fluid, like engine oil, degrades over time due to heat, shear forces, and contamination. This degradation can lead to:

• Reduced lubrication properties.
• Increased wear on internal components.
• Sluggish or harsh shifting.
• Potential for transmission failure.

Given the reported failures of these transmissions around the 100,000-mile mark, it's prudent to assume that a fluid and filter change can significantly extend its life and improve performance. Many owners who have performed this service report noticeable improvements in shift quality.

Recommended Fluid Change Interval

While there's no single, universally agreed-upon interval that applies to every driving condition, a common recommendation, even from some dealerships, is around 30,000 miles. This interval is more conservative than a 'lifetime' designation and is aimed at preserving the transmission's health. Factors such as frequent towing, driving in stop-and-go traffic, extreme temperatures, and off-road use can necessitate even more frequent changes.

What Type of Fluid is Required?

The 9HP48 transmission requires a specific type of fluid. Mopar's 8-speed automatic transmission fluid (ATF), often referred to as the $30 per quart fluid, is typically the specified type. It's crucial to use the correct fluid as using an incompatible fluid, such as ATF+4, can cause significant damage to the transmission.

Can the 9HP48 Fluid Be Changed Without Removing the Transmission?

This is where the 'pain' comes in. Unlike many older transmissions with easily accessible drain plugs and filters underneath the pan, the 9HP48's filter is often integrated into the valve body or is otherwise not easily accessible without significant disassembly. Some sources state the filter cannot be replaced without removing the transmission. However, the fluid *can* be drained and refilled. This is often done via a drain plug, but the refill process requires precise measurement.

The 'Drain and Fill' Method

The most common DIY approach involves draining the fluid through the drain plug and refilling with the same amount of new fluid. However, this method only replaces a portion of the total fluid in the transmission (typically 40-60%). A more thorough method, often called a 'flush' (though not a high-pressure flush), involves a series of drain-and-fills or using a specialized machine to exchange the fluid.

Why Precision is Key

The absence of a dipstick means that refilling the transmission requires careful measurement. The recommended procedure often involves:

1. Draining the old fluid.
2. Measuring the exact amount of fluid that was drained.
3. Refilling with the same amount of new, specified fluid.
4. Running the engine and cycling through the gears.
5. Checking the fluid level using a diagnostic tool that can read transmission temperature. The fluid level is typically checked when the transmission fluid is at a specific temperature (e.g., 80-90°C or 176-194°F).

This temperature-dependent fill procedure is why a diagnostic tool is often considered essential for a proper fluid change.

Common Issues and Symptoms

Owners have reported various issues with the 9HP48 transmission:

• Harsh Shifting: Clunking or jerking during gear changes, especially in stop-and-go traffic.
• Touchy Throttle: A jerky or overly sensitive throttle response, often described as a 'clunk' when accelerating from a standstill.
• Transmission Warning Lights: Sporadic 'Service Transmission' warnings with a red gear icon, sometimes without any noticeable performance issues.
• Mechanical Failures: Reports of transmission failure around the 100,000-mile mark.

While some of these issues can be related to software glitches (which may be resolved by dealer re-learning shift points or software updates), worn-out fluid and internal wear are significant contributing factors.

DIY vs. Professional Service

Performing a transmission fluid change on the 9HP48 can be challenging for the average DIYer due to the lack of a dipstick and the precise filling procedure.

DIY Considerations:

• Specialized Tools: You'll likely need a diagnostic scanner to monitor transmission fluid temperature for accurate filling.
• Correct Fluid: Sourcing the correct, expensive Mopar fluid.
• Fluid Level Accuracy: The risk of overfilling or underfilling, both of which can cause damage.
• Filter Access: If you want to replace the filter, be prepared for extensive disassembly.

Professional Service:

• Expertise: Dealerships or reputable independent shops have the tools and knowledge for the correct procedure.
• Cost: This service can be costly, often several hundred pounds, due to the labour involved and the price of the fluid.
• Peace of Mind: Ensures the job is done correctly, potentially avoiding further damage.

A Comparative Look at Fluid Change Approaches

Here's a simplified comparison of different fluid maintenance strategies:

Is the 9HP48 a CVT?

No, the 9HP48 is a conventional automatic transmission with 9 gears. It is not a Continuously Variable Transmission (CVT). While it may shift very smoothly, giving a perception of continuous variation to some drivers, it operates using a complex system of planetary gear sets and torque converters, similar to other multi-speed automatics.

Troubleshooting Transient Warning Lights

The sporadic 'Service Transmission' warnings, especially when accompanied by a check engine light that disappears later, can be frustrating. As mentioned in some owner experiences, these can sometimes be attributed to software glitches or sensor anomalies rather than immediate mechanical failure. However, if these warnings occur, it's wise to have the transmission fluid checked and consider a service, as degraded fluid can exacerbate electrical or hydraulic issues within the transmission's complex control system.

Recommendations for Diagnostic Tools

For those looking to delve deeper than a basic OBD2 scanner, consider a more advanced tool. Bluetooth OBD2 adapters paired with smartphone apps (like Torque Pro, AlfaOBD, or OBD Fusion) can offer enhanced capabilities. These can often read manufacturer-specific codes, view live data streams (including transmission fluid temperature), and perform certain module resets or adaptations, which might be necessary after a fluid change.

Conclusion

The 9HP48 transmission is a sophisticated unit that benefits greatly from regular maintenance. While the term 'lifetime fluid' might suggest otherwise, changing the transmission fluid is a crucial step in ensuring its longevity and optimal performance. Aim for a fluid change around the 30,000-mile mark, using the correct Mopar fluid. If you're not comfortable with the precise filling procedure and the potential need for a diagnostic scanner, investing in professional service is the safest bet. By proactively maintaining your 9HP48 transmission, you can avoid costly repairs and enjoy smoother, more reliable driving.

Frequently Asked Questions

Q1: How much transmission fluid does the 9HP48 take?

A1: The exact amount can vary, but a typical drain and refill procedure replaces around 4-5 litres (quarts) of fluid. It's critical to measure what you drain and refill with the same amount, or use a diagnostic tool to check the level at the correct temperature.

Q2: Can I use a universal ATF in my 9HP48?

A2: No, it is strongly advised against using universal ATF. The 9HP48 requires a very specific fluid formulation. Using the wrong fluid can lead to severe transmission damage.

Q3: What are the symptoms of low or old transmission fluid?

A3: Symptoms can include harsh shifting, delayed engagement, slipping gears, shuddering, or transmission warning lights.

Q4: Does the 9HP48 have a serviceable filter?

A4: Reports suggest the filter is often integrated with the valve body and may not be easily serviceable without significant transmission disassembly, potentially requiring transmission removal.

Q5: My car is only 4 years old, can I really need to change the fluid already?

A5: Yes. Fluid degradation is based on mileage, driving conditions, and time. Even in a relatively new car, if driven frequently or under demanding conditions, the fluid can degrade and benefit from a change.
