Porsche 996 Engine Woes Explained

The Porsche 996 generation, particularly the earlier models, has unfortunately gained a reputation for certain engine-related issues. While Porsche sports cars are renowned for their performance and engineering prowess, no manufacturer is entirely immune to the occasional hiccup. Understanding these potential problems is crucial for owners and prospective buyers alike, allowing for proactive maintenance and informed decisions. This article aims to demystify the widely discussed engine failures associated with the 996, and by extension, its close relatives like the Boxster and Cayman.

The Infamous 'IMS Bearing'

Perhaps the most notorious issue that plagued the M96 engine (and its successor, the M97) found in the 996 and early 997 models, as well as the Boxster and Cayman of the same era, is the Intermediate Shaft (IMS) bearing. This bearing, located within the engine's crankcase, lubricates and supports the intermediate shaft, which in turn drives the camshafts.

The problem arises from a combination of factors, including the quality of the bearing itself and its lubrication. In some instances, the bearing could fail prematurely, leading to a catastrophic engine failure. This failure often results in metal debris entering the oil system and contaminating the entire engine, necessitating a complete rebuild or replacement. The cost of such a repair can be substantial, often exceeding the value of the car itself.

It's important to note that not all 996 engines equipped with the IMS bearing will fail. The failure rate, while concerning, is not 100%. However, the potential for such a catastrophic event has led to significant anxiety among owners. Porsche did implement several revisions to the IMS bearing design throughout the production run, with later models generally considered less susceptible. However, the risk, however small, remains a factor for many.

Piston Cooling and Oil Issues

Another area of concern, particularly highlighted in the provided user comment regarding a Cayman 2.9, relates to piston cooling and the piston rings. The comment mentions that the 2.9 litre engine had its piston rings upgraded three times, suggesting an ongoing effort by Porsche to rectify an underlying issue.

The M96 and M97 engines utilise a dry-sump lubrication system, which is generally excellent for performance driving. However, in certain operating conditions, particularly during prolonged high-G cornering or aggressive track use, the oil can be scavenged away from the oil pump pickup. This can lead to temporary oil starvation, affecting lubrication and potentially causing damage to critical engine components, including the pistons and cylinder walls.

The mention of piston ring wear and scoring, even in later models with different liners, suggests that even with design improvements, the fundamental challenges of cooling and lubricating these high-performance engines under extreme stress remained a focus for development. The comment about Hartech suggesting that ring coating may wear at high mileages (100k+) also points to the fact that even well-maintained engines can experience wear over time.

Affected Models and Variations

The issues discussed are primarily associated with the M96 and M97 engine families. These were used across a range of Porsche models:

• Porsche 911 (996 generation): This includes Carrera, Carrera 4, Carrera 4S, and Turbo models. While the IMS bearing was a concern across the board, some sources suggest the 3.8 litre engines might have been more susceptible, though it could occur in 3.6 and 3.4 litre variants as well.
• Porsche Boxster (986 and early 987 generations): The Boxster, being the entry-level sports car, also shared variants of these engines. The 2.7 litre models are generally considered less prone to these specific failures, while the 3.2 litre engines could be affected.
• Porsche Cayman (early 987 generation): Similar to the Boxster, the Cayman models also utilised these engines, with the 2.7 and 3.4 litre variants being common. The user's experience with a 2.9 litre Gen 2 Cayman is interesting, as it suggests that even later iterations, while improved, weren't entirely immune to certain types of internal wear, potentially related to the piston ring design as noted.

It's crucial to distinguish between the 'pre-MA1' engines (M96/M97) and the later 'MA1' engines found in newer generations of the Cayman and Boxster (from around 2009 onwards). The MA1 engines, with their different liner designs and potentially revised lubrication systems, are generally not known to suffer from the same IMS bearing failures. However, as the user comment suggests, even these newer engines might have their own specific wear patterns at very high mileages.

Mitigation and Solutions

Given the potential for these engine issues, several mitigation strategies and solutions have emerged in the aftermarket:

• IMS Bearing Replacement/Upgrade: For owners of affected vehicles, proactive replacement of the IMS bearing with an upgraded, more robust unit is a popular preventative measure. Several specialist companies offer kits and services for this. This is often done when other clutch or engine work is being performed to minimise labour costs.
• Oil Analysis: Regular oil analysis can be a valuable tool for detecting early signs of bearing wear or metal contamination. Sending a sample of your engine oil to a laboratory for analysis can provide crucial insights into the health of your engine's internal components.
• Driving Style and Maintenance: While not a foolproof solution, adopting a sensible driving style, avoiding excessive high-G cornering without adequate oil management, and ensuring regular oil changes with the correct specification oil can help minimise stress on the engine. Allowing the engine to warm up properly before revving hard is also essential.

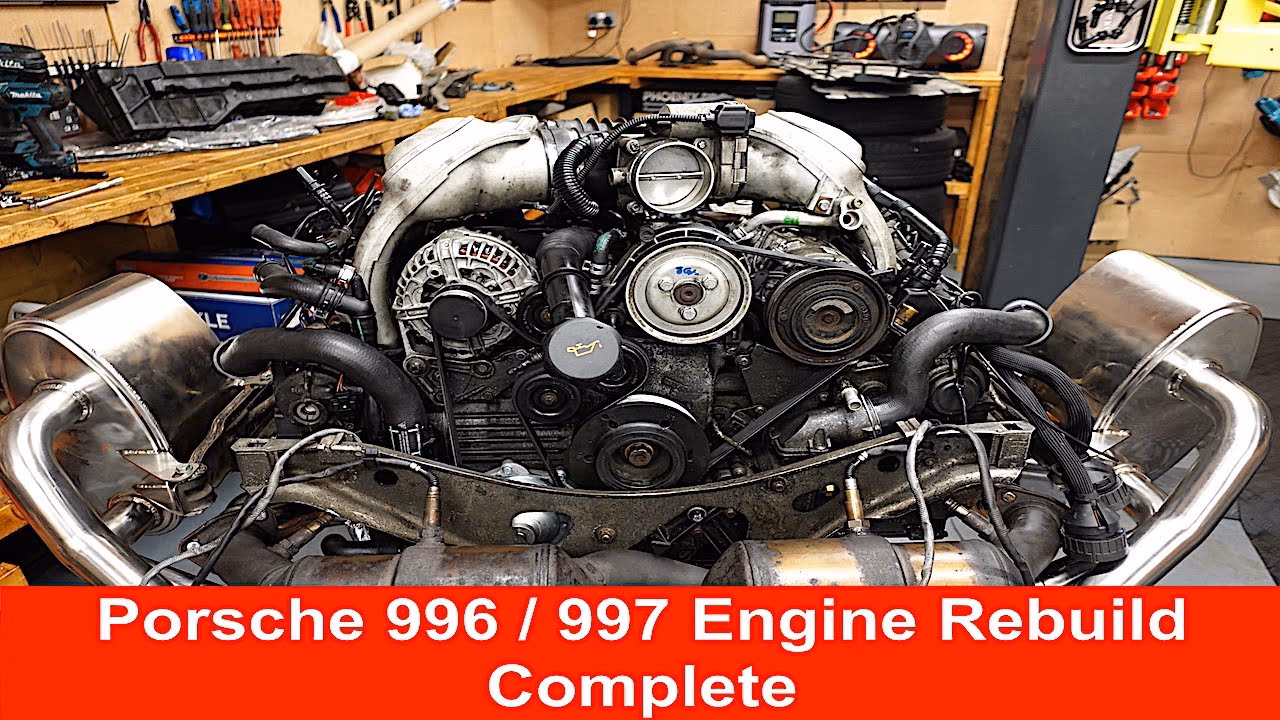

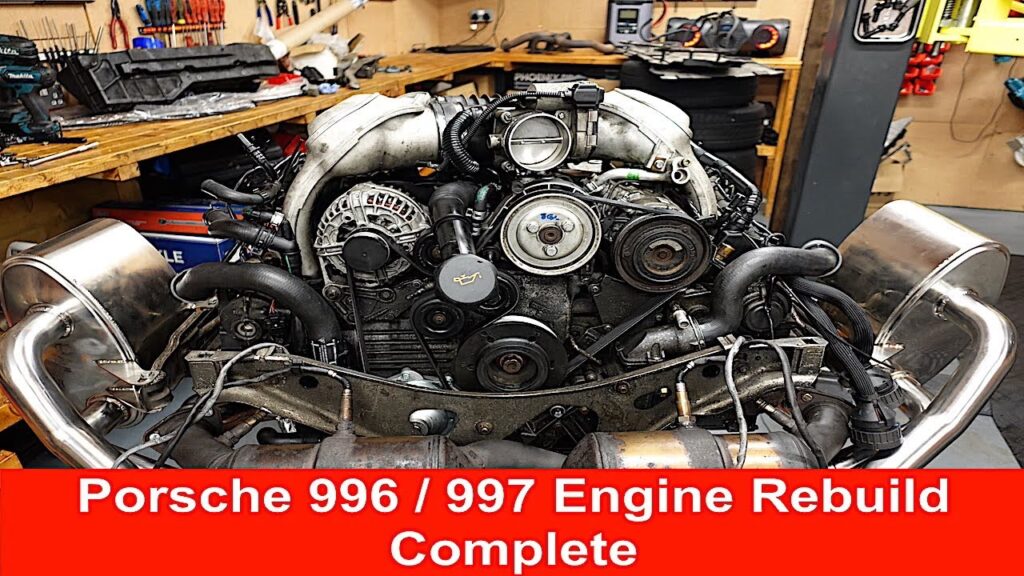

• Engine Rebuilds with Upgrades: For engines that have already suffered a failure, a rebuild by a reputable specialist can bring the engine back to life. Many rebuilders offer upgraded components, such as stronger pistons, improved cylinder liners, and enhanced lubrication systems, to prevent future issues.

Common Misconceptions and Statistics

It's easy for online forums and discussions to amplify the perceived failure rates of these engines. While the issues are real and have affected a significant number of cars, it's important to maintain perspective. Millions of M96 and M97 engines were produced, and the percentage that actually experienced catastrophic failure due to the IMS bearing or other issues is likely lower than sometimes suggested.

Furthermore, the user comment correctly points out that the 2.7 litre engines seem to be less affected than larger displacements like the 3.8. This could be due to differences in engine load, thermal management, or specific component variations between the different engine sizes.

Table: Common Engine Issues by Model Era

Here's a simplified overview of potential issues, though individual car history and maintenance play a significant role:

Frequently Asked Questions

Q1: Did all Porsche 996 engines fail?
A1: No, not all 996 engines failed. While the IMS bearing issue was a known problem, the failure rate was not 100%. Many 996s have been driven for many years and miles without incident.

Q2: Which Porsche 996 models are most at risk?
A2: Generally, earlier models with the M96 engine are considered to have a higher risk of IMS bearing failure. The 3.8 litre engines (like in the Carrera 4S) and some of the larger displacement Boxster/Cayman engines are sometimes cited as being more susceptible, but failures can occur across the range.

Q3: Can the IMS bearing be replaced?
A3: Yes, the IMS bearing can be replaced, often with an upgraded, more robust aftermarket unit. This is a common preventative maintenance procedure performed by specialists.

Q4: Are newer Caymans and Boxsters (post-2009) immune to engine problems?
A4: The newer MA1 engines are not known for the same IMS bearing failures. However, like any engine, they can experience wear over time. The user comment about potential ring coating wear on a 2.9 litre Gen 2 Cayman suggests that even newer designs can have specific wear characteristics at very high mileages.

Q5: What's the best way to avoid engine problems in my 996?
A5: Regular servicing with the correct oil, allowing the engine to warm up properly, avoiding excessive abuse, and considering a proactive IMS bearing replacement are key steps. Regular oil analysis can also help detect issues early.

Conclusion

The Porsche 996, despite its engine concerns, remains a desirable sports car for many enthusiasts. Understanding the potential issues, particularly the IMS bearing and lubrication challenges, is vital. By being informed, performing regular maintenance, and considering proactive preventative measures, owners can significantly increase their chances of enjoying their 996 for years to come. The evolution of engine design means that later models, while not entirely immune to wear, have largely overcome the specific catastrophic failures that have given the M96/M97 engines their challenging reputation.
