Detroit Diesel 8V92: Essential Oil & Maintenance Facts

Understanding Your Detroit Diesel 8V92 Engine: A Comprehensive Guide

The Detroit Diesel 8V92 engine is a robust and widely used power unit found in a variety of applications, from heavy-duty trucks and buses to marine vessels and industrial equipment. When it comes to maintaining the health and performance of this legendary engine, understanding its specific requirements is paramount. This article delves into key aspects of the 8V92, focusing on critical information like its oil capacity, common operational issues, and general maintenance considerations. Whether you're a seasoned mechanic or a new owner, this guide aims to provide clarity and confidence when working with your Detroit Diesel 8V92.

Detroit Diesel 8V92: Key Specifications and Oil Capacity

The Detroit Diesel 8V92 series is an 8-cylinder, two-stroke diesel engine with a displacement of 12.07 liters (736 cubic inches). It features 5 main bearings, a bore of 4.84 inches (123mm), and a stroke of 5 inches (127mm). The compression ratio varies depending on whether it's a naturally aspirated (19:1) or turbocharged (17:1) model.

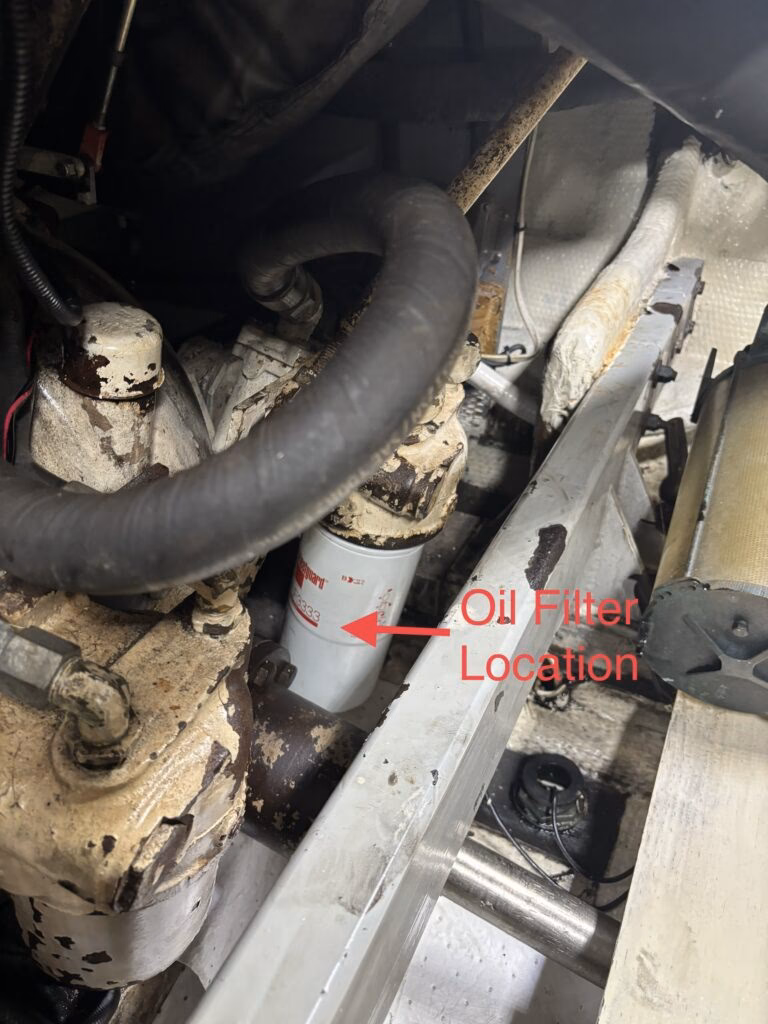

A question frequently asked by owners concerns the engine's oil capacity. For the Detroit Diesel 8V92, the typical oil capacity is between 17 to 23 quarts. The total engine oil capacity is generally considered to be 25 quarts. Maintaining the correct oil level is crucial for proper lubrication, cooling, and the overall longevity of the engine's internal components. Regularly checking the dipstick and adhering to the recommended oil type and change intervals, as specified in your engine's manual, will prevent premature wear and potential damage.

Oil Pressure and Temperature Guidelines

Understanding the expected oil pressure and temperature is vital for diagnosing potential issues. For the 8V92:

• Oil Pressure: Expect between 32-47 PSI at 1200 RPM, and 50-70 PSI at 1800-2100 RPM.
• Oil Temperature: The normal operating range is between 200-235 degrees Fahrenheit. Deviations outside these parameters can indicate underlying problems that require immediate attention.

Common Detroit Diesel 8V92 Engine Problems and Solutions

Troubleshooting engine performance issues is a common task for 8V92 owners. The provided chart highlights frequent problems, their likely causes, and recommended checks. Here's a breakdown of some of the most common concerns:

Engine Will Not Start

Several factors can prevent an 8V92 from starting:

• Lack of Air Intake or Restricted Air Intake: Ensure the air filter is clean and that there are no blockages in the intake system.
• Broken or Worn Blower Shaft: The blower is critical for introducing air into the cylinders. A damaged shaft will impair this process.
• Defective Fuel Pump: If the fuel pump isn't delivering fuel, the engine won't start.
• Defective Starter: A faulty starter motor will prevent the engine from cranking over.
• Discharged Battery: Insufficient battery power will also stop the engine from starting.
• High Exhaust Back Pressure: A clogged exhaust system can hinder the engine's ability to run.

Black Smoke from Engine

Black smoke typically indicates incomplete combustion, often due to an over-rich fuel mixture:

• Defective Injector: Faulty injectors can deliver too much fuel.
• Contaminated Fuel: Water or debris in the fuel can affect combustion.
• Broken or Worn Cylinder Parts: Internal cylinder damage can lead to poor combustion.
• Engine Overloaded: An engine working beyond its capacity will produce black smoke.
• Faulty Intercooler or Aftercooler (for turbo engines): These components help cool the intake air; their malfunction can affect combustion.

White Smoke from Engine

White smoke often signifies unburnt fuel or coolant entering the combustion chamber:

• Broken Piston Ring: Damaged rings can allow oil or coolant into the combustion chamber.
• Incorrectly Installed Ring Set: Improperly fitted rings can cause similar issues.
• Defective Injector: An injector that is not atomizing fuel correctly can lead to unburnt fuel.
• Fuel Quality or Grade: Using the wrong type of fuel can impact combustion.
• Long Idle Periods: Prolonged idling can sometimes result in incomplete combustion, leading to white smoke.
• Broken or Bent Push Rod: Affects valve operation and can disrupt combustion.
• Injector or Governor Improperly Adjusted: Incorrect timing or fuel delivery can cause this.

Low Engine Oil Pressure

Low oil pressure is a serious concern that can lead to significant engine damage:

• Water in Engine Oil Pan: Dilutes the oil and reduces its lubricating properties.
• Fuel in Engine Oil Pan: Similar to water, fuel contaminates and thins the oil.
• Defective Oil Cooler: A malfunctioning cooler can affect oil viscosity and flow.
• Engine Overloaded: Excessive load can sometimes strain the lubrication system.
• Crankcase Overfilled: Too much oil can lead to aeration and foaming, reducing pressure.

Engine Overheating

An overheating engine requires immediate attention to prevent catastrophic failure:

• Defective Fresh Water Pump: Essential for circulating coolant.
• Defective Raw Water Pump (marine engines): Crucial for cooling in marine applications.
• Defective Thermostat or Thermostat Seal: A stuck or faulty thermostat will prevent proper coolant flow.
• Clogged Radiator or Heat Exchanger (marine engines): Restricted airflow or coolant passage will cause overheating.

Detroit Diesel 8V92 Service Technical Manual

For in-depth maintenance, troubleshooting, and repair procedures, the Detroit Diesel 8V92 Engine Service Technical Manual is an indispensable resource. This comprehensive guide, often a PDF document spanning around 975 pages, provides detailed information on:

• Engine specifications and operating principles.
• Component functions and their interrelationships.
• Step-by-step instructions for maintenance tasks.
• In-depth troubleshooting guidance for diagnosing and resolving issues.
• Detailed diagrams, charts, and illustrations for easy part identification and repair procedures.
• Information on the fuel, cooling, lubrication, and electrical systems.
• Essential safety precautions for working on the engine.

Owning and operating a Detroit Diesel 8V92 means committing to its upkeep. Regularly consulting the service manual and adhering to the recommended maintenance schedules will ensure your engine delivers reliable performance for years to come.

Parts and Support for Your 8V92

When it comes to sourcing parts for your Detroit Diesel 8V92, look for reputable suppliers who offer quality components and reliable warranties. Many suppliers provide comprehensive catalogs with clear product descriptions and multiple images, making it easier to find the exact parts you need. Whether you require parts for a natural or turbo-aftercooled (8V92TA) engine, or even marine-specific components like seawater pumps, ensuring you get the right fit is essential.

Consider suppliers who offer:

• One-year warranties on new products.
• 30-day money-back guarantees and returns on unused merchandise.
• User-friendly websites with detailed product information.
• Integrated shipping options, allowing you to choose the best method for your needs, from ground shipping to overnight delivery.

Frequently Asked Questions

Q: What is the recommended oil type for a Detroit Diesel 8V92?
A: Always refer to your specific engine's owner's manual for the recommended oil type and viscosity. Generally, high-quality diesel engine oil meeting API CG-4 or higher specifications is advised.

Q: How often should I change the oil in my 8V92?
A: Oil change intervals depend on operating conditions, hours of use, and the type of oil used. Consult your service manual for the manufacturer's recommended schedule, but a common guideline might be every 3,000 to 5,000 miles or 250 to 500 operating hours.

Q: What does it mean if my 8V92 is producing grey smoke?
A: Grey smoke can indicate several issues, including long idle periods, problems with the intercooler or aftercooler (if turbocharged), restricted air intake, defective injectors, contaminated fuel, or leaking blower or turbocharger seals.

Q: Where can I find parts for a Detroit Diesel 8V92 marine application?
A: Specialized marine diesel parts suppliers often carry components specifically for marine versions of the 8V92, including seawater pumps and related cooling system parts.

By staying informed about your Detroit Diesel 8V92's specific needs and potential issues, you can ensure its continued reliable operation. Regular maintenance, timely checks, and using the correct parts are the cornerstones of keeping this powerful engine in peak condition.
