The Ford 8N tractor is a true icon of agricultural history, renowned for its durability, versatility, and the sheer volume of work it has accomplished over the decades. For many owners, maintaining and restoring these classic machines is a passion, and understanding the specific parts and engine components is crucial. This guide delves into the essential parts of the Ford 8N, with a particular focus on its robust engine and the various components that keep it running.
Ford 8N Tractor: A Classic Workhorse
Manufactured by Ford from 1947 to 1952, the Ford 8N was a successor to the 2N and 9N models. It featured significant upgrades, including a more powerful engine, a higher gear ratio for increased speed, and the revolutionary "Select-O-Speed" transmission, although the standard 4-speed constant mesh transmission remained the most common. Its distinctive red paint and "Red Belly" designation made it easily recognisable. The 8N's ability to adapt to various farming tasks, from ploughing to powering implements via its Power Take-Off (PTO), cemented its place as a beloved and highly sought-after tractor.
Ford 8N Engine: The Heart of the Machine
At the core of the Ford 8N tractor is its reliable four-cylinder, L-head gasoline engine. This engine, with a displacement of 120 cubic inches (1962 cc), was designed for dependable performance under demanding conditions. Understanding its specifications is key to effective maintenance and repair.
Engine Specifications Overview
Here's a detailed look at the engine's key features:
| Specification | Details |
|---|---|
| Engine Type | Gasoline, L-head |
| No. of Cylinders | 4 |
| Bore and Stroke | 3.18 x 3.75 inches (80.8 x 92.3 mm) |
| Compression Ratio | 6.0:1 |
| Max Working Speed | 1500 RPM / 2000 RPM |
| Horsepower | 15 kW / 20 HP |
| Torque | 84 lbs-ft (114 N-m) at 1500 RPM |
| Ignition System | Battery, Spark Plug (Marked H-10) |
| Carburetor | Single Barrel |
| Cooling System | Centrifugal type, water-cooled |
| Starting System | 6V Automatic Starter |
| Oil Capacity | 6 Quarts (5.6 Litres) |
Key Engine Parts and Their Function
Keeping the Ford 8N running smoothly requires attention to its various engine components. Here are some of the most critical parts:
- Pistons and Sleeves: The cast steel pistons move within dry-type sleeves, converting the combustion pressure into rotational force. Proper sealing between the piston rings and sleeves is vital for compression and efficiency.
- Piston Pins: These connect the pistons to the connecting rods and are designed to be full-floating, allowing for smooth operation.
- Spark Plugs: Essential for igniting the fuel-air mixture in each cylinder. Keeping them clean and correctly gapped ensures efficient combustion.
- Carburetor: The single-barrel carburetor mixes air and fuel to create the combustible mixture fed into the cylinders. Adjustments and cleaning are often necessary for optimal performance.
- Ignition System: This includes the battery, spark plugs, and associated wiring. A healthy ignition system provides the spark at the right time for combustion.
- Oil Pump and Pressure: The centrifugal oil pump circulates oil throughout the engine to lubricate moving parts and manage heat. Maintaining adequate oil pressure is paramount; a drop in pressure can indicate wear or blockages.
- V-Belt: Drives various accessories, including the water pump and often the generator/alternator, ensuring the cooling system and electrical charging system function correctly.
Transmission and Drivetrain Components
While not strictly engine parts, the transmission and drivetrain are intimately linked to how the engine's power is utilized. The Ford 8N features a robust four-speed constant mesh transmission, providing four forward gears and one reverse. Power is transferred through a single-plate clutch and a heavy-duty differential to the rear axles.
Transmission and Drivetrain Parts
- Clutch: A single-plate clutch engages and disengages power from the engine to the transmission. The release bearing is a ball bearing type.
- Transmission Gears: The constant mesh design means gears are always in mesh, allowing for smooth shifting.
- Differential: Splits power to the rear axles, allowing the wheels to rotate at different speeds when turning.
- Rear Axles: Heavy-duty, semi-floating rear axles transmit power to the rear wheels.
The wheels and tires are critical for traction, stability, and the overall operation of the tractor. The Ford 8N typically uses a 4.00x19 front tire and a 10.00x28 rear tire. Maintaining the correct tire pressure is essential for performance and longevity.
Common Wheel and Tire Parts
- Rims: The metal structure that the tire mounts onto.
- Tires: Providing grip and cushioning.
- Tubes: Used inside the tires to hold air.
- Wheel Hubs: The central part of the wheel that attaches to the axle.
- Wheel Bearings: Cones and cups that allow the wheel to rotate smoothly on the hub. Proper lubrication and adjustment are crucial.
- Hub Caps: Cover and protect the wheel hub and bearings.
- Seals: Prevent dirt and moisture from entering the wheel bearings and keep grease in.
- Bolts and Miscellaneous Parts: Various fasteners and small components needed to assemble the wheels.
Hydraulic System
The Ford 8N is equipped with a hydraulic system, often referred to as the "Ferguson System" or "3-point hitch," which allows it to lift and control implements attached to the tractor. This system is driven by a direct power take-off shaft and is controlled manually or automatically.
Hydraulic System Components
- Hydraulic Pump: Delivers hydraulic fluid to operate the lift arms and other functions. The 8N typically has a pump flow of 2.85 GPM at 2000 RPM.
- Hydraulic Fluid: Transmits power within the system. The hydraulic system capacity is approximately 5 gallons (18 litres).
- Lift Arms: The connection points for the 3-point hitch implements.
- Control Levers: Allow the operator to raise, lower, and adjust implements.
Common Ford 8N Issues and Troubleshooting
Even the most robust tractors can develop issues over time. Here are some common problems and troubleshooting tips for the Ford 8N:
Engine Oil Pressure Problems
A common concern for 8N owners is dropping oil pressure, especially as the engine warms up. If you experience this:
- Check Oil Level: Ensure the engine oil is at the correct level.
- Verify Gauge: Use a separate, reliable oil pressure gauge to confirm the reading.
- Inspect Oil Pickup Tube: Check for blockages or cracks in the oil pickup tube, which can lead to the pump drawing air.
- Examine Rocker Arms: Remove the rocker cover and observe if oil is reaching the valve train. This indicates the pump and main oil galleries are functioning.
- Internal Wear: If the above steps don't reveal the issue, worn main bearings and/or big-end bearings are a likely cause. In severe cases, a full engine rebuild may be necessary, including checking crankshaft and bearing clearances. Adjusting the oil pressure relief valve might offer a temporary fix but often masks underlying wear.
Other Potential Issues
- Carburetor Issues: Stalling, rough idling, or poor acceleration can often be traced to a dirty or improperly adjusted carburetor.
- Cooling System Leaks: Overheating can result from leaks in hoses, the radiator, or the water pump.
- Clutch Slippage: A worn clutch will cause the tractor to lose power, especially under load.
Finding Ford 8N Parts

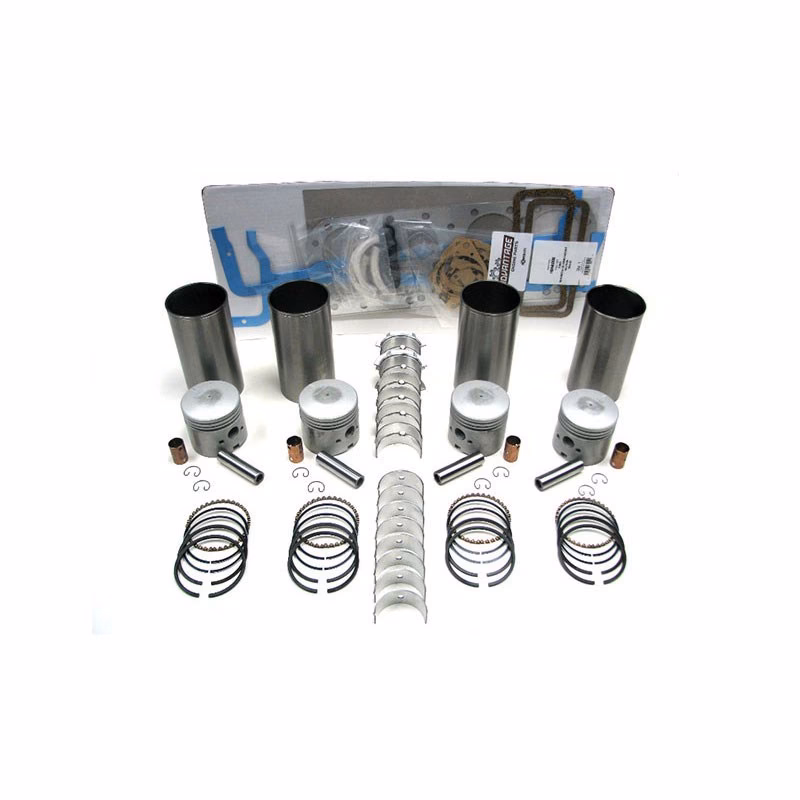

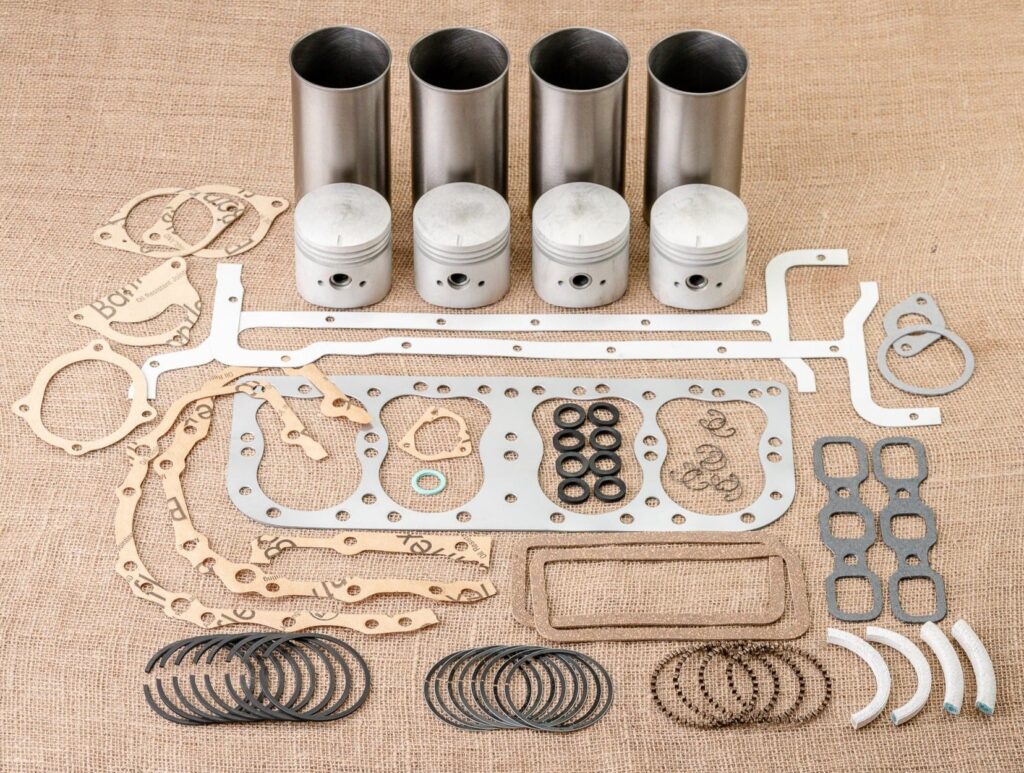

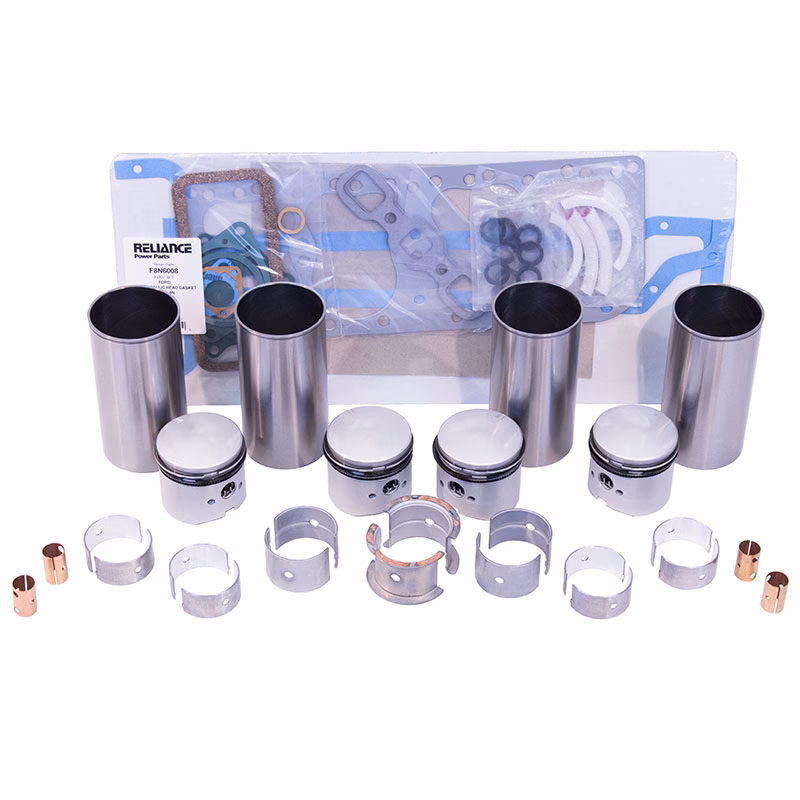

Sourcing parts for a classic tractor like the Ford 8N is crucial for its upkeep. A vast network of dealers, online suppliers, and private sellers offer both new and used parts. Whether you're looking for common wear items like spark plugs and filters, or more significant components such as engine rebuild kits, transmission parts, or wheel assemblies, the availability is generally good.
When searching for parts, ensure you are specifying the correct model and year of your Ford 8N, as minor variations can exist. Many suppliers offer comprehensive parts catalogs and diagrams to help you identify the exact component you need. Don't underestimate the value of used parts from reputable sources, especially for components that are no longer manufactured.
Frequently Asked Questions (FAQ)
Q1: What type of engine does a Ford 8N have?
A: The Ford 8N is powered by a 4-cylinder, L-head gasoline engine with a displacement of 120 cubic inches (1962 cc), typically producing around 20 horsepower.
Q2: What are the main differences between a Ford 8N and its predecessors (9N/2N)?
A: The 8N featured a more powerful engine, a higher top speed (achieved through gearing), a deeper engine oil pan, a heavier-duty rear axle, and often a distinctive "Red Belly" paint scheme. While the 9N/2N had a 4-speed transmission, the 8N offered an improved 4-speed constant mesh transmission and was the first to offer the optional "Select-O-Speed" transmission.
Q3: Where can I find replacement parts for my Ford 8N?
A: Ford 8N parts are widely available from specialised tractor parts suppliers, online retailers, farm equipment dealers, and through private sales. Websites like Equipment Trader often list tractors and parts for sale.
Q4: What is the typical operating weight of a Ford 8N?
A: The operating weight of a Ford 8N is approximately 2410 lbs (1093 kg).
Q5: How can I address low oil pressure in my Ford 8N engine?
A: Low oil pressure can be caused by low oil level, a faulty oil pressure gauge, a blocked oil pickup tube, or worn engine bearings. It's important to diagnose systematically, starting with the simplest checks.
Maintaining your Ford 8N tractor ensures its longevity and continued usefulness. By understanding its engine and the various parts that comprise it, you can confidently tackle maintenance tasks and keep this classic piece of machinery running for years to come.
