ZF 6HP19 Gearbox Service Essentials

Understanding the ZF 6HP19 Gearbox Service Kit

The ZF 6HP19, also known as the 09L in some applications, is a highly regarded six-speed automatic transmission found in a wide array of vehicles. Its sophisticated design offers excellent fuel economy and durability, but like all complex mechanical systems, it requires regular maintenance to ensure optimal performance and longevity. A crucial aspect of this maintenance is the use of a dedicated service kit. This article delves into what a typical ZF 6HP19 service kit includes, the recommended service intervals, and common issues that owners might encounter.

What's Included in a ZF 6HP19 Service Kit?

A genuine ZF 6HP19 service kit is designed to provide the essential components needed for a routine service. While specific contents might vary slightly between manufacturers or kits, the core elements are generally consistent. A typical kit, like the one priced at approximately £260.00, will usually contain:

Key Components:

• 7 Litres of Lifeguard 6 Fluid: This is the specialised automatic transmission fluid (ATF) specifically formulated by ZF for this gearbox. Using the correct fluid is paramount, as it ensures proper lubrication, cooling, and hydraulic function. Lifeguard 6 is known for its high performance and stability over a wide temperature range.
• 1 x Sump Pan Filter: The filter's primary role is to trap debris and contaminants that can accumulate in the transmission fluid over time. This debris can include metal shavings from wear and tear on internal components. A clogged filter restricts fluid flow, impacting performance and potentially leading to damage.
• 1 x Set of Screws: New screws are typically provided for the sump pan when replacing the filter. This ensures a secure seal and avoids issues caused by worn or damaged original screws.
• 1 x Sleeve: This component often refers to a sealing sleeve or adapter that might need replacement during a service, particularly if the original shows signs of wear or degradation.

It's important to ensure you order the correct service kit for your specific vehicle model and transmission variant. If in doubt, consulting with a specialist or the supplier with your vehicle's VIN is highly recommended before purchasing.

Why Service Your ZF 6HP19?

ZF Getriebe, the manufacturer, recommends a service interval of approximately 60,000 miles (or roughly 100,000 kilometres) for the 6HP19 transmission. Adhering to this schedule is vital for several reasons:

• Fluid Degradation: Over time, ATF breaks down due to heat and shear forces. This degradation reduces its lubricating and cooling properties, leading to increased wear on internal components.
• Contamination: As mentioned, microscopic metal particles and other debris are generated through normal operation. The filter captures these, but it eventually becomes saturated and less effective, or can even restrict fluid flow.
• Performance: Fresh fluid and a clean filter contribute to smoother gear changes, better fuel efficiency, and a more responsive driving experience.
• Preventing Costly Repairs: Regular servicing is significantly cheaper than repairing or replacing a failed transmission. Addressing minor issues before they become major problems is always the most economical approach.

Common ZF 6HP19 (09L) Transmission Problems and Solutions

While the ZF 6HP19 is generally a robust unit, like all automatic transmissions, it can suffer from specific issues. Understanding these can help owners recognise potential problems early:

1. Electronic Control Unit (ECU) Failures

One commonly reported issue relates to the electronic control unit. In earlier generations, there were concerns about temperature stability, with the unit potentially failing in hot weather. While later revisions improved resistance to temperature fluctuations, overheating can still be a contributing factor to ECU problems. Symptoms might include erratic shifting, loss of gears, or the transmission entering a limp-home mode.

2. Valve Body Issues

The valve body, with its intricate solenoids, is the brain of the automatic transmission, controlling fluid pressure and directing it to engage different gear sets. In the ZF 6HP19, the fully automatic solenoids, while optimising efficiency, have sometimes been noted for reliability issues. Problems with solenoids can lead to harsh shifting, delayed engagement, or the transmission failing to select certain gears. The valve body also plays a crucial role in cooling and lubrication, and its efficient operation is key.

3. Hydraulic Transformer Lock-Up Problems

The transmission features a compulsory lock-up of the hydraulic converter, which improves fuel efficiency by eliminating slip at higher speeds. However, issues with this lock-up mechanism can lead to problems with frictional slip, potentially causing overheating and premature wear.

4. Single-Layer Membrane Filter Clogging

A unique feature of this transmission design is the use of a single-layer membrane filtering oil. This type of filter can be prone to rapid clogging if the fluid is not changed at the recommended intervals or if the transmission experiences excessive wear. A clogged filter significantly weakens oil flow, leading to oil starvation in critical areas, which can cause severe damage.

5. Solenoid Block Adapter Issues

The adapter for the solenoid block can also become a point of failure. It's crucial to ensure the transmission fluid is adequately warmed up during winter months. Cold, thick fluid can put undue stress on this adapter, potentially leading to its failure over time.

Repairing and Rebuilding the ZF 6HP19

Repairing a ZF 6HP19 often involves addressing the specific component failures mentioned above. This can include:

• Solenoid Replacement: Diagnosing and replacing faulty solenoids within the valve body.
• Valve Body Reconditioning: Some specialists can recondition valve bodies to restore proper function.
• Torque Converter Repair/Replacement: Addressing issues related to the hydraulic converter.
• Mechatronic Unit Repair: The integrated control unit and valve body assembly (often called a mechatronic unit) can sometimes be repaired by specialists.
• Complete Rebuilds: For more significant internal damage, a full transmission rebuild using a master kit (which includes various seals, clutches, bands, and other wear items) may be necessary.

Professional installation is highly recommended for these types of repairs and services. Attempting complex transmission work without the proper tools, knowledge, and diagnostic equipment can lead to further damage. Companies offering installation services can provide peace of mind and ensure the work is carried out correctly.

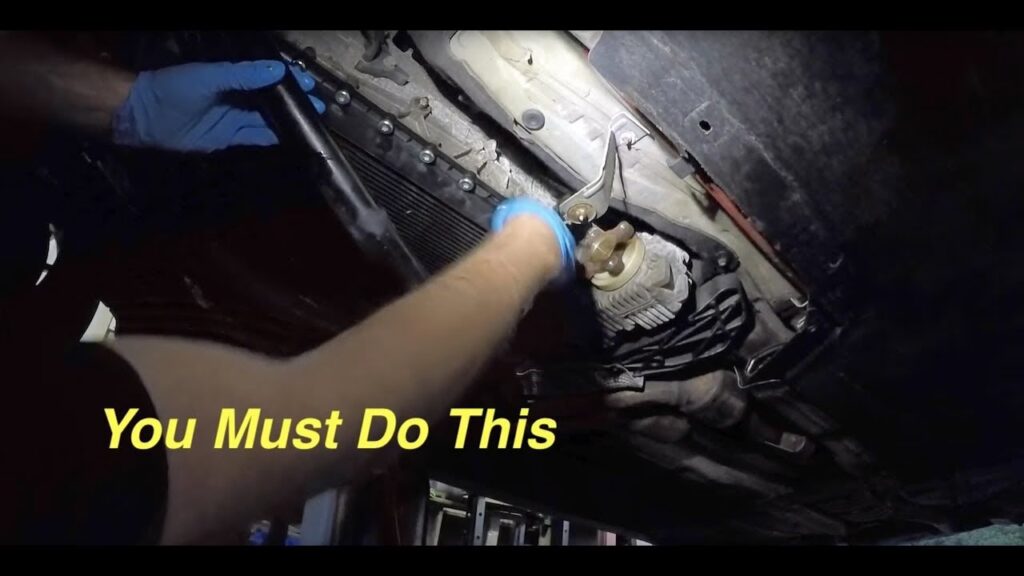

Fluid Capacity and Change Procedure

The ZF 6HP19 has a factory fluid capacity of approximately 9 litres. However, a standard drain and fill procedure typically only allows for the recovery of around 5.5 litres of old fluid. This is because a significant amount of fluid remains within the torque converter and cooler lines. For a more thorough fluid exchange, a flushing procedure or a multiple drain-and-fill process is often recommended.

The correct fluid is ZF-Lifeguard Fluid 6. Using any other ATF, even if it claims to be compatible, can lead to shifting problems and long-term damage. The part number for a single litre is often cited as S671 090 255.

Maintenance Schedule and Best Practices

To maximise the life of your ZF 6HP19 transmission, consider the following:

• Adhere to Service Intervals: Don't skip or delay scheduled services. 60,000 miles is a guideline; if you frequently drive in heavy traffic, tow, or operate in extreme conditions, consider servicing it more frequently.
• Use Genuine Parts: Always opt for genuine ZF parts, especially the Lifeguard 6 fluid and the correct sump filter.
• Warm-Up in Winter: Allow the engine and transmission to warm up sufficiently before driving off, especially in cold weather, to ensure proper fluid circulation.
• Monitor for Symptoms: Pay attention to any changes in shifting behaviour, unusual noises, or warning lights. Early detection is key to preventing major issues.
• Professional Diagnosis: If you suspect a problem, seek diagnosis from a specialist familiar with ZF transmissions.

By understanding the components of a service kit and adhering to a consistent maintenance schedule, ZF 6HP19 owners can ensure their transmission continues to perform reliably for many years and miles to come. Remember, preventative maintenance is always the most cost-effective strategy when it comes to complex automotive components like automatic transmissions.

Frequently Asked Questions (FAQs)

Q1: How often should I service my ZF 6HP19?

A1: ZF recommends a service interval of 60,000 miles. However, depending on driving conditions, more frequent servicing might be beneficial.

Q2: Can I use a generic ATF instead of ZF Lifeguard 6?

A2: It is strongly advised against using generic ATFs. ZF Lifeguard 6 is specifically formulated for this transmission's unique requirements. Using the wrong fluid can cause significant damage.

Q3: What are the most common failure points in the ZF 6HP19?

A3: Common issues include problems with the electronic control unit (ECU), valve body solenoids, and the single-layer filter clogging, leading to oil starvation.

Q4: Is it possible to repair the valve body?

A4: Yes, many specialists can repair or recondition ZF valve bodies by replacing faulty solenoids or other components.

Q5: How much fluid does the ZF 6HP19 hold?

A5: The total capacity is around 9 litres, but a standard drain and fill typically only replaces about 5.5 litres.
