The Ford 6DCT250 Powershift transmission has been a topic of much discussion among car owners and enthusiasts, particularly regarding its design and operational characteristics. A common point of confusion often revolves around the type of clutch system it employs: is it a wet clutch or a dry clutch? Understanding this distinction is fundamental to proper maintenance, diagnosis of issues, and appreciating the engineering behind this innovative gearbox.
Often found in popular Ford models such as the Focus and Fiesta, the 6DCT250 is a dual-clutch transmission (DCT) designed to offer the convenience of an automatic with the efficiency typically associated with a manual gearbox. This is achieved through a clever system of two independent clutches, each controlling a set of gears.
- Understanding the Ford 6DCT250 Powershift Design
- Is the 6DCT250 a Wet or Dry Clutch Transmission? The Definitive Answer
- Peculiarities of Operation and Driving Tips
- Common Problems and Solutions
- Transmission Fluid: What You Need to Know
- Maintenance and Service Recommendations
- Why Professional Service is Key
- Frequently Asked Questions About the 6DCT250 Powershift
- Conclusion
Understanding the Ford 6DCT250 Powershift Design
The Ford 6DCT250, also known as the DPS6, is engineered for seamless gear changes and improved fuel economy. Its core principle lies in the parallel operation of two main shafts, each actuated by a separate clutch. While one clutch engages the current gear, the other simultaneously pre-selects and prepares the next gear for engagement. This ingenious design significantly reduces torque losses during shifts, providing a remarkably smooth and uninterrupted power delivery to the wheels.
This transmission successfully merges the user-friendliness of an automatic with the performance and efficiency benefits of a manual. It can also be found in configurations that support all-wheel drive (AWD) systems via a separate Power Take-Off Unit (PTU) and is compatible with start-stop features without requiring hardware modifications. Furthermore, when combined with an E-motor, the 6DCT250 can be integrated into hybrid drive systems, showcasing its versatility.
Is the 6DCT250 a Wet or Dry Clutch Transmission? The Definitive Answer
Despite some common misconceptions and occasional mislabelling in various discussions, the Ford 6DCT250 Powershift transmission utilises a dry clutch system. This is a critical distinction, as it dictates the transmission's operational characteristics, maintenance requirements, and the nature of potential faults.
In a dry clutch system, the clutch plates operate without being submerged in lubricating fluid. They rely on friction between dry surfaces to transmit power. The confusion often arises because Ford also produces other Powershift transmissions, such as the 6DCT450 (MPS6), which *do* feature a wet clutch design. The information sometimes circulated, particularly referencing older Ford models like the 2008 Focus 2.0 Diesel in the UK, often pertains to these wet-clutch variants, not the 6DCT250.
The dry clutch design of the 6DCT250 contributes to its high efficiency, as there are no viscous losses from clutch plates churning through oil. However, it also means the clutches are more susceptible to wear from heat generated by friction, particularly in stop-start traffic or when creeping at low speeds.
Dry Clutch vs. Wet Clutch: A Quick Comparison
To further clarify the differences and why the 6DCT250's dry clutch is significant, here's a brief comparison:
| Feature | Dry Clutch DCT (e.g., 6DCT250) | Wet Clutch DCT (e.g., 6DCT450) |
|---|---|---|
| Clutch Operation | Clutch plates operate dry, relying on friction. | Clutch plates are submerged in transmission fluid. |
| Heat Dissipation | Relies on airflow and passive cooling. More susceptible to overheating in heavy traffic. | Fluid helps dissipate heat, allowing for higher torque capacity and better durability in demanding conditions. |
| Efficiency | Generally higher mechanical efficiency due to less parasitic drag from fluid. | Slightly lower mechanical efficiency due to fluid drag, but often smoother engagement. |
| Fluid Requirements | Separate fluid for gears and differential; clutches are dry. | Clutches and gears share the same transmission fluid. |
| Common Issues | Can suffer from judder, premature wear, or overheating in specific driving conditions. | Less prone to overheating, but fluid contamination can be an issue. |
Peculiarities of Operation and Driving Tips
Due to its unique dry clutch design and sophisticated control system, the 6DCT250 Powershift requires specific operational considerations to ensure its longevity and optimal performance. Adhering to these guidelines can significantly extend the life of your transmission and prevent common issues:
- Stopping the Car: When bringing the car to a halt, it is crucial to first press the brake pedal, engage the handbrake lever, and *only then* shift the selector to the “P” (parking) position. This practice ensures that the transmission's parking pawl is not under undue stress from the vehicle's weight.
- "Select-Shift" Mode: When utilising the manual "Select-Shift" mode, avoid continuously holding down the “+/-“ button. This can confuse the transmission's control unit and potentially lead to jerky shifts or premature wear. Use a distinct press for each desired gear change.
- Idling Engine: If the engine is running but the vehicle is stationary for an extended period, such as in traffic or at a level crossing, it is recommended to switch the selector into either “P” (parking) or “N” (neutral) mode. This disengages the clutches, reducing heat build-up and wear that can occur if the transmission remains in "D" or "R" with the brakes applied.
- Holding Brakes in Gear: It is not advisable to keep the brakes engaged for a prolonged period while the transmission is in “R” (reverse), “S” (sport), or “D” (drive) mode. This puts continuous load on the clutches, generating excessive heat and accelerating wear. If stationary, refer to the idle engine guidance.
Common Problems and Solutions
Like any complex mechanical component, the 6DCT250 Powershift transmission can encounter specific issues. The most frequently reported faults are closely tied to the clutch system. Due to the structural stiffness inherent in its design, the clutch assembly is highly responsive to Electronic Control Unit (ECU) malfunctions. This can manifest as:
- Clutch Judder/Shudder: A common complaint, often felt as vibrations or shudders during engagement, particularly from a standstill or at low speeds. This can be exacerbated by hot weather or heavy traffic.
- Gear Engagement Failure/Wedging: ECU communication issues or mechanical wear can lead to gears failing to engage properly, or even becoming "wedged," preventing smooth shifts.
- Premature Clutch Wear: Aggressive driving, excessive idling in gear, or frequent stop-and-go traffic can accelerate wear on the dry clutches.

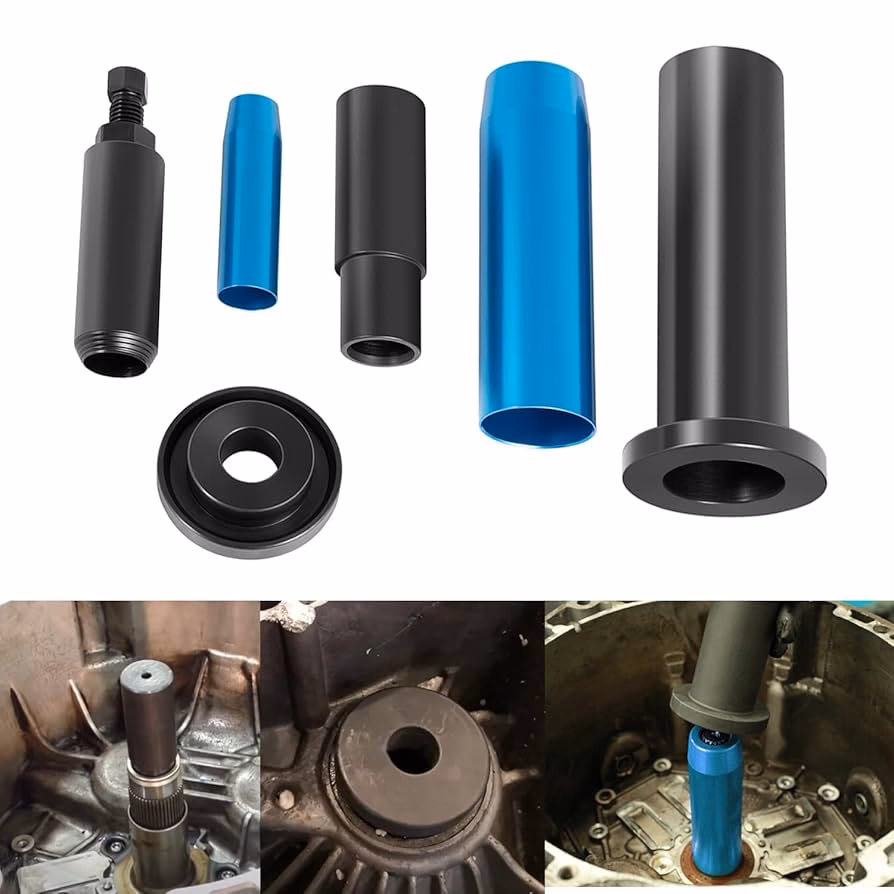

Another identified issue is ATF leakages in the primary shaft seal. While the clutches themselves are dry, the transmission still contains Automatic Transmission Fluid (ATF) for lubricating the gears and bearings. If this fluid leaks onto the dry clutch plates, it can cause severe slippage and a significant loss of power transmission. Symptoms include increased engine RPM without corresponding vehicle speed increase, or a burning smell.
Transmission Fluid: What You Need to Know
The question of transmission fluid in DCTs, especially the 6DCT250, often causes confusion. While the 6DCT250 features a dry clutch, it absolutely contains transmission fluid for the gear train lubrication. This is distinct from the fluid found in wet clutch DCTs, which also bathes the clutches.
For the 6DCT250, the fluid is typically a SAE 75W-90 grade gear oil, similar to what you might find in some manual gearboxes. It's vital to consult your Ford service department or owner's manual for the precise specification, as using the wrong grade can lead to premature wear or operational issues. Although often considered a 'sealed for life' unit by some manufacturers, transmission repair specialists strongly recommend changing the ATF and filter. This procedure is generally advised after every 45,000 kilometres (approximately 28,000 miles). It is paramount that this service is performed by qualified specialists, as it requires specific tools and knowledge to ensure correct fluid levels and prevent contamination.
Changing the gear oil, especially to a high-quality fully synthetic variant, can sometimes alleviate issues like 'notchiness' or difficulty engaging gears, improving the overall shifting experience, much like it can for a manual gearbox.
Maintenance and Service Recommendations
Given the specific design and potential vulnerabilities of the 6DCT250, proactive and correct maintenance is non-negotiable for its longevity:
- Regular Fluid and Filter Changes: As mentioned, despite what some might hear, the gear oil and filter need changing. Adhering to the 45,000 km (28,000 miles) interval is a wise investment. This is not a task for the average DIY mechanic, as proper equipment and knowledge are required for accurate fluid level checks and component handling.
- Software Updates: The 6DCT250 is highly dependent on its ECU. Regular software updates from Ford can often address common driveability issues, improve shift quality, and optimise clutch engagement strategies, thereby reducing wear.
- Driving Habits: Adopt driving habits that are kinder to the dry clutch. Avoid prolonged creeping in traffic. If stationary for more than a few seconds, shift to Neutral (N) or Park (P). When starting from a standstill on an incline, use the handbrake to prevent the car from rolling back, rather than relying solely on the clutch.
- Prompt Attention to Symptoms: Do not ignore early signs of trouble like judder, unusual noises, or delayed engagement. Early diagnosis can prevent minor issues from escalating into major, costly repairs.
Why Professional Service is Key
The intricate nature of the Ford 6DCT250 Powershift transmission means that maintenance and repair are best left to professionals. Specialised diagnostic tools are required to accurately pinpoint issues within the ECU and mechanical components. Furthermore, clutch replacement or adjustment on these units is a complex procedure that demands specific tools and calibration processes to ensure correct operation. Attempting DIY repairs without the necessary expertise and equipment can lead to further damage and significantly higher repair bills.
Frequently Asked Questions About the 6DCT250 Powershift
Q: Is the Ford 6DCT250 Powershift reliable?
A: While the 6DCT250 has faced scrutiny due to common issues like clutch judder and wear, particularly in early models, many vehicles equipped with it run reliably when properly maintained and driven with awareness of its operational peculiarities. Software updates and improved clutch materials have also addressed some initial concerns.
Q: What causes the judder in the 6DCT250?
A: Judder is typically caused by uneven wear on the dry clutch plates, contamination of the clutch surfaces, or issues with the Transmission Control Module (TCM) that manages clutch engagement. Excessive heat from stop-start driving can exacerbate these issues.
Q: Can the 6DCT250 be repaired, or does it always need replacement?
A: Many issues with the 6DCT250 can be repaired, often involving clutch pack replacement, TCM reprogramming, or seal replacements. Full transmission replacement is usually a last resort for severe internal damage.
Q: How can I make my 6DCT250 last longer?
A: Regular, professional servicing (including fluid and filter changes), adopting careful driving habits (avoiding prolonged creeping, shifting to N/P when stationary), and promptly addressing any unusual symptoms are key to extending its lifespan.
Q: Is the 6DCT250 the same as other Powershift transmissions?
A: No. While they share the 'Powershift' moniker, the 6DCT250 (DPS6) is a dry clutch unit, whereas the 6DCT450 (MPS6) is a wet clutch unit. They have different operational characteristics and maintenance requirements.
Conclusion
The Ford 6DCT250 Powershift transmission, with its dry clutch design, represents a sophisticated piece of automotive engineering aimed at balancing efficiency and convenience. While it has its unique operational characteristics and potential issues, understanding its specific requirements and adhering to recommended maintenance practices can ensure a long and smooth service life. By being aware of how to properly operate and care for this gearbox, you can mitigate common problems and continue to enjoy the seamless driving experience it offers.
