Toyota 5VZ-FE Engine: The UK's Dependable V6

Arriving in the early 1990s and serving loyally until late 2004, the Toyota 5VZ-FE engine quickly established itself as one of the most reliable and enduring powerplants ever to grace Toyota's trucks and SUVs. Despite its age, this V6 marvel stands as a testament to exceptional engineering, integrating advanced automotive systems of its time to set a high standard for engine design and performance. Today, we'll delve into the comprehensive world of the Toyota 5VZ-FE, exploring its design philosophy, common applications, potential issues, renowned reliability, tuning capabilities, and much more.

The Toyota 5VZ-FE engine is a naturally-aspirated, water-cooled, V6, 3.4-litre gasoline engine, meticulously manufactured by the Toyota Motor Corporation from 1995 to 2004. This formidable engine's architecture draws its fundamental basis from its predecessor, the 3VZ-E, which it eventually superseded, and it stands as a modified, refined version of the 3VZ-FE engine. Production for this highly regarded unit primarily took place at Toyota’s Alabama Manufacturing Plant, a testament to its global reach and importance.

The Heart of Reliability: In-Depth Specifications and Design

The 5VZ-FE engine boasts a robust design, featuring six cylinders arranged in a 'V' orientation with a bank angle of 60-degrees. This configuration is not arbitrary; the 60-degree angle is meticulously chosen to ensure optimal balance and uniform 120-degree firing intervals, contributing significantly to the engine's smooth operation. Its foundation is a deep-skirt cast-iron block, providing exceptional rigidity and durability, housing a four-bearing casted crankshaft. Complementing this sturdy block are two lightweight yet strong aluminium cylinder heads, which are crucial for heat dissipation and overall engine efficiency. A belt-driven double overhead camshaft (DOHC) design orchestrates the valve timing, ensuring precise control over the engine's breathing.

The engine operates with four valves per cylinder – two for intake and two for exhaust – actuated by shim-over-bucket tappets, a design choice known for its durability and precise valve clearance maintenance. Large cast connecting rods link the pistons to the crankshaft, built to withstand the stresses of high torque delivery. A cast aluminium intake manifold is installed, optimised for efficient air delivery to each cylinder. Furthermore, an oil cooler, cleverly integrated into the radiator, helps maintain optimal oil temperatures, contributing to the engine's longevity.

In terms of ignition, the 5VZ-FE is equipped with a wasted spark Direct Ignition System (DIS), which employs three coils, with each coil serving two cylinders simultaneously. This system significantly improves ignition timing precision and reduces high-voltage loss compared to traditional distributor-based systems, resulting in a more reliable ignition. Fuel delivery is handled by a Sequential Multiport Fuel Injection (SFI) System, which precisely meters fuel to each cylinder. The engine also benefits from Electronic Spark Advance (ESA), an intelligent system where the Electronic Control Module (ECM) dynamically adjusts ignition timing based on sensor inputs, including an anti-knocking mechanism, ensuring optimal combustion efficiency and preventing engine damage.

One of the most comforting aspects for owners and mechanics alike is that 5VZ-FE engines are non-interference engines. This critical design feature means that if the timing belt were to fail, the valves and pistons would not collide, potentially saving the engine from catastrophic damage.

Detailed Engine Specifications:

While sharing architectural roots with its predecessor, the 3VZ-FE, the 5VZ-FE incorporated several key revisions. The cylinder block of the 3VZ-FE was largely retained, but with a larger bore of 93.5 mm to accommodate the increased 3,378 cc displacement. This, combined with a piston stroke of 82 mm and a 9.6:1 compression ratio, allowed the engine to produce a healthy 190 HP at 4,800 RPM and a maximum torque of 220 lb-ft at 3,600 RPM, figures well-suited for the trucks and SUVs it powered.

The crankshaft, made from cast iron, initially featured five counterbalance weights. Interestingly, for the Land Cruiser Prado (90-Series) application, the same crankshaft was upgraded with nine counterbalance weights and a dual-mode damper. This enhancement was specifically designed to minimise unnecessary vibrations in that particular vehicle, showcasing Toyota's attention to application-specific refinement. The crankpin diameter measures 55 mm, while the crankshaft primary journal diameter is 64 mm.

Pistons are made from cast aluminium, featuring a full-floating type design and striated piston skirts, a clever design element that optimises oil retention for better lubrication and reduced friction. Each piston is equipped with one oil control and two compression rings for efficient sealing and oil management.

The aluminium cylinder heads and camshaft covers house the DOHC setup. The intake camshafts are driven directly by the timing belt, while the exhaust camshafts are ingeniously driven by scissor gears connected to the intake camshafts. This compact arrangement allows the camshafts to be positioned closer to each other, resulting in a narrow 22.5-degree included valve angle, which contributes to efficient airflow. The intake duration and exhaust duration are both 226-degrees, indicating a design focused on broad, usable torque. Stock fuel injector size is 276 cc/min.

A significant improvement came with the new intake manifold design, featuring long runners specifically engineered to increase maximum torque production at low and mid-range engine speeds. It also incorporates a resonator to effectively reduce induction noise, enhancing the overall refinement of the engine. Toyota also refined the fuel injection system, adopting an L-type sequential multi-port fuel injection system. This air-assisted system precisely regulates air intake upstream of the throttle valve via an Idle Air Control Valve (IACV), directing it directly to the fuel injector's nozzle within the intake manifold. This not only improves fuel economy but also promotes superior fuel atomisation and more stable idling. Intake air mass for the 5VZ-FE is accurately measured by a hot-wire type mass air flow (MAF) meter.

The ignition system was also a point of innovation. The 5VZ-FE employs three sets of ignition coils, integrated with plug caps and high-tension cords directly connected to the coil. This facilitates a two-cylinder simultaneous ignition system, where one ignition coil ignites two cylinders concurrently. These coils are designed with magnets to reduce the number of coiled wires and increase magnetic flux, enhancing efficiency. Crucially, the distributor was eliminated, a forward-thinking move by Toyota to improve ignition timing accuracy, reduce high-voltage loss, and ultimately create a more reliable ignition system through the DIS.

The exhaust manifolds were also optimised to contribute to additional torque production. The system features stainless steel exhaust pipes and a clamp joint, providing a robust connection between the tailpipe and the centre exhaust pipe. Addressing a known issue from its predecessor, the 3VZ-FE, a new coolant fan was installed to significantly improve engine overheating issues, further cementing the 5VZ-FE's reputation for reliability.

Where Power Meets Purpose: 5VZ-FE Applications

The Toyota 5VZ-FE engine was a workhorse, powering a wide array of popular and robust Toyota vehicles across various markets, particularly those requiring strong, dependable performance for utility and off-road applications. Its broad adoption is a testament to its versatility and endurance.

Unleashing Potential: Tuning, Upgrades, and Modifications

While the 5VZ-FE engine was primarily designed for the rugged demands of off-road vehicles, delivering ample power in its stock form, there's significant potential for enthusiasts seeking to extract even more performance. It's generally understood that trying to build a high-revving, naturally-aspirated race engine from the 5VZ-FE isn't its strong suit, given its design for low-to-mid range torque. Instead, the most common and effective route for boosting power and torque is the installation of a supercharger kit.

Several bolt-on supercharger kits were available for this V6 engine, with the TRD (Toyota Racing Development) supercharger kit being the most prominent. This kit typically utilises an Eaton M62 supercharger. For those considering this upgrade, the second-generation TRD supercharger kit is often recommended due to its enhanced design and longer lifespan, though it can be a significant investment. However, simply bolting on a supercharger might not be enough to realise its full potential; further aftermarket performance parts are often required for optimal results.

If your 5VZ-FE engine is equipped with an Exhaust Gas Recirculation (EGR) valve, upgrading to high-performance fuel injectors, or even sourcing injectors from the 2JZ-GE engine, is a beneficial step. For engines without an EGR valve, a 5VZ-FE 7th injector kit is often necessary to provide adequate fuel delivery under boost. Complementing these, a Walbro 190 fuel pump ensures sufficient fuel pressure, and Denso IK22 iridium spark plugs are highly recommended for their superior ignition performance under boosted conditions.

With these upgrades installed on stock internals, the maximal boost pressure typically achievable is around 8.5 psi, which can comfortably push horsepower figures to approximately 260 HP. This setup also significantly increases torque across the entire rev range, making for a much more responsive driving experience.

For those seeking even more power, changing the supercharger pulley to a smaller 2.2-inch size (from the stock 2.37 inches) can increase the maximum boost pressure up to 8.5 psi, potentially yielding around 280 horsepower. However, this power increase necessitates the use of higher octane gasoline to prevent knocking. Additionally, installing a cat-back performance exhaust system can further liberate approximately 10 HP, contributing to both power and a more aggressive exhaust note.

If your ambitions extend beyond 300 HP, a smaller pulley, perhaps even a 2-inch one, can increase boost pressure to around 11 psi. At this level, the stock internal components of the 5VZ-FE may no longer be sufficient to withstand the increased stress. To safely achieve and maintain such power figures, it becomes necessary to consider upgrading to forged pistons to lower the compression ratio or installing a water/methanol injection kit, which cools the intake charge and suppresses detonation, allowing for higher boost levels on stock internals.

Enduring Legacy: Common Issues and Maintenance for the 5VZ-FE

The 5VZ-FE engine is widely considered far more reliable than its predecessor, with several common issues, such as engine overheating, largely resolved or significantly mitigated. However, like any mechanical component, especially one that has been in service for decades, certain age-related issues can arise. Understanding these potential shortcomings allows owners to be proactive with maintenance and anticipate future needs.

The primary maintenance item and a common concern for the 5VZ-FE is its timing belt. While modern engines predominantly use timing chains, the 5VZ-FE relies on a belt. This isn't inherently a 'problem' but rather a critical replaceable wear item that requires periodic attention. It is strongly recommended to replace the timing belt when the vehicle reaches the 90,000-mile mark, and thereafter, regular inspections are crucial. Any unusual or foreign sounds emanating from the engine should prompt an immediate inspection of the timing belt to prevent potential catastrophic failure. Often, it's prudent to replace the water pump concurrently with the timing belt, as it shares a similar service life, typically around 150,000 miles, making it an efficient combined service.

Another issue, though thankfully a rare occurrence for the 5VZ-FE engine, is head gasket failure. Historically, Toyota did issue a small recall for a batch of these engines due to head gasket problems. Reports indicate that when these failures do occur, they typically arise at very high mileage, often exceeding the 200,000-mile mark, underscoring the engine's inherent durability before such issues might manifest.

The most common issue reported by owners is oil leaks, with the valve cover gaskets being the primary culprit. Valve cover gaskets endure significant temperature fluctuations and constant stress throughout their service life. Over time, this accumulated stress can lead to the gasket material becoming brittle, cracking, and eventually leading to leaks. As these cracks inevitably expand due to continuous heat cycles, the oil leak can worsen progressively. Regular inspection and timely replacement of these gaskets are crucial to prevent oil loss and maintain engine cleanliness.

Despite these potential age-related issues, the Toyota 5VZ-FE engine's reputation for robustness and durability remains largely untarnished. With diligent maintenance and proper care, including the use of quality engine oil and fuel, this engine has proven its capability to last for hundreds of thousands of miles, often exceeding 300,000 miles, truly earning its legendary status.

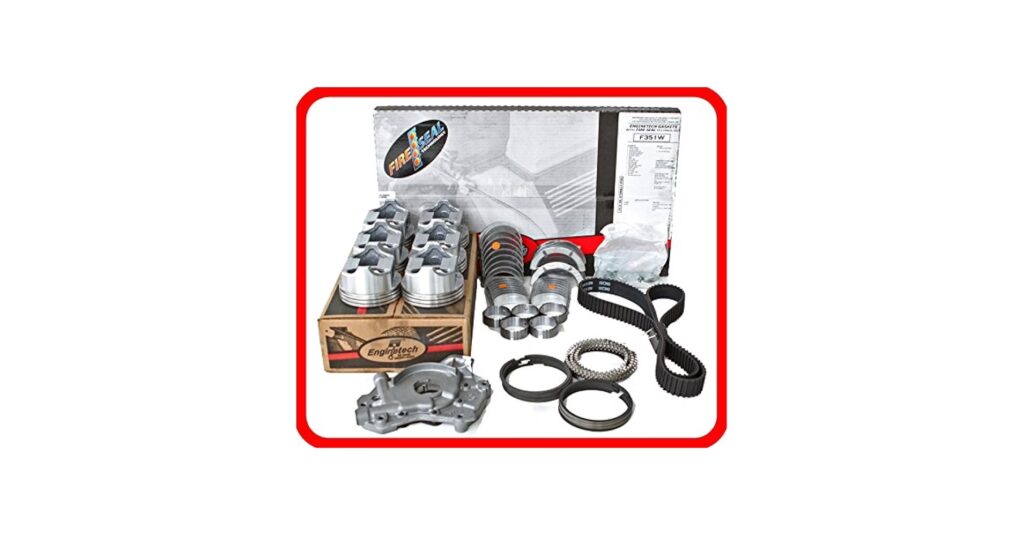

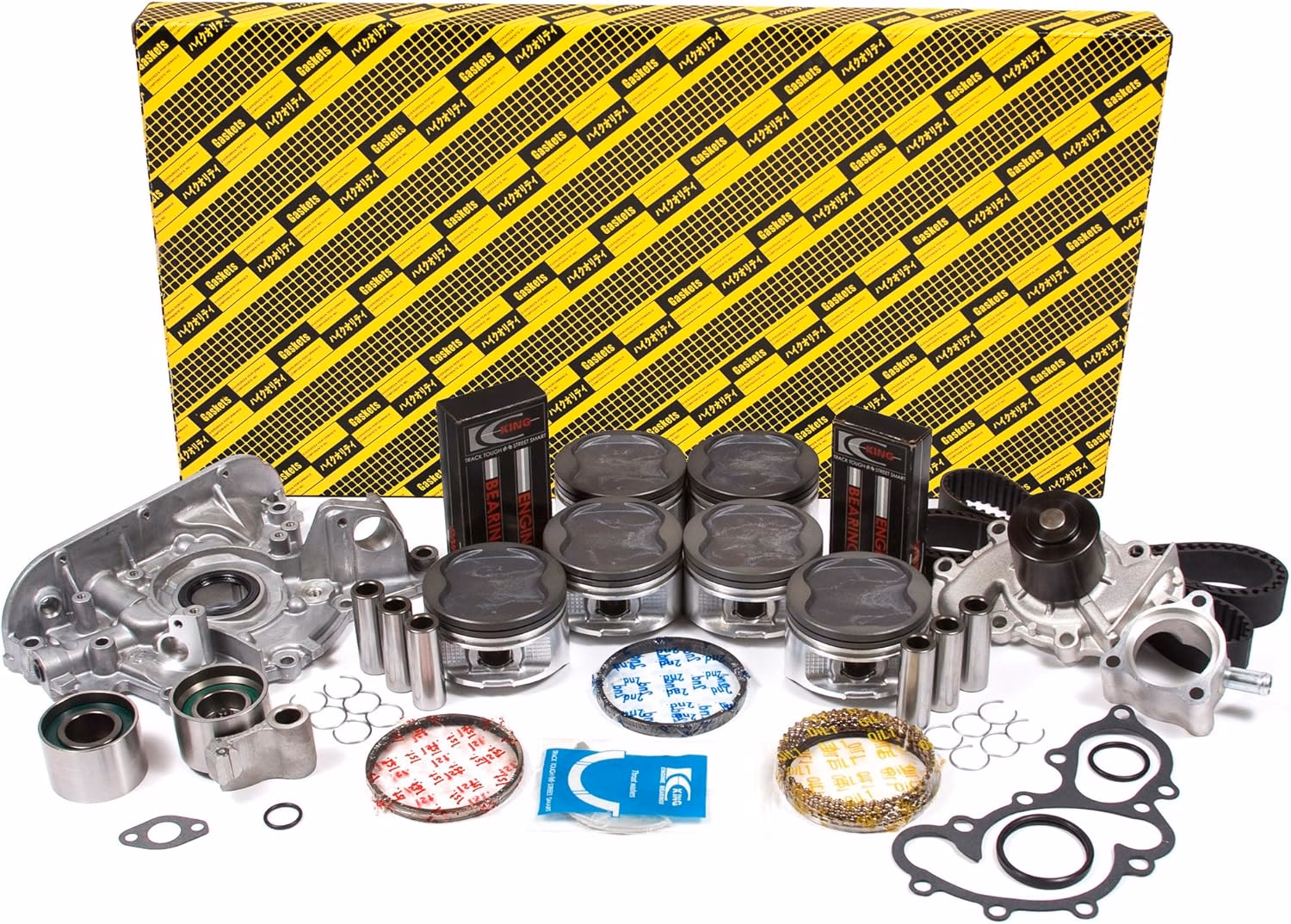

The Complete Overhaul: Understanding the 5VZ-FE Master Rebuild Kit

For those looking to breathe new life into a high-mileage 5VZ-FE, a comprehensive master rebuild kit is an invaluable resource. These kits typically contain the essential components required for a full engine overhaul, bringing the engine back to factory specifications and performance levels. For instance, a common master kit for the Toyota V6 3.4L 5VZ-FE 4Runner & Tacoma engines (e.g., Kit-3002) is designed to include the parts frequently used in professional engine rebuilds.

A critical detail to note when purchasing a master rebuild kit is the gasket set. The standard gasket set found in kits designed for 1994-2000 3.4L 5VZ engines differs from later versions. After the year 2000, Toyota transitioned to Multi-Layer Steel (MLS) gaskets for the cylinder heads. Therefore, if you are rebuilding a 2001-2005 5VZ-FE engine, you would need a specific kit (e.g., Kit-3002B) that includes these MLS gaskets to ensure proper fitment and sealing. Always verify the production year of your engine against the kit's fitment guide to ensure compatibility.

While the exact contents can vary slightly between manufacturers, a typical 5VZ-FE master rebuild kit often includes:

• Full gasket set (including cylinder head gaskets, valve cover gaskets, intake/exhaust manifold gaskets, etc.)
• Piston rings (for all six cylinders)
• Main bearings
• Rod bearings
• Thrust washers
• Timing belt kit (often including belt, tensioner, and idlers)
• Water pump
• Possibly other ancillary items like oil seals, valve stem seals, and sometimes even new pistons or valves depending on the kit's comprehensiveness.

These kits provide a convenient and cost-effective way to source all the necessary components for a thorough engine rebuild, ensuring that all wear items are addressed for maximum longevity and performance.

Your Questions Answered: 5VZ-FE Engine FAQs

What kind of engine is the Toyota 5VZ-FE?

The Toyota 5VZ-FE is a naturally-aspirated, water-cooled, 3.4-litre V6 gasoline engine. It was produced by Toyota Motor Corporation from 1995 to 2004 and is known for its robust cast-iron block and aluminium cylinder heads with a Double Overhead Camshaft (DOHC) design.

Is the 5VZ-FE a non-interference engine?

Yes, the Toyota 5VZ-FE is a non-interference engine. This is a significant advantage, as it means that if the timing belt were to break, the pistons would not come into contact with the valves, preventing catastrophic engine damage.

What is the displacement of the 5VZ-FE?

The 5VZ-FE engine has a displacement of 3.4 litres, or precisely 3,378 cubic centimetres (cc).

What is the horsepower and torque of the 5VZ-FE?

In its stock configuration, the Toyota 5VZ-FE engine produces a maximum of 190 horsepower (HP) at 4,800 RPM and a maximum torque of 220 lb-ft at 3,600 RPM.

How reliable is the Toyota 5VZ-FE engine?

The Toyota 5VZ-FE is widely regarded as one of Toyota's most reliable engines. While some age-related issues like timing belt replacement and valve cover gasket leaks can occur, these are typically manageable with proper maintenance. Many 5VZ-FE engines have been known to exceed 300,000 miles with consistent care.

Can you supercharge a 5VZ-FE?

Yes, supercharging is the most common and effective way to significantly increase the power output of a 5VZ-FE engine. Bolt-on kits, such as those from TRD, are available, and with supporting modifications like upgraded fuel injectors, fuel pumps, and spark plugs, power figures can comfortably exceed 250 HP.

Summary

The Toyota 5VZ-FE engine, a product of its era, was integrated with numerous technological advancements that set it apart. Its superior reliability compared to its predecessor, coupled with its inherent durability, has led many to consider it among the most dependable engines ever produced by Toyota. Primarily used in trucks and larger vehicles, this engine truly is powerful even in its naturally aspirated form, consistently delivering a great driving experience characterised by strong low-end torque.

While some problems may arise, mainly attributable to the engine's considerable age, these issues do not detract from its fundamental robustness and longevity. With diligent maintenance and care, adhering to recommended service intervals, and always utilising quality engine oil and fuel, a 5VZ-FE engine can indeed last a lifetime, providing years of faithful service. We hope this comprehensive guide has helped you understand the 5VZ-FE engine’s intricate design, widespread applications, power capabilities, tuning potential, renowned reliability, common issues, and its lasting impact on the automotive industry and the community of enthusiasts who swear by its enduring performance.
