Automatic Gearbox Oil Change Guide

Maintaining your car's automatic gearbox is crucial for its longevity and smooth operation. While many drivers focus on engine oil, the gearbox oil often gets overlooked. This vital fluid lubricates, cools, and cleans the intricate components within the transmission. Over time, this oil degrades, losing its effectiveness and potentially leading to costly repairs. This guide will walk you through the process of changing your automatic gearbox oil and filter, a task that can significantly improve your driving experience and prevent future problems.

Why Change Your Automatic Gearbox Oil?

Automatic transmissions are complex systems that generate heat and wear particles during operation. The gearbox oil, often referred to as Automatic Transmission Fluid (ATF), plays a critical role in managing these factors. It:

• Lubricates: Reduces friction between moving parts, preventing wear and tear.
• Cools: Acts as a coolant, dissipating the heat generated by friction.
• Cleans: Suspends and carries away small metal particles and debris produced by wear.
• Hydraulic Medium: Transmits power through the torque converter and operates the clutches and bands.

Over time, ATF can become contaminated with debris, break down due to heat, and lose its lubricating properties. This can lead to:

• Rough gear changes
• Slipping gears
• Overheating
• Increased wear on transmission components
• Complete transmission failure

How Often Should You Change Gearbox Oil?

The frequency of gearbox oil changes can vary depending on the vehicle manufacturer's recommendations, driving conditions, and the type of gearbox. However, as a general rule of thumb, most manufacturers recommend a gearbox oil change every 60,000 to 100,000 miles. For vehicles used in severe driving conditions, such as frequent towing, stop-and-go traffic, or high-performance driving, more frequent changes may be necessary.

It's important to consult your car's owner's manual for the specific service interval recommended for your vehicle. Some manufacturers, particularly for certain ZF transmissions, suggest a 'rinse' procedure, which involves an oil change followed immediately by another oil change. This is particularly recommended for older vehicles or when the oil is very dark and contaminated. For very old or heavily used transmissions, 3 to 4 rinsing oil changes might be beneficial to ensure a thorough flush of contaminants.

Required Materials and Tools

Before you begin, ensure you have all the necessary materials and tools. Using the correct type of ATF is paramount, as using the wrong fluid can cause significant damage. For the example provided, ATF Dexron II is specified for a 5HP18 in an E32. Always verify the correct ATF for your specific vehicle.

Materials:

• Automatic Transmission Fluid (ATF) - Sufficient quantity as specified by your manufacturer (e.g., 4 litres per transaction, at least 7 litres for a full flush).
• New Oil Filter Kit (often includes filter, O-rings, and bolts)
• New Sump Gasket (recommended, especially if the current one is old)

Tools:

• 17mm Allen (Hex) socket with a 1/2" drive for the oil filler plug (use quality tools, as this plug can be stubborn).
• 5mm Allen (Hex) wrench or socket for the drain plug.
• 25mm Torx socket to remove the oil filter (also known as oil screen).
• 10mm socket wrench for removing the oil sump bolts.
• Oil collection pan with sufficient capacity.
• Oil pump or suction device (if a drain plug is not present or for flushing). Alternatively, two oil cans with a trunk can be used, though this may lead to some oil spillage.
• Brake Parts Cleaner or a similar aerosol cleaner.
• Clean rags or lint-free cloths.
• Torque wrench (highly recommended for reassembly).
• Car lift or drive-on ramps/pit to ensure the car is level.
• Safety glasses and gloves.

Step-by-Step Guide to Changing Automatic Gearbox Oil

Important Note: Cleanliness is paramount when working on an automatic transmission. Any dirt or debris introduced can cause significant malfunctions. Proceed with meticulous attention to detail.

Step 1: Preparation and Draining the Old Oil

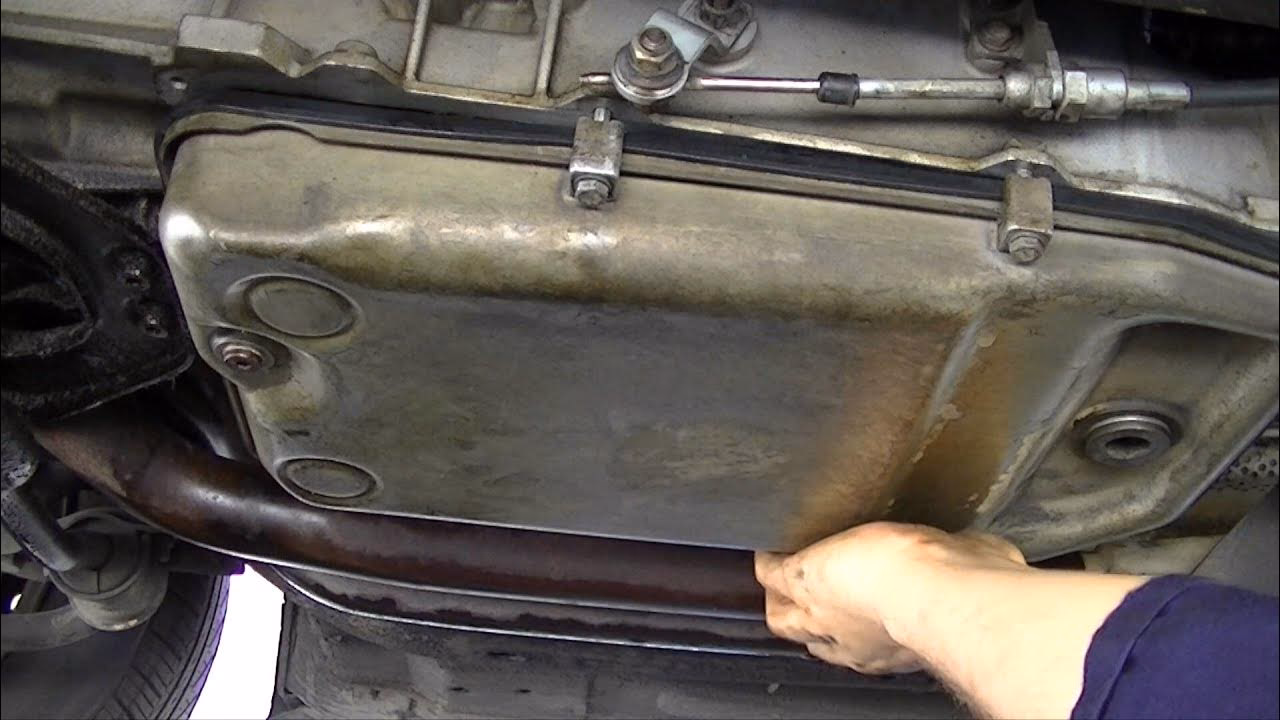

Safely raise your vehicle using a lift or ramps, ensuring it is perfectly level. Locate the gearbox oil drain plug. In many transmissions, there's also a level plug, which is crucial for setting the correct oil level later. The image provided shows the drain plug and filler plug locations. Place your oil collection pan beneath the drain plug.

Remove the drain plug using the appropriate 5mm Allen wrench. Allow the old oil to drain completely. Note the colour and consistency of the drained oil. It may range from a reddish-brown to dark brown or even black. If it contains fine metal particles, this is often normal, but if it smells burnt or contains large metal shavings, it could indicate a more serious internal issue. If you are unsure, take a picture of the debris and consult a professional.

Step 2: Removing the Oil Sump and Filter

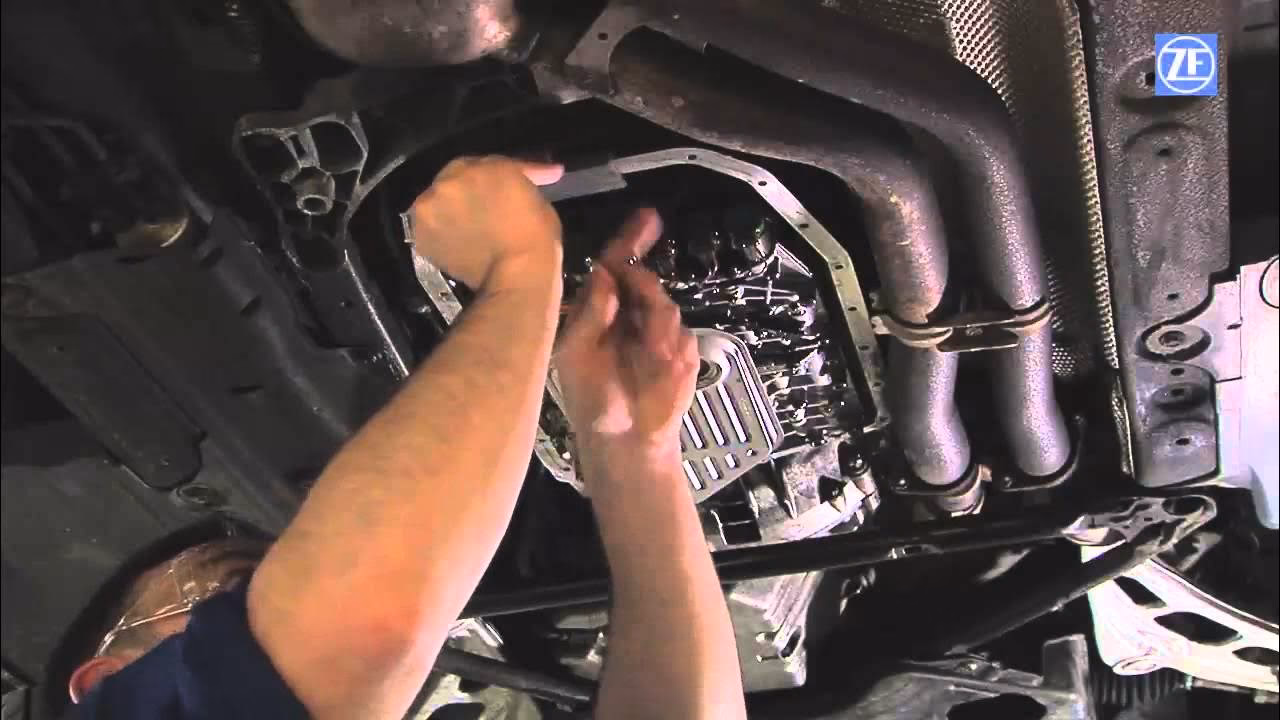

With the oil drained, you can now proceed to remove the oil sump. Loosen and remove all the bolts securing the sump. Some of these bolts may have specific bracket holders, so pay attention to their original positions for reassembly. Carefully lower the sump, as it may still contain some residual oil.

Inside the sump, you will find magnets designed to collect ferrous metal particles. Inspect these magnets for excessive metal buildup. Clean the sump and magnets thoroughly using brake parts cleaner or a similar solvent. Ensure no lint from rags contaminates the transmission interior.

Locate the oil filter, typically held in place by three 25 Torx screws. Remove these screws and carefully detach the old filter. It might be sealed with an O-ring, so expect it to slide out with some gentle force.

Step 3: Installing the New Filter and Sump

Install the new O-ring onto the new oil filter. Fit the new filter into its housing. Reattach the oil sump. Start by loosely fitting the corner screws, ensuring the sump is correctly aligned and guided by any bracket holders. Then, loosely fit the remaining sump bolts. Once all bolts are in place and the sump is correctly aligned, tighten them gradually in a cross pattern. If you have a torque wrench, tighten the bolts to the manufacturer's specified torque (e.g., 10 Nm). Be careful not to overtighten.

Reinstall the drain plug, ensuring it is tightened appropriately, but do not overtighten.

Step 4: Filling with New ATF

This is a critical step that requires precision. The correct oil level is typically set when the transmission oil is at a specific temperature, often around 30-50 degrees Celsius. Filling to overflowing is the general rule.

Use an oil pump with a hose to fill the transmission through the filler plug opening. You may need to slightly flatten the hose to ensure it fits snugly around the filler pipe to minimise spillage. Alternatively, some ATF cans have a built-in dispenser that can be used, though this can be less convenient.

Fill the transmission until the ATF starts to overflow from the filler opening. Once it begins to overflow, temporarily tighten the filler plug by hand.

Step 5: Running the Engine and Final Level Check

Start the engine. Engage the handbrake and turn on an accessory, such as the air conditioning or a driving light. This is done to ensure the engine idles at a slightly higher RPM, which is necessary for accurate oil level readings in some transmissions. If your car has climate control with an automatic function (AUC), ensure the climate control light is illuminated.

With the engine running, slowly shift through all the gears (P, R, N, D, etc.), pausing for at least 2 seconds in each gear. This allows the new ATF to circulate and fill all the internal components, including the torque converter.

After cycling through the gears, return the selector to Park (P). With the engine still running, the ATF level will likely have dropped as it filled the internal components. Refill the transmission with ATF until it overflows again from the filler plug opening.

Once the oil overflows, tighten the filler plug securely, assuming the transmission is now at the correct operating temperature (around 30-50 degrees Celsius). If the transmission is too hot to accurately check the level, you will need to let it cool down for several hours before performing the final level check.

Step 6: Cooling and Final Level Adjustment

If you need to wait for the transmission to cool, you can carefully drive the car off the lift or ramps into a suitable cooling area. Allowing the bonnet (hood) to remain open can speed up the cooling process.

Once the transmission has cooled to the desired temperature range (30-50 degrees Celsius), place the car back on the lift or ramps to ensure it is level. With the engine running, check the oil level again. If it has dropped, refill with ATF until it overflows from the filler plug. Tighten the filler plug securely.

The Importance of Rinsing

As mentioned earlier, a significant portion of the old ATF remains in the gearbox, including the torque converter and internal coolers. A single oil change typically only removes about 30-40% of the total fluid. Therefore, performing a 'rinse' by draining, refilling, and repeating the process shortly after can significantly improve the dilution of the remaining old oil with fresh fluid.

For older transmissions or those with very dark, contaminated oil, performing 2-3 rinsing oil changes can provide a more thorough clean and a better overall result, leading to a smoother-running gearbox.

Common Issues and Tips

• Incorrect ATF: Always use the specific ATF recommended by your vehicle manufacturer. Using the wrong type can cause severe damage.
• Overfilling/Underfilling: Both can lead to transmission problems. Ensure the final oil level is checked when the transmission is at the correct operating temperature.
• Dirt Contamination: Maintain a clean working environment. Cover any open transmission parts to prevent debris from entering.
• Stubborn Plugs: Use high-quality tools and consider applying a penetrating oil if the filler or drain plugs are difficult to loosen.
• Temperature Sensitivity: The oil level is critical and temperature-dependent. Be patient and allow the transmission to reach the correct temperature for accurate measurement.

Frequently Asked Questions

Q1: How often should I change my automatic gearbox oil?

A1: Consult your owner's manual. Generally, every 60,000 to 100,000 miles, but more frequently for severe driving conditions.

Q2: Can I use a universal ATF?

A2: It is strongly advised against. Always use the specific ATF recommended by your car's manufacturer to avoid damage.

Q3: What if my old oil looks very dirty?

A3: If the oil is very dark or contains metal particles, consider performing a 'rinse' by draining, refilling, and repeating the process shortly after for a more thorough clean.

Q4: Is it normal to find some metal shavings on the magnets?

A4: A small amount of fine metal dust or shavings is usually normal, as it indicates normal wear. However, large chunks or a significant amount of metal could signal a problem.

Q5: What happens if the gearbox oil level is incorrect?

A5: An incorrect oil level (too high or too low) can lead to poor shifting, overheating, increased wear, and potential transmission failure.

By following this comprehensive guide, you can confidently undertake the task of changing your automatic gearbox oil and filter, ensuring your transmission remains in top condition for years to come.
