Unleashing the Beast: 5.3L LS Engine Power & Rebuild

For enthusiasts across the UK, the allure of a robust V8 engine is undeniable. While many venerate the classic small-block, a new champion has emerged from the GM stable: the 5.3L LS engine. Part of the impressive Gen III and Gen IV 'LS' family, this motor has swiftly become the go-to choice for those seeking serious power without breaking the bank. This article delves deep into the fascinating journey of a 5.3L (LM7) truck engine, from its initial assessment and preparation for performance testing to a detailed look at the essential components required for a comprehensive rebuild. Prepare to discover why this particular 'Mouse motor' is captivating the hearts and garages of performance enthusiasts.

The Rise of the Modern Mouse: Why the 5.3L LS?

The LS engine family was introduced to replace its illustrious predecessors, the Gen I 'Mouse' and Gen II 'LT1' engines, and it certainly had large boots to fill. Ranging from 4.8 litres to a mighty 7.0 litres, the LS series offered significant advancements, including robust cross-bolted blocks, highly efficient cylinder heads, and even factory-fitted windage trays. Amidst this impressive lineup, the 5.3L (LM7) truck engine stands out as a true gem.

In today's economic climate, affordability and availability are paramount. The 5.3L ticks both boxes, making it an ideal candidate for cost-conscious builds. While larger LS engines like the 5.7L LS1/LS6, 6.0L LS2, or 6.2L LS3 offer more power from the factory, they come with a significantly higher price tag. The 5.3L, with its 324 cubic inches, offers an unparalleled blend of initial low cost and immense performance potential, making it the preferred choice for many.

Preparing for Power: The Dyno Installation Process

Before any serious performance modifications could begin, our chosen 5.3L LM7 engine needed thorough preparation and a meticulous installation onto the engine dynamometer. Sourced from a local breaker's yard, this complete running motor was acquired for a mere £320 (approximately $395 USD), highlighting its affordability. The first crucial step involved a complete strip-down to verify its displacement. The 5.3L and its smaller 4.8L sibling are externally identical, making internal inspection vital. Key differentiators include stroke length, connecting-rod length, and the use of flat-top pistons on the 4.8L (though some high-output 5.3L versions also feature flat-tops). Casting numbers are your friend here: look for specific rod (121) and crank (12553482) identifiers for the 4.8L to ensure you have the correct engine.

With the 5.3L confirmed, anticipating future high-stress applications (such as forced induction and nitrous), we proactively upgraded the factory head gaskets and bolts with robust components from Fel-Pro and ARP. While not strictly necessary for the initial naturally aspirated tests, this foresight ensures the engine's longevity under extreme conditions. Once reassembled, the 5.3L was carefully mounted onto the engine dyno. The installation setup included:

• Exhaust System: A set of 1-3/4-inch exhaust headers to allow for efficient gas flow.
• Cooling System: A high-performance Meziere electric water pump, ensuring optimal temperature management.
• Engine Management: The sophisticated FAST XFI engine management system, providing precise control over fuel and ignition.

This careful preparation laid the groundwork for accurate and reliable performance testing.

Baseline Performance: Unveiling the Stock Potential

With the engine meticulously installed and ready, the first order of business was to establish a baseline performance figure. The FAST XFI system was programmed to replicate the factory timing and air/fuel curves typical of a 2003 truck application. On this mild factory tune, our 5.3L demonstrated its inherent strength, producing a respectable 343 horsepower and 372 lb-ft of torque.

However, the beauty of modern engine management lies in its adjustability. With a few tweaks to the XFI system – optimising timing and fuel delivery – we quickly elevated the output. The result? A significant bump to 363 horsepower and 385 lb-ft of torque. To put these numbers into perspective, we compared them against legendary small-blocks:

Remarkably, our stock 5.3L, with just a simple tune, was already rivalling and even surpassing the torque output of some of the most revered muscle car small-blocks of yesteryear. This impressive baseline confirmed the immense potential locked within this affordable truck motor.

Strategic Upgrades: Unleashing the True Power

Satisfied with the baseline, it was time to introduce bolt-on performance upgrades, transforming our 'Modern Mouse' into a true contender. The strategy was to focus on key components that offer significant gains for a daily-driver application, while keeping future, more extreme modifications in mind.

Camshaft Upgrade: The Heartbeat of Performance

It's widely known that few modifications wake up an LS engine quite like the right camshaft profile. The LS architecture, including the 5.3L, benefits tremendously from cam changes due to its exceptional factory cylinder head flow. The stock 706 heads on our LM7 5.3L, for instance, flow around 225 cubic feet per minute (cfm), which is enough to support over 450 horsepower right out of the box – a figure that often requires fully ported heads on older engine designs. With such abundant airflow, the primary limitation becomes the camshaft's timing.

For this initial phase, targeting a daily-driver friendly setup, we opted for a mild Comp XR265HR grind. This camshaft offered a 0.522/0.529-inch lift split, a 212/218-degree duration split, and a 114-degree lobe separation angle. This particular cam was a modest step up from the 5.3L's factory cam, which is known for being the mildest in the LS family. The impact was immediate and impressive: power improved across the entire rev range, with the 5.3L now belting out 385 horsepower and a substantial 412 lb-ft of torque. The cam alone accounted for gains of up to 30 horsepower at the upper end of the RPM spectrum.

Cylinder Head Enhancement: Flowing for More Horsepower

With the camshaft delivering excellent results, attention turned to the cylinder heads. While many aftermarket options exist, we chose a more cost-effective route by enhancing the factory heads. The stock heads were removed and sent to Total Engine Airflow (TEA) for their renowned Stage 2 porting service. This involved comprehensive CNC porting, the installation of larger intake valves, and an essential valve spring upgrade. These new springs provided sufficient pressure and clearance to safely run camshafts with up to 0.650-inch lift, allowing the engine to rev cleanly to 7,000 rpm – a testament to the future-proofing of this build.

The TEA-ported 5.3L heads achieved an impressive flow rate of nearly 300 cfm, a figure capable of supporting over 600 horsepower in the right application. While perhaps overkill for our current mild 5.3L setup, this upgrade provided immense potential for future increases in cam lift and cubic inches. The head upgrade further boosted the engine's output to 424 horsepower and 423 lb-ft of torque. Crucially, these significant power gains were achieved without any detrimental impact on idle vacuum, a common trade-off with more aggressive camshafts.

Induction System Overhaul: Breathing for Peak Performance

The final performance upgrade focused on the induction system. We selected a new setup from FAST, featuring their 102mm LSXR intake manifold and matching throttle body. While potentially slightly oversized for our relatively mild 5.3L, we were keen to replace the restrictive factory truck intake. Previous testing with a larger aftermarket throttle body on the stock truck intake yielded no power gains at lower levels, underscoring the need for a complete intake system upgrade. Although stock LS1, LS6, or LS2 intakes might offer an affordable alternative, they typically wouldn't match the maximum power potential of the FAST system.

With the FAST intake, throttle body, and billet fuel rail installed, the engine was ready for its final dyno runs. The induction upgrade pushed the peak power figures to an impressive 445 horsepower and 434 lb-ft of torque. While the FAST intake did show a slight dip in power at the very bottom of the rev range compared to the truck intake, the overall gains were undeniable. After these carefully chosen upgrades, our 'Modern Mouse' was officially a high-performance motor, boasting a smooth idle, a broad torque curve, and over 440 horsepower – a truly formidable combination for any daily driver or weekend warrior.

The 5.3L V8 Engine Rebuild Kit: Essential Components for Restoration

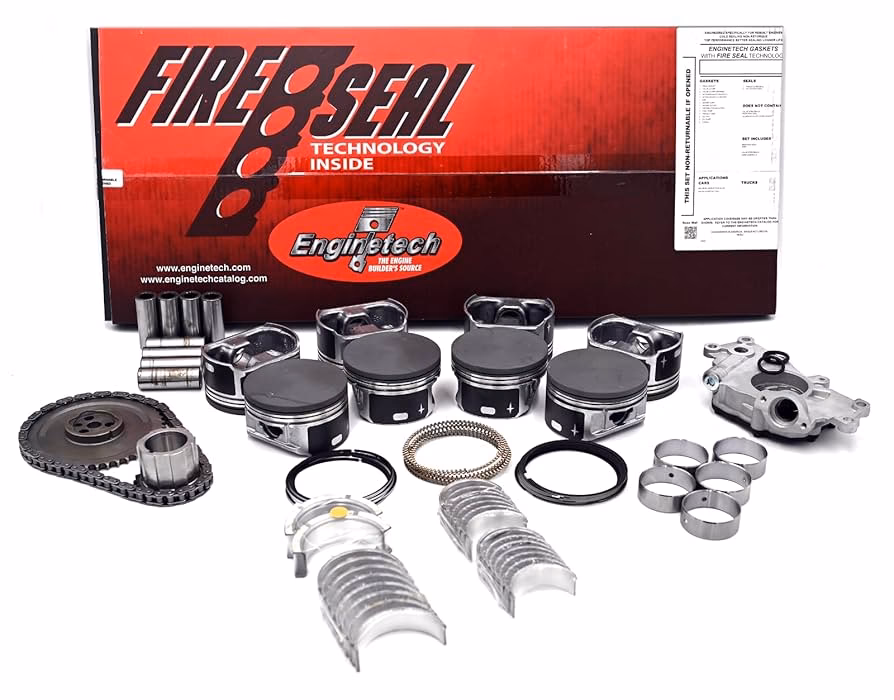

Whether you're starting a new project or refreshing an existing 5.3L, a comprehensive engine rebuild kit is invaluable. These kits provide all the critical components needed to restore your engine to optimal condition, ensuring reliability and performance for years to come. Let's look at what's typically included in a master rebuild kit, using the DNJ 5.3L kit (EK3172BM) as an example.

Key Features of a Quality Rebuild Kit:

• Comprehensive Coverage: A master kit addresses all critical aspects of an engine rebuild, from rotational components to sealing.
• OEM Quality: Components are typically manufactured to meet or exceed original equipment manufacturer (OEM) specifications, ensuring durability and performance.
• Warranty: Reputable kits come with a warranty, such as a 12-month or 12,000-mile guarantee, providing peace of mind.
• Fitment Information: Kits are designed for specific engine codes and vehicle models (e.g., 2010-2014 Chevrolet/GMC Avalanche, Sierra 1500, Silverado 1500, Suburban 1500, Tahoe, Yukon, Yukon XL 1500 with 5.3L V8 LC9 engine, VIN 3,7).
• Options: Standard sizes are common, with options for oversized components (e.g., pistons, bearings) available for engines requiring machining.

Investing in a high-quality rebuild kit is crucial for a successful and lasting engine overhaul, providing the foundation for improved reliability and enhanced performance.

Frequently Asked Questions About the 5.3L LS Engine

Q: Is the 5.3L LS engine a good choice for a daily driver?

A: Absolutely! As demonstrated in our build, the 5.3L can be highly modified for significant power while maintaining excellent street manners, a smooth idle, and a broad torque curve, making it perfect for daily driving.

Q: What's the main difference between a 4.8L and a 5.3L LS engine?

A: While externally identical, the primary differences lie internally in the stroke length, connecting rod length, and piston type (4.8L typically uses flat-top pistons and a shorter stroke). Always verify casting numbers to be certain which engine you have.

Q: What are the most effective performance upgrades for a 5.3L?

A: A camshaft upgrade is often considered the most impactful, followed by cylinder head porting or aftermarket heads, and then an improved induction system (intake manifold and throttle body). Engine tuning is also crucial for optimising any hardware changes.

Q: Can I use a 5.3L rebuild kit on a 4.8L engine?

A: No, due to the different stroke, connecting rod lengths, and piston designs, a 5.3L rebuild kit is not directly interchangeable with a 4.8L. Always ensure the kit matches your specific engine displacement.

Q: Is it worth porting the factory 5.3L cylinder heads?

A: Yes, as our project showed, porting the factory 5.3L heads can yield substantial flow improvements, often rivalling or exceeding the performance of some aftermarket heads at a lower cost. This can support well over 600 horsepower in the right application.

Conclusion: The Enduring Appeal of the 5.3L LS

The 5.3L LS engine, often overlooked in favour of its larger siblings, has proven itself to be a truly remarkable platform. Its combination of affordability, widespread availability, and immense performance potential makes it an ideal choice for both budget-conscious enthusiasts and those seeking serious power. From its humble beginnings as a truck motor to a dyno-proven powerhouse delivering over 440 horsepower with carefully selected upgrades, the 5.3L truly embodies the spirit of the 'Modern Mouse'. Whether you're planning a mild street build or a high-performance monster, understanding its capabilities and the components required for a robust rebuild is key. The enduring appeal of the 5.3L LS is undeniable, offering a fantastic blend of value, reliability, and exhilarating performance for any automotive project.
