4L60E Transmission Fluid: Capacity & Change Guide

Maintaining your vehicle's transmission is paramount for its longevity and smooth operation. The 4L60E, a widely used automatic transmission in many GM vehicles, is a robust unit, but like all mechanical components, it requires regular care. One of the most crucial aspects of this care is ensuring the transmission fluid is at the correct level and in good condition. But how much fluid does a 4L60E actually take, and what's involved in changing it?

Changing the transmission fluid and filter on your 4L60E might seem daunting at first, especially if you're a novice. However, with the right tools, a bit of patience, and a careful approach, it's a perfectly manageable task for the DIY enthusiast. While it can certainly get a bit messy if you’re not prepared, dropping the pan and replacing the filter is a straightforward process that can save you a trip to the garage and the associated costs.

Why Proper Transmission Fluid Levels are Crucial

Transmission fluid serves multiple critical functions within your gearbox. It lubricates moving parts, cools the transmission, transmits power from the engine to the transmission, and helps in the operation of the hydraulic system that controls gear changes. An incorrect fluid level, whether too low or too high, can lead to serious issues. Low fluid can cause overheating, increased wear, and erratic shifting, while overfilling can lead to aeration of the fluid, reducing its effectiveness and potentially causing damage. Regular checks and timely fluid changes are your best defence against premature transmission failure.

How Much Transmission Fluid Does a 4L60E Take?

The amount of transmission fluid your 4L60E will require during a fluid and filter change largely depends on the style of transmission pan fitted to your vehicle. It’s important to understand that a typical drain-and-fill procedure will only replace a portion of the total fluid in the transmission system, as a significant amount remains in the torque converter and cooler lines.

• For a shallow pan, you will most likely need approximately 4-5 quarts of transmission fluid.
• For a deep pan, the capacity increases slightly, typically requiring around 5-6 quarts of transmission fluid.

It is always advisable to start by adding a conservative amount of fluid (e.g., 3-4 quarts), then start the vehicle and check the dipstick. You will then gradually add more fluid until the correct level is reached, following the procedure outlined later. Remember, these figures are for a standard fluid and filter change where the pan is dropped, not a complete system flush.

Tools & Parts Needed for a 4L60E Fluid & Filter Change

Before you begin, gather all the necessary tools and parts to ensure a smooth and efficient process. Having everything at hand will prevent frustrating delays once you're under the vehicle.

Tools Needed:

• Ramps or a reliable jack and jack stands (safety first!)
• Large drain pan (to catch old fluid)
• Large cardboard box or old sheeting (to protect your workspace from spills)
• 13 mm socket and ratchet
• Torque wrench (essential for correct pan bolt tightening)
• Rags or shop towels
• Funnel (for refilling fluid)
• Safety glasses and gloves

Parts Needed:

• Appropriate transmission fluid (e.g., Dexron III/VI compatible fluid – always check your owner's manual)
• New transmission filter kit (should include a new filter, pan gasket, and O-ring for the filter neck)
• Optional: New transmission pan with a built-in drain plug (highly recommended if your current pan lacks one, making future changes much cleaner).

Step-by-Step: Changing Your 4L60E Transmission Fluid & Filter

Performing this service yourself can be very rewarding. Take your time, be methodical, and prioritise safety above all else.

Step 1: Raise Vehicle Safely

As with any work performed underneath a vehicle, safety is your number one priority. Ensure your car or truck is securely lifted to provide ample working space and prevent any accidents. If you don't have a professional lift, use sturdy ramps or a jack combined with robust jack stands. Never rely solely on a jack.

Step 2: Prepare Your Workspace

Once the vehicle is safely elevated, prepare the area beneath the transmission. Lay down a large cardboard box or old sheeting to protect your garage floor from potential spills. Position your large drain pan directly under the transmission pan to catch the old fluid.

Step 3: Begin Removing Transmission Pan Bolts

Locate the 16 13mm bolts around the perimeter of the transmission pan. If your transmission pan does not have a drain plug (which is common on many 4L60Es), you'll need to be extra careful in this step. Begin by loosening all the bolts, but do not remove them completely yet. It's often best to start at the front of the pan and gradually work your way back, allowing the front to angle downwards. This helps to drain a significant amount of fluid into your catch pan before the pan is fully detached. For trucks, the pans are often deeper at the front, making this approach even more effective.

Step 4: Carefully Lower the Transmission Pan

This is where it can get messy if you don't have a drain plug. With most of the bolts loosened, carefully support the pan with one hand and remove the remaining bolts. Slowly lower the front of the pan first to allow the remaining fluid to drain into your catch pan. Once most of the fluid has drained, you can carefully manoeuvre the pan down and away from the transmission. Let the transmission continue to drain for a few more minutes to get any residual fluid off the valve body and the old filter.

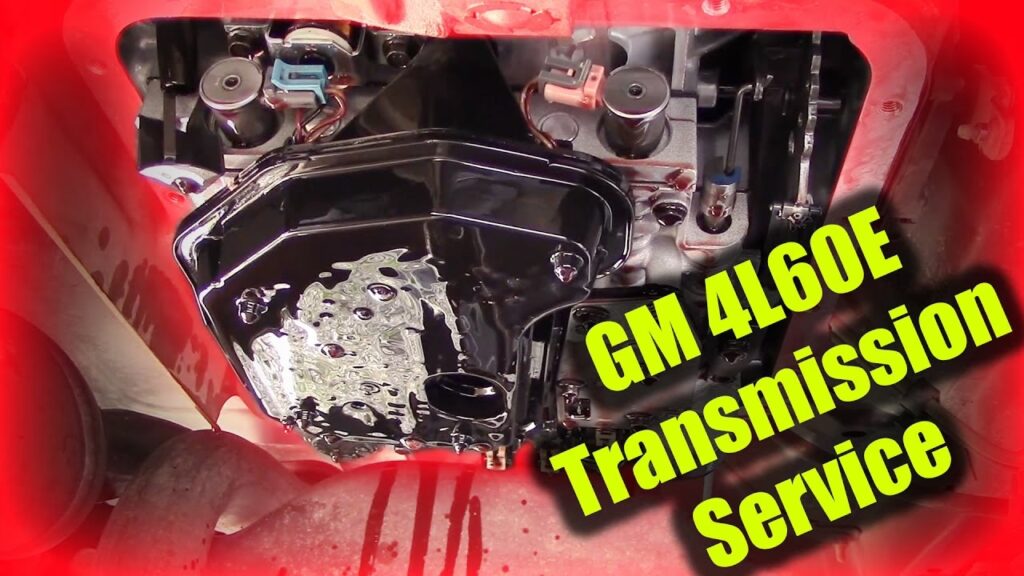

Step 5: Remove the Transmission Filter

Once the fluid flow has significantly reduced, you can remove the old transmission filter. This is usually a simple process: just twist and pull down on it, and it should come free. Be aware that more fluid will likely come out when the filter is removed.

An important consideration here is the filter seal. There is often an O-ring or seal inside the transmission case where the filter neck seats. This seal sometimes comes out with the old filter, or it can remain lodged in the case. Ideally, this seal should be replaced with the new one provided in your filter kit. However, removing a stubborn old seal can sometimes be a real challenge. If you find it incredibly difficult to remove, and the new filter can be seated firmly and seals correctly with the old one in place, some mechanics opt to leave the old seal. However, replacing it ensures the best possible seal for the new filter.

Step 6: Pan Inspection and Cleaning

With the pan removed, it's time for a thorough inspection and cleaning. Clean the inside of the pan thoroughly, removing all old fluid and any debris. Pay close attention to the magnet, which is designed to collect metallic particles circulating in the fluid. A dirty magnet with a fine metallic paste is normal and indicates the magnet is doing its job. However, if you find larger metal chunks, flakes, or excessive amounts of metallic debris, this could be a sign of internal transmission wear or damage. In such cases, further investigation by a professional might be warranted before refilling.

Step 7: Reinstallation

Once the pan is clean and you're satisfied with its condition, it's time to reassemble everything. Install the new transmission filter, ensuring it clicks firmly into place and creates a good seal. If you successfully replaced the old filter seal, ensure the new one is correctly seated. Then, fit the new gasket onto the clean transmission pan. Carefully lift the pan back into position, aligning it with the bolt holes on the transmission case. Hand-tighten all 16 13mm bolts.

Step 8: Torque the Transmission Pan Bolts Correctly

This step is critical to prevent leaks and avoid damaging the transmission case. GM recommends that 4L60E transmission pan bolts be torqued to 97 inch-pounds (in-lbs). It’s crucial not to overtighten these bolts, as the transmission case is typically made of aluminium, which can easily strip if excessive force is applied. Use a torque wrench and tighten the bolts in a criss-cross or star pattern. This ensures even pressure is applied across the gasket, preventing warping of the pan and ensuring a proper seal. Do a pass at a lower torque setting first (e.g., 50 in-lbs), then a final pass at 97 in-lbs.

Step 9: Refill and Check Fluid Levels

With everything reassembled and torqued to specification, you can now begin to add new transmission fluid. Using a funnel, start by pouring in 3 to 4 quarts of the recommended fluid. After adding this initial amount, start the vehicle. With the engine running (and the vehicle still safely elevated), check the transmission dipstick. You should begin to see fluid on the dipstick. If not, add another quart until fluid is visible.

All transmission dipsticks have 'hot' and 'cold' level indicators. Once you see fluid, get inside the vehicle (with the parking brake on) and carefully shift through all the gears a few times (P-R-N-D-3-2-1 and back), pausing briefly in each gear. This circulates the fluid throughout the system. Then, check the fluid level again with the engine running and the transmission in 'Park' on level ground. Add fluid gradually until it reaches the 'cold' full mark.

Finally, take the vehicle for a short drive to allow the transmission fluid to reach its normal operating temperature. Once warm, park the vehicle on level ground, leave the engine running, and check the fluid level one last time. It should now be within the 'hot' full range on the dipstick. Adjust as necessary. Remember, checking fluid when the vehicle is warm, in park, and on level ground provides the most accurate reading.

Understanding Transmission Fluid Condition

The condition of your transmission fluid is a vital indicator of your gearbox's health. Healthy fluid is essential for proper lubrication, cooling, and hydraulic function. Over time, fluid degrades due to heat and shear forces, losing its protective properties.

You can often assess the condition of your fluid by its colour and smell. Here’s a general guide:

How Often Should You Change 4L60E Transmission Fluid?

The recommended interval for changing your 4L60E transmission fluid can vary based on several factors, including vehicle usage and driving conditions. Generally, it's advised to replace transmission fluid every 30,000 to 50,000 miles. However, this interval can shorten under more strenuous conditions:

• If you frequently tow heavy loads with your truck.
• If your SUV is often subjected to constant stop-and-go traffic, especially in hot climates, leading to increased transmission temperatures.
• If your car is used for performance driving or racing (on a track, of course).

In these high-stress scenarios, consider changing the fluid closer to the 30,000-mile mark. Ultimately, the fluid itself will often tell you when it's time for a change – pay attention to its colour and smell during your regular checks.

Frequently Asked Questions (FAQ)

What type of fluid does a 4L60E use?

The 4L60E transmission typically requires Dexron III or its newer, backward-compatible equivalent, Dexron VI. Dexron VI is generally recommended for its improved performance and longevity. Always refer to your vehicle's owner's manual for the exact specification. Due to the 4L60E's commonality, finding the correct fluid is usually quite straightforward at any automotive parts store.

What causes a hard 1-2 shift in a 4L60E transmission?

A hard 1-2 shift in a 4L60E, often experienced around 100,000 miles or more, can be attributed to several factors. It could be a sign of worn clutch packs, issues with the valve body, or problems with solenoids. Sometimes, simply changing old, degraded transmission fluid and filter can help, as can adding certain transmission additives (like Lubeguard Red, as mentioned by some users). However, if the issue persists after a fluid change, it often indicates internal wear that may require professional diagnosis and repair, such as replacing solenoids or rebuilding parts of the transmission.

Is it difficult to change 4L60E transmission fluid?

Changing the fluid and filter on a 4L60E is generally considered a moderate DIY task. It’s not overly complex, but it can be messy, and attention to detail (especially with pan bolt torque and fluid levels) is crucial. If it's your first time, it might feel challenging, but with the right tools and following a step-by-step guide, it's definitely achievable for most home mechanics. The biggest hurdle is often dealing with the fluid spill if your pan lacks a drain plug.

What happens if I overfill my transmission fluid?

Overfilling your transmission fluid can be just as detrimental as underfilling. Excess fluid can lead to aeration, where the spinning internal components churn the fluid into a foam. This foamy fluid cannot properly lubricate, cool, or transmit hydraulic pressure, leading to overheating, poor shifting, and potential damage to the transmission. If you suspect you've overfilled, it's best to drain a small amount until the level is correct.

By understanding the fluid capacity, following the correct change procedure, and paying attention to your transmission's health, you can significantly extend the life of your 4L60E and enjoy many more miles of trouble-free driving. Regular maintenance is the cornerstone of vehicle reliability.
