The Legendary Toyota 4A-GE Engine

The Toyota 4A-GE engine is a name that resonates deeply within the automotive enthusiast community, particularly those with a penchant for Japanese performance cars. Emerging as a potent evolution of Toyota's 4A series, the 'GE' designation signifies a high-performance, sport-oriented variant. The 'G' denotes a wide-angle, twin-cam head, a crucial element in its enhanced breathing capabilities, while the 'E' points to Electronic Fuel Injection (EFI), a modern advancement for its time. As the successor to the pioneering 2T-G, the engine that first introduced Toyota's now-legendary twin-cam lineage, the 4A-GE inherited a rich performance pedigree, quickly establishing itself as a benchmark for compact, spirited four-cylinder powerplants.

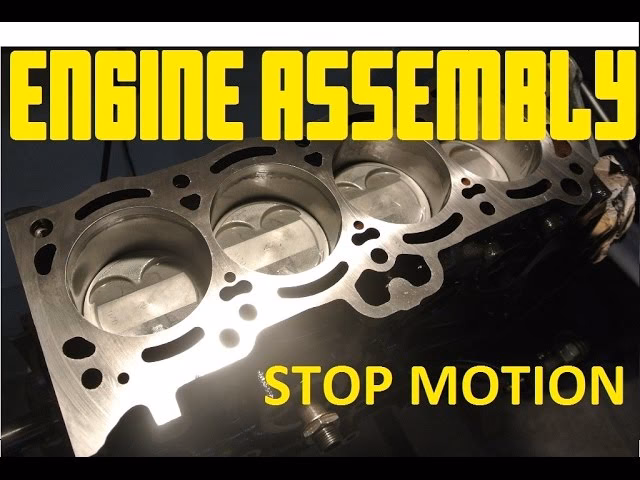

The 4A-GE Engine: A Deep Dive

Renowned for its exhilarating high-revving nature and compact design, the 4A-GE carved out a significant niche in the sport compact scene. While its 1687cc displacement (often rounded to 1.6 litres) meant it was a tad shy on low-end torque, this was masterfully compensated by its eagerness to spin to higher revolutions. With a bore of 81mm and a stroke of 71mm, the engine's DOHC cylinder head was a key contributor to its performance. Even decades after its initial release, the 4A-GE remains a popular choice for modifications, engine swaps, and conversions, largely due to its accessible cost and relatively straightforward mechanics.

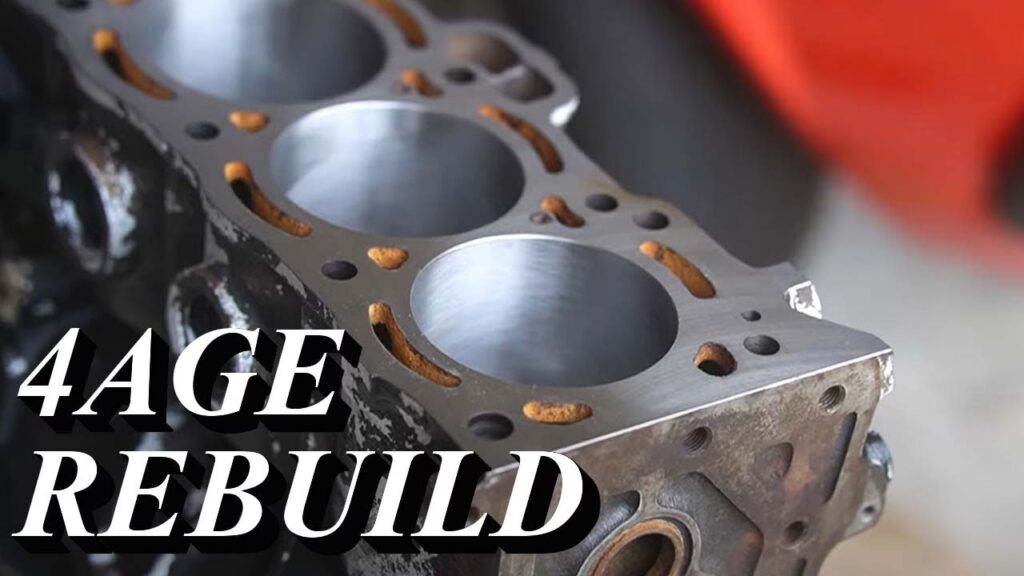

Toyota's strategy to maximise power from a smaller displacement focused on an excellent power-to-weight ratio. This was achieved by keeping the engine's overall weight down. The use of an aluminium cylinder head and pistons significantly reduced rotational mass, contributing to its responsiveness. The robust cast iron short block, however, provided the necessary durability to withstand the demands of enthusiastic driving. This clever combination of lightweight materials and a strong foundation allowed the 4A-GE to stand out as one of the most potent and compact four-cylinder engines in Toyota's lineup during the mid-1980s.

Evolution Through Generations

The enduring appeal of the 4A-GE is evident in its numerous revisions and reiterations by Toyota, reflecting a continuous effort to refine and enhance this diminutive powerhouse. First introduced in 1983, the 4A-GE saw five distinct generations, each offering incremental improvements and catering to different market demands. For enthusiasts seeking these engines, JDM (Japanese Domestic Market) importers offer access to these varied iterations.

First Generation (1983-1987)

The debut of the 4A-GE marked Toyota's foray into multi-point sequential fuel injection systems. Designed as a compact performance engine, it shared characteristics with other JDM four-cylinders of the era. A notable feature was its intake system, which incorporated a variable intake runner system (often referred to as TVIS - Toyota Variable Induction System). This system utilised butterfly valves within the intake manifold runners, controlled by the ECU. At lower RPMs, the butterflies would close, shortening the runner length to increase air intake velocity and bolster low-to-mid range torque. As engine speed increased, the butterflies would open, allowing for unrestricted airflow to maximise top-end power.

This first generation was available in both front-wheel-drive (transverse) and rear-wheel-drive (longitudinal) configurations. Iconic RWD applications include the AE86 Corolla GT, Levin, and Sprinter Trueno. FWD models, such as the early AW11 MR2 and AE82 Corolla, commonly featured the transversely mounted 4A-GE. These early engines typically had a compression ratio of 9.4:1 and produced around 120bhp at 6600 RPM.

Second Generation (1987 onwards)

Recognising the desire for increased power, Toyota implemented significant upgrades for the second generation. Introduced in 1987, this iteration saw improvements to the engine's exterior castings, larger connecting rod bearing sizes, and a revised crankshaft. Most notably, this generation introduced the 4A-GZE, a supercharged variant. This version, commonly found in the early AW11 MR2, became a favourite among enthusiasts looking for forced induction from the factory. The 4A-GZE utilized a Hot-Wire Air Flow Meter (AFM) and enhanced fuel delivery to cope with the demands of forced induction.

This generation powered models like the AE92 Corolla, Levin, Trueno, and the aforementioned AW11 MR2. Many enthusiasts later converted these supercharged engines to turbocharger setups, seeking different power delivery characteristics.

Third Generation (1990 onwards)

By 1990, Toyota further refined the 4A-GE. This third generation saw an increase in compression ratio from 9.4:1 to 10.3:1, necessitating improved pistons equipped with oil squirters to manage piston temperatures. The engine block's oil passages were reworked to accommodate these squirters, a design cue that would influence later Toyota engines like the 2JZ-GTE and 4G63. The valvetrain also received attention, with revised camshaft timing and improved camshafts offering 7.1mm of lift and 232° of duration (compared to the earlier 7.56mm lift and 240° duration). Redline was raised to 7200 RPM thanks to these valvetrain enhancements.

A significant change in this generation was the discontinuation of the AFM in favour of Manifold Absolute Pressure (MAP) sensing for most global markets, a move that eliminated the restrictive AFM and potential for MAF overrun issues. The TVIS system was also dropped, simplifying the engine's intake plumbing and making it more amenable to aftermarket modifications. This JDM-spec engine, found in models like the AE92 Corolla GT and Carina, typically produced around 140hp at 6800 RPM.

Fourth Generation (1991 onwards) - The 20-Valve Era

Late 1991 marked a significant milestone with the introduction of the 20-valve version of the 4A-GE. This iteration featured a completely redesigned cylinder head with five valves per cylinder (three intake, two exhaust). The valve ports were enlarged from 26.5mm to 29mm, accommodating the increased valve count. More aggressive camshafts were fitted to enhance mid-range and top-end performance. Crucially, this generation incorporated Toyota's first application of Variable Valve Timing with intelligence (VVT-i) on the intake camshaft, a system designed to optimise mid-range power and improve emissions.

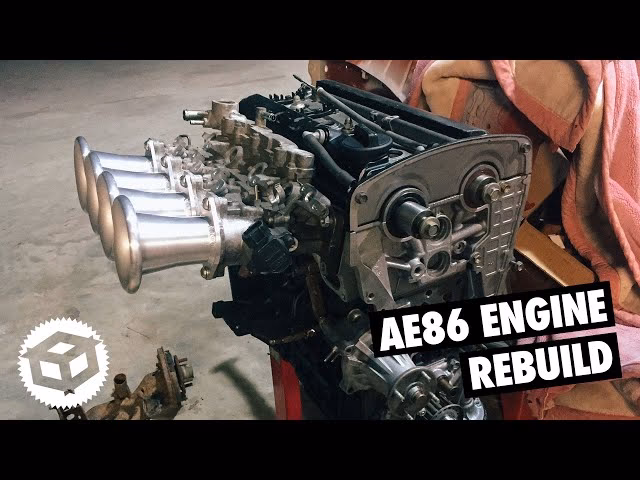

The intake system also received a radical upgrade with individual throttle bodies (ITBs) for each cylinder and a distinctive tubular header design. This setup significantly improved airflow and throttle response. The compression ratio was further increased to 10.5:1, resulting in an output of 160hp. This potent variant was exclusively available in the JDM AE101 Corolla.

Fifth Generation (1995 onwards)

The final revision of the 4A-GE arrived in the summer of 1995. By this stage, the engine had evolved into a sophisticated, high-revving, and well-mannered sport compact unit. Toyota focused on reducing internal rotational mass by utilising a lighter crankshaft, pistons, and connecting rods. The compression ratio was bumped up again to 11.0:1, and camshaft profiles were refined, increasing lift to 8.2mm (from 7.97mm) while keeping duration similar. The intake throttle bodies were enlarged to 45mm (from 42mm), paired with a larger intake plenum to further enhance airflow. The AFM system was reintroduced in place of the MAP sensor used in the previous generation.

This fifth generation 4A-GE produced 165hp and was found in the JDM Corolla AE111 series. Its production continued into the early 2000s, with the engine being officially discontinued in the winter of 2002. This long production run and its availability through JDM importers make it a highly sought-after option for enthusiasts and engine swappers.

Key Specifications Comparison

Here's a general overview of key specifications across the 4A-GE family:

The 4A-GE's Enduring Appeal: Why is it so Great?

The 4A-GE's sustained popularity stems from a confluence of factors:

• Modifiability: It's an incredibly tunable engine. Enthusiasts can extract significant power gains through relatively simple modifications like exhaust upgrades, intake enhancements, and ECU tuning. The availability of aftermarket parts is vast.
• Reliability: Despite its performance focus, the 4A-GE is known for its robust construction and reliability when properly maintained. The cast iron block provides a solid foundation.
• Tuning Potential: From mild bolt-ons to extensive internal upgrades, the 4A-GE can be tailored to various power goals. The transition to 20-valve naturally aspirated or even forced induction opens up even greater performance ceilings.
• Sound: The high-revving nature and the distinctive intake note, particularly from the 20-valve ITB variants, contribute to its character and appeal.
• Legacy: Its association with iconic cars like the AE86 Corolla has cemented its legendary status in motorsport and tuner culture.

Common 4A-GE Engine Variations

While the generational evolution covers the core development, enthusiasts often categorise 4A-GEs by specific characteristics:

• Big Port vs. Small Port: Refers to the size of the intake ports in the cylinder head. 'Big port' heads generally flow better at higher RPMs, while 'small port' heads offer better velocity and low-end torque.
• TVIS vs. Non-TVIS: Related to the intake runner length system found in earlier generations.
• 20-Valve Heads: The later, more advanced heads with three intake valves and often VVT-i.
• Supercharged (4A-GZE): The factory-forced induction variant.

Frequently Asked Questions (FAQ)

Q1: What is the difference between a 4A-GE and a 4A-GZE?
The 4A-GE is naturally aspirated, while the 4A-GZE is its supercharged counterpart, designed for increased power output through forced induction.

Q2: Can I put a 20-valve 4A-GE head on a 16-valve block?
While the heads are physically compatible and will bolt up, it's generally not recommended without using the correct pistons. The 16-valve pistons lack the necessary valve reliefs for the 20-valve head's larger valve coverage, potentially leading to piston-to-valve contact (non-interference vs. interference). Using the correct pistons ensures proper valve clearance.

Q3: What are the most common modifications for a 4A-GE?
Common modifications include upgraded exhaust systems, cold air intake kits, performance camshafts, ECU tuning, and for significant power gains, individual throttle bodies (ITBs) or forced induction (turbocharging or supercharging).

Q4: How much power can a stock 4A-GE make?
Stock power outputs varied by generation and market, typically ranging from 115hp to 165hp for naturally aspirated versions and 145hp to 165hp for the supercharged 4A-GZE.

Q5: Is the 4A-GE a reliable engine?
Yes, the 4A-GE is generally considered a reliable engine, known for its durability and robust construction, provided it has been maintained adequately.

The Toyota 4A-GE engine remains a testament to clever engineering, offering a compelling blend of performance, tunability, and character that continues to captivate automotive enthusiasts worldwide. Its legacy is firmly etched in the annals of performance engine history.
