Pontiac 455 Re-ring Kit Essentials

When embarking on the journey of rebuilding a classic Pontiac 455 engine, selecting the right components is paramount. Many enthusiasts turn to reputable suppliers like Butler for their comprehensive re-ring kits, designed to bring these iconic powerplants back to life with enhanced performance and reliability. Understanding the contents of such a kit is crucial for a successful rebuild, ensuring you have the necessary parts to address common wear and tear, and potentially even improve upon the original factory specifications.

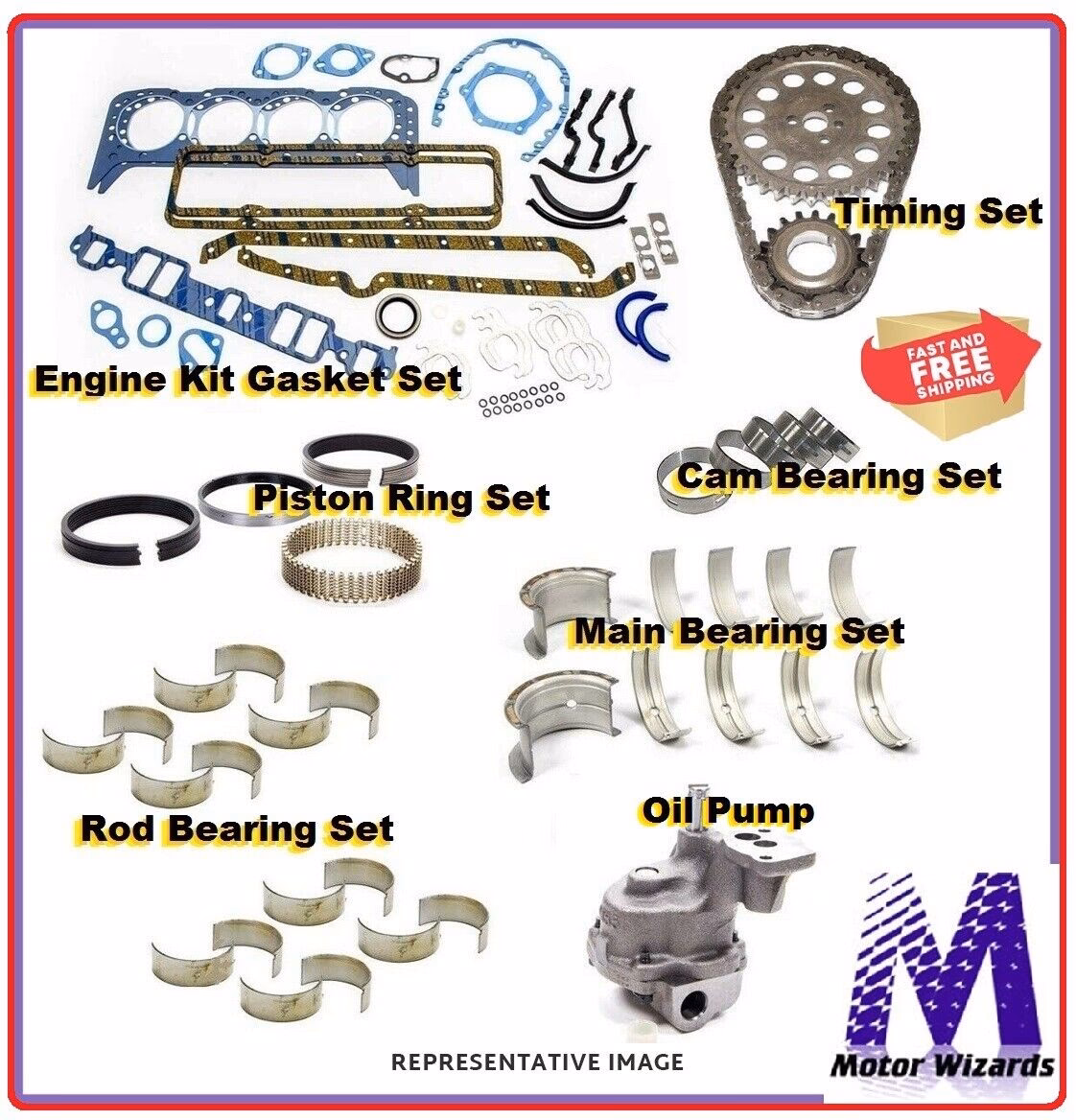

What Does a Pontiac 455 Re-ring Kit Typically Include?

A well-assembled re-ring kit, specifically designed for the robust Pontiac 455 engine, aims to provide the core components needed for a bottom-end overhaul. The primary goal of a re-ring is to address worn piston rings, which are critical for maintaining compression, controlling oil consumption, and ensuring efficient combustion. However, a quality kit from a specialist like Butler goes beyond just the rings, offering a more complete solution for a thorough engine refresh. Here's a breakdown of what you can generally expect:

Pistons and Piston Rings

The heart of any re-ring kit lies in the pistons and their corresponding rings. Butler Rebuilder Kits offer a selection of pistons to suit various build goals and existing engine configurations. These typically come in:

• Piston Types: Flat Top, Dish Top, and Dome Top. Each type influences the engine's compression ratio (CR), which is a vital factor in determining its performance characteristics and fuel requirements.
• Oversizes: Available in standard bore, .030" over, .040" over, and .060" over. Choosing the correct oversize depends on the condition of the original engine block after machining.

The piston rings themselves are usually high-quality, often featuring moly coatings for improved durability and reduced friction. These are essential for creating a proper seal between the piston and the cylinder wall.

Main and Rod Bearings

Proper bearing clearance is critical for oil flow and the longevity of the crankshaft and connecting rods. A comprehensive kit will include:

• Federal Mogul Main Bearings: These are crucial for supporting the crankshaft within the engine block. They are typically available in standard size, as well as undersizes like -.010" and -.020" to accommodate crankshaft grinding if necessary.
• Federal Mogul Rod Bearings: These fit onto the connecting rod big ends, allowing them to pivot around the crankshaft journals. Like main bearings, they are usually offered in standard, -.010", and -.020" sizes.

Achieving the correct bearing clearances, as demonstrated in the Oldsmobile 455 build example where clearances were tightened for street performance, is a key aspect of a successful engine rebuild.

Gasket Set

A complete gasket kit is indispensable for sealing the various components of the engine and preventing leaks. A good quality kit will include:

• Full Engine Gaskets: This encompasses head gaskets, intake manifold gaskets, exhaust manifold gaskets, oil pan gasket, timing cover gasket, water pump gaskets, and various seals.
• Rear Main Seal: Options for different types of rear main seals (e.g., one-piece or two-piece) might be available, depending on the specific Pontiac block.
• Oil Pan Gasket: Often includes options for different oil pan styles.

Optional Components

Butler often provides options to further enhance the rebuild:

• Crankshaft: The option to add a new cast or forged crankshaft can be invaluable if the original crankshaft is damaged beyond repair or if an upgrade is desired. Forged cranks offer superior strength, especially for high-performance applications.

Understanding the Pontiac 455 Engine's Needs

The Pontiac 455 is a legendary engine known for its torque and muscle car prowess. However, like many engines of its era, it has specific characteristics that require careful attention during a rebuild. The provided information on the Oldsmobile 455 build highlights several critical areas that are also relevant when working with Pontiac 455s:

Oiling System Considerations

The Oldsmobile 455's notorious oiling system issues, such as low oil pressure and bottom-end starvation, underscore the importance of a well-thought-out oiling strategy. While Pontiac 455s may have different specific quirks, attention to oil pump selection, clearances, and oil return paths is vital. The use of a standard volume/standard pressure oil pump, blueprinted for proper clearances, and the addition of shims to the relief spring, as seen in the Olds build, are good practices. Furthermore, the concept of adding oil restrictors to main oiling passages to prioritize the bottom end over the camshaft and valve train is a valuable lesson in managing oil flow in these large displacement V8s.

Bearing Clearances

The rule of thumb for bearing clearances is often cited as .001" for every 1" of crankshaft journal diameter. For a Pontiac 455 with typically 3" main journals and 2.5" rod journals, this would suggest clearances of .003" for mains and .0025" for rods. However, as the Olds example shows, tightening these clearances slightly (e.g., to .0025" mains and .002" rods) can significantly improve oil pressure at lower RPMs and enhance street drivability, especially with modern oils.

Cylinder Head and Valve Train Improvements

While the Pontiac 455 often came with robust components, there's always room for improvement. Upgrading valve sizes, performing multi-angle valve jobs, and porting cylinder heads can dramatically improve airflow and performance. The Olds build's experience with upgrading intake valves and back-cutting them demonstrates how even small changes can boost low-lift flow. Attention to combustion chamber volume and piston dish/dome is also crucial for achieving the desired compression ratio, ensuring the engine runs well on pump gas, as exemplified by the 9.25:1 CR in the Olds build.

Camshaft and Valvetrain Selection

The choice of camshaft is critical and must complement the intended use of the vehicle and the rest of the engine's components. For a freeway cruiser with an overdrive transmission, a more conservative hydraulic flat tappet camshaft, like the Comp Cams XE256H mentioned, is a sensible choice. The need for adjustable roller rocker arms, ARP studs, and pushrod guide plates, as seen in the Olds build, addresses the non-adjustable nature of some factory rocker arms and allows for precise valvetrain setup.

Induction and Ignition Systems

Modern upgrades in induction and ignition can transform the drivability and performance of a classic engine. An aftermarket intake manifold like the Edelbrock Performer, matched to the camshaft's RPM range, is a common and effective choice. Fuel injection systems, such as the FAST EZ system, offer significant improvements in drivability, fuel economy, and throttle response compared to traditional carburetion. Similarly, an upgraded HEI distributor with an improved coil and carefully recurved timing can enhance low-RPM performance. High-quality spark plug wires and plugs ensure efficient spark delivery.

Exhaust Systems

The exhaust system plays a vital role in both performance and sound. Long tube headers with a larger primary diameter (like 1 3/4") and a generous collector size (3" in the Olds example) are excellent for maximizing torque and horsepower. Paired with performance mufflers, they can provide a satisfying exhaust note without excessive restriction.

What is a Butler Rebuilder Kit?

A Butler Rebuilder Kit is not just a collection of generic parts; it's a curated package of components selected by Butler specifically to work in harmony with each other. The company's philosophy is to take the guesswork out of sourcing parts, providing a bundle that aims to rebuild your Pontiac engine to a condition that surpasses its original factory state. This focus on compatibility and quality ensures that each component contributes to the overall performance, reliability, and longevity of the rebuilt engine.

Frequently Asked Questions

Q1: What is the primary benefit of using a Butler Rebuilder Kit?

The primary benefit is that Butler selects components known to work well together, simplifying the rebuild process and aiming for superior-than-new performance and reliability. It removes the uncertainty of sourcing individual parts.

Q2: Can I choose different piston types with a Butler kit?

Yes, Butler kits typically offer a choice of piston types, including flat top, dish top, and dome top, allowing you to tailor the engine's compression ratio to your specific needs and fuel type.

Q3: What if my crankshaft is damaged? Can a Butler kit help?

Many Butler kits offer the option to include a new cast or forged crankshaft, providing a solution if your original crankshaft is beyond repair or if you wish to upgrade its strength.

Q4: Are the bearings in a Butler kit of good quality?

Yes, Butler kits generally include high-quality Federal Mogul bearings, which are a trusted name in engine components, available in various sizes to accommodate machining needs.

Q5: How does a re-ring kit address oil consumption?

A re-ring kit includes new piston rings, which are essential for creating a proper seal between the pistons and cylinder walls. This seal prevents excessive oil from entering the combustion chamber, thus reducing oil consumption and improving compression.

In conclusion, a Butler Pontiac 455 re-ring kit offers a comprehensive and quality-assured solution for enthusiasts looking to rebuild their classic Pontiac engines. By providing carefully selected pistons, rings, bearings, and gaskets, coupled with the option for crucial upgrades like a new crankshaft, these kits empower builders to achieve exceptional results, ensuring their Pontiac 455 runs stronger and more reliably than ever before.
