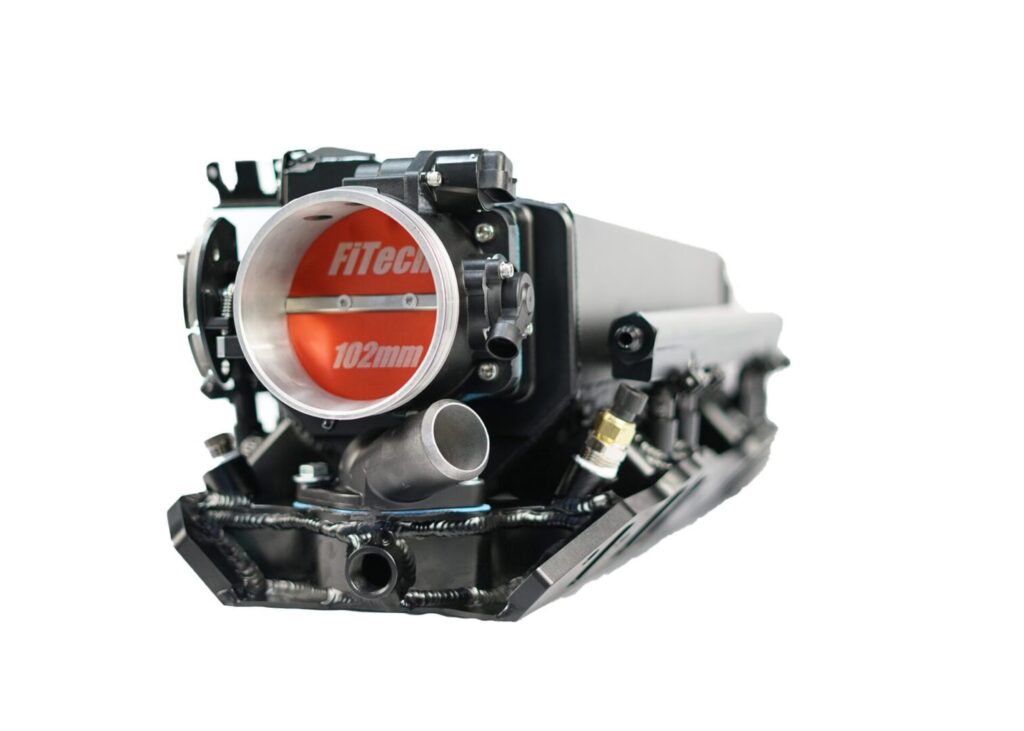

The roar of a Big Block Chevy (BBC) engine is music to many automotive enthusiasts' ears, embodying raw power and a rich heritage. Among these formidable engines, the GM L29 Vortec 7400 holds a special place, not least for its advanced (for its time) multi-port fuel injection system. Unlike earlier carburettor setups or simpler injection methods, multi-port injection brought a new level of precision and efficiency to the big block. This article delves into the intricacies of the L29's fuel delivery system, exploring what makes it tick, its common quirks, and how to optimise it for peak performance.
- Understanding Multi-Port Fuel Injection
- The Venerable BBC L29 Vortec 7400: A Closer Look
- The L29 Multi-Port Fuel Injection System: Design and Location
- Common Issues and Performance Upgrades
- L29 vs. L21: A Sibling Comparison
- Different Fuel Injection Systems: A Comparative Overview
- Frequently Asked Questions About the L29 Multi-Port System
- Conclusion

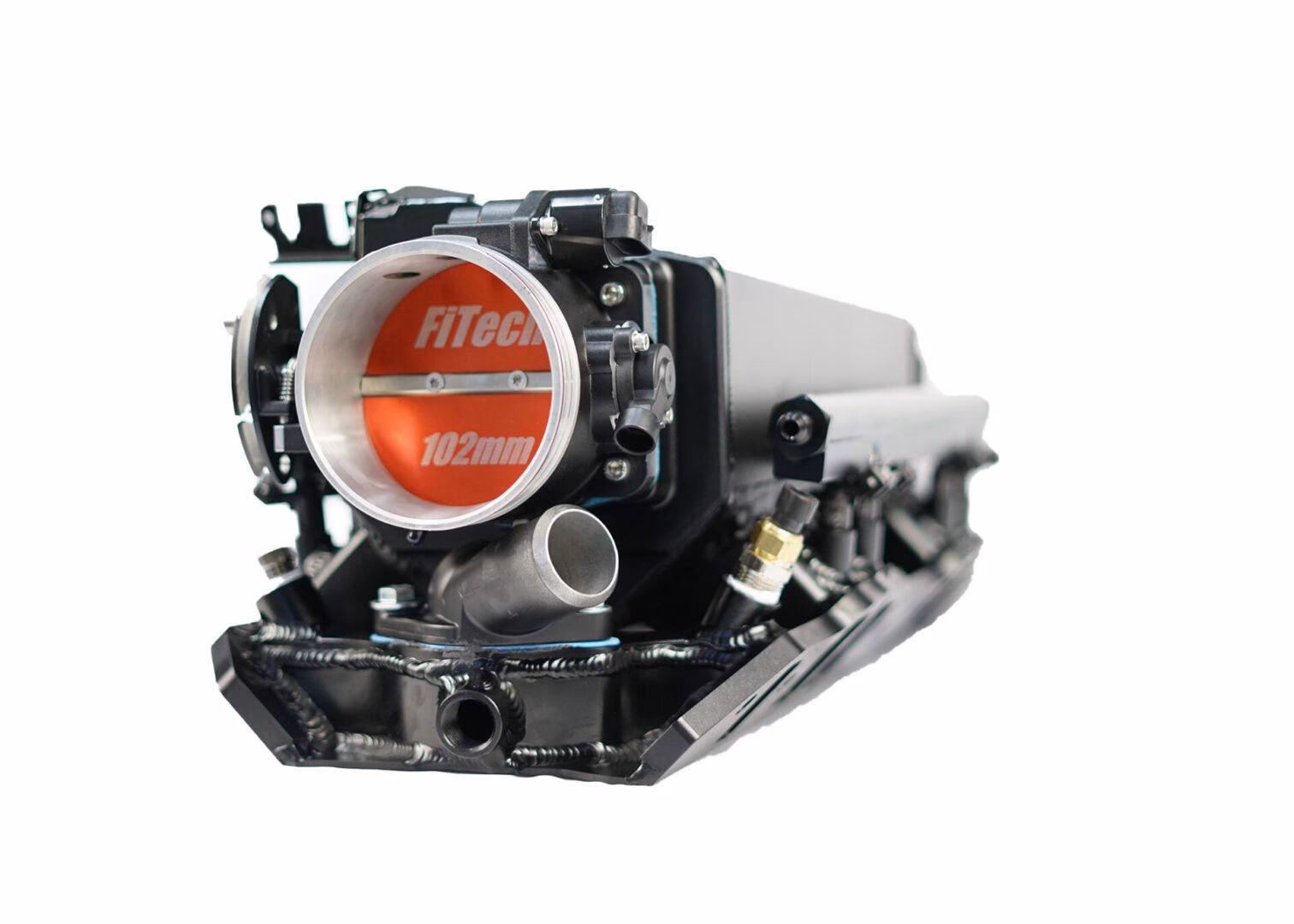

Understanding Multi-Port Fuel Injection
Before diving specifically into the L29, it’s helpful to understand what multi-port fuel injection (MPFI) entails and how it differs from other fuel delivery methods. In essence, MPFI systems feature individual fuel injectors located in the intake manifold, typically very close to the intake valves of each cylinder. This design ensures that fuel is sprayed directly into each intake port, allowing for precise fuel metering per cylinder and vastly improved atomisation compared to single-point injection systems.
This contrasts sharply with older systems:
- Flying Toilet: A very basic system, essentially a fuel jet spraying fuel. While simple and effective at wide-open throttle (WOT), it often leads to overly rich mixtures at other engine speeds, sacrificing efficiency and drivability.
- Throttle Body Injection (TBI): Here, fuel is injected in pulses from one or two injectors located within a central throttle body, much like a carburettor. While an improvement over carburettors for general drivability and a relatively cheap upgrade, TBI can suffer from uneven fuel distribution, with some cylinders running richer than others due to fuel having to travel varying distances through the intake manifold.
- Central Body Injection (CBI): Utilises an injection plate or a single injector with more equally-lengthed runners to achieve a more even fuel ratio across cylinders. It offers better timing control than TBI.
- Direct Port Injection: Takes precision a step further by injecting fuel directly into the cylinder itself, rather than the intake manifold. This allows for even finer adjustments to the air/fuel ratio per cylinder and typically involves more sensors for superior control.
- Coil-on-Plug Direct Port Injection: The pinnacle of fuel injection technology, combining direct port injection with individual coil-on-plug ignition. This allows for millisecond-level timing adjustments for both fuel and spark, offering the most precise control under varying conditions. This system is particularly beneficial for engines running forced induction, where precise fuel and ignition timing are critical for performance and engine longevity.
The L29's multi-port system strikes an excellent balance, offering significant advantages over carburettors and TBI for street performance and drivability.

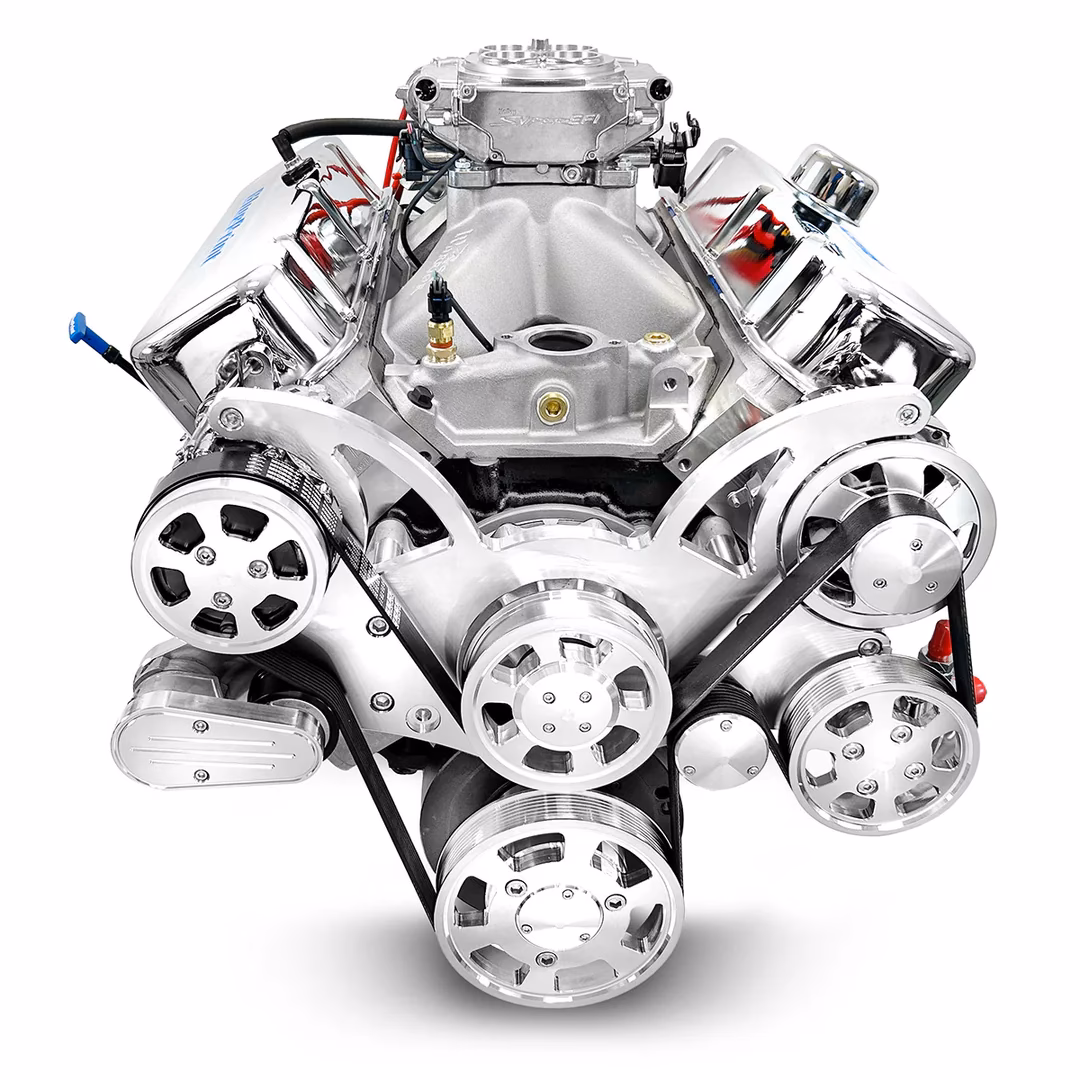

The Venerable BBC L29 Vortec 7400: A Closer Look
The L29, also known as the Vortec 7400, represents the final and most modern iteration of the legendary big block Chevy engine. Produced from 1996 to 2000, it was primarily found in GM's heavy-duty trucks (2500/3500/3500HD) and 2500 Suburbans. Factory specifications boasted a respectable 290 horsepower at 4000 rpm and a robust 410 ft-lbs of torque at 3200 rpm – impressive figures for a truck engine of its era.
As a Gen 6 big block, the L29 brought several modern improvements to the table. It featured a strong four-bolt main block and a one-piece rear main seal, enhancing durability and reducing oil leaks. Crucially, it was upgraded with a hydraulic roller camshaft, revised cylinder heads, a 9.4:1 compression ratio, and, most notably for our discussion, a long runner multi-port fuel injection system. These enhancements made the L29 a more efficient and powerful engine than its predecessors.
L29 Cylinder Heads and Valve Train
The cylinder heads on the L29 are unique, featuring small oval ports with a distinctive “ski ramp” design that promotes swirl within the combustion chamber. This design, combined with small 100cc combustion chambers, allows for a decent 9.4:1 compression ratio when paired with flat-top pistons – a significant improvement over the 7.9:1 compression of the previous generation L19. While these heads may not flow as much as the large oval and rectangle port heads found on older big blocks, they represent a marked improvement over the “peanut port” heads that preceded them, offering better low-end torque and efficiency.
The valve train consists of non-adjustable, bolt-down 1.70:1 rocker arms. It's worth noting that the stock valve springs are often considered weak and barely adequate for the factory camshaft, making them a common area for upgrades if pursuing more aggressive camshaft profiles.
The L29 Multi-Port Fuel Injection System: Design and Location
The L29's multi-port fuel injection system is a cornerstone of its performance. Unlike the 5.7L Vortec engines that used a “spider” Central Fuel Injection (CFI) system where injectors were located within the intake manifold, the L29's fuel injectors are positioned under the upper manifold. This design means the injectors are not submerged within the manifold, offering a significant advantage for maintenance and modifications.
This external-to-manifold injector placement makes the L29 highly flexible for modifications. Should you wish to upgrade to larger injectors to support more power, readily available aftermarket options can be easily swapped in. This is a considerable benefit for enthusiasts looking to enhance their L29's output.
Common Issues and Performance Upgrades
Despite its robust design, the L29 is not without its common issues, particularly concerning its fuel system. Leaking fuel injectors and/or the fuel pressure regulator are frequently reported problems. Fortunately, there's a straightforward and effective upgrade available: 19lb Bosch “Yellow Top” injectors. These injectors, originally found in the 5.0HO Fox Mustangs and various other Ford models, are a direct drop-in replacement for the L29. They offer improved reliability and flow, making them a popular choice for both repairs and mild performance enhancements. When performing this swap, exercise caution as the plastic injector clips are notoriously fragile and can break easily.
Beyond injector replacement, the L29's factory calibration is known to be quite conservative. This presents a fantastic opportunity for aftermarket tuning to unlock significant hidden power. The Gen 6 block, already set up for a hydraulic roller camshaft, serves as an excellent foundation for building a potent street 454. The engine responds remarkably well to a combination of a small aftermarket camshaft, matching valve springs, performance headers, and a custom engine tune.
Another popular and highly effective upgrade involves swapping the factory Engine Control Unit (ECU) for the more widely supported and tunable 411 ECU found in later model GM vehicles. The 411 ECU offers much broader aftermarket support, compatible with popular tuning suites such as HP Tuners and EFI Live. Installing a 411 ECU requires careful re-pinning of the existing ECU connectors to match the new unit, followed by a custom tune to ensure proper operation with your specific engine and transmission combination. While this is a more involved modification, the benefits in terms of tuning flexibility and performance gains are substantial.
L29 vs. L21: A Sibling Comparison
It's worth briefly mentioning the L21, a closely related variant of the Gen 6 big block found in medium-duty trucks like the Kodiak, Topkick, and GM motorhomes. Essentially, the L21 shares much of its core architecture with the L29, and many parts are physically interchangeable between the two. However, the L21 features a significant difference in its ignition system: it utilises coil-near-plug ignition, similar to the later 8100 Vortec and LS-based engines. This necessitates unique valve covers with bosses for mounting individual coils.
The L21 also uses a special distributor stub that functions solely as a cam sensor, featuring a smaller cap since it doesn't need to distribute spark. This individual coil ignition system requires a different ECU from the L29, as well as different cam/crank signals. Intriguingly, the L21 is also reported to have forged crankshaft and connecting rods, suggesting a slightly more robust bottom end, likely due to its intended heavy-duty application.
Different Fuel Injection Systems: A Comparative Overview
To further contextualise the L29's multi-port system, here's a brief comparison of the common fuel injection types:
| Fuel Injection Type | Description | Pros | Cons | Best Use Case |
|---|---|---|---|---|
| Flying Toilet | Simple jet spraying fuel into the intake. | Extremely simple, cheap. | Poor fuel atomisation, often runs rich except at WOT. | Basic, budget builds, often for drag racing. |
| Throttle Body Injection (TBI) | One or two injectors in a central throttle body. | Good general drivability, cheap carb upgrade, basic sensors. | Uneven fuel distribution to cylinders. | General driving, budget improvements over carburettors. |
| Central Body Injection (CBI) | Single injector or injection plate with more equal-length runners. | Better fuel distribution and timing control than TBI. | Still has some fuel travel distance variations. | Improved drivability and efficiency over TBI. |
| Multi-Port Fuel Injection (MPFI) | Individual injectors for each cylinder's intake port. | Precise fuel metering per cylinder, excellent atomisation, good drivability, fuel efficiency. | More complex than TBI/CBI, more components. | Standard for modern engines, good balance of performance and efficiency. (L29 uses this!) |
| Direct Port Injection | Fuel injected directly into the combustion chamber. | Most precise fuel control, allows higher compression, improved efficiency and power. | Most complex, expensive, requires high-pressure fuel pump. | High-performance applications, modern emissions standards. |
| Coil-on-Plug Direct Port Injection | Direct port injection with individual ignition coils. | Ultimate control over fuel and spark timing (millisecond accuracy), most sensors. | Extremely complex and expensive. | Forced induction, extreme performance, racing applications. |
Frequently Asked Questions About the L29 Multi-Port System
Q: Can I really gain much power by tuning a stock L29?
A: Absolutely. The factory calibration of the L29 is known to be very conservative, leaving a significant amount of power on the table. Aftermarket tuning, especially with a 411 ECU swap, can unlock considerable horsepower and torque gains, improving both performance and fuel efficiency.
Q: Are the 19lb Bosch “Yellow Top” injectors a straightforward swap?
A: Yes, they are considered a direct drop-in upgrade for the L29. However, you must be extremely careful with the plastic injector clips, as they are fragile and prone to breaking during removal or installation. Taking your time and using appropriate tools will help prevent this.
Q: What's the main benefit of swapping to a 411 ECU on an L29?
A: The primary benefit is access to a much wider range of aftermarket tuning support and software (like HP Tuners or EFI Live). This allows for far more precise and customisable tuning options for various modifications (cams, headers, forced induction) that the factory L29 ECU simply cannot accommodate effectively.
Q: How does the L29's multi-port injection compare to the “spider” injection in other Vortec engines?
A: The L29's injectors are located under the upper intake manifold, but critically, they are external to the manifold's internal passages. This differs from the 5.7L Vortec's “spider” system, where the injectors are integrated within the manifold itself, making L29 injector access and replacement much simpler and more flexible for upgrades.
Conclusion
The GM L29 Vortec 7400 stands as a testament to the evolution of the big block Chevy, with its long runner multi-port fuel injection system being a pivotal component in its modern design. While it brought significant improvements in power, efficiency, and drivability over its predecessors, understanding its unique characteristics, common issues, and available upgrades is key to maximising its potential. Whether you're addressing a leaky injector or aiming for serious performance gains, the L29's multi-port system offers a robust foundation for a truly capable big block.
