When it comes to maintaining your vehicle, having the right tools can make all the difference. Among the most crucial pieces of equipment for any home mechanic or car enthusiast is a reliable car jack. While there's a variety of jacks available, the hydraulic bottle jack stands out for its compact size, impressive lifting capacity, and ease of use. This comprehensive guide will delve into the world of bottle jacks, focusing particularly on the popular 4-ton and robust 8-ton models, helping you understand their capabilities and how to use them safely and effectively for your automotive needs here in the UK.
Understanding the nuances of different jack types, their capacities, and safe operation is paramount. A hydraulic bottle jack, with its upright design resembling a bottle, is a powerhouse for its size, making it ideal for lifting heavy loads in tight spaces. Its hydraulic system allows for powerful, controlled lifting with minimal effort, transforming potentially back-breaking tasks into manageable ones.
- What Exactly is a 4-Ton Bottle Jack?
- Stepping Up: The 8-Ton Hydraulic Bottle Jack
- Beyond 4 and 8 Tons: Other Capacities
- Choosing the Right Capacity for Your Vehicle
- Key Features to Look For When Buying a Bottle Jack
- Operating a Bottle Jack Safely
- Maintenance for Longevity
- Bottle Jack vs. Other Jack Types
- Frequently Asked Questions (FAQs)
- Q: Can I use a 4-ton bottle jack for my family car?
- Q: Is an 'All-in-1' bottle jack truly safe without separate jack stands?
- Q: How often should I check the hydraulic fluid in my bottle jack?
- Q: What does CE/GS/TUV certification mean for a bottle jack?
- Q: My bottle jack is not lifting properly. What could be the issue?
- Conclusion

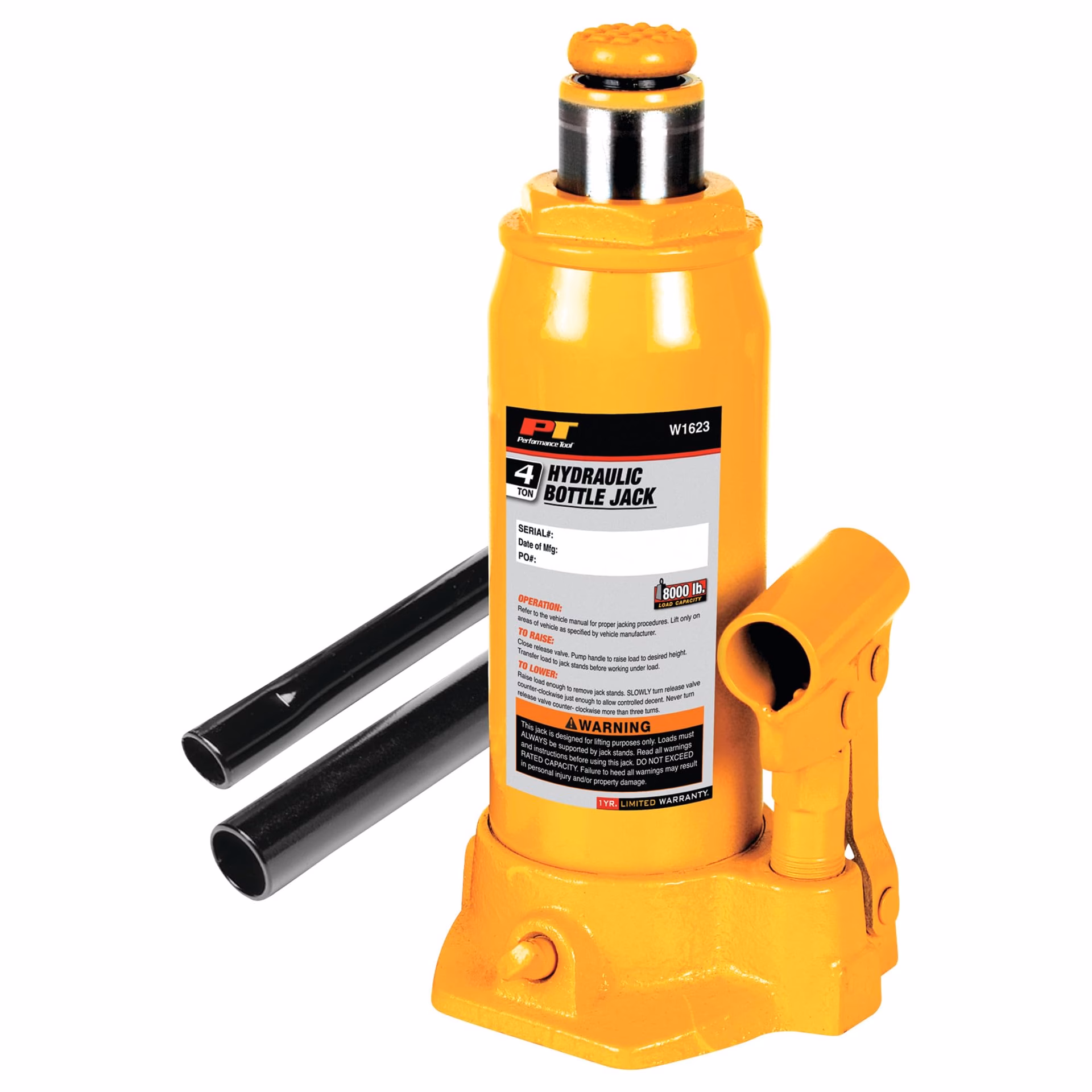

What Exactly is a 4-Ton Bottle Jack?
A 4-ton bottle jack is a highly versatile and increasingly popular tool for vehicle maintenance, especially for those working on cars, smaller SUVs, and light vans. The '4-ton' designation refers to its maximum lifting capacity, meaning it can safely lift objects weighing up to 4,000 kg (approximately 8,800 lbs). This capacity is more than sufficient for lifting one corner of most passenger vehicles, allowing for tyre changes, brake inspections, or other underbody work.
One of the most innovative advancements in this category is the 'All-in-1' hydraulic bottle jack. This clever design combines the lifting power of a traditional bottle jack with the crucial safety feature of a jack stand, all within a single, convenient unit. This dual functionality is a game-changer for many, streamlining the lifting process and enhancing safety:
- Hydraulic Operation: It uses hydraulic fluid and a pumping mechanism to lift the vehicle smoothly.
- Manual Operation: Most models also feature a manual release valve for controlled lowering.
- Integrated Jack Stand: Once lifted to the desired height, a locking mechanism engages, securely holding the load in place. This eliminates the need for a separate jack stand, though for maximum safety, using a dedicated stand in conjunction with the integrated one is always recommended.
- Height Adjustment: A typical 4-ton All-in-1 unit offers a height adjustment span, often ranging from around 11 inches (279 mm) to 21 inches (533 mm). This range allows it to cater to vehicles with varying ground clearances.
The compact footprint of a 4-ton bottle jack makes it an excellent choice for keeping in your boot for roadside emergencies or for use in a smaller garage where space is at a premium.
Stepping Up: The 8-Ton Hydraulic Bottle Jack
For those with heavier vehicles or more demanding lifting requirements, an 8-ton hydraulic bottle jack offers a significant increase in capacity and robustness. An 8-ton jack can lift approximately 8,000 kg (around 17,600 lbs), making it suitable for larger SUVs, light commercial vehicles, and even some smaller lorries or agricultural equipment. Its solid steel structure ensures durability and stability under heavy loads.
Key specifications for an 8-ton hydraulic bottle jack typically include:
- Maximum Capacity: 8 tons (8,000 kg).
- Minimum Height: Around 200 mm (7.9 inches). This is the lowest point the jack can go, important for fitting under vehicles with lower clearances.
- Maximum Height: Approximately 385 mm (15.2 inches). This is the highest point the jack can lift the vehicle.
- Lift Height: The actual distance the ram extends, often around 125 mm (4.9 inches). This is the working stroke of the jack.
- Adjustable Height: Many models include an adjustable screw extension on top of the ram, adding another 60 mm (2.4 inches) or so to the lift, providing more flexibility.
- Construction: Typically made from heavy-duty steel for maximum strength and longevity.
- Certification: Reputable 8-ton jacks will carry certifications such as CE, GS, and TUV, ensuring they meet European safety and quality standards.
While an 8-ton jack is heavier and larger than its 4-ton counterpart (often weighing around 4.9 kg), its increased lifting power and stability make it indispensable for heavier tasks. It's designed for serious lifting, providing the necessary brute force for bigger jobs.
Beyond 4 and 8 Tons: Other Capacities
While 4-ton and 8-ton jacks are common, hydraulic bottle jacks are available in a wide array of capacities to suit virtually any lifting need. You can find models ranging from as little as 2 tons up to a massive 50 tons or more. For instance, a 5-ton hydraulic jack, capable of lifting 5,000 kg, might be a good middle ground for those with slightly heavier cars or smaller vans, offering more headroom than a 4-ton without the bulk of an 8-ton. The choice of capacity should always be based on the weight of the vehicle or object you intend to lift.
Choosing the Right Capacity for Your Vehicle
Selecting the correct bottle jack capacity is crucial for both safety and effectiveness. You must always choose a jack with a capacity that exceeds the weight of the vehicle you intend to lift, or more accurately, the portion of the vehicle's weight that the jack will support. Remember, you're usually only lifting one end or one corner of the vehicle, not its entire weight. However, it's safer to have ample reserve capacity.
Here's a general guide:
| Vehicle Type | Typical Weight (approx.) | Recommended Bottle Jack Capacity |
|---|---|---|
| Small Hatchback (e.g., Ford Fiesta) | 1,000 - 1,300 kg | 2 - 4 Ton |
| Mid-size Saloon (e.g., Ford Focus, VW Golf) | 1,300 - 1,600 kg | 4 Ton |
| Large Saloon/Estate (e.g., Ford Mondeo, BMW 3-Series) | 1,600 - 1,800 kg | 4 - 5 Ton |
| Small SUV (e.g., Nissan Qashqai) | 1,500 - 1,800 kg | 4 - 5 Ton |
| Large SUV (e.g., Land Rover Discovery, Range Rover) | 2,000 - 2,500 kg+ | 6 - 8 Ton+ |
| Light Commercial Van (e.g., Ford Transit Custom) | 2,000 - 3,500 kg+ | 8 Ton+ |
Always check your vehicle's Gross Vehicle Weight (GVW) or kerb weight, usually found in your owner's manual or on a sticker inside the driver's door jamb, and ensure your jack's capacity is well within safe limits.
Key Features to Look For When Buying a Bottle Jack
Beyond capacity, several features contribute to a bottle jack's performance, safety, and durability:
- Safety Certifications: Look for CE, GS, or TUV markings. These indicate that the product meets stringent European safety standards.
- Build Quality: A robust, heavy-duty steel construction is a must for longevity and reliability. Avoid flimsy or lightweight alternatives for safety-critical tools.
- Lifting Range: Check the minimum and maximum lifting heights. Ensure the minimum height allows the jack to fit under your vehicle and the maximum height is sufficient to lift it to the required working height.
- Base Stability: A wide, sturdy base provides better stability, reducing the risk of the jack tipping over.
- Release Valve: A smooth, controlled release valve is essential for safely lowering the vehicle.
- Handle Length: A longer handle provides more leverage, making pumping easier, especially for heavier loads.
- Portability: Consider the weight and dimensions if you plan to transport the jack frequently or store it in your vehicle.
Operating a Bottle Jack Safely
Safety is paramount when working with any lifting equipment. Incorrect use of a jack can lead to serious injury or damage to your vehicle. Always follow these essential safety guidelines:
- Read the Manual: Always read and understand the manufacturer's instructions for your specific jack model.
- Park on a Level Surface: Ensure your vehicle is on a hard, flat, and level surface. Avoid slopes, soft ground, or gravel.
- Engage Parking Brake: Apply the parking brake and put the vehicle in gear (or Park for automatics).
- Chock Wheels: Place wheel chocks on the wheels that will remain on the ground to prevent the vehicle from rolling.
- Locate Jacking Points: Refer to your vehicle's owner's manual to find the designated jacking points. Using incorrect points can damage your vehicle's chassis or underbody.
- Centre the Load: Position the jack head directly under the jacking point, ensuring the load is centred on the jack's saddle.
- Lift Slowly and Steadily: Pump the handle smoothly to raise the vehicle gradually. Keep an eye on the jack and the vehicle throughout the lifting process.
- Use Jack Stands: Once the vehicle is lifted to the desired height, immediately place sturdy jack stands under the vehicle at the recommended support points. Lower the vehicle slowly onto the jack stands until it rests securely. The jack is for lifting, the stands are for holding. Even with 'All-in-1' jacks, using additional stands for extended work is a wise precaution.
- Never Work Under a Jack-Supported Vehicle: Never get under a vehicle that is only supported by a jack. Always use jack stands.
- Lower Carefully: When finished, lift the vehicle slightly off the jack stands, remove the stands, and then slowly open the release valve to lower the vehicle to the ground.
Maintenance for Longevity
Proper maintenance will ensure your bottle jack remains a reliable tool for years to come:
- Keep it Clean: Wipe down the jack after each use to remove dirt, grease, and moisture.
- Inspect Regularly: Periodically check for any signs of damage, leaks, or wear on the hydraulic seals, ram, and base.
- Check Hydraulic Fluid: Ensure the hydraulic fluid level is correct. Top up with the manufacturer's recommended fluid if necessary. Never use brake fluid or other non-compatible fluids.
- Store Properly: Store the jack in a dry, clean environment, ideally in its original case or a dedicated storage box, to protect it from dust and corrosion.
- Lubricate Moving Parts: Occasionally apply a light coat of lubricant to the ram and other moving components.
Bottle Jack vs. Other Jack Types
While bottle jacks are excellent, it's worth understanding how they compare to other common car jacks:
| Jack Type | Pros | Cons | Best For |
|---|---|---|---|
| Hydraulic Bottle Jack | High lifting capacity for its size, compact, good for heavy loads, often more stable than scissor jacks. | Limited lift height for some vehicles, narrow base can be less stable on uneven ground (compared to trolley jacks). | Heavy vehicles, limited space, quick lifts, specific jacking points. |
| Hydraulic Trolley Jack | Wide, stable base, good reach, often higher lift range, easy to position under vehicles. | Larger and heavier, takes up more storage space, less portable. | General garage use, frequent use, wider range of vehicles. |
| Scissor Jack | Very compact, lightweight, inexpensive. | Lower capacity, slower to operate, less stable, requires more effort. | Emergency roadside use, very light vehicles. |
Each type has its place, but for a blend of power and portability, the hydraulic bottle jack is often a top choice for many DIY mechanics in the UK.
Frequently Asked Questions (FAQs)
Q: Can I use a 4-ton bottle jack for my family car?
A: Yes, a 4-ton bottle jack is generally suitable for most family cars, including saloons, hatchbacks, and many smaller SUVs, as long as the vehicle's weight is within the jack's capacity. Always check your car's specific weight and jacking points in the owner's manual.
Q: Is an 'All-in-1' bottle jack truly safe without separate jack stands?
A: While the 'All-in-1' design integrates a jack stand function for improved utility, for maximum safety, especially when performing extensive work underneath the vehicle, it is always recommended to use additional, dedicated jack stands. The integrated stand provides a solid lock, but redundancy enhances safety.
Q: How often should I check the hydraulic fluid in my bottle jack?
A: It's good practice to check the hydraulic fluid level annually or if you notice any drop in performance. Refer to your jack's manual for specific maintenance schedules.
Q: What does CE/GS/TUV certification mean for a bottle jack?
A: These are European safety and quality certifications. CE (Conformité Européenne) indicates compliance with EU health, safety, and environmental protection standards. GS (Geprüfte Sicherheit) is a German safety mark, and TUV (Technischer Überwachungsverein) is a German certification body that ensures products meet safety standards. These certifications provide assurance of the jack's quality and safety.
Q: My bottle jack is not lifting properly. What could be the issue?
A: Common issues include low hydraulic fluid, air in the hydraulic system (which can be bled out following the manual's instructions), a faulty release valve, or a leak. Consult your jack's manual for troubleshooting steps or consider professional repair if necessary.
Conclusion
Hydraulic bottle jacks, whether a compact 4-ton or a heavy-duty 8-ton model, are indispensable tools for anyone undertaking car maintenance. Their powerful lifting capabilities, combined with their relatively small footprint, make them a practical choice for a wide range of vehicles. By understanding their features, choosing the correct capacity, and adhering strictly to safety protocols, you can confidently and safely elevate your vehicle for repairs and maintenance. Always prioritise safety above all else, ensuring your lifting tasks are not just efficient, but also secure.
