Jeep L6 Engine Re-ring Guide

The Jeep L6 engine, a stalwart of Jeep's heritage, is known for its robustness and longevity. However, like any engine, it can experience wear and tear over time, often necessitating a re-ring. This process involves replacing the piston rings, which are crucial for maintaining compression, controlling oil consumption, and ensuring efficient combustion. Understanding the correct piston ring size for your specific Jeep L6 engine is paramount to a successful rebuild. This guide will walk you through the process, covering essential aspects from identifying the correct parts to understanding shipping and rebuild kit contents.

Understanding Piston Rings and Their Function

Piston rings are small but vital components within an internal combustion engine. They are fitted into grooves on the outer diameter of pistons and serve several critical functions:

• Sealing the Combustion Chamber: The top ring, known as the compression ring, forms a seal between the piston and the cylinder wall. This prevents combustion gases from escaping into the crankcase, thereby maintaining high compression and engine power.
• Oil Control: The second ring (wiper ring) and the third ring (oil control ring) are responsible for scraping excess oil from the cylinder walls on the piston's downstroke. This oil is then returned to the crankcase, preventing it from being burned in the combustion chamber, which can lead to blue smoke and increased oil consumption.
• Heat Transfer: Piston rings also play a role in transferring heat from the piston crown to the cylinder wall, which is then dissipated by the cooling system.

Identifying the Correct Piston Ring Size for Your Jeep L6

The most critical factor when re-ringing your Jeep L6 engine is selecting the correct piston ring size. This is determined by the bore diameter of your cylinders and the piston diameter. Jeep has utilised several variations of the L6 engine over the years, including the "Tornado" 230 cubic inch (3.8L) and the "300" 258 cubic inch (4.2L) engines, and later the 4.0L versions which evolved from the 258. Each of these may have had different bore sizes or used different ring configurations.

To find the correct size, you generally need to:

• Measure the Cylinder Bore: The most accurate way to determine the required ring size is to measure the diameter of each cylinder after the engine has been disassembled. This is typically done with a bore gauge or a precise measuring tool. If the cylinders are worn beyond their standard tolerance, they may need to be bored out to a larger, over-size dimension.
• Check Your Engine's Specifications: Consult your Jeep's service manual for the exact specifications of your L6 engine. This will provide the standard bore diameter and the available over-sizes.
• Identify Piston and Ring Manufacturer Specifications: Piston and ring manufacturers will list their products by bore size. For example, you might find rings listed for a 3.750" bore, 3.755" bore (0.005" over), or 3.875" bore (0.010" over).

Common Jeep L6 Bore Sizes (Please verify for your specific engine model):

Disclaimer: These are approximate figures. Always verify the exact specifications for your specific Jeep L6 engine model and year using a reliable service manual or by measuring your engine components.

What is a Rebuild Kit?

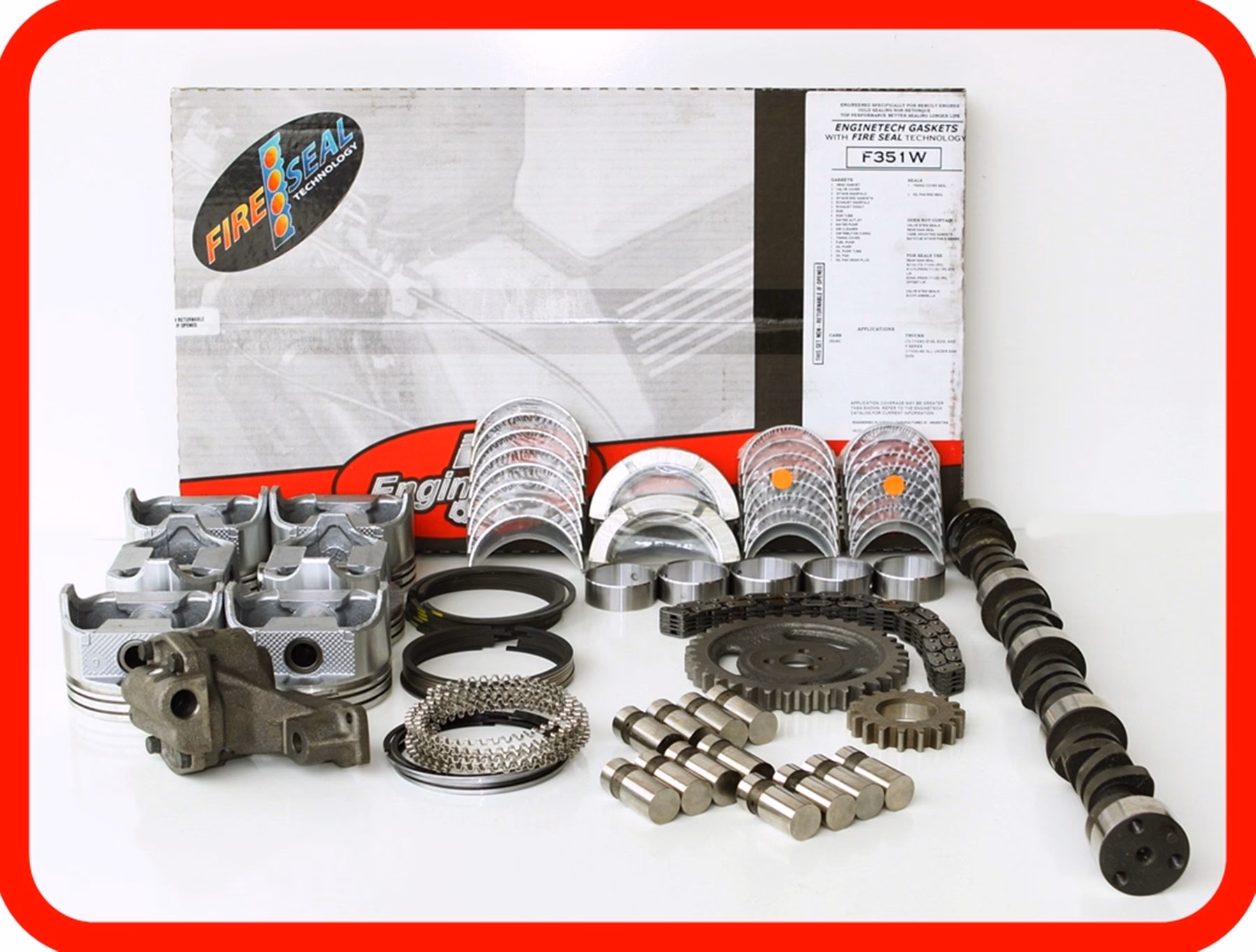

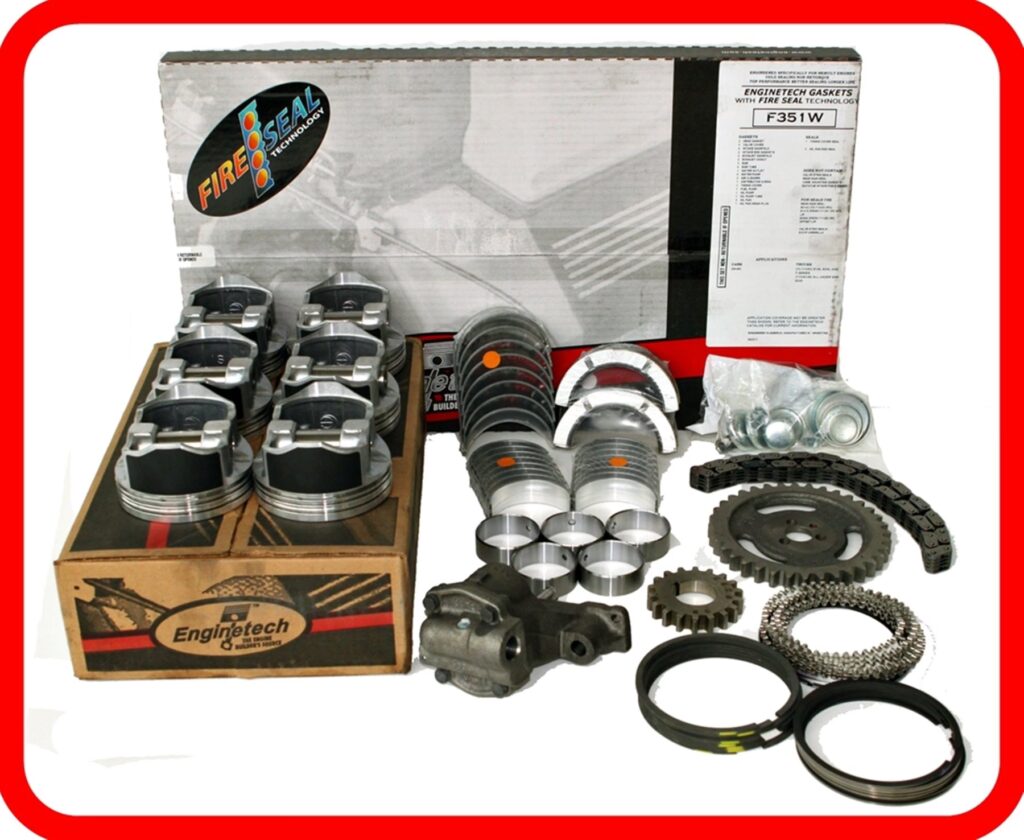

A rebuild kit, often referred to as an overhaul kit or gasket set, is a collection of essential parts needed to overhaul or rebuild an engine. For a Jeep L6 re-ring job, a basic kit will typically include:

• Piston Rings: The primary components for a re-ring. These kits will usually include rings for all pistons.
• Bearings: While not strictly part of a re-ring, many kits will also include main bearings and connecting rod bearings, as these are often replaced during a more comprehensive engine rebuild.
• Gaskets and Seals: Crucial for sealing the engine and preventing leaks. This typically includes head gaskets, oil pan gaskets, valve cover gaskets, intake and exhaust manifold gaskets, rear main seal, front crank seal, and various other smaller seals and O-rings.
• Sometimes: Depending on the kit, it might also include oil pump components, freeze plugs, and other small but important parts.

When purchasing a rebuild kit, ensure it is specifically designed for your Jeep L6 engine model and year. The quality of the components can vary significantly between manufacturers, so opting for reputable brands is highly recommended for durability and performance.

Shipping Options for International Customers

For customers outside the United States who need to ship parts to a US address, it's important to understand the available shipping options. When you see options like "United States Shipping," this typically means the vendor is equipped to handle shipments within the US, and they will estimate ship dates accordingly. If you are an international customer shipping to a US address, you will generally select this option, and then the vendor will manage the domestic leg of the shipment.

When ordering engine parts, especially internationally, consider the following:

• Shipping Costs: International shipping can be expensive. Factor this into your budget.
• Customs and Duties: Be aware of potential import duties, taxes, and brokerage fees that may apply when shipping to your country.
• Delivery Times: International shipping can take longer than domestic shipping. Factor in potential delays due to customs clearance.
• Seller Reputation: Choose sellers with a proven track record for reliable shipping and good customer service, especially when dealing with international transactions.

When to Consider a Re-ring

A re-ring is often a solution for engines exhibiting signs of wear, such as:

• Excessive Oil Consumption: If your Jeep is burning a noticeable amount of oil, it's a strong indicator that the oil control rings are worn.
• Low Compression: Reduced engine power, rough idling, and difficulty starting can be symptoms of worn compression rings leading to a loss of compression.
• Blue Smoke from the Exhaust: Blueish smoke, particularly on startup or under acceleration, often signifies that oil is entering the combustion chamber past worn rings.
• Cylinder Wall Glazing: Over time, cylinder walls can become "glazed" (smooth and polished), which prevents new oil rings from sealing effectively. A re-ring might be attempted, but sometimes honing the cylinders is necessary.

The Re-ringing Process: Key Considerations

While this guide focuses on parts identification, a proper re-ring involves more than just swapping out the rings. A thorough job includes:

• Cylinder Inspection: After removing the old pistons and rings, carefully inspect the cylinder walls for scoring, wear, or out-of-roundness.
• Honing: If the cylinder walls are not excessively worn or damaged, they should be honed. Honing creates a cross-hatch pattern that helps the new piston rings seat properly and retain oil. If the cylinders are significantly worn, they will need to be bored to the next oversize and fitted with new, larger pistons and rings.
• Piston Inspection: Check pistons for cracks, wear on the ring lands, or damage.
• Cleaning: Thoroughly clean all engine components, especially the piston ring grooves, to remove carbon deposits.
• Lubrication:Lubricate all new parts generously with assembly lube or clean engine oil before installation.

Frequently Asked Questions

Q1: What is the standard bore size for a Jeep 4.0L L6 engine?
A: The standard bore size for most Jeep 4.0L L6 engines is approximately 3.875 inches. However, it is crucial to verify this with your specific engine's service manual as variations can occur.

Q2: Can I just replace the piston rings without replacing the pistons?
A: Yes, this is the standard procedure for a "re-ring." However, it's vital to inspect the pistons and cylinder walls for any damage or excessive wear. If the cylinder walls are significantly worn or scored, they will need to be bored and you will require oversized pistons and rings.

Q3: What is the difference between a re-ring and a full engine rebuild?
A: A re-ring primarily focuses on replacing the piston rings to address oil consumption and compression issues. A full engine rebuild is more comprehensive and typically involves replacing or reconditioning all major internal components, including bearings, pistons, valves, camshaft, and often boring the cylinders.

Q4: How do I know if my Jeep L6 needs new piston rings?
A: Signs include excessive oil burning (blue smoke), low power, rough idling, and increased oil consumption.

Q5: Where can I find "featured offers" for Jeep L6 parts?
A: "Featured offers" are typically highlighted by online retailers when products meet specific criteria for price, quality, reliable delivery, and good seller service. If no offers are currently featured, it means no available products meet these high standards. You will need to select available options to purchase parts.

In conclusion, a successful re-ring of your Jeep L6 engine hinges on meticulous attention to detail, particularly in selecting the correct piston ring size and ensuring all components are clean and properly lubricated. By consulting your service manual and understanding the parts you need, you can effectively restore your Jeep's engine performance and reliability.
