The Heart of Your 4Runner's Stopping Power: Understanding Brake Calipers and Lines
Your Toyota 4Runner, a robust and reliable SUV, relies heavily on its braking system to ensure safety and control in all driving conditions, from city commutes to off-road adventures. At the core of this vital system are the brake calipers and brake lines. Understanding their function, common issues, and maintenance procedures is crucial for any owner looking to keep their vehicle in top condition. This guide delves into the intricacies of these components, focusing on models from 1996 through 2009, providing practical advice for upkeep and replacement.
What Exactly is a Brake Caliper?
Yes, your Toyota 4Runner absolutely has brake calipers. Think of the brake caliper as the 'clamping mechanism' of your braking system. When you press the brake pedal, hydraulic pressure is sent from the master cylinder to the caliper. Inside the caliper are one or more pistons. This hydraulic pressure forces the pistons outwards, pushing the brake pads against the spinning brake disc (rotor). This friction is what slows and stops your vehicle. The caliper houses the brake pads and the pistons, and it's mounted to the steering knuckle or axle.
Common Issues Leading to Caliper Replacement
Over time, brake calipers can develop issues that necessitate replacement. The most common culprits include:
- Fluid Leaks: Seals within the caliper can degrade, leading to brake fluid leaks. This is often indicated by a spongy brake pedal, a drop in the brake fluid level, or visible fluid around the caliper itself.
- Stuck Piston: Corrosion or debris can cause the caliper piston(s) to seize within their bores. This can result in uneven braking, pulling to one side, or a brake pad that remains partially engaged, leading to overheating and premature wear.
- Broken Bleeder Screw: The bleeder screw is used to expel air from the brake system during maintenance. If this small but vital component corrodes or breaks during use, it can prevent proper bleeding and lead to brake failure.
- General Wear and Tear: Like any mechanical component, calipers are subject to wear. Rusting, damage from road debris, or internal component failure can all necessitate replacement.

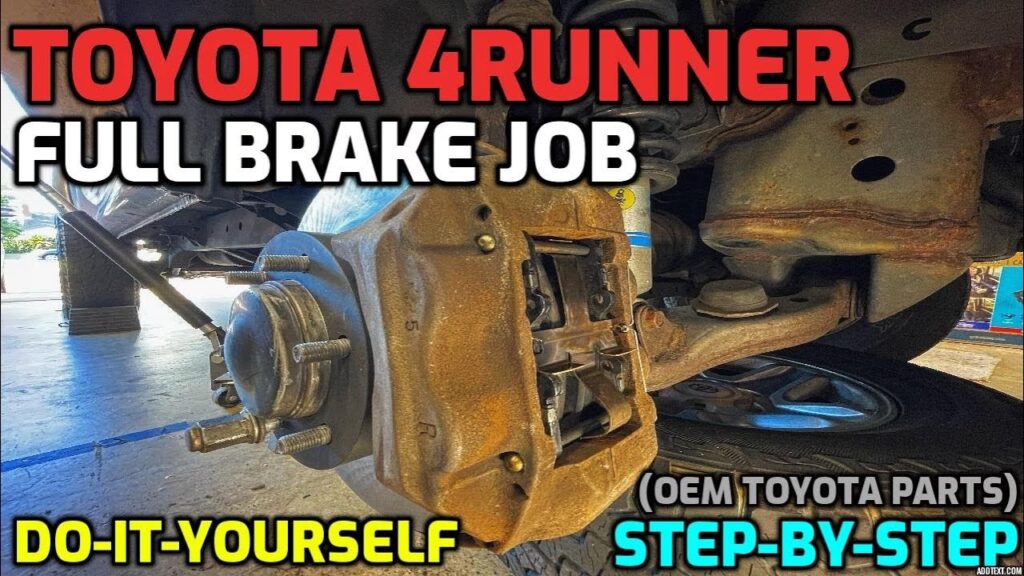

Replacing a Brake Caliper on Your 1996-2002 Toyota 4Runner
Replacing a brake caliper is a task that requires some mechanical aptitude and the right tools. If you're experiencing the issues mentioned above, here's a general overview of the process:
- Preparation: Loosen the lug nuts on the front wheel. Safely raise the front of the vehicle and support it securely on jackstands. Engage the parking brake and remove the front wheels.
- Fluid Management: Remove approximately two-thirds of the brake fluid from the master cylinder reservoir using a clean syringe or siphon. Dispose of the old fluid responsibly. Place a drain pan beneath the caliper assembly.
- Cleaning: Thoroughly clean the caliper and the surrounding brake components with a dedicated brake system cleaner. This helps prevent contamination and makes it easier to spot leaks.
- Piston Retraction (2WD Models): For 2WD pick-up models, a C-clamp can be used to carefully push the piston back into its bore, creating the necessary clearance for removing and installing new brake pads. Keep an eye on the brake fluid level in the master cylinder; siphon off any excess to prevent overflow.
- Brake Line Disconnection:
- 2WD Pick-up Models: Remove the banjo bolt securing the brake hose to the caliper. Discard the old sealing washers and replace them with new ones upon reassembly. You can temporarily plug the banjo fitting with a piece of rubber hose to prevent fluid loss and contamination.
- 4WD Pick-ups and All 4Runner Models: Unscrew the tube nut fitting that connects the brake line to the caliper. Carefully detach the brake line from the caliper.
- Caliber Removal: Remove the bolts that secure the caliper to its mounting bracket. You may need to remove the brake pads at this stage if they are not already loose.
- Inspection and Cleaning (if reusing): If you are not replacing the caliper entirely, clean it thoroughly with brake cleaner and inspect it for any signs of leaks, damage, or corrosion.
- Installation: Mount the new or cleaned caliper. Tighten the caliper mounting bolts or pins to the manufacturer's specified torque.
- Brake Line Reconnection: Reconnect the brake hose to the caliper. Use new sealing washers with the banjo bolt or securely tighten the brake line fitting. Ensure a tight seal.
- Bleeding the Brakes: This is a critical step. If air has entered the system, you will need to bleed the front brake circuit. This involves a specific procedure, often requiring a helper, to force fluid through the system and expel any air bubbles.
- Final Checks: Before putting the vehicle back into service, check the brake fluid level in the master cylinder reservoir and top it up as needed. Test the brake pedal for firmness and ensure the brakes are functioning correctly.
Understanding Toyota 4Runner Brake Lines
Brake lines are the conduits that carry brake fluid from the master cylinder to the calipers (and wheel cylinders in drum brake systems). Your 4Runner will have a combination of rigid metal lines and flexible rubber hoses. The flexible hoses are essential as they allow for movement of the suspension and steering components without stressing the rigid lines.
Inspecting and Replacing Flexible Hoses and Metal Brake Lines (2003-2009 Toyota 4Runner)
Regular inspection of your brake lines is paramount for safety. Aim to check them at least every six months.
- Inspection: With the vehicle safely supported on jackstands, use a good light and a mirror to thoroughly inspect the flexible hoses that connect the steel brake lines to the front and rear brake assemblies. Look for any signs of cracking, chafing, leaks, blistering, or other damage. Any hose showing such defects must be replaced immediately. Also, inspect the rigid metal lines for corrosion or damage.
- Replacement of Flexible Hoses:
- Clean any dirt from the hose ends.
- Carefully disconnect the brake line from the hose fitting. Avoid bending the frame bracket or the metal brake line. Penetrating oil may be helpful if the fitting is seized.
- Remove the U-clip that secures the female fitting at the bracket. Detach the hose.
- For rear calipers, disconnect the hose fitting from the caliper, discarding the old copper washers and replacing them with new ones when fitting the new hose.
- Pass the female fitting of the new hose through the frame or bracket, ensuring minimal twisting of the hose.
- Secure the U-clip into the female fitting at the frame bracket.
- Attach the brake line to the hose fitting. Use a back-up wrench on the fitting to prevent it from turning, and tighten the tube nut securely.
- Replacing Metal Brake Lines:
- Use Correct Parts: When replacing metal brake lines, it is crucial to use the correct, high-quality parts. Never use copper tubing for brake lines, as it is not designed for the pressures and stresses involved and can fail catastrophically. Purchase steel brake lines from a reputable dealer or auto parts store.
- Prefabricated Lines: Prefabricated brake lines with correctly flared ends and installed fittings are readily available and are the easiest option.
- Bending Lines: If you need to bend a new line, use a proper tube bender. Avoid crimping or damaging the line during this process, as this can restrict fluid flow.
- Support and Clearance: Ensure the new metal brake line is well supported in its original brackets and has adequate clearance from suspension components, steering parts, and hot exhaust parts.
- Post-Replacement Procedures: After installing new hoses or lines, check the brake fluid reservoir level and add the appropriate fluid as needed. Crucially, bleed the entire brake system to remove any air that may have entered. Finally, test the brakes carefully in a safe area before returning the vehicle to normal operation.
Comparative Table: Caliper Types
| Caliper Type | Description | Pros | Cons |
|---|---|---|---|
| Fixed Caliper | Pistons are on one side, and the caliper body moves to apply pressure. | Generally more rigid, better feel. | Can be heavier, more complex internally. |
| Floating Caliper | Pistons are on one side, and the caliper body slides on pins to apply pressure. Most common on 4Runners. | Lighter, simpler design, easier pad change. | Can be more prone to sticking if not maintained. |
Frequently Asked Questions (FAQs)
Q: Do I need to replace brake pads when replacing a caliper?
A: It is highly recommended to replace your brake pads whenever you replace a brake caliper. The old pads may have an uneven surface from the sticking piston, and it's best practice to start with new pads for optimal performance and to avoid premature wear on the new caliper.
Q: How much brake fluid should I add after replacing a caliper?
A: You'll need to add enough brake fluid to bring the level back up to the 'MAX' line on the reservoir. However, the exact amount depends on how much fluid was lost and if you bled the system. Always check the fluid level after completing the job and topping up as needed.
Q: Can I use a different type of brake fluid?
A: No, you must use the specific type of brake fluid recommended by Toyota for your 4Runner (typically DOT 3). Using the wrong type of fluid can damage your brake system components.
Q: How often should I have my brakes inspected?
A: It's a good idea to have your brakes inspected at least once a year, or every 12,000 miles, as part of your regular vehicle maintenance. More frequent inspections may be necessary if you drive in harsh conditions or notice any changes in braking performance.
Q: What are the signs of a failing brake caliper?
A: Signs include a spongy or soft brake pedal, the vehicle pulling to one side when braking, a burning smell, squealing or grinding noises, and reduced braking effectiveness.
Q: Is it safe to drive with a leaking brake caliper?
A: Absolutely not. A leaking brake caliper indicates a loss of hydraulic pressure, which will significantly impair your braking ability and is extremely dangerous. Stop driving the vehicle immediately and have it repaired.
Conclusion
Maintaining the health of your Toyota 4Runner's brake system, particularly the calipers and brake lines, is non-negotiable for safety. By understanding their function and being aware of common issues, you can proactively address problems and ensure your SUV remains a reliable and secure mode of transport for many miles to come. Regular inspections and timely replacements of worn components will safeguard your driving experience and protect you and others on the road.
