The Precision of 3D Wheel Alignment
In the realm of automotive maintenance, achieving perfect wheel alignment is paramount for ensuring optimal vehicle handling, tyre longevity, and overall driving safety. Gone are the days of relying solely on manual measurements and guesswork. Modern automotive workshops are increasingly turning to sophisticated 3D wheel alignment systems, which leverage cutting-edge technology to deliver unparalleled accuracy and efficiency. This article delves into how these advanced systems work, their key features, and why they represent a significant leap forward in vehicle servicing.
How Does 3D Wheel Alignment Work?
At its core, 3D wheel alignment utilises a system of cameras and targets to precisely measure the angles of your vehicle's wheels. Unlike older laser or infra-red systems, 3D alignment employs high-definition cameras mounted on a beam that scans reflective targets attached to each wheel. This process creates a three-dimensional model of the vehicle's wheel geometry, allowing for extremely accurate readings of critical alignment parameters.

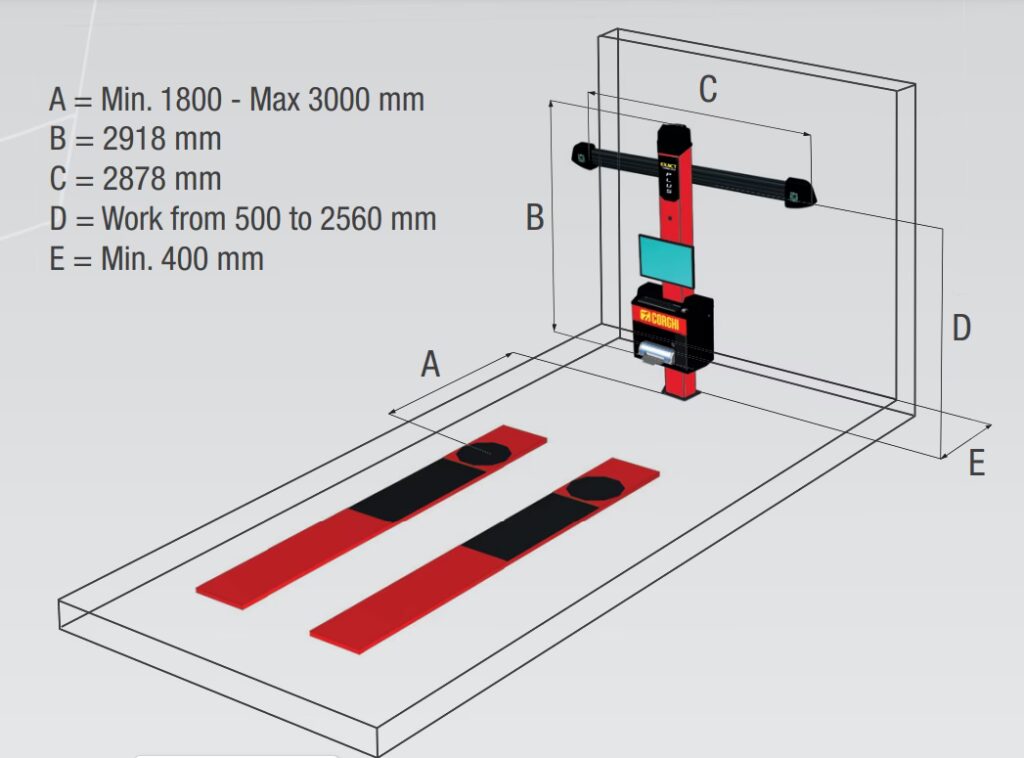

The camera support beam itself is a marvel of engineering. It is typically motorized and fully automated, meaning its height is automatically adjusted to match the specific height of the vehicle lift. This eliminates the manual labour and potential for error associated with manually repositioning alignment equipment. Furthermore, the positioning of the camera beam is carefully studied to optimise the available workshop space, ensuring efficient workflow even in tighter garages.
The software systems powering these machines are equally impressive. Developed by leading manufacturers, these systems are designed to be incredibly user-friendly, guiding the technician through every step of the alignment process with clear and intuitive graphics. The software interprets the data captured by the cameras, presenting the results in an easily understandable format. It can detect all alignment parameters, including wheel diameters, which can help identify issues like uneven tyre wear caused by deflated wheels. Crucially, it also measures key dimensions such as track width, wheelbase, and diagonals. These measurements are invaluable for identifying potential damage to the vehicle's chassis or suspension components that may have resulted from past accidents or impacts.
Key Features and Innovations in 3D Alignment
The advancement of 3D wheel alignment technology has brought about several innovations that enhance its functionality and versatility:
- Automatic Height Tracking: As mentioned, systems with automatic height tracking, often utilising HD cameras, follow the vehicle's height. This means the aligner automatically adjusts as the lift moves, negating the need for manual recalibration. This feature significantly speeds up the process and improves accuracy.
- High-Resolution Cameras: Modern systems often boast cameras with resolutions of 5 megapixels or higher. This superior image quality allows for more detailed and precise measurements, leading to a more accurate alignment. The clarity of the imaging is fundamental to the system's reliability.
- Comprehensive Vehicle Databases: A crucial element of any effective alignment system is its database. Top-tier 3D aligners feature extensive vehicle specification databases that are frequently updated. This ensures that technicians have access to the correct alignment specifications for virtually any make and model, from classic cars to the latest releases.
- User-Friendly Interface: The software's design is paramount. Systems with very clear and user-friendly graphics, often developed in-house by the manufacturer, make the alignment process straightforward, even for less experienced technicians. Features like instalment functions and two-wheel positioning modes further enhance ease of use.
- Specialised Measurement Capabilities: Advanced 3D systems offer innovative measurement capabilities to handle diverse situations:
- Single Wheel Lifted Run-Out: This is particularly useful in situations with limited space or on lifts with steps. It allows for accurate measurements even when not all wheels can be simultaneously on the same level.
- Measurement with Two Targets for Long Vehicles: For commercial vehicles or long-wheelbase cars, systems can utilise just two targets for accurate readings, simplifying the process for larger vehicles.
- Caster Trail, Scrub Angle, and Audit: Beyond the standard camber, caster, and toe angles, advanced systems can also measure more complex parameters like caster trail and scrub radius (or scrub angle). These provide deeper insights into steering behaviour and potential steering system issues. An 'audit' function might also be available, allowing for a quick check of alignment status.
Accuracy: How Accurate is 3D Wheel Alignment?
The accuracy of 3D wheel alignment systems is a significant advantage over older technologies. Systems equipped with high-definition cameras, such as those exceeding 5-megapixel resolution, offer a level of precision that is difficult to achieve otherwise. The ability of the camera system to automatically track the height of the vehicle and the use of advanced imaging technology, often protected by patents and intellectual property rights, ensures that measurements are accurate and obtained in real-time. This not only improves productivity by reducing the time taken for each alignment but also enhances customer satisfaction by delivering a superior service.
For instance, the M&B 802D and 801D Imaging Wheel Alignment Systems are frequently cited as examples of advanced technology providing accurate and real-time measurements. Their accuracy, often stated as being better than 5-megapixel cameras, combined with user-friendly features and comprehensive databases, contributes to high levels of customer satisfaction and confidence in the alignment service performed.
Benefits of 3D Wheel Alignment
Investing in 3D wheel alignment technology offers numerous benefits for automotive workshops and vehicle owners alike:
- Improved Tyre Wear: Correct wheel alignment ensures that tyres roll straight and evenly, preventing premature wear and extending their lifespan. This translates to cost savings for the vehicle owner.
- Enhanced Fuel Efficiency: Misaligned wheels create drag, forcing the engine to work harder and consuming more fuel. Proper alignment reduces this drag, leading to better fuel economy.
- Better Handling and Stability: A vehicle with correctly aligned wheels will steer more predictably, maintain a straight line more easily, and offer improved stability, especially at higher speeds and during cornering.
- Reduced Driver Fatigue: When a vehicle pulls to one side or requires constant steering correction, it can lead to driver fatigue. Accurate alignment makes driving more comfortable and less strenuous.
- Identification of Chassis Damage: The detailed measurements provided by 3D systems can help identify subtle chassis damage or alignment issues that might otherwise go unnoticed, potentially preventing more serious problems down the line.
- Increased Workshop Productivity: The speed and accuracy of 3D alignment systems mean that workshops can service more vehicles in less time, boosting efficiency and profitability. The automation and user-friendly interfaces reduce the learning curve for technicians.
Common Alignment Parameters Measured
A comprehensive 3D wheel alignment system will measure several key angles:
| Parameter | Description | Importance |
|---|---|---|
| Camber | The inward or outward tilt of the top of the wheel from the vertical. | Affects tyre wear and cornering stability. Too much negative camber can cause inner tyre wear, while too much positive camber causes outer tyre wear. |
| Caster | The angle of the steering axis relative to a vertical line when viewed from the side. It's the forward or backward tilt of the steering pivot. | Affects steering stability and the tendency of the steering wheel to return to centre after a turn. |
| Toe | The angle of the wheels relative to the vehicle's longitudinal axis when viewed from above. 'Toe-in' means the front of the wheels point towards each other; 'toe-out' means they point away. | Crucial for tyre wear. Excessive toe-in or toe-out causes scrubbing and rapid tyre wear. |
| Thrust Angle | The angle of the vehicle's centerline relative to the transverse axis. If the thrust angle is incorrect, the vehicle will tend to "dog track" (rear wheels not parallel to front wheels). | Ensures the vehicle tracks straight. An incorrect thrust angle indicates a bent rear axle or suspension damage. |
| Included Angle | The sum of the camber angles of the front or rear wheels. | Can indicate problems with the steering knuckle or suspension components. |
| Setback | The difference in the distance from the centreline of the vehicle to the centre of the front wheel on one side compared to the other. | Indicates if a front wheel is positioned further back than the other, often a sign of accident damage. |
| Kingpin Inclination (KPI) / Steering Axis Inclination (SAI) | The inward or outward tilt of the steering axis from the vertical when viewed from the front. | Affects steering effort and tyre wear. Often adjusted in conjunction with caster. |
| Caster Trail | The distance the centre of the tyre contact patch trails behind the steering axis intersection with the ground when viewed from the side. | Contributes to steering stability and self-centring. |
| Scrub Angle | The distance between the point where the steering axis intersects the centre of the tyre contact patch and the point where the steering axis intersects the ground, when viewed from the front. | Influences steering effort and the tendency for the vehicle to pull to one side. |
Frequently Asked Questions
Q1: How often should I get my wheel alignment checked?
It's generally recommended to have your wheel alignment checked at least once a year, or whenever you notice signs of uneven tyre wear, the vehicle pulling to one side, or after hitting a significant pothole or curb.
Q2: Can 3D wheel alignment detect accident damage?
Yes, the precise measurements of wheelbase, track width, and diagonals taken by 3D systems can reveal asymmetries in the vehicle's structure, often indicating damage sustained from accidents or impacts.
Q3: Is 3D wheel alignment more expensive than older methods?
While the initial investment in 3D alignment equipment may be higher, the increased speed, accuracy, and the ability to detect a wider range of issues often make it more cost-effective in the long run, both for the workshop and the customer.
Q4: What is the difference between 2-wheel and 4-wheel alignment?
A 2-wheel alignment typically only adjusts the front wheels. A 4-wheel alignment adjusts both front and rear wheels and ensures that the rear wheels are properly aligned relative to the vehicle's centerline and the front wheels. For most modern vehicles, a 4-wheel alignment is essential for optimal performance and tyre life.
Q5: How long does a 3D wheel alignment typically take?
With modern, automated systems and comprehensive databases, a full 4-wheel alignment can often be completed in as little as 15-20 minutes, depending on the complexity of the vehicle and any pre-existing issues.
Conclusion
3D wheel alignment technology represents a significant advancement in automotive servicing. Its combination of automated features, high-definition imaging, sophisticated software, and comprehensive measurement capabilities ensures unparalleled accuracy and efficiency. By providing precise data on all critical alignment parameters, these systems not only optimise vehicle performance, tyre life, and fuel economy but also contribute to a safer and more comfortable driving experience. For workshops aiming to offer the highest standard of service, investing in 3D wheel alignment is a clear path to enhancing customer satisfaction and maintaining a competitive edge.
