Nissan 350Z/370Z Diff Fluid: Quantity & Change Guide

Often overlooked in the routine maintenance schedule of many vehicle owners, the differential fluid plays a absolutely critical role in the longevity and performance of your car's drivetrain. For owners of a Nissan 350Z or 370Z, and indeed many other rear-wheel-drive vehicles, understanding the 'how-much' and 'how-to' of differential fluid changes is paramount. This guide will walk you through the process, focusing on the specific fluid quantity required and providing a comprehensive step-by-step approach to ensure your differential, especially if it's a Limited Slip Differential (LSD), remains in prime condition.

Why Your Differential Needs Fresh Fluid

The differential is a complex mechanical component responsible for allowing your drive wheels to rotate at different speeds when cornering, while still transmitting power from the engine. Inside, a series of gears – typically a ring gear, pinion gear, and spider gears – are constantly meshing and generating friction and heat. The differential fluid, much like engine oil, performs several vital functions:

• Lubrication: It reduces friction between the moving parts, preventing wear and tear that can lead to costly repairs.
• Cooling: It helps to dissipate the immense heat generated by the gears, preventing thermal breakdown of components and the fluid itself.
• Cleaning: It carries away microscopic metal particles and contaminants that accumulate over time.
• Corrosion Protection: It protects internal components from rust and corrosion.

For vehicles equipped with a Limited Slip Differential (LSD), the fluid's role becomes even more critical. LSDs contain clutch packs or other mechanisms that require specific lubrication to operate smoothly and effectively. Old, degraded fluid can lead to clutch chatter, reduced locking capability, and accelerated wear, ultimately compromising the LSD's performance and lifespan. Maintaining fresh fluid not only extends the life of your LSD but also ensures it performs consistently, delivering power efficiently to the wheels when you need it most.

How Often Should You Change Differential Fluid?

Unlike engine oil, which typically has widely publicised intervals, differential fluid often gets neglected. The general recommendation, especially for vehicles with an LSD or those subjected to spirited driving, track use, or heavy towing, is to change the differential fluid bi-annually or every 20,000 to 30,000 miles, whichever comes first. For a daily driver under normal conditions, extending this to every 40,000 to 50,000 miles might be acceptable, but always err on the side of caution. Regular changes prevent the fluid from breaking down, losing its lubricating properties, and allowing damaging contaminants to build up.

Gathering Your Gear: Essential Tools & Fluid

Before you begin, ensure you have all the necessary tools and the correct fluid. Having everything to hand will make the process smoother and more efficient. Here’s what you’ll need:

• 3/4 inch Ratchet: This will be used to loosen and tighten the drain and fill plugs on the differential. Ensure it's in good working order.
• 10mm Hex Tool/Socket: The drain and fill plugs on Nissan 350Z/370Z differentials typically require a 10mm hex (Allen) tool or socket. A socket is usually preferred as it allows for the use of a ratchet, providing better leverage.
• Fluid Pump: This is an absolutely essential tool for refilling the differential. Differential fill holes are often in awkward positions, making gravity feeding impossible. A hand-operated fluid pump, which screws onto the fluid bottle and has a hose, will make the filling process straightforward. Be aware that some high-performance fluid bottles (like certain Motul Gear 300 containers) might have wider necks that don't fit standard pumps, so you may need an adapter or to transfer the fluid to a more compatible bottle.
• Torque Wrench (Optional but Highly Recommended): While technically optional, using a torque wrench is strongly advised. It allows you to tighten the drain and fill plugs to the manufacturer's specified torque settings, preventing overtightening (which can strip threads) or undertightening (which can lead to leaks).
• Hydraulic Jack: To lift the rear of your vehicle safely.
• Two Jack Stands: Never work under a vehicle supported only by a jack. Jack stands provide crucial stability and safety.
• Wheel Chocks or Bricks: To prevent the front wheels from rolling while the car is raised.
• Rubber Gloves: Differential fluid is notoriously thick and messy. Gloves will protect your hands.
• Drain Pan: A wide, low-profile pan with sufficient capacity (at least 2 litres) to catch the old differential fluid.
• Clean Rags or Paper Towels: For cleaning up spills and wiping down the differential.
• New Crush Washers (Optional but Recommended): Some differential plugs use crush washers that should ideally be replaced each time the plugs are removed to ensure a leak-free seal. Check your vehicle's specific requirements.

The All-Important Fluid: How Much Do I Need?

For most Nissan 350Z and 370Z models, the differential capacity is approximately 1.5 quarts (approximately 1.4 litres). It's always a good idea to purchase two 1-quart/litre bottles to ensure you have enough, even if you only use a portion of the second. The precise amount isn't measured by a dipstick, but rather by the fluid level reaching the fill hole.

Regarding fluid type, you'll generally need a GL-5 rated gear oil. For high-performance applications or cars with an LSD, a synthetic 75W-90 or 75W-140 is often recommended. The original information mentions Motul Gear 300, which is an excellent choice for high-performance use, often containing the necessary friction modifiers for LSDs. Nissan OEM fluid is also perfectly acceptable for standard use, as are other reputable brands that meet or exceed the GL-5 specification.

The Step-by-Step Differential Fluid Change Process

Performing a differential fluid change is a relatively straightforward maintenance task that can be completed in an hour or two. Follow these steps carefully to ensure a successful and safe job:

Step 1: Prioritise Safety and Prepare the Vehicle

Before you even think about lifting your vehicle, safety must be your absolute priority. Begin by engaging the handbrake firmly and placing robust wheel chocks – or even sturdy bricks if chocks aren't available – both in front of and behind the front wheels. This crucial step prevents any unexpected movement of the vehicle while it's being jacked up or resting on stands, safeguarding you and your workspace. Ensure the car is on a flat, level surface, away from any slopes or uneven ground, to maintain maximum stability throughout the entire procedure.

Step 2: Safely Jack Up the Vehicle

Locate a suitable jacking point at the rear of your car. For a Nissan 350Z/370Z, many owners find it convenient and safe to jack up the rear of the car by the rear differential housing itself, provided it has a reinforced jacking point. Alternatively, use the chassis frame rails. Once the rear of the vehicle is sufficiently raised, carefully position your jack stands under the designated jack points on either side of the car's frame rails. Slowly lower the vehicle onto the jack stands, ensuring they are securely seated and the car is stable before removing the jack. Give the car a gentle shake to confirm stability before proceeding.

Step 3: Locate the Differential Drain and Fill Plugs

With the car safely elevated, crawl underneath and locate the differential housing. You will typically find two plugs: one at the very bottom, which is the drain plug, and one slightly higher up on the rear or side of the differential housing, which is the fill plug. It is crucial to always loosen the fill plug *first*. This ensures that if you manage to drain the fluid, you'll definitely be able to refill it. Imagine draining all the fluid only to find the fill plug is seized – you'd be stranded!

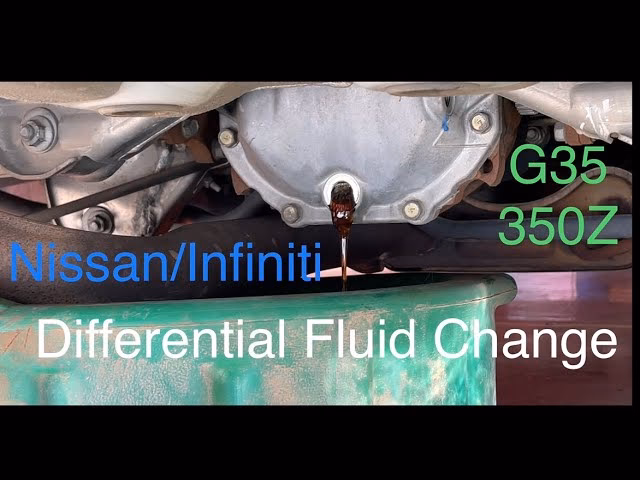

Step 4: Drain the Old Fluid

Position your drain pan directly underneath the differential drain plug. Using your 3/4 inch ratchet and 10mm hex tool/socket, carefully loosen and remove the drain plug. Be prepared for the fluid to come out quickly and messily. Allow ample time for the fluid to drain completely. While the fluid is draining, pay close attention to the drain plug itself. Most differential drain plugs are magnetic, designed to catch metallic wear particles. You will likely see some metal shavings or a metallic sludge on the magnet – this is normal, but excessive chunks could indicate a more serious internal issue. Thoroughly clean any metal shavings or sludge off the magnet using a clean rag. This ensures the magnet can continue to do its job effectively.

Step 5: Replace and Torque the Drain Plug

Once the old fluid has completely drained, clean the area around the drain plug hole. If your vehicle uses a crush washer, replace it with a new one to ensure a leak-free seal. Reinsert the drain plug and begin to tighten it by hand to avoid cross-threading. Then, use your ratchet to snug it up. If you have a torque wrench, tighten the drain plug to the manufacturer's specified torque. For many Nissan 350Z/370Z differentials, this is typically between 22-28 ft/lb (30-38 Nm). Proper torque is essential to prevent both leaks and damage to the plug or differential housing threads.

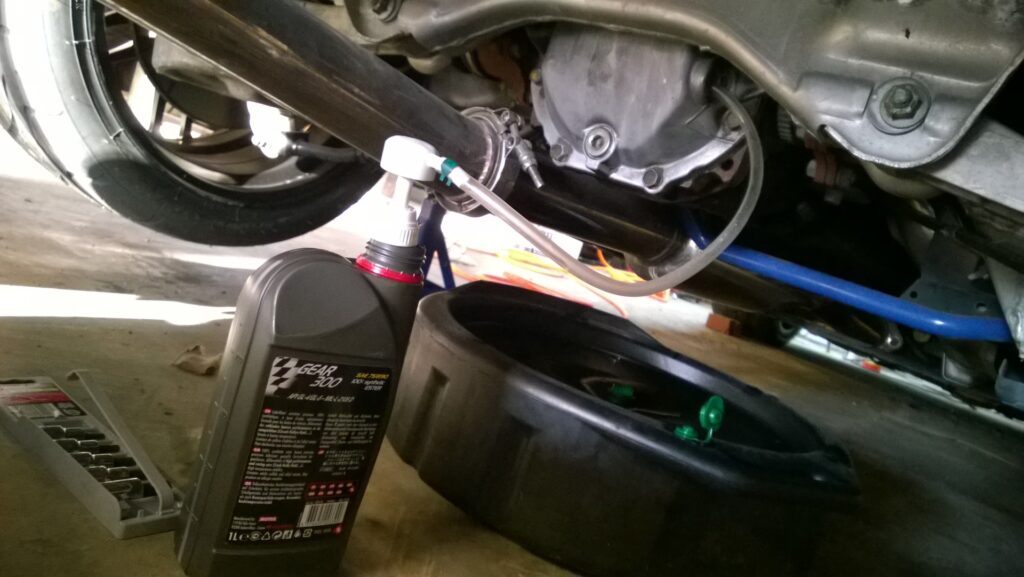

Step 6: Fill the Differential with New Fluid

Now, it's time to refill the differential with fresh fluid. Ensure you have already loosened the fill plug from Step 3. Attach your fluid pump to your bottle of new differential fluid. Insert the pump's hose into the fill hole. Begin pumping the new fluid into the differential. As mentioned, you will need approximately 1.5 quarts (1.4 litres). The definitive indicator that the differential is sufficiently filled is when the fluid begins to trickle out of the fill hole. This signifies that the fluid level has reached the bottom edge of the fill hole, which is the correct fill level for most differentials. Avoid overfilling, as this can create excessive pressure and lead to leaks or aeration of the fluid.

Step 7: Replace and Torque the Fill Plug

Once the fluid starts to seep out of the fill hole, indicating a full differential, remove the fluid pump hose. Quickly insert the fill plug. Again, if your plug uses a crush washer, ensure a new one is in place. Tighten the fill plug by hand, then use your ratchet. If using a torque wrench, tighten the fill plug to the same specification as the drain plug, typically 22-28 ft/lb (30-38 Nm). Wipe away any excess fluid from around the fill hole.

Step 8: Final Checks and Lowering the Vehicle

With both plugs securely tightened, do a visual inspection around the differential for any leaks. Clean up any spilled fluid from the surrounding area. Carefully raise the vehicle with your hydraulic jack, remove the jack stands, and then slowly lower the car back onto the ground. Remove the wheel chocks. Take the car for a short drive, then re-check the differential for any signs of leaks. Dispose of the old differential fluid responsibly at an authorised recycling centre.

Differential Fluid Comparison Table

Choosing the right differential fluid is crucial for optimal performance and longevity. Here's a quick comparison of common fluid types:

Frequently Asked Questions (FAQs)

Q1: Can I use any gear oil in my differential?

A: No. You must use a gear oil that meets or exceeds the manufacturer's specifications, particularly the API (American Petroleum Institute) GL-rating. For most modern differentials, including the Nissan 350Z/370Z, a GL-5 rated fluid is required due to the extreme pressure additives needed for hypoid gears. Using an incorrect fluid can lead to accelerated wear, noise, and differential failure.

Q2: My car has a Limited Slip Differential (LSD). Do I need special fluid?

A: Yes, absolutely. LSDs, especially clutch-type LSDs, require gear oil with specific friction modifiers to prevent chatter and ensure smooth operation of the clutch packs. Many high-quality synthetic GL-5 fluids (like Motul Gear 300) come with these modifiers already blended in. If not, a separate LSD friction modifier additive may need to be added. Always check the fluid's specifications or consult your vehicle's manual.

Q3: What happens if I don't change my differential fluid?

A: Over time, differential fluid breaks down from heat and contamination, losing its lubricating and protective properties. Neglecting changes can lead to increased friction, excessive heat build-up, premature wear of gears and bearings, whining noises from the differential, and eventually, catastrophic failure. For LSDs, it can also cause harsh engagement, chatter, and reduced effectiveness.

Q4: Is differential fluid the same as transmission fluid?

A: No, they are distinct fluids designed for different purposes and components. Transmission fluid (whether for manual or automatic gearboxes) has specific properties for lubricating gears, synchronizers, and sometimes clutch packs or torque converters. Differential fluid, while also lubricating gears, is specifically formulated to withstand the extreme pressures and sliding friction found in hypoid gears, typically having a higher viscosity and different additive packages (e.g., GL-5 EP additives). Never interchange them.

Q5: How do I dispose of old differential fluid?

A: Old differential fluid is considered hazardous waste and should never be poured down drains or into the ground. Most local authority recycling centres, automotive parts stores, or workshops will accept used oil for proper disposal. Store the old fluid in a sealed container (the original fluid bottles are perfect for this) until you can take it for recycling.

Q6: Why is there metal on the drain plug's magnet?

A: It's normal to find a small amount of metallic sludge or very fine particles on the differential drain plug's magnet. This indicates that the magnet is doing its job by capturing microscopic wear particles that naturally occur as the gears mesh. However, if you find larger chunks or excessive amounts of metal, it could be a sign of accelerated wear or a more serious internal issue that warrants further investigation by a professional.

Q7: Can I overfill the differential? What happens if I do?

A: Yes, you can overfill it, and it's not recommended. Overfilling can create excessive internal pressure, which can force fluid past seals and lead to leaks. It can also cause the fluid to become aerated (foamy) due to churning, reducing its lubricating effectiveness and potentially leading to overheating. Always fill until the fluid just begins to trickle out of the fill hole, and no more.

Changing your differential fluid is a straightforward maintenance task that offers significant benefits for the longevity and performance of your Nissan 350Z or 370Z. By following this guide, you can ensure your differential is properly lubricated and protected, keeping your vehicle running smoothly for years to come. It’s an easy win for your car's health and your peace of mind.
