1955 Chevy Bel Air Fuel System Demystified

For enthusiasts of classic American automobiles, the 1955 Chevrolet Bel Air stands as an undeniable icon, embodying the very spirit of 1950s motoring. Its distinctive styling, powerful engine options, and widespread popularity cemented its place in automotive history. When delving into the mechanical heart of such a vintage machine, a common question often arises, particularly for those accustomed to modern vehicles: what kind of fuel injection system did a 1955 Chevy Bel Air have? The straightforward answer, and one that might surprise some, is that it didn't have one. In 1955, the advanced technology of fuel injection as we know it today was still in its infancy for mass-produced passenger cars. Instead, the legendary 1955 Bel Air, like virtually all its contemporaries, relied on a robust and well-understood device: the carburettor.

This article will explore the fuel delivery system that powered the 1955 Bel Air, explain the fundamental principles of its operation, and shed light on why the carburettor was the undisputed champion of fuel delivery during that era. We’ll also touch upon the subsequent evolution of fuel injection technology and consider options for those looking to modernise their classic ride.

The Reign of the Carburettor: Powering the Mid-Century Icon

In the mid-20th century, the carburettor was the standard-bearer for mixing air and fuel in internal combustion engines. It was a mechanical marvel of its time, designed to atomise liquid fuel and blend it with air in precise ratios before it entered the engine's combustion chambers. For the 1955 Chevy Bel Air, this meant a reliable, albeit less sophisticated by today's standards, method of powering its various engine choices, from the dependable inline-six to the revolutionary new Small Block V8.

How a Carburettor Works: A Deep Dive into Mechanical Ingenuity

Understanding the carburettor is key to appreciating the engineering of the 1955 Bel Air. At its core, a carburettor operates on the venturi effect. As air is drawn into the engine through the carburettor's throat, it passes through a constricted section known as the venturi. This constriction causes the air speed to increase and its pressure to drop. This low-pressure area then draws fuel from a fuel bowl, which is maintained at a constant level by a float and needle valve assembly, similar to a toilet cistern. The fuel is then sprayed through precisely calibrated openings, or 'jets,' into the air stream, creating a combustible mixture. The size of these jets, along with the design of the venturi, dictates the primary air-fuel ratio.

Beyond the basic mixture, carburettors incorporate several other circuits to ensure the engine runs smoothly under various conditions:

• Float System: This system ensures a constant, consistent supply of fuel to the main metering system, preventing both flooding and fuel starvation.
• Main Metering System: Responsible for providing the correct air-fuel mixture for normal cruising speeds and moderate engine loads, where the engine spends most of its operating time.
• Idling System: Supplies the necessary rich fuel mixture for very low engine speeds when the throttle plate is almost completely closed, allowing the engine to tick over smoothly without stalling.
• Power System (or Accelerator Pump): This crucial component delivers an immediate, extra squirt of fuel when the throttle is suddenly opened, preventing a momentary lean condition that would otherwise cause hesitation or a 'flat spot' in acceleration.
• Choke System: Designed for cold starts, the choke restricts airflow into the carburettor, thereby enriching the air-fuel mixture significantly. This makes it easier for the cold engine to fire up and run smoothly until it reaches operating temperature.

The 1955 Bel Air typically featured carburettors from reputable manufacturers like Carter or Rochester, with options ranging from single-barrel units on the inline-six "Blue Flame" engine to two-barrel and four-barrel configurations on the newly introduced "Small Block" V8. The four-barrel carburettor, in particular, offered enhanced performance by providing additional fuel and air pathways that opened progressively as engine demand increased, effectively acting as two carburettors in one unit.

The Simplicity and Challenges of Carburettors

While seemingly complex in their internal workings, carburettors offered distinct advantages that made them the dominant fuel delivery system for decades:

• Simplicity and Cost-Effectiveness: They were relatively straightforward to manufacture and maintain, requiring no complex electronics or high-pressure fuel pumps. This made them an affordable component for mass production vehicles.
• Robustness: Being largely mechanical, carburettors were less susceptible to electrical failures and could often function, albeit sometimes imperfectly, even with minor issues, making them reliable in an era of less sophisticated vehicle electronics.
• Repairability: Many common issues could be diagnosed and repaired by a competent mechanic with basic tools and a readily available rebuild kit, extending the life of the unit and the vehicle.

However, carburettors also came with notable drawbacks that eventually paved the way for the development and widespread adoption of fuel injection:

• Efficiency Limitations: They struggled to maintain optimal air-fuel ratios across all engine speeds, loads, and environmental conditions, leading to compromises in fuel economy and increased emissions compared to modern systems.
• Environmental Sensitivity: Performance could vary significantly with changes in altitude, ambient temperature, and humidity, often requiring manual adjustments (like careful use of the choke) or leading to rough running and inconsistent power delivery.
• Cold Start Issues: Getting a carburetted engine to start smoothly and reliably in cold weather could be challenging, often requiring multiple attempts, careful throttle feathering, and precise choke manipulation.
• Fuel Distribution: Achieving perfectly even fuel distribution to all cylinders was inherently difficult with a central mixing point, potentially leading to slight variations in power output, increased emissions, and less efficient combustion for individual cylinders.
• Tuning Complexity: Achieving peak performance and efficiency, especially after engine modifications or wear, often required meticulous and skilled tuning, which could be a time-consuming and specialised craft.

The Dawn of Fuel Injection: A Glimpse into the Future (Post-1955)

When Fuel Injection Arrived for Chevrolet

It wasn't long after the 1955 Bel Air that fuel injection began to make its mark in the automotive world. While Mercedes-Benz had experimented with mechanical fuel injection in production cars earlier, Chevrolet introduced its first significant production fuel injection system for passenger vehicles in 1957. This groundbreaking system was the Rochester Ramjet fuel injection, famously offered as a high-performance option on the Chevrolet Corvette and, notably, as an option on the top-tier 1957 Bel Airs. This mechanical, continuous-flow system was a significant step forward, offering improved performance, better throttle response, and enhanced fuel economy compared to carburettors of the era.

The Rochester Ramjet system differed fundamentally from a carburettor. Instead of a venturi drawing fuel, it utilised a high-pressure pump to deliver fuel to individual nozzles located in the intake manifold runners, just upstream of each cylinder's intake valve. This allowed for more precise fuel metering and better atomisation, particularly at higher engine speeds and loads. While still a far cry from the sophisticated electronic fuel injection systems of today, it represented a revolutionary leap in automotive technology at the time, setting the stage for future advancements.

The Evolution to Modern Electronic Fuel Injection

From Mechanical Wonders to Digital Precision

The journey from carburettors to modern fuel injection has been one of continuous refinement and technological advancement. After the early mechanical systems like the Rochester Ramjet, the 1970s and 80s saw the widespread adoption of electronic fuel injection (EFI). Early EFI systems were often throttle body injection (TBI), where one or two injectors sprayed fuel into a central throttle body, much like a carburettor's function but now electronically controlled by a basic computer.

This evolved into multi-port fuel injection (MPI), where each cylinder received its own injector located just before the intake valve, allowing for even more precise fuel delivery to individual cylinders. Today, direct injection (DI) is common, where fuel is injected directly into the combustion chamber at very high pressures, further optimising combustion. These modern systems are controlled by sophisticated engine control units (ECUs) that monitor dozens of parameters (engine speed, load, air temperature, oxygen levels, throttle position, manifold pressure, coolant temperature, and more) to precisely meter fuel delivery, optimising performance, fuel economy, and emissions in real-time. This level of precision, combined with rapid adjustment capabilities, is something a carburettor, by its very nature and mechanical limitations, could never achieve.

Upgrading a Classic: EFI Conversions for the 1955 Bel Air

Modern Performance for a Vintage Icon

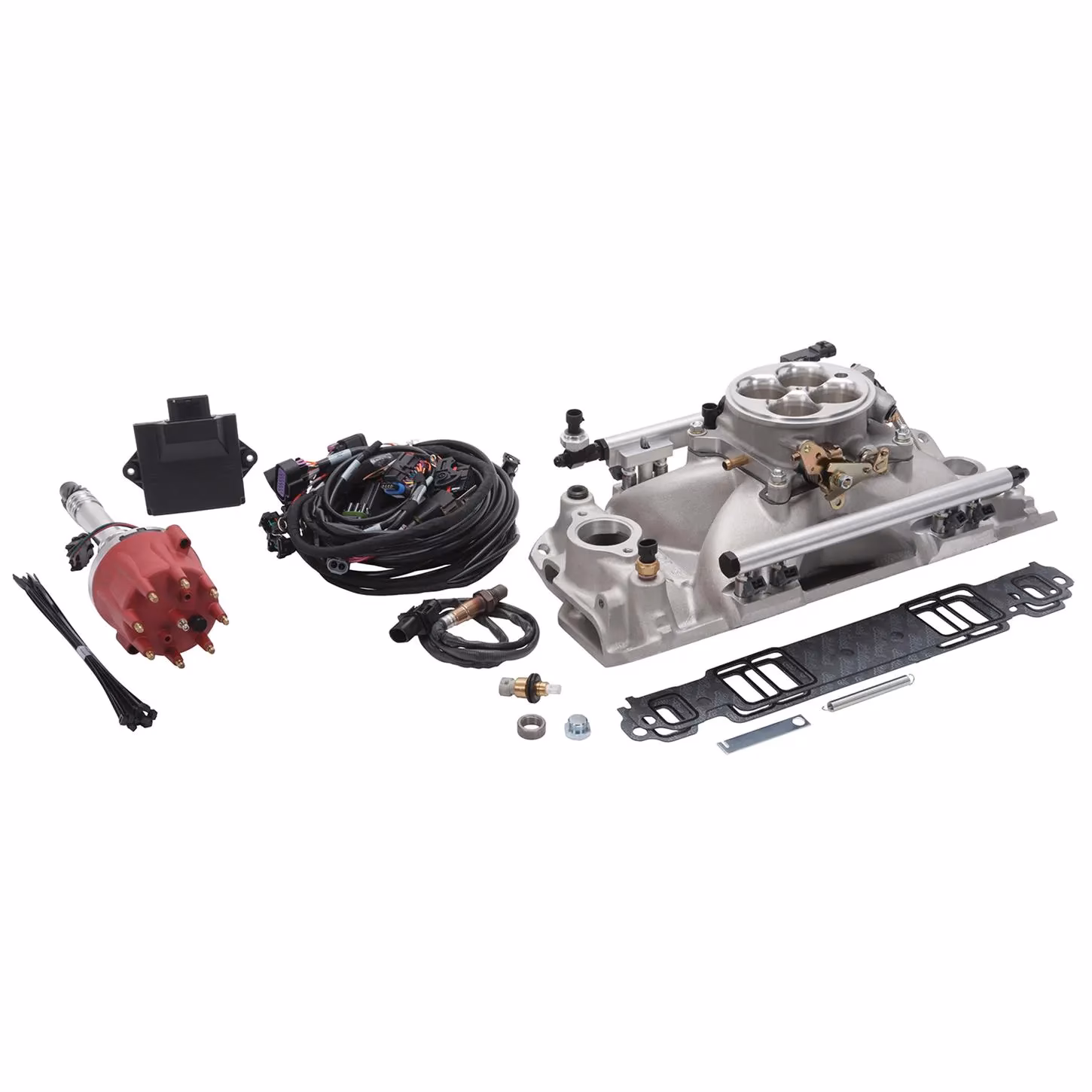

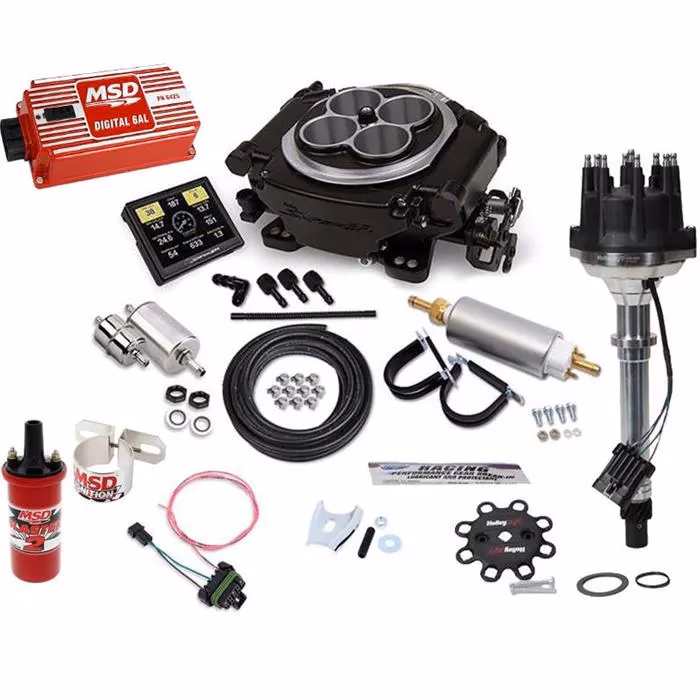

Given the significant advantages of modern fuel injection, many owners of classic cars, including the 1955 Bel Air, consider converting their carburetted engines to EFI. Aftermarket EFI conversion kits are readily available and can dramatically transform the driving experience of a vintage vehicle. These kits typically replace the carburettor with a throttle body that houses fuel injectors, or provide individual injectors for each cylinder, along with a new ECU, higher-pressure fuel pump, and various sensors required for modern electronic control.

The benefits of such a conversion are compelling for those seeking contemporary driveability:

• Improved Starting and Driveability: No more fiddling with the choke; EFI starts reliably in all weather conditions, from freezing winters to scorching summers, and offers smoother, more consistent power delivery across the entire RPM range.
• Enhanced Fuel Economy: Precise, computer-controlled fuel metering leads to more efficient combustion, reducing wasted fuel and often resulting in noticeably better mileage figures.
• Lower Emissions: A more controlled and complete air-fuel mixture results in fewer harmful pollutants, making the classic car more environmentally friendly and potentially easier to register in areas with stricter emissions regulations.
• Better Performance: Owners often report a smoother idle, improved throttle response, and in some cases, a slight increase in horsepower due to optimised combustion and fuel delivery.
• Self-Learning Capabilities: Many modern aftermarket EFI systems can "learn" and adapt to engine conditions and minor modifications over time, simplifying tuning and maintenance.

However, converting to EFI also involves important considerations:

• Cost: EFI kits can be a significant investment, ranging from several hundred to several thousand pounds, depending on the complexity and features of the system.
• Complexity of Installation: While some kits are designed for DIY installation, others may require professional help and modifications to the vehicle's fuel system (e.g., higher pressure fuel lines, fuel return lines, and electrical wiring).
• Originality: For purists and collectors, an EFI conversion deviates from the car's original factory specification. This might affect its value or eligibility in certain concours d'elegance categories where strict originality is paramount.

Ultimately, the decision to convert depends on the owner's priorities: preserving historical accuracy and the authentic vintage driving experience, or enhancing modern driveability, reliability, and performance for regular use.

Fuel Delivery Systems: A Comparative Overview

Your Questions Answered: 1955 Bel Air Fuel Systems

Did any 1955 Chevy Bel Airs come with fuel injection from the factory?

No, absolutely not. All 1955 Chevy Bel Air models, regardless of engine option, were equipped with carburettors for fuel delivery. Fuel injection was not a factory option for the Bel Air until 1957, when the mechanical Rochester Ramjet system became available on some models.

What kind of carburettor did the 1955 Bel Air use?

The 1955 Bel Air primarily used carburettors from manufacturers like Carter or Rochester. Depending on the engine (e.g., the "Blue Flame" inline-six or the new "Small Block" V8), it could be fitted with a single-barrel, two-barrel, or four-barrel carburettor. The four-barrel options were typically found on the higher-performance V8 configurations, providing more airflow and fuel for increased power.

Can I convert my 1955 Bel Air to fuel injection?

Yes, it is entirely possible and quite popular to convert a 1955 Bel Air to modern electronic fuel injection (EFI). Many aftermarket companies offer conversion kits that replace the original carburettor with an EFI throttle body or a multi-port injection system. This is a common upgrade for those seeking improved driveability, fuel economy, and reliability.

What are the main benefits of converting a classic car to EFI?

The primary benefits include vastly improved cold starting, smoother idle and throttle response, better fuel economy, reduced emissions, and enhanced overall reliability. EFI systems are also significantly less sensitive to environmental changes (like altitude or temperature fluctuations) than carburettors, leading to more consistent performance.

Is it difficult to maintain a carburettor on a classic car?

Maintaining a carburettor requires a different skill set than modern EFI. They need regular cleaning, adjustment, and sometimes rebuilding due to wear, gumming from old fuel, or contamination. While not inherently "difficult," it does require specific knowledge, patience, and access to parts, and finding experienced carburettor specialists can sometimes be a challenge. Modern fuels, particularly those with ethanol, can also cause issues for older carburettors if not properly prepared or maintained, potentially degrading rubber and plastic components.

What is the "venturi effect" in a carburettor?

The venturi effect is a principle of fluid dynamics where a fluid (in this case, air) flowing through a constricted section of a tube experiences an increase in speed and a corresponding decrease in pressure. In a carburettor, this low-pressure area created by the venturi is what effectively draws fuel from the fuel bowl into the airflow, creating the combustible air-fuel mixture that the engine needs.

In summary, the 1955 Chevrolet Bel Air, a quintessential American classic, was a product of its time when it came to fuel delivery. It proudly, and effectively, ran on a carburettor, a sophisticated mechanical device that served the automotive industry well for decades. The notion of widespread electronic fuel injection was still years, if not decades, away from mainstream adoption in passenger vehicles.

While carburettors offered simplicity, robustness, and repairability that suited the era, their inherent limitations in efficiency, environmental adaptability, and emissions control ultimately led to their replacement by increasingly advanced fuel injection systems. For owners of these cherished 1955 Bel Airs today, the choice remains: embrace the authentic carburetted experience, with its unique quirks and charm, or consider an aftermarket conversion to a modern EFI system to blend classic aesthetics with contemporary performance and reliability. Whichever path is chosen, the legacy of the 1955 Bel Air and its foundational fuel system remains a fascinating chapter in automotive history.
