Continental 30R9: Fuel Injection Hose Explained

In the intricate world of automotive engineering, every component plays a vital role in ensuring your vehicle runs smoothly, efficiently, and safely. Among these crucial parts, fuel hoses often go unnoticed until a problem arises. However, for modern vehicles, especially those with advanced fuel injection systems, the type of hose used is paramount. This is where the Continental 30R9 fuel injection hose steps into the spotlight, representing a benchmark in performance and reliability for discerning mechanics and vehicle owners across the UK.

Understanding the specific requirements of fuel delivery in today's cars and trucks is key. High-pressure fuel injection systems demand hoses that can withstand significant internal pressures, resist the corrosive effects of various fuel blends, and maintain their integrity over long periods. A failure in this critical system can lead to anything from poor engine performance and increased emissions to, in extreme cases, dangerous fuel leaks and potential fires. Therefore, selecting the correct hose isn't just about functionality; it's about safety and regulatory compliance.

Understanding the Continental 30R9 Fuel Injection Hose

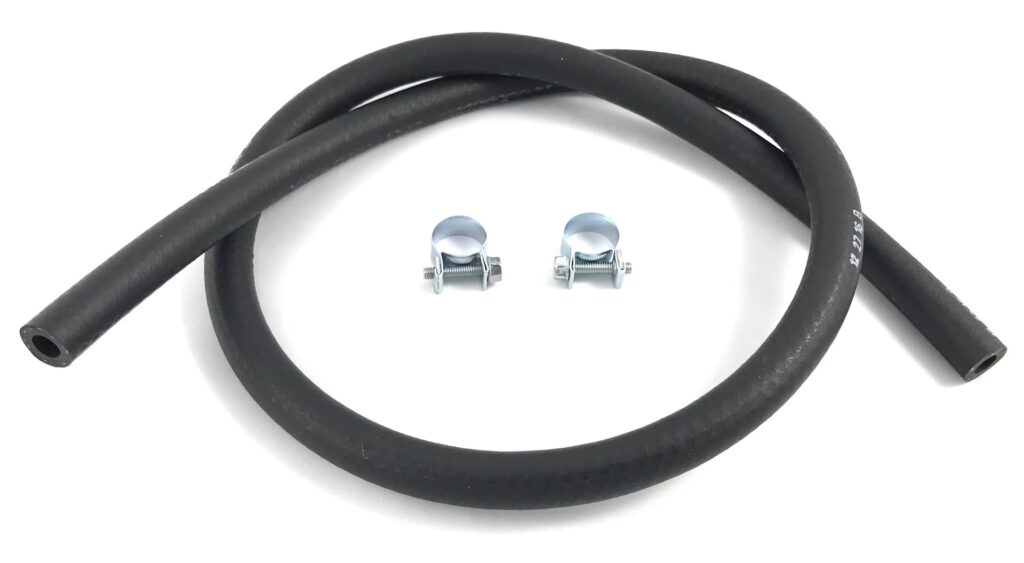

The Continental Elite SAE 30R9 Fuel Injection Hose is not just any hose; it's a specialised component engineered to meet the rigorous demands of contemporary automotive and truck fuel injection systems. The designation '30R9' is a specific standard set by the Society of Automotive Engineers (SAE), indicating a particular set of performance characteristics and construction requirements. For Continental, this means a product designed for superior performance and longevity.

One of the most significant features of the Continental 30R9 hose is its approval by the California Air Resources Board (CARB) under certificate C-U-06-011. While CARB is a US-based regulatory body, its standards for emissions control and material permeation are globally recognised for their strictness. This approval signifies that the hose meets stringent environmental criteria, particularly regarding fuel permeation. It boasts a maximum fuel permeation rate of just 15 gm/m2/day at 40°C. This low permeation rate is critical not only for reducing evaporative emissions – contributing to cleaner air – but also for maintaining fuel system pressure and integrity, preventing fuel odour in and around the vehicle, and enhancing safety.

In essence, the Continental 30R9 hose is built to handle the higher pressures and more aggressive fuel mixtures (including ethanol-blended fuels) found in modern fuel injection systems, distinguishing it from general-purpose fuel lines.

The Significance of SAE Standards in Fuel Hoses

The SAE standards provide a common language and set of specifications for automotive components, ensuring that parts meet certain performance and safety thresholds regardless of the manufacturer. For fuel hoses, these standards are particularly important due to the critical nature of the application.

The '30R' series of SAE standards specifically addresses rubber and plastic hoses for automotive fuel and oil systems. Each number following '30R' denotes a different type of hose, designed for specific applications, pressures, and fuel resistance properties. Adhering to these standards is not merely a suggestion; it's a necessity for ensuring the correct and safe operation of a vehicle's fuel system. Using a hose that does not meet the required SAE standard for a particular application can lead to premature failure, leaks, and potentially dangerous situations.

Diving Deeper into SAE 30R9

SAE 30R9 specifically designates a medium-pressure fuel injection hose. Its construction is key to its performance: it features synthetic rubber for both its inner and outer layers. This dual-layer synthetic rubber construction provides excellent resistance to the various chemical compounds found in modern fuels, including petrol, diesel, and ethanol blends. The inner layer ensures compatibility with the fuel, preventing degradation and maintaining the purity of the fuel flow. The outer layer provides protection against environmental factors such as ozone, heat, and abrasion, which can cause premature cracking and failure.

The medium-pressure rating means it's designed to handle the higher pressures typical of fuel injection systems, which can be significantly greater than those found in older carburettor systems or low-pressure return lines. This makes the 30R9 hose indispensable for the main fuel supply and return lines in most fuel-injected vehicles.

A Comparative Look: SAE 30R9 vs. Other Fuel Hose Standards

To fully appreciate the role of SAE 30R9, it's helpful to understand how it compares to other common SAE fuel hose standards. Each standard is tailored for a specific purpose within a vehicle's fuel system.

As you can see from the table, while all these hoses handle fuel, their specific design and intended use vary significantly. For instance, an SAE 30R10 hose, designed for low-pressure in-tank applications, would be entirely unsuitable for the high-pressure demands of a main fuel injection line. Similarly, while 30R11 focuses on drain lines, 30R12 represents an evolution towards even lower permeation for supply and return lines, often in response to increasingly stringent environmental regulations.

Why Choose a Specific Fuel Injection Hose? The Dangers of Mismatching

The temptation to use a 'universal' or cheaper, incorrect hose type can be strong, but the consequences can be severe. Using a hose not rated for fuel injection pressures (e.g., a standard 30R7 carburettor hose) in a fuel injection system is a recipe for disaster. Such hoses are not designed to withstand the sustained high pressures, which can lead to:

• Leaks: The hose may swell, crack, or burst under pressure, leading to dangerous fuel leaks.
• Fire Hazard: Fuel leaks in the engine bay are an extreme fire risk, potentially leading to catastrophic damage or injury.
• Poor Performance: Inconsistent fuel pressure due to hose expansion or minor leaks can cause misfires, reduced power, and poor fuel economy.
• Increased Emissions: Permeation from incorrect hoses contributes to evaporative emissions, failing MOT tests and harming the environment.
• Premature Failure: Fuels, especially those with ethanol, can degrade hoses not specifically designed for them, leading to rapid material breakdown and failure.

Therefore, specifying an SAE 30R9 hose for fuel injection applications is not just a recommendation; it's a critical safety and performance requirement. The integrity of your fuel system depends on it.

Key Features of Quality Fuel Injection Hoses

Beyond the SAE standard, several other factors contribute to the quality and suitability of a fuel injection hose like the Continental 30R9:

• Material Composition: High-quality hoses use advanced synthetic rubbers (such as Nitrile Butadiene Rubber – NBR, or Fluoroelastomers – FKM) for the inner tube to provide excellent resistance to a wide range of fuels, including modern petrol with ethanol content, diesel, and biofuels. The outer cover is often made of a weather-resistant synthetic rubber like Chloroprene (CR) to protect against ozone, UV radiation, heat, and abrasion.
• Permeation Rates: As highlighted with the CARB approval, low fuel permeation is a hallmark of a quality fuel injection hose. This prevents fuel vapours from escaping through the hose material, which is crucial for meeting emissions standards and preventing fuel odours.
• Burst and Working Pressure: A good fuel injection hose will have a high burst pressure rating, typically several times its maximum working pressure, providing a significant safety margin. The working pressure must comfortably exceed the maximum pressure of the vehicle's fuel system.
• Temperature Resistance: Fuel hoses operate in the engine bay, an environment subject to significant temperature fluctuations. They must be able to withstand both high engine temperatures and cold start conditions without becoming brittle or soft.
• Flexibility and Bend Radius: While robust, the hose must also be flexible enough to be routed through tight engine compartments without kinking, which could restrict fuel flow.

Installation and Maintenance Best Practices

Even the best fuel injection hose will fail prematurely if not installed and maintained correctly. Here are some essential tips:

• Use Correct Tools: Always use appropriate hose cutters to achieve a clean, square cut. Avoid using household scissors or knives, which can fray the hose ends and compromise the seal.
• Cleanliness: Ensure all connections and the hose itself are clean and free from debris before installation. Contaminants can cause leaks or damage fuel system components.
• Proper Clamps: Use high-quality fuel injection hose clamps (often worm-drive or Oetiker clamps) that provide even pressure around the hose. Avoid standard jubilee clips, which can deform the hose unevenly.
• Correct Routing: Route the hose to avoid sharp bends, contact with hot engine components (exhaust manifolds), moving parts (belts, pulleys), or sharp edges. Leave some slack to accommodate engine movement.
• Torque Specifications: If applicable, tighten clamps and fittings to the manufacturer's specified torque settings to ensure a secure, leak-free connection without over-tightening and damaging the hose.
• Regular Inspection: Periodically inspect all fuel hoses for signs of wear, such as cracks, hardening, softening, swelling, or chafing. Pay close attention to areas near connections and where the hose bends.
• Replace When Necessary: Fuel hoses, like other rubber components, degrade over time. If you notice any signs of wear or if the hose is particularly old, it's always best to replace it. A proactive approach can prevent costly and dangerous failures.

By following these best practices, you can maximise the lifespan and ensure the safe operation of your Continental 30R9 fuel injection hoses.

Common Questions About Fuel Injection Hoses (FAQs)

How often should fuel hoses be replaced?

There's no universal answer, as it depends on the vehicle, driving conditions, and hose material. However, as a general rule, it's wise to inspect fuel hoses every few years and consider replacing them every 5 to 10 years, or immediately if any signs of degradation are observed. Always consult your vehicle's service manual for specific recommendations.

Can I use a standard fuel line for fuel injection?

Absolutely not. Standard fuel lines (e.g., SAE 30R7) are designed for lower pressures and older carburettor systems. Using them in a fuel injection system, which operates at much higher pressures, will almost certainly lead to premature failure, leaks, and a significant safety hazard.

What are the signs of a failing fuel hose?

Look for visible cracks, hardening or brittleness, softening or sponginess, swelling, bulges, or discolouration. Any signs of fuel weeping or the smell of petrol are immediate indicators of a problem that needs urgent attention. Reduced fuel economy or engine performance can also sometimes be linked to fuel system issues.

Is all 30R9 hose the same?

While all 30R9 hoses must meet the minimum SAE standard, there can be variations in quality, material compounds, and manufacturing precision between brands. Reputable brands like Continental often exceed the minimum requirements, offering enhanced durability, better permeation resistance, and longer service life. Always choose a trusted brand for such a critical component.

What does 'permeation' mean for a fuel hose?

Permeation refers to the ability of fuel vapours to pass through the microscopic pores of the hose material. Low permeation hoses are designed to minimise this effect, reducing evaporative emissions into the atmosphere and preventing the loss of fuel and pressure from the system. This is crucial for environmental compliance and fuel system efficiency.

Ultimately, the Continental 30R9 fuel injection hose represents a commitment to quality, safety, and environmental responsibility. Choosing the correct hose for your vehicle's fuel injection system is a critical decision that impacts not only your vehicle's performance but also your safety and compliance with emissions regulations. Invest in the right components, and you'll ensure a reliable and secure journey on the road.
