Tackling 300 TDi Fuel Injector Pump Leaks

The Land Rover 300 TDi engine is renowned for its robustness and reliability, a true workhorse that has powered countless adventures across the globe. However, even the most legendary engines eventually show signs of wear, and for many 300 TDi owners, a common adversary emerges: the leaking fuel injector pump. That tell-tale puddle of diesel on the garage floor, or the faint smell of fuel, can be a worrying sight, but it's a problem that's often repairable with the right knowledge and a bit of elbow grease. This guide will delve deep into why these pumps leak, how to identify the issue, the repair process, and crucial considerations for pump interchangeability.

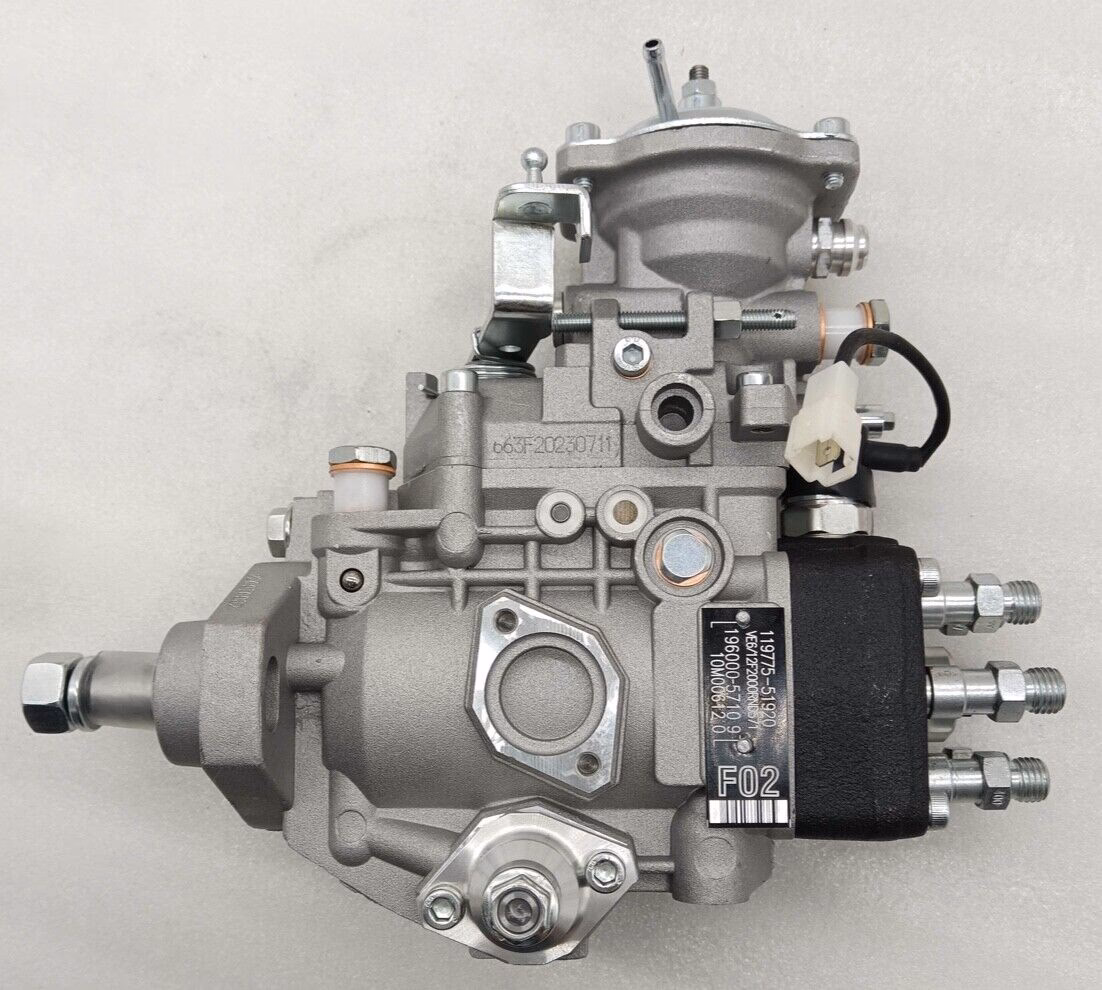

Understanding the intricacies of your 300 TDi's fuel system is the first step towards a successful repair. The heart of this system is the Bosch VE-style rotary injection pump, a sophisticated piece of engineering responsible for delivering precise amounts of fuel at high pressure to the injectors. Over years of service, subjected to heat, vibration, and the constant flow of diesel, the various seals and gaskets within this pump can degrade, leading to leaks.

Why Does My 300 TDi Injector Pump Leak?

Leaking fuel injector pumps on the 300 TDi are, unfortunately, a relatively common occurrence, primarily due to the ageing and degradation of internal and external seals. These seals, often made of rubber compounds, simply perish over time, losing their elasticity and ability to contain the fuel pressure. Here are the most frequent culprits:

• Top Cover Gasket/O-rings: This is perhaps the most common leak point. The pump's top cover, which houses the throttle mechanism and often the idle speed screw, is sealed by a gasket or a series of O-rings. These are constantly exposed to diesel and engine bay temperatures, making them prone to hardening and cracking.
• Throttle Spindle Seal: Fuel can seep past the spindle where the throttle linkage connects to the pump. This small seal is critical and a common source of drips.
• Main Shaft Seal: Less common but more serious, a leak from the main drive shaft seal at the front of the pump (where it connects to the engine's timing gear) can occur. This requires more extensive disassembly.
• Delivery Valve Seals: These seals are located where the high-pressure fuel lines connect to the pump. While less frequent, they can harden and allow fuel to weep.
• Advance Piston Seal: Located internally, leaks from this seal are often less visible externally but can affect pump performance and eventually lead to external seepage.

As Peter mentioned, a pool of diesel on the floor is a clear indication, and it's wise to address it even if it's not yet affecting starting or running. A small leak can quickly escalate, and continuous exposure to diesel can damage other engine bay components, not to mention the environmental and fire risks.

How Do I Know If My VE Fuel Injection Pump is Leaking?

Identifying a leak from your VE fuel injection pump on a 300 TDi is usually straightforward, especially if it's been going on for a while. Keep an eye (and nose!) out for these signs:

• Visible Diesel Puddles: The most obvious sign is a wet patch or puddle of diesel under the front of your vehicle, typically on the driver's side (UK passenger side).
• Strong Diesel Smell: Even if you don't see a puddle, a persistent smell of diesel, particularly after the engine has been running, is a strong indicator.
• Wetness Around the Pump: Inspect the pump body itself. Look for dampness or a greasy film, especially around the top cover, the throttle spindle, and the various pipe connections.
• Accumulation of Grime: Diesel, when mixed with dust and dirt, creates a sticky, dark grime. If you see this build-up around the pump, it's a sign of a long-standing leak.
• Engine Performance Issues (in severe cases): While Peter's leak isn't affecting starting or running yet, a significant leak can lead to air ingress into the fuel system, causing rough idling, misfires, difficulty starting, or even stalling. This happens when the pump draws in air instead of fuel.

It's crucial to distinguish between a fuel leak and other fluid leaks (oil, coolant). Diesel has a distinct smell and feel. If in doubt, clean the area thoroughly, run the engine, and re-inspect.

Repairing Your Leaking 300 TDi Injector Pump

Repairing a leaking injection pump typically involves replacing the seals and gaskets. Repair kits are readily available and contain the most common seals that perish. Peter's approach of getting a repair kit before the long weekend is sensible.

Accessibility and Preparation

One common concern is access. Peter asked if the A/C compressor and lift pump needed to be removed. In many cases, it's possible to work around them, though it can be a tight squeeze, especially for the seals on the back or bottom of the pump. Some mechanics find it easier to unbolt and move the A/C compressor slightly without disconnecting the lines, just to gain a few extra centimetres of working space. The lift pump, being relatively small, usually doesn't pose a major obstruction. However, ensure you have adequate light and the right tools, including various sized spanners, sockets, and picks for seal removal.

The Repair Process (General Steps):

1. Safety First: Disconnect the vehicle's battery to prevent accidental starting or electrical shorts.
2. Cleanliness is Key: Thoroughly clean the entire pump and surrounding area. Any dirt or grit entering the fuel system can cause catastrophic damage.
3. Marking and Disconnection: Before removing anything, it's absolutely vital to mark the pump's position relative to its mounting bracket and the engine. This is usually done by scribing a line across the pump flange and the mounting bracket. This mark is crucial for re-timing the pump correctly.
4. Remove Fuel Lines: Carefully disconnect the high-pressure fuel lines from the pump to the injectors, and the low-pressure feed and return lines. Cap all open lines and pump orifices immediately to prevent contamination.
5. Remove Throttle Linkage & Wiring: Disconnect any throttle cables, linkages, and electrical connections (like the fuel shut-off solenoid).
6. Unbolt the Pump: Remove the mounting bolts securing the pump to the engine.
7. Careful Removal: Gently ease the pump away from the engine. Be prepared for a small amount of diesel to drain.
8. Seal Replacement: With the pump on a clean workbench, carefully disassemble the sections where leaks are apparent. Replace all seals and gaskets from your repair kit, paying close attention to the orientation of each part. The throttle spindle seal and the top cover gasket are often the primary targets.
9. Reassembly: Reassemble the pump sections, ensuring all fasteners are torqued correctly.
10. Reinstallation: Mount the pump back onto the engine, aligning it precisely with your earlier timing marks. This is critical for engine timing.
11. Reconnect Everything: Reattach all fuel lines, linkages, and electrical connections.

Critical Tool: Timing Pin

While the provided information mentions a blanking plug from the flywheel housing and rotating the crankshaft to find TDC (Top Dead Centre) for valve mechanism viewing, this process is also critical for accurately timing the injection pump. The 300 TDi pump timing is precise. There's often a specific timing pin or procedure involving a dial gauge to ensure the pump is set correctly. If your initial leak wasn't affecting performance, re-timing accurately is paramount to ensure it runs smoothly after the repair. A slight misalignment can lead to poor performance, excessive smoke, or hard starting.

Interchangeability: Bosch 0 460 414 099 vs 0 460 414 093

The question of interchanging Bosch fuel injection pumps, specifically between a Bosch 0 460 414 099 ERR4046 (with EGR) and a Bosch 0 460 414 093 ERR1985 (potentially without EGR), is a common one for 300 TDi owners. While both are Bosch VE-style pumps designed for the 300 TDi, they are calibrated differently and often have subtle physical distinctions that can significantly impact performance.

The 0 460 414 099 (ERR4046) pump is typically found on later 300 TDi engines that were fitted with Exhaust Gas Recirculation (EGR) systems from the factory. Even if the EGR system has been blanked off (as in the user's case), the pump itself is still calibrated to work in conjunction with an engine that originally had EGR. This means its internal fuel maps, boost compensator settings, and potentially other parameters are optimised for an EGR-equipped engine.

The 0 460 414 093 (ERR1985) pump, on the other hand, is usually associated with earlier 300 TDi engines that did not have EGR. Its internal calibration is therefore optimised for a non-EGR setup. While it might physically bolt onto the engine, using a non-EGR pump on an engine originally designed for an EGR pump (even if blanked) can lead to:

• Sub-optimal Performance: You might experience a reduction in power, increased smoke, or less efficient fuel consumption.
• Rough Running: The engine might not idle smoothly or could run erratically at certain RPMs.
• Starting Difficulties: Especially when cold, the engine might be harder to start.

The observation of a missing spring linkage on the potential replacement pump (0 460 414 093) compared to the original (0 460 414 099) is a significant detail. This spring linkage is often part of the throttle mechanism or idle speed control, or even a cold-start advance mechanism. Its presence or absence, and its specific design, indicate differences in how the pump responds to throttle input or engine conditions. Using a pump without this linkage if your engine expects it could lead to incorrect idle speeds, poor throttle response, or issues with cold starting. It's not a feature that a previous owner would typically remove; it's a fundamental design difference.

Here’s a comparative overview:

While a used pump from a "freshly removed still running engine" sounds appealing, the subtle differences in calibration and physical features like the spring linkage make it a risky direct swap. For optimal performance and reliability, it’s generally best to replace a pump with an identical part number or one specifically reconditioned and calibrated for your exact engine specification (EGR or non-EGR).

Bleeding the Fuel System After Reassembly

After any work on the fuel system, especially involving the injection pump, bleeding air out of the system is absolutely crucial. As the user rightly pointed out, airlocks can prevent fuel from reaching the pump head or fuel solenoid, causing starting issues or no-start conditions. The tiny bleed hole in the return line banjo bolt at the top rear of the pump is a known culprit for airlocks if it becomes blocked.

Bleeding Procedure:

1. Fill Filter: Ensure your fuel filter is full. If you've replaced it, fill it with clean diesel before fitting.
2. Loosen Bleed Screw: Locate the bleed screw on the top of the fuel filter housing (or sometimes on the pump itself). Loosen it a few turns.
3. Operate Lift Pump: Use the manual priming lever on the fuel lift pump (if fitted) or crank the engine for short bursts. You should hear air hissing out of the bleed screw, followed by a steady stream of fuel without bubbles.
4. Tighten Bleed Screw: Once a bubble-free stream of fuel emerges, tighten the bleed screw.
5. Loosen Injector Pipes (if necessary): If the engine still won't start, or starts and then immediately dies, you may have air trapped in the high-pressure lines. Loosen the nuts on two or three of the injector pipes at the injector end (not the pump end).
6. Crank Engine: Crank the engine for short bursts (5-10 seconds) until fuel squirts out of the loosened injector pipes. Be careful of high-pressure fuel spray.
7. Tighten Injector Pipes: Once fuel emerges, tighten the injector pipe nuts. The engine should now start.

If you suspect the banjo bolt's bleed hole is blocked, remove the bolt, clean it thoroughly with a thin wire or compressed air, and ensure the small hole is clear before reassembling. This small blockage can indeed cause significant headaches.

Frequently Asked Questions (FAQs)

Q: Is it safe to drive with a leaking 300 TDi injector pump?

A: While a small, slow leak might not immediately affect starting or running, it is absolutely not safe to drive with a leaking fuel pump. Diesel is highly flammable, and a leak poses a significant fire risk, especially near hot engine components or exhaust. Furthermore, continuous exposure to diesel can degrade rubber hoses, wiring insulation, and other components in the engine bay. It's best to address the leak as soon as it's discovered.

Q: How long does the injector pump repair typically take?

A: For an experienced DIY mechanic, replacing the external seals (like the top cover gasket and throttle spindle seal) can take anywhere from 4 to 8 hours, depending on access and any unforeseen issues. If the pump needs to be fully removed for more extensive internal seal replacement, or if timing adjustments are required, it can be a full day's work or longer. Professional workshops might complete it quicker due to specialised tools and experience.

Q: Do I need special tools for this repair?

A: While most of the work can be done with standard metric spanners, sockets, and screwdrivers, a few items are highly recommended: a good set of picks for removing old seals, a torque wrench for correct reassembly, and critically, a timing pin or dial gauge for precise pump re-timing. Cleanliness is paramount, so plenty of clean rags and a parts cleaner are also essential.

Q: What is the role and function of the spring linkage I noticed on my original pump?

A: The spring linkage you observed on your Bosch 0 460 414 099 (ERR4046) pump, which is absent on the 0 460 414 093 (ERR1985), is a crucial component. Its exact function can vary slightly but is typically related to the pump's throttle response, idle control, or cold-start enrichment/advance mechanisms. For pumps designed for EGR engines, it might also play a role in how the pump interacts with the engine's management system to control emissions. Its absence on another pump indicates a fundamental difference in how that pump is designed to operate, and attempting to interchange them without understanding these differences can lead to significant performance issues, including incorrect idle speed, poor acceleration, or even engine damage due to improper fuel delivery.

Q: Can I use a used pump if my current one is badly damaged?

A: While tempting due to cost, using a used pump carries significant risks. Unless you can verify its history, mileage, and condition, you might be inheriting someone else's problems. As discussed, even a 'running' used pump with a different part number (like the ERR1985 vs ERR4046) can lead to compatibility and performance issues due to calibration differences. A reconditioned pump from a reputable specialist, or a new pump, offers far greater peace of mind and long-term reliability.

Addressing a leaking 300 TDi injector pump is a manageable task for the diligent home mechanic, provided you approach it with patience, cleanliness, and a methodical mindset. Understanding the nuances of pump types and the critical importance of proper bleeding will ensure your Land Rover continues to serve you reliably for many more miles. Don't let a small leak turn into a big headache; tackle it head-on and keep your 300 TDi in prime condition.
