Mastering the Harley-Davidson 3-Hole Oil Change

For many Harley-Davidson owners, the phrase '3-hole oil change' is a familiar, if sometimes daunting, part of routine motorcycle maintenance. Unlike many vehicles that feature a single lubrication system, Harley-Davidson motorcycles often separate the engine, transmission, and primary drive lubrication. This distinct design necessitates attention to all three 'holes' – or compartments – to ensure your beloved machine runs smoothly, reliably, and efficiently for years to come. Understanding this process is key to prolonging the life of your Harley and maintaining its legendary performance.

This comprehensive guide will demystify the 3-hole oil change, detailing why each compartment requires its own specific care, the precise steps involved, and the benefits of performing this vital maintenance yourself. By the end, you'll be well-equipped to tackle this essential task with confidence, saving money and gaining a deeper connection with your machine.

What Exactly Is a '3-Hole Oil Change'?

The term '3-hole oil change' refers to the process of draining and refilling the oil in three distinct compartments of your Harley-Davidson motorcycle: the engine, the transmission, and the primary chaincase. Each of these systems serves a unique purpose and, as such, requires specific types and quantities of lubricant to function optimally. Neglecting any one of these can lead to accelerated wear, reduced performance, and potentially costly repairs.

Why Three Separate Systems? The Engineering Behind It

Harley-Davidson's design philosophy often prioritises robust, purpose-built systems. The engine, transmission, and primary drive each operate under different conditions and stress levels, demanding specific lubrication properties:

• Engine Oil: This is arguably the most critical. Engine oil lubricates moving parts, dissipates heat generated by combustion, cleans internal components, and protects against corrosion. It operates under high temperatures and pressures, and its properties are designed to handle combustion by-products.
• Transmission Oil: The transmission houses gears that transfer power from the engine to the rear wheel. These gears operate under extreme pressure and require an oil with high film strength to prevent metal-on-metal contact and reduce wear. Transmission oils are typically thicker and designed to withstand shearing forces.
• Primary Chaincase Oil: The primary drive connects the crankshaft to the transmission via a chain and houses the clutch assembly. This oil lubricates the primary chain, sprockets, and clutch components. It must be able to withstand the shock loads of clutch engagement and provide proper friction for the clutch plates to operate effectively.

Using the correct oil for each compartment is paramount. Mixing them or using an unsuitable general-purpose oil can severely compromise the longevity and performance of your motorcycle.

Gathering Your Arsenal: Essential Tools and Supplies

Before you begin, ensure you have all the necessary tools and supplies. A well-prepared workspace makes the job smoother and safer:

• New Oils: You'll need specific oils for each compartment. Typically, this includes 4 quarts of 20W-50 engine oil, 1 quart of 80W-90 transmission oil, and 1 quart of primary chaincase oil. Always check your owner's manual for precise recommendations for your specific model.
• Oil Filter: A new engine oil filter.
• Drain Pan: A large enough pan to collect all the old oil from the three compartments.
• Wrenches: Appropriate wrenches for drain plugs and the oil filter. An oil filter removal wrench is highly recommended.
• Funnels: Separate funnels for each oil type to prevent contamination. Dedicated primary and engine funnels can make refilling easier.
• Torque Wrench: Crucial for ensuring drain plugs and the derby cover are tightened to the manufacturer's specifications, preventing leaks or damage.
• Clean Rags/Shop Towels: For cleaning up spills and wiping down surfaces.
• Gloves: To protect your hands from hot oil and chemicals.
• Gasket/O-rings: Inspect your drain plug O-rings and the derby cover gasket. Replace as needed.

The Pre-Change Ritual: Getting Your Bike Ready

Proper preparation is key to a successful oil change:

1. Warm Up the Engine: Take your bike for a short ride (5-10 minutes) to bring the engine, transmission, and primary oils up to operating temperature. Warm oil flows more freely, ensuring a more complete drain.
2. Park Safely: Park your bike on a level surface in a well-ventilated area. Ensure it's stable, preferably on a lift or with a sturdy stand.
3. Position Drain Pan: Place your oil drain pan underneath the bike, strategically positioned to catch oil from all three drain plugs.

The Step-by-Step Breakdown: A Comprehensive Guide to Your 3-Hole Oil Change

This sequence ensures a thorough and efficient process. Remember to exercise caution as oil will be hot.

1. Draining the Engine Oil

• Locate the engine oil drain plug, typically underneath the bike on the left side.
• Place your drain pan directly beneath it.
• Carefully remove the drain plug. Allow the oil to drain completely. This may take several minutes.
• While the oil is draining, locate and remove the engine oil filter. Be prepared for a small amount of oil to spill.
• Once the oil has drained, clean the drain plug and its O-ring (replace if damaged). Re-install the drain plug, tightening it to the manufacturer's specified torque.

2. Draining the Transmission Oil

• Identify the transmission drain plug, usually near the engine drain plug but slightly further back.
• Position your drain pan.
• Remove the transmission drain plug and allow the oil to drain fully.
• Clean the drain plug and O-ring. Re-install, tightening to the correct torque.

3. Draining the Primary Chaincase Oil

• Locate the primary drain plug, found on the underside of the primary cover, typically below the derby cover.
• Place your drain pan.
• Remove the primary drain plug and let the oil drain completely.
• Once drained, clean the drain plug and O-ring, then re-install and torque correctly.

4. Releasing Pressure and Inspecting

• Once most of the oil is drained from all three compartments, release any residual pressure by removing the engine and transmission dipsticks.
• Carefully inspect the derby cover gasket. If it looks worn, cracked, or compressed, replace it. A clean gasket ensures a good seal.

5. Refilling the Primary Chaincase

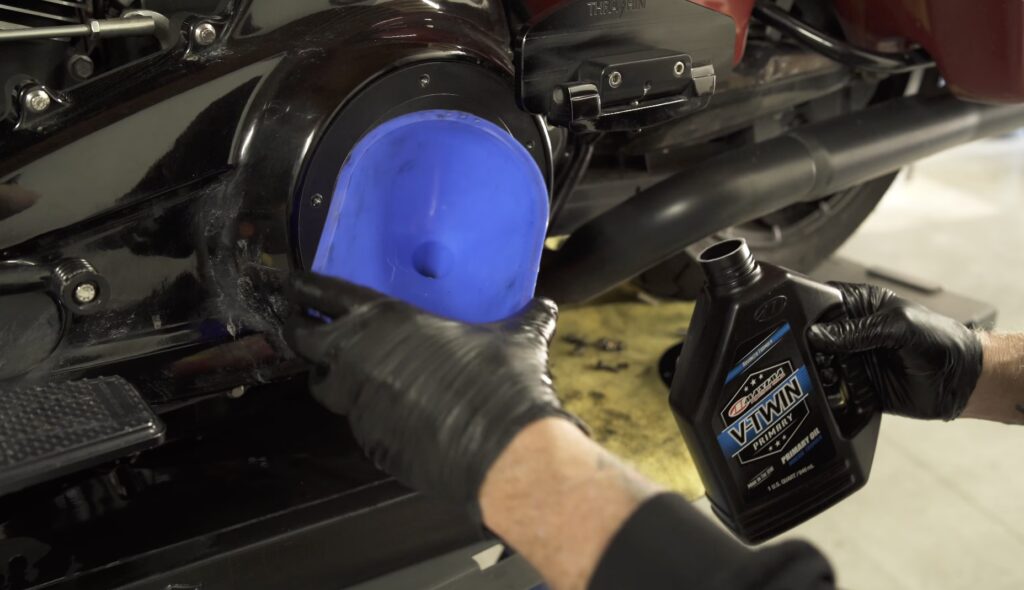

• Using a clean primary funnel, pour 1 quart of primary oil into the primary fill hole (usually behind the derby cover).
• Inspect the derby cover gasket again. Re-install the derby cover, tightening the bolts in a star pattern to ensure uniform pressure and a proper seal. Torque to specifications.

6. Refilling the Engine Oil

• Before installing the new oil filter, pour approximately 1/4 to 1/2 quart of fresh 20W-50 engine oil into the filter. This 'pre-fills' the filter and helps circulate oil faster upon startup.
• Also, coat the rubber gasket of the new oil filter with a thin layer of fresh oil. This ensures a good seal and prevents the gasket from sticking.
• Screw in the new oil filter by hand until snug, then tighten an additional 1/4 to 1/2 turn (or as per filter instructions). Do not overtighten.
• Using a clean engine funnel, pour approximately 4 quarts of 20W-50 engine oil into the engine fill hole. Always check your owner's manual for the exact capacity.
• Screw in the engine dipstick.

7. Refilling the Transmission Oil

• Using a clean transmission funnel, pour 1 quart of 80W-90 transmission oil into the transmission fill hole.
• Screw in the transmission dipstick.

Post-Change Protocol: The Test Ride and Final Checks

Once all the new fluids are in, it's time for the final steps:

• Start the bike and let it idle for a few minutes. Check for any leaks around the drain plugs and filter.
• Take your Harley for a short spin (5-10 minutes) to allow the new oils to circulate and the engine to reach operating temperature.
• After the ride, park the bike on a level surface and let it cool for a few minutes.
• Re-check the engine oil level with the dipstick. Add a small amount of oil if needed to bring it to the 'full' mark. Do not overfill.
• Re-check transmission and primary fluid levels according to your owner's manual's specific instructions (some are checked cold, some hot, some on the jiffy stand, some upright).

The Harley-Davidson Oil Change Kit: Your DIY Companion

Investing in a complete motorcycle oil change kit, often specifically designed for Harley-Davidson models, can simplify this process significantly. These kits typically include all the necessary oils, a new oil filter, and sometimes even a funnel or other small tools. They are designed to provide everything needed to perform a full 3-hole oil change every 2,000 to 3,000 miles, making DIY maintenance incredibly convenient.

Opting for a kit not only saves you the hassle of purchasing items separately but also ensures you have the correct specifications for your bike. Many reputable suppliers offer kits whose components meet or exceed Harley-Davidson's own quality standards, guaranteeing that your bike receives the care it deserves. This control over your bike's upkeep can prevent common mistakes and protect your valuable investment.

The Long-Term Payoff: Why Routine Maintenance Matters

Performing routine 3-hole oil changes is not just about keeping your Harley running; it's about extending its life and maintaining its value. Fresh, clean oil provides optimal lubrication, reduces friction, and prevents the build-up of harmful contaminants. This routine maintenance prevents issues from developing in the engine, transmission, and primary, helping all motorcycle parts operate reliably.

By taking control of your bike's upkeep, you gain peace of mind, save money on workshop labour, and develop a deeper understanding of your machine. It’s a rewarding aspect of Harley-Davidson ownership that contributes significantly to the bike’s overall efficiency and enjoyment.

Avoid Making Mistakes

Using a comprehensive oil change kit and following these steps carefully helps riders avoid common pitfalls such as using the wrong oil type, forgetting certain steps, or improper fluid handling. These mistakes can lead to mechanical issues and compromise the bike's performance and longevity. Taking the time to do it right protects your ride.

Frequently Asked Questions (FAQs)

Performing a 3-hole oil change on your Harley-Davidson is a fundamental aspect of responsible motorcycle ownership. It might seem like a complex task at first, but with the right information, tools, and a methodical approach, it becomes a straightforward process that empowers you to maintain your bike to the highest standards. By dedicating the time to this essential maintenance, you ensure your Harley remains a reliable and thrilling companion on the open road for countless miles to come.
