Alfa Romeo Engines: A Legacy of Engineering

Alfa Romeo, a marque synonymous with passion, performance, and exquisite design, has always placed the engine at the very heart of its vehicles. For decades, the power plants nestled under the bonnets of these Italian masterpieces have been celebrated for their technical innovation, spirited character, and distinctive aural signature. This article delves into two pivotal eras of Alfa Romeo engine development: the legendary classic Twin Cam engine, a staple for over four decades, and the contemporary 2.0T turbocharged unit found in modern Giulia models, exploring their unique characteristics, evolutionary paths, and key specifications.

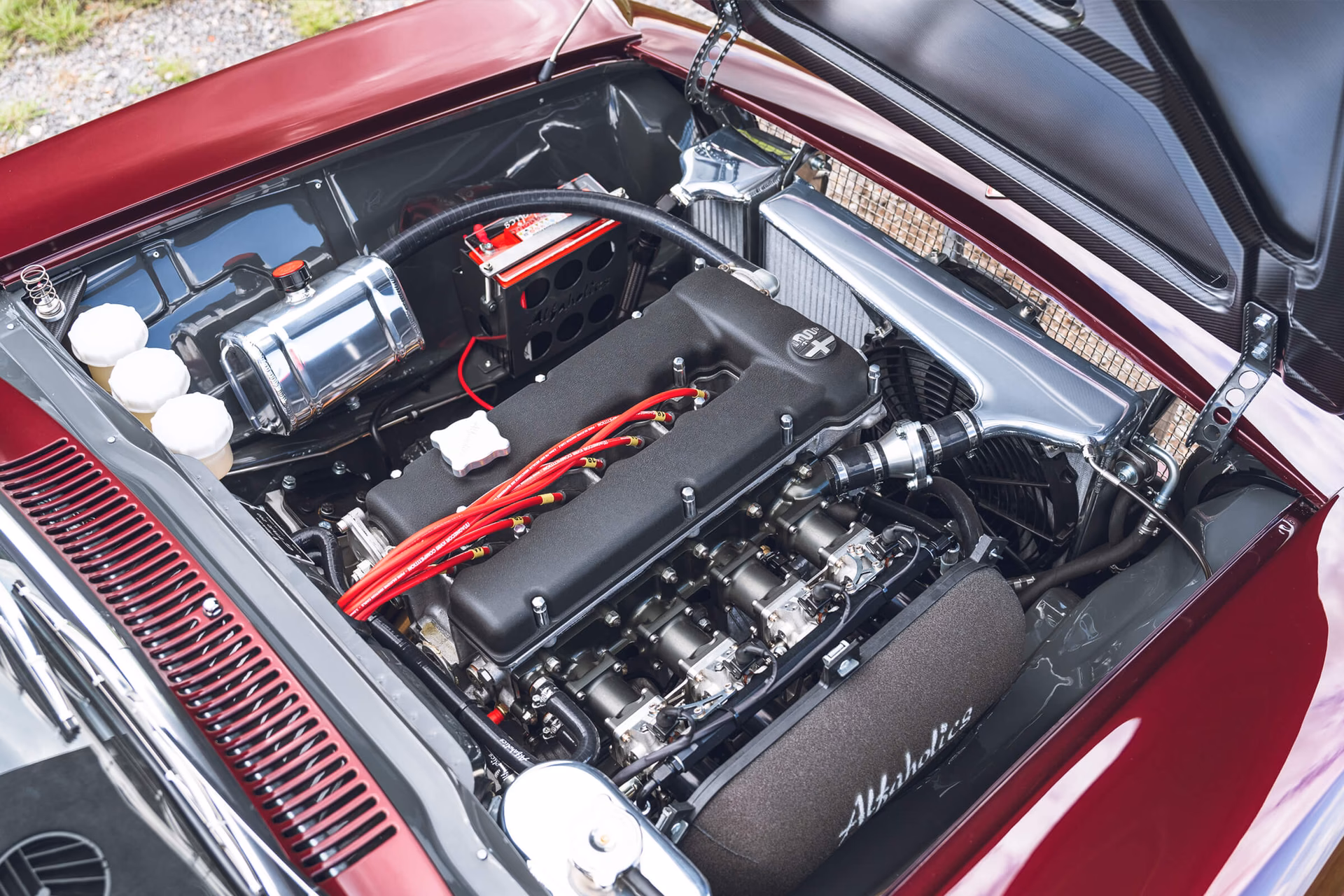

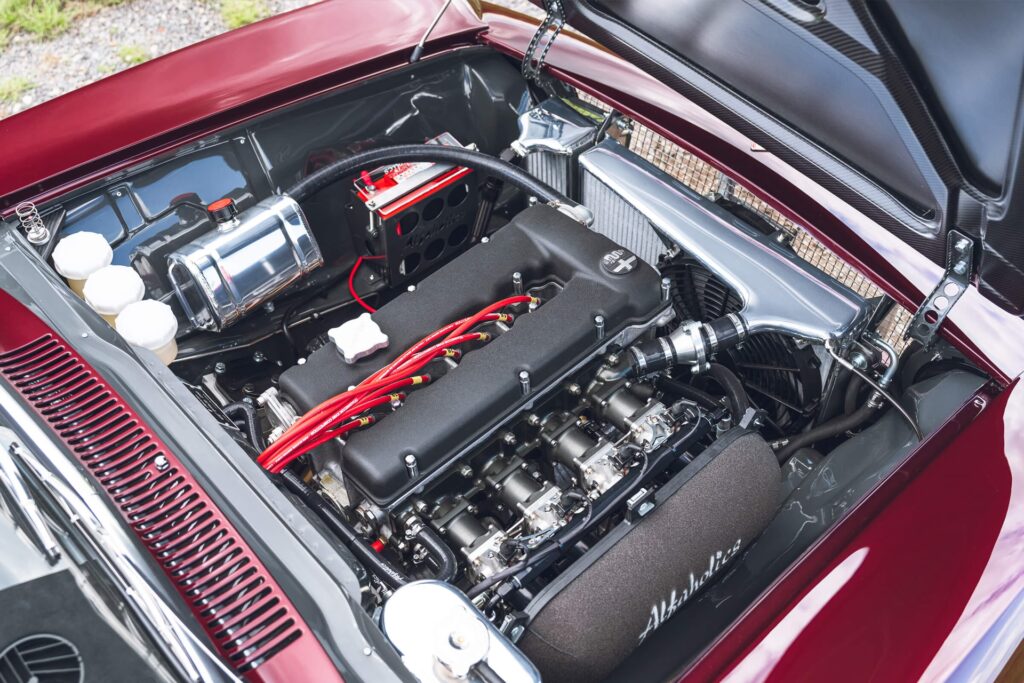

The Enduring Legacy of the Alfa Romeo Twin Cam Engine (1954-1997)

The Alfa Romeo Twin Cam engine is more than just a power unit; it's a mechanical icon that defined the brand's performance credentials for an astounding 43 years. Conceived in 1954 for the revolutionary Alfa Romeo 750 Giulietta, this engine set a benchmark for compact, high-performance engines of its era. Its initial design featured an aluminium cylinder head and block, a remarkably advanced approach for the time, ensuring both lightweight construction and efficient heat dissipation.

From Giulietta's Heart to Giulia's Soul

At its inception, the Giulietta's Twin Cam engine displaced 1290 cc, boasted twin overhead camshafts (hence 'Twin Cam'), and was initially fed by a single twin-choke carburettor, producing a commendable 80 bhp at 6300 rpm. This was soon complemented by a twin-carburettor sibling, which, aided by a tubular exhaust and 'hotter' camshafts, pushed power output to 90 bhp at 6500 rpm. Interestingly, a detuned version for the 1955 saloon reduced power to 53 bhp with a single-choke carburettor, showcasing the engine's versatility.

However, it was when specialist coachbuilders like Zagato got their hands on it that the engine truly shone. The Giulietta SZ, for instance, saw power raised to 100 bhp at 6500 rpm, combined with a kerb weight of just 770 kg. Even by today's standards, with a power-to-weight ratio approaching 130 bhp per tonne, this was a truly fast and exhilarating machine.

The engine underwent its first significant evolution with the introduction of the Giulia TI on 27th June 1962. While retaining the core Twin Cam design, the displacement increased to 1600 cc. To facilitate mass production, enhance reliability, and reduce costs, numerous subtle yet substantial changes were implemented. The casting process was refined, valve stem diameters increased from 8mm to 9mm, bore centres were adjusted, the timing chain lengthened, and the crankshaft modified. These improvements resulted in 92 bhp at 6200 rpm with a single carburettor, and between 109-112 bhp for the twin-carb version. A fascinating detail from this period is Alfa Romeo's discovery that reducing the size of the intake ports, when transitioning from the Sprint GT to the GTV, actually led to an increase in power output.

Racing Pedigree and Technical Innovations

By the mid-1960s, Alfa Romeo embarked on a serious racing programme, with the Twin Cam engine at its core. Initially fitted into the lightweight TZ1 and TZ2 sports racers, it later powered the legendary GTAs. These racing engines featured numerous modifications, but one particularly noteworthy innovation, which later found its way into production engines, was the adoption of twin spark plugs per cylinder. This seemingly minor change was crucial for increasing the rate of flame propagation within the combustion chamber, allowing for more complete and efficient burning of the fuel-air mixture, thus yielding more power.

The next iteration was the 1750 engine, which, despite its name, actually displaced 1778 cc, named in homage to the pre-war Alfa 1750. Power climbed again to 122 bhp at 5500 rpm. During its production run, a crucial refinement was implemented: offsetting the big end bearing on the connecting rod. This subtle design change was found to significantly reduce piston slap, improving engine longevity and refinement. To further enhance reliability, especially in high-stress applications, sodium-cooled exhaust valves were introduced. These valves contain a small amount of metallic sodium, which melts at operating temperature and transfers heat from the valve head to the cooler valve stem, dissipating heat more effectively. This ingenious method was first employed in the Rolls Royce Merlin engines during World War Two, showcasing the high-level engineering adopted by Alfa Romeo.

The 1750 engine served as the flagship for a relatively short period, as by 1970, it was superseded by the 1962 cc engine. This marked the final capacity increase for the production Twin Cam, as the block design had reached its physical limits for further boring. Sharing the same 88.5 mm stroke as the 1750, the bore was increased from 80 mm to 84 mm, boosting power to 132 bhp at the same revs as its predecessor. Alfa Romeo also made changes to the ring gear teeth count and reduced the number of flywheel bolts from eight to six on this 2.0-litre unit, an important consideration for enthusiasts attempting engine swaps into earlier, smaller capacity models.

Adaptations and Modern Touches

The Twin Cam engine's versatility was further demonstrated by its adaptation for the Alfetta chassis. This involved redesigning the sump and oil pump, a departure from the beautifully sculpted sump of the 105 series cars. The exhaust manifold also required modification to clear the engine mounting points. Given the Alfetta's transaxle gearbox layout, the spigot bearing for the gearbox input shaft was omitted, and on some models, the crankshaft wasn't even bored for it, making engine swaps between Alfetta and Giulia models challenging but not impossible.

A particularly interesting development was seen in the 1982 Alfetta Gold Cloverleaf, which featured a version of this engine incorporating one of the first production car applications of variable inlet cam timing. This system, controlled by the fuel injection, could adjust the cam timing by 14 degrees when the throttle was pressed. This effectively provided a sportier valve overlap for performance while maintaining a smooth idle and lower emissions, a testament to Alfa's continuous pursuit of engineering excellence.

Briefly in its long life, the Twin Cam also embraced turbocharging. A 1962 cc version appeared in the GTV Turbo Delta in 1979 (only 331 produced) and later in the Giulietta (1982-83), reputedly producing 175 bhp at 5500 rpm, primarily as homologation specials. Turbocharging also featured on the 1778 cc engine in the 75 Turbo America and the Turbo Evoluzione, aimed at the World Touring Car Championship, though the series itself was short-lived.

The most significant evolution of the Twin Cam came with the introduction of the Alfa 75, leading to the renowned Twin Spark engine. While sharing the fundamental crankshaft, bore, and stroke with earlier units, almost every other component was re-engineered. The block was revised, reducing the number of oilways to the cylinder head from six to two, making head swaps with earlier models impractical without major modifications. The front timing chain cover was also narrowed. The cylinder head, while retaining similar valve sizes to the previous 2.0-litre, saw radical changes: the compression ratio was increased, the angle between the valves was dramatically reduced from 80 to 46 degrees, and the inlet camshaft received variable timing. The combustion chamber shape was also refined. These advancements propelled the engine's maximum power to 155 bhp, making it one of the most powerful 2.0-litre naturally aspirated engines available at the time.

The Alfa Romeo Twin Cam, in all its iterations, remains a highly sought-after and respected engine among enthusiasts. While engine swaps between different Alfa models are feasible with some work (e.g., Twin Spark into a Giulia, or Giulia engines into Giuliettas), interchanging individual parts between engines of different capacities or between Giulietta, Giulia, and Twin Spark variants is generally very difficult.

The Modern Powerhouse: Alfa Romeo 2.0T Engine

Fast forward to the 21st century, and Alfa Romeo continues its legacy of innovative engine design with the potent 2.0-litre turbocharged four-cylinder unit, a cornerstone of models like the 2017 Giulia Ti. This engine represents a significant leap in technology, blending modern efficiency with Alfa Romeo's characteristic performance spirit.

Key Specifications and Innovations

The 2.0T engine in the Giulia Ti is an all-aluminium inline-four, boasting 280 hp. Let's delve into its detailed specifications:

• Type and Description: Inline-four, direct injection, turbocharger.
• Displacement: 121.7 cu. in. (1,993 cc).
• Bore x Stroke: 3.31 x 3.54 (84.0 x 89.9 mm).
• Valve System: Utilises MultiAir2 technology, a SOHC (Single Overhead Camshaft) design with four valves per cylinder and a silent chain-driven timing drive. It features a hollow assembled exhaust camshaft with end pivot roller finger followers and hydraulic lash adjusters. MultiAir2 is a groundbreaking electro-hydraulic variable valve actuation system that allows for precise control of intake valve lift and timing, optimising combustion and efficiency across the rev range.
• Turbocharger: Features a direct mount twin-scroll turbocharger with electric wastegate actuation. The intake manifold integrates a liquid-cooled charge air cooler. A twin-scroll turbocharger helps to reduce turbo lag by separating the exhaust pulses from pairs of cylinders, guiding them to the turbine wheel more efficiently.
• Fuel Injection: Gasoline direct-injection system with the injector centrally located in the combustion chamber. It operates at a maximum injection pressure of 2,900 psi, ensuring precise fuel delivery for optimal combustion.
• Construction: The cylinder head is made from permanent mold air-quenched cast aluminium alloy, incorporating an integrated exhaust manifold for improved packaging and thermal management. The crankcase is precision cast aluminium alloy with cast steel liners. The crankshaft is super-finished forged nitride steel with journals offset from the cylinder bore centerline, a design choice contributing to improved balance and reduced friction. Pistons are forged aluminium, cooled by pressure-actuated oil jets.
• Power (SAE net): 280 hp (209 kW) at 5,200 rpm, delivering an impressive 140 hp per litre.
• Torque (SAE net): 306 lb.-ft. (415 N•m) from 2,000 to 4,800 rpm, providing a broad and accessible powerband.
• Redline on the Instrument Cluster: 5,500 rpm.
• Max. Engine Speed: 6,200 rpm.

Fuel Requirements for the 2.0T Giulia

One of the most common questions regarding modern performance engines is their fuel requirement. For the 2017 Alfa Romeo Giulia 2.0T, the manufacturer explicitly recommends premium unleaded fuel, 91 octane (R+M)/2. Adhering to this specification is crucial for the engine to deliver its stated performance figures and maintain long-term reliability, especially given its direct injection and turbocharging.

The design choice of a liquid-cooled charge air cooler over an air-cooled intercooler is an interesting point. While some might argue that air-cooled systems can provide a greater degree of charge air cooling, liquid-cooled systems offer benefits such as more consistent cooling temperatures, better packaging, and often quicker response times, particularly in stop-and-go traffic conditions. The engine's low-end torque and relatively low rev limit compared to some performance units suggest a design focused on strong, usable power in everyday driving, rather than peak power at extreme RPMs.

Engine Evolution: Classic Twin Cam vs. Modern 2.0T

To highlight the significant advancements in engine technology, let's compare some key aspects of the classic Alfa Romeo Twin Cam and the modern 2.0T engine.

Frequently Asked Questions

What is an Alfa Romeo Twin Cam engine?

The Alfa Romeo Twin Cam engine is a series of internal combustion engines produced by Alfa Romeo from 1954 to 1997. It is characterised by having two overhead camshafts (one for intake valves, one for exhaust valves) per cylinder bank, which allows for more precise valve timing and higher performance compared to single overhead camshaft or pushrod designs. It was renowned for its rev-happy nature and robust design.

What makes the Alfa Romeo 2.0T engine special?

The Alfa Romeo 2.0T engine is special due to its combination of advanced technologies. It features an all-aluminium construction for lightness, a direct injection fuel system for efficiency and power, a twin-scroll turbocharger for reduced lag, and Alfa Romeo's unique MultiAir2 valve actuation system. This combination results in a highly efficient engine that delivers strong power and torque figures across a broad rev range, embodying modern performance with a distinctive Alfa character.

What fuel type does a 2017 Alfa Romeo Giulia 2.0T require?

The 2017 Alfa Romeo Giulia 2.0T requires premium unleaded fuel with a minimum octane rating of 91 (R+M)/2. Using lower octane fuel can potentially lead to reduced performance, decreased fuel efficiency, and long-term engine damage due to pre-ignition or knocking.

Can I swap parts between different Alfa Romeo Twin Cam engines?

While some complete engine swaps between different Twin Cam models (e.g., a Twin Spark engine into an older Giulia) are possible with significant engineering work, interchanging individual parts between engines of different capacities or between distinct generations (like early Giulietta engines, Giulia engines, and the later Twin Spark engines) is generally very difficult due to numerous design changes over the decades, including bore centres, oilway configurations, and flywheel bolt patterns.

What is MultiAir2 technology in Alfa Romeo engines?

MultiAir2 is an electro-hydraulic variable valve actuation system developed by Fiat (Alfa Romeo's parent company). It replaces the traditional intake camshaft with electro-hydraulic actuators that control the opening and closing of the intake valves independently for each cylinder. This allows for precise control of valve lift and timing, optimising combustion for both performance and fuel efficiency, and reducing emissions.

Why did Alfa Romeo use twin spark plugs in some engines?

Alfa Romeo adopted twin spark plugs per cylinder in some of its Twin Cam engines, particularly the later Twin Spark variants and earlier racing engines, to improve combustion efficiency. Having two spark plugs ignites the fuel-air mixture at two points simultaneously, leading to faster and more complete flame propagation across the combustion chamber. This results in more power, better fuel economy, and reduced emissions, especially in high-performance applications.

Conclusion

From the pioneering Twin Cam, an engineering marvel that powered generations of iconic Alfas and continually evolved to meet changing demands, to the sophisticated and powerful 2.0T unit that defines the modern Giulia, Alfa Romeo's commitment to engine excellence is unwavering. Each engine, in its own era, has pushed the boundaries of automotive engineering, imbuing Alfa Romeo vehicles with the unique blend of performance, sound, and character that enthusiasts worldwide have come to cherish. Whether it's the mechanical symphony of a classic Twin Cam or the potent, efficient grunt of a modern turbo, the heart of an Alfa Romeo remains a testament to the brand's enduring passion for driving.
