Magneto-Optical Traps (MOTs) are fundamental tools in atomic physics, enabling the precise manipulation and cooling of atoms. While the core principle remains the same – using a combination of magnetic fields and laser light to trap neutral atoms – there exist variations in their configuration and application. Two common distinctions are the 2D MOT and the 2p MOT. Understanding the nuances between these setups is crucial for researchers aiming to optimise their experiments. This article delves into the characteristics, applications, and key differences between 2D and 2p MOTs, providing a comprehensive overview for both seasoned physicists and those new to the field.
What is a Magneto-Optical Trap (MOT)?
Before dissecting the differences, it's essential to grasp the fundamental workings of a MOT. A MOT is a device used to cool and confine neutral atoms. It achieves this by employing six laser beams, arranged in pairs along mutually orthogonal axes (typically x, y, and z). These beams are slightly detuned to the red of an atomic resonance. Simultaneously, a spatially varying magnetic field, often generated by a pair of anti-Helmholtz coils, is applied. The interplay of these lasers and the magnetic field creates a potential well that traps and cools the atoms to extremely low temperatures, often in the microkelvin range. This cooling process is known as Doppler cooling, where the atoms preferentially absorb photons from laser beams that are moving towards them, thereby slowing them down. The magnetic field gradient then pushes the atoms towards the centre of the trap, where the laser intensities are highest.

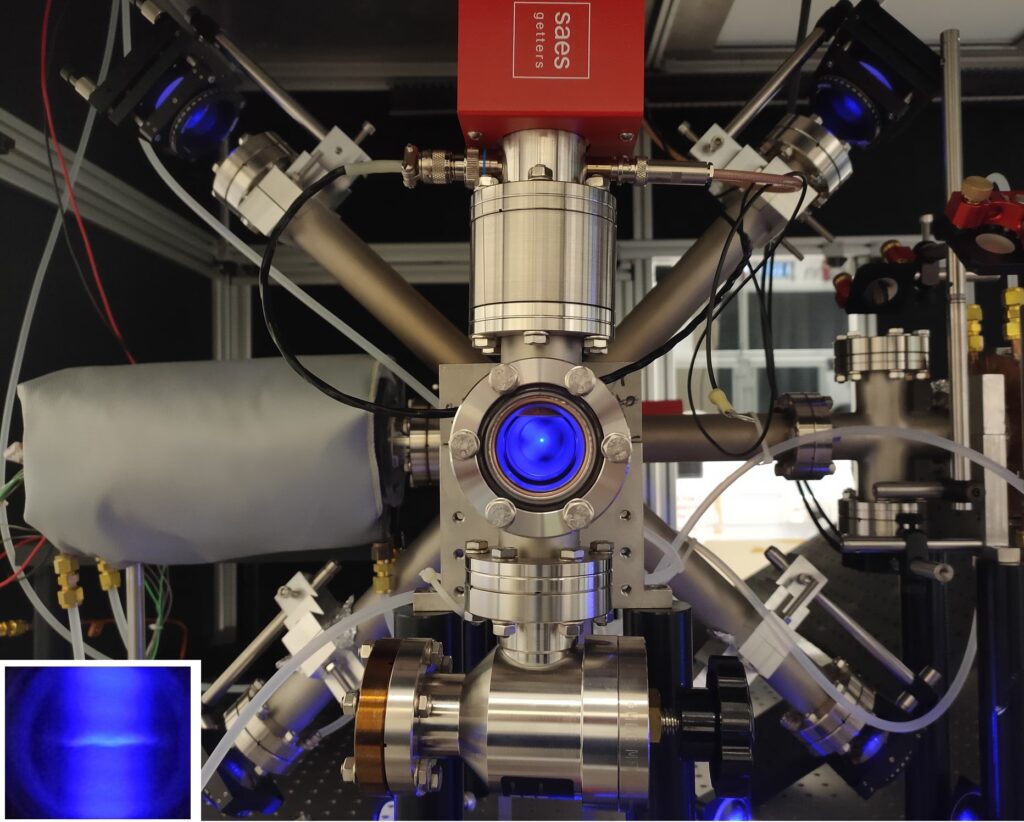

The 2D MOT: A Linear Arrangement
A 2D MOT, as the name suggests, operates in two dimensions. In this configuration, the laser beams are typically arranged in a planar fashion, often along two axes (e.g., x and y), while the magnetic field gradient is applied along the third axis (z). This setup is particularly effective at creating a longitudinal beam of cold atoms. The atoms are cooled and compressed in the transverse plane (xy), and then pushed out along the longitudinal axis (z) by the magnetic field gradient and the laser light. This results in a continuous or pulsed stream of atoms moving in a specific direction, with reduced momentum spread in the transverse directions.
Key Characteristics of a 2D MOT:
- Dimensionality: Operates in two spatial dimensions for cooling and confinement.
- Output: Produces a directed beam or flux of cold atoms.
- Applications: Ideal for loading other types of traps, such as optical lattices or Penning traps, or for creating atom beams for atomic interferometry or precision measurements.
- Simplicity: Often simpler to set up and maintain compared to 3D MOTs, especially when a specific directional atom flux is the primary goal.
The 2p MOT: A Point-like Confinement
The term "2p MOT" is less standard in the literature compared to "2D MOT" or "3D MOT". However, if we interpret "2p" as referring to a point-like confinement, it is likely referring to a standard 3D MOT where the atoms are trapped in a small, three-dimensional volume, essentially a point in space. In a typical 3D MOT, six laser beams are arranged along three orthogonal axes, and a magnetic field gradient is applied to confine atoms to a central region. The "2p" might be a colloquial or specific terminology used within certain research groups or for particular experimental setups that focus on the point-like nature of the trapped atom cloud.
A more common interpretation of "2p" in a physics context might relate to electronic energy levels, such as the 2p state of an atom. However, in the context of MOT configurations, it's more probable that it refers to the spatial dimensions of the trapping. If the question implies a difference from a 2D MOT, then a 3D MOT is the likely comparison. A 3D MOT traps atoms in all three dimensions, creating a dense, localized cloud of cold atoms.
Key Characteristics of a 3D MOT (often implied by "2p" in contrast to 2D):
- Dimensionality: Operates in three spatial dimensions for cooling and confinement.
- Output: Creates a localized, dense cloud of cold atoms.
- Applications: Essential for experiments requiring a high density of cold atoms, such as Bose-Einstein Condensation (BEC), quantum simulation, and atom lasers.
- Complexity: Generally more complex to align and optimise due to the requirement of precise alignment of six beams and the magnetic field in all three dimensions.
Comparing 2D and 2p (3D) MOTs
The fundamental difference lies in the dimensionality of the trapping and the resulting output. A 2D MOT is designed to produce a directed flow of cold atoms, whereas a 3D MOT (or what might be referred to as a "2p MOT" in a comparative context) focuses on creating a dense, localized cloud.
| Feature | 2D MOT | 2p MOT (likely 3D MOT) |
|---|---|---|
| Dimensionality of Trapping | Two dimensions (e.g., planar) | Three dimensions (volume) |
| Primary Output | Directed beam/flux of cold atoms | Localized, dense cloud of cold atoms |
| Magnetic Field Configuration | Typically a gradient along one axis | Typically a gradient in all three dimensions |
| Laser Configuration | Lasers in two orthogonal planes | Lasers in three orthogonal planes |
| Common Applications | Loading other traps, atom beams, atomic interferometry | Bose-Einstein Condensation, quantum simulation, atom lasers |
| Complexity | Generally simpler for specific applications | More complex to align and optimise |
The miniMOT Package: A Practical Implementation
The introduction mentions a "miniMOT Package" designed for producing a compact and efficient magneto-optical trap. This package likely refers to a pre-assembled unit that simplifies the setup of a MOT, potentially a 3D MOT given its commonality in research. The description highlights ease of use and rapid setup, allowing researchers to achieve a "live MOT" within hours. This is a significant advantage, as aligning the lasers and magnetic fields for a MOT can be a time-consuming and delicate process. Such packages are invaluable for laboratories that need to quickly establish atom trapping capabilities or for educational purposes.
The efficiency and compactness of such a package suggest it's engineered for optimal performance, potentially using advanced optics and vacuum systems. The ability to produce a "live MOT" implies that all necessary components – lasers, optics, vacuum chamber, and magnetic field coils – are integrated and pre-calibrated to a certain extent. This allows researchers to focus on their specific experiments rather than spending extensive time on initial setup and troubleshooting.
Frequently Asked Questions
Q1: What is the main purpose of a MOT?
A MOT is used to cool and trap neutral atoms to extremely low temperatures, enabling precise control and study of atomic behaviour. This is crucial for many areas of modern physics, including quantum computing, precision metrology, and fundamental physics research.
Q2: Can a 2D MOT be used to create a BEC?
While a 2D MOT is excellent for producing a directed beam of cold atoms, it is not typically used directly for creating Bose-Einstein Condensates (BECs). BECs require a dense, trapped cloud of atoms, which is usually achieved with a 3D MOT, followed by further cooling stages in optical or magnetic traps.
Q3: What are the advantages of using a pre-assembled MOT package?
Pre-assembled MOT packages, like the miniMOT, offer significant advantages in terms of setup time, ease of use, and reliability. They reduce the complexity of alignment and calibration, allowing researchers to focus on scientific output rather than instrumental hurdles.
Q4: How cold do atoms get in a MOT?
Atoms in a MOT can typically be cooled to temperatures in the microkelvin range. This is a significant reduction from room temperature, allowing for the observation of quantum phenomena.
Q5: What is the difference between Doppler cooling and evaporative cooling?
Doppler cooling, used in MOTs, relies on the interaction of atoms with laser light to slow them down. Evaporative cooling, often used after a MOT to reach even lower temperatures (like for BECs), involves selectively removing the most energetic atoms from the trap, allowing the remaining atoms to rethermalise at a lower average temperature.
Conclusion
The distinction between 2D and 2p (or more commonly, 3D) MOTs lies primarily in their spatial configuration and the resultant application. A 2D MOT excels at generating a directional flux of cold atoms, crucial for feeding other trapping systems or creating atomic beams. Conversely, a 3D MOT creates a localized, dense cloud of cold atoms, forming the foundation for advanced quantum experiments such as BECs and quantum simulations. Understanding these differences is paramount for selecting the appropriate MOT configuration for specific research goals. The development of integrated solutions like the miniMOT package further streamlines the process of implementing these powerful atomic physics tools, accelerating scientific discovery.
