Citroën 2CV Braking Systems Explained

The iconic Citroën 2CV, a car renowned for its simplicity and off-road prowess, underwent several modifications throughout its long production run. One area that saw significant changes was its braking system. While the fundamental goal remained the same – to safely bring the vehicle to a halt – the technology employed evolved, offering different characteristics and requiring varied maintenance approaches. Understanding these differences is crucial for any owner or enthusiast looking to maintain or restore this beloved French classic.

Early 2CV Drum Brakes

In its initial iterations, the 2CV was equipped with a full drum brake system. This means that both the front and rear wheels utilised brake drums. The principle of operation for drum brakes is straightforward. A rotating drum is attached to the wheel hub. Inside the drum, a pair of brake shoes are housed. When the driver presses the brake pedal, hydraulic fluid pressure forces these shoes outwards, pressing them against the inner surface of the rotating drum. The resulting friction slows and eventually stops the wheel.

The early 2CV drum brakes were relatively simple in design but, like many drum brake systems of the era, could be prone to issues such as fading under heavy use, especially in wet conditions, and a tendency to collect brake dust, which could affect performance over time. Regular adjustment and cleaning were essential for optimal operation. The braking feel could also be somewhat inconsistent, depending on the condition of the shoes, drums, and the hydraulic fluid.

Key components of early 2CV drum brakes:

• Brake Drums: The rotating cylindrical housing attached to the wheel hub.
• Brake Shoes: Curved metal components lined with friction material.
• Wheel Cylinders: Hydraulic cylinders that push the brake shoes outwards.
• Brake Hoses and Pipes: Carry the hydraulic fluid from the master cylinder to the wheel cylinders.
• Brake Fluid: The incompressible fluid that transmits pressure.

The Transition to Front Disc Brakes

As automotive technology advanced and performance expectations increased, Citroën made a significant upgrade to the 2CV's braking system. From the mid-1970s onwards, many 2CV models began to feature front disc brakes. This was a substantial improvement, offering better stopping power and more consistent performance, especially in adverse weather conditions.

Disc brakes operate on a different principle. A brake disc (or rotor) rotates with the wheel. A brake caliper, containing one or more pistons, straddles the disc. When the brake pedal is pressed, hydraulic fluid forces the piston(s) to push the brake pads, which are friction materials, against the surfaces of the rotating disc. The friction generated between the pads and the disc slows the wheel.

The advantage of disc brakes over drum brakes lies in their superior heat dissipation. The open design of the disc allows air to circulate and cool it more effectively, reducing the likelihood of brake fade. They are also generally more resistant to water ingress and contamination, leading to more reliable braking in wet conditions. The braking feel is often more direct and responsive.

It's important to note that not all 2CVs received front disc brakes. Earlier models and some specific variants continued with drum brakes all around. However, the introduction of front discs marked a significant step forward in the 2CV's braking capability.

Why the Change to Disc Brakes?

The shift towards front disc brakes was driven by several factors:

• Improved Performance: Disc brakes offer better stopping power and fade resistance.
• Enhanced Safety: More reliable braking in various conditions contributes to overall vehicle safety.
• Modernisation: Keeping pace with contemporary automotive engineering standards.
• Durability: Disc brake components often have a longer service life than drum brake equivalents.

Rear Drum Brakes Remain

Even with the adoption of front disc brakes, most 2CV models that benefited from this upgrade retained rear drum brakes. This configuration, often referred to as a front-disc, rear-drum system, is common in many vehicles. The reasoning behind this is that the majority of a vehicle's braking force is applied to the front wheels, especially during deceleration. Therefore, upgrading the front brakes provides the most significant improvement in stopping performance.

The rear drum brakes in these later models still performed their essential function, providing additional stopping power and stability. However, their maintenance requirements remained similar to the earlier all-drum systems, involving periodic checks of shoes, drums, and fluid.

Brake System Maintenance for the 2CV

Regardless of whether your 2CV has all-round drum brakes or front discs with rear drums, regular maintenance is paramount for safety and performance. Here’s what you should be aware of:

Brake Fluid

The brake fluid is the lifeblood of the hydraulic braking system. It's crucial to check the fluid level regularly and ensure it's topped up with the correct type (usually DOT 3 or DOT 4, but always check your specific model's manual). Brake fluid absorbs moisture over time, which lowers its boiling point and can lead to a spongy brake pedal and reduced braking efficiency, especially under heavy use. It's recommended to flush and replace the brake fluid every two years, regardless of mileage.

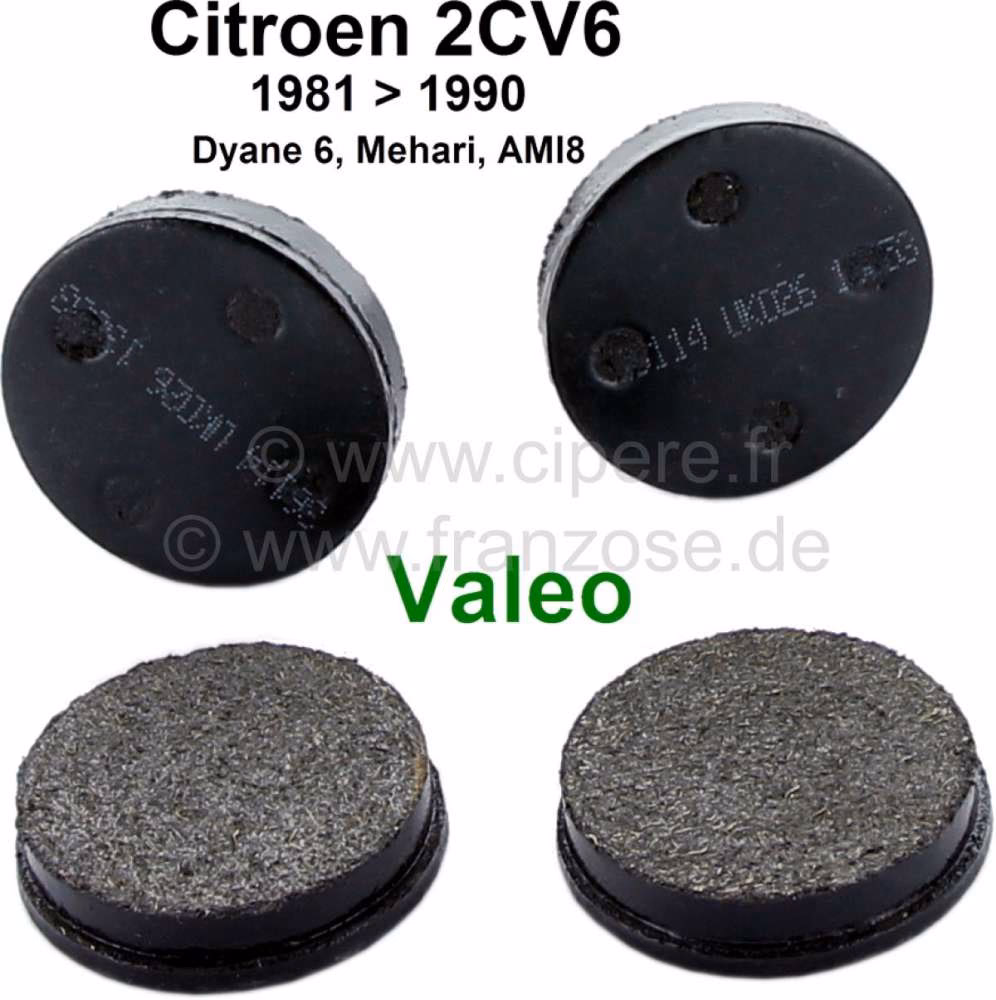

Brake Pads and Shoes

Brake pads (for disc brakes) and brake shoes (for drum brakes) are wear items. They gradually erode as they perform their braking function. Inspect them regularly for thickness. If the friction material is worn down to a minimum level (often indicated by a wear indicator groove or a minimum thickness marking), they must be replaced. Worn pads or shoes will significantly reduce your car's stopping power and can damage the discs or drums if left unchecked.

Brake Discs and Drums

Brake discs and drums also wear over time. Discs can develop scoring, warping, or become too thin. Drums can become scored or out-of-round. If discs or drums are excessively worn, corroded, or damaged, they should be replaced. In some cases, drums can be re-machined (resurfaced) to restore a smooth braking surface, but discs typically need replacement when they reach their minimum thickness specification.

Brake Hoses and Pipes

The flexible brake hoses and rigid metal pipes that carry the brake fluid can degrade over time. Rubber hoses can become cracked, perished, or develop leaks. Metal pipes can corrode. Any signs of leaks, damage, or deterioration in the brake lines must be addressed immediately, as a compromised line will lead to a complete loss of braking ability.

Troubleshooting Common 2CV Braking Issues

Here are some common problems owners might encounter and their potential causes:

Frequently Asked Questions

Q1: Do all 2CVs have disc brakes?

A1: No, only later models, typically from the mid-1970s onwards, were equipped with front disc brakes. Earlier models and some specific variants featured drum brakes on all four wheels.

Q2: Can I upgrade my 2CV to front disc brakes if it has drum brakes?

A2: Yes, it is a common and popular modification for earlier 2CVs. Conversion kits are available from various specialists, allowing you to fit front disc brakes for improved stopping power and safety.

Q3: What type of brake fluid should I use in my 2CV?

A3: Most 2CV models require DOT 3 or DOT 4 brake fluid. It is essential to consult your vehicle's owner's manual or a reputable service manual for the exact specification for your particular year and model.

Q4: How often should I change the brake fluid?

A4: It is generally recommended to flush and replace the brake fluid every two years, as it absorbs moisture from the atmosphere, which degrades its performance.

Q5: How do I know when my brake pads or shoes need replacing?

A5: Most brake pads have a wear indicator that will start to squeal when they are getting low. For both pads and shoes, visually inspect the thickness of the friction material. If it is worn down to approximately 2-3mm, or to the minimum thickness specified by the manufacturer, they should be replaced.

In conclusion, the Citroën 2CV's braking systems evolved to meet changing demands and technological advancements. Whether you're maintaining an original all-drum system or have opted for a disc brake conversion, understanding the mechanics and the importance of regular, diligent maintenance is key to keeping your beloved 2CV safe and enjoyable to drive.
