Datsun Z-Car Big Brake Upgrade: A Deep Dive

For enthusiasts of the iconic Datsun 240Z to 280Z, the pursuit of enhanced performance often extends beyond engine modifications. While these classic 'Z-cars' offer a thrilling driving experience, their braking systems, designed decades ago, can often feel inadequate by modern standards, especially when subjected to spirited driving or track days. Upgrading your brakes isn't just about going faster; it's fundamentally about safety, control, and confidence. A comprehensive disc brake upgrade can dramatically transform your Z-car's dynamics, offering superior stopping power, improved fade resistance, and a more responsive pedal feel. This article delves into a specific Stage 2 Performance Braking System designed for the 1970-1978 Datsun Z-cars, outlining precisely what's included and what you need to know before embarking on this significant enhancement.

The Heart of the Upgrade: Wilwood Calipers and Massive Rotors

At the core of this Stage 2 performance braking system lies a combination of high-quality components engineered for superior stopping. The kit is designed to provide a substantial leap over the original equipment, ensuring your classic Z can handle modern driving demands with ease.

Wilwood 4-Piston Calipers with Brake Pads

The system includes new grey Aluminum Wilwood 4-Piston Calipers, complete with brake pads. Wilwood is a renowned name in performance braking, and for good reason. A 4-piston caliper design offers several advantages over the single or two-piston calipers typically found on older vehicles:

• Even Pressure Distribution: With four pistons (two on each side of the rotor), clamping force is applied more evenly across the brake pad, leading to more consistent wear and improved braking efficiency.
• Increased Stopping Power: More pistons mean a larger total piston area, which translates to greater hydraulic force being applied to the pads, resulting in significantly increased stopping power.
• Improved Heat Dissipation: Aluminium construction helps dissipate heat more effectively than traditional cast iron, reducing the risk of brake fade during heavy use.
• Reduced Unsprung Weight: Aluminium calipers are considerably lighter than their cast iron counterparts. Reducing unsprung weight (weight not supported by the suspension) can lead to improved handling and ride quality.

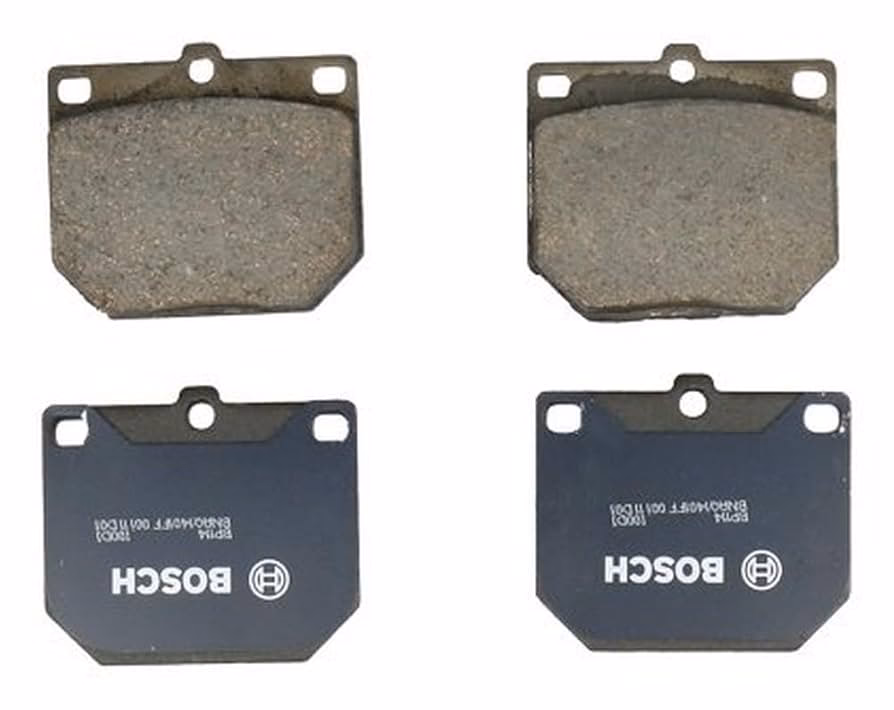

The inclusion of performance brake pads is crucial. While the specific compound isn't detailed, it's safe to assume they are designed to complement the aggressive nature of the Wilwood calipers and the large rotors, providing excellent initial bite and consistent friction across a wide temperature range.

Huge Drilled, Slotted & Vented (12 Inch) Zinc Plated Rotors

The rotors are arguably the most visually striking component of this kit, and their design features are all about maximising performance and durability. Measuring a substantial 12 inches, these rotors are significantly larger than stock, offering a greater swept area for the pads and a larger thermal mass to absorb and dissipate heat.

• Drilled: Small holes drilled into the rotor surface help dissipate heat, vent gasses that can build up between the pad and rotor (caused by pad material outgassing at high temperatures), and reduce the risk of hydroplaning in wet conditions.
• Slotted: Grooves cut into the rotor surface help to constantly clean the surface of the brake pads, remove debris, and maintain optimal friction. They also help to vent heat and gasses, reducing fade.
• Vented: The rotors are designed with internal fins that create a ventilation channel. As the rotor spins, air is drawn through these channels, cooling the rotor from the inside out. This is critical for preventing heat build-up and brake fade during repeated hard braking.
• Zinc Plated: The zinc plating provides a protective layer against corrosion, ensuring the rotors maintain their aesthetic appeal and structural integrity, especially important for cars that might see less frequent use or be stored for periods.

The combination of these features ensures exceptional stopping power and remarkable resistance to brake fade, a common issue with standard braking systems under demanding conditions.

Essential Supporting Components and Considerations

A brake upgrade is more than just calipers and rotors; it's a complete system. This kit includes several other vital components to ensure a seamless and effective conversion.

New Stainless Steel Brake Hoses

Replacing the original rubber brake hoses with new stainless steel braided lines is a significant upgrade. Standard rubber hoses can expand under hydraulic pressure, leading to a spongy pedal feel and reduced responsiveness. Stainless steel lines, by contrast, offer:

• Firmer Pedal Feel: They do not expand under pressure, ensuring that all hydraulic force is directly transmitted to the calipers, resulting in a more consistent and firm brake pedal.
• Improved Durability: Stainless steel braiding provides enhanced protection against abrasion, road debris, and general wear and tear, leading to a longer lifespan.
• Precise Modulation: The lack of expansion allows for more precise control over braking force, which is crucial for performance driving.

New CNC Aluminum Direct Bolt-On Conversion Mounting Brackets

Precision-engineered mounting brackets are paramount for any brake conversion. These CNC (Computer Numerical Control) machined Aluminium brackets ensure that the new Wilwood calipers are perfectly aligned with the larger 12-inch rotors. Being "direct bolt-on" means they are designed to fit the Datsun Z-car's existing mounting points, simplifying the installation process significantly. The use of Aluminium further contributes to reducing unsprung weight.

All New Mounting Hardware

A complete kit includes all the necessary nuts, bolts, washers, and clips required for installation. This attention to detail ensures that you have everything you need on hand, preventing frustrating delays during the upgrade process.

Important Pre-Installation Requirements and Disclaimers

While this kit offers a substantial performance boost, there are several critical considerations and requirements that potential buyers must be aware of.

Proportion Valve May Be Needed (Sold Separately)

A proportioning valve balances the hydraulic pressure between the front and rear brakes. When upgrading only the front brakes with a significantly more powerful system, the front brakes may become overly aggressive compared to the rear, leading to premature front wheel lock-up. A proportioning valve allows you to fine-tune this balance, ensuring optimal braking performance and stability. It's an important separate purchase to maximise the effectiveness and safety of your upgraded system.

Suggested 1" Brake Master Cylinder (Sold Separately)

Larger calipers and rotors require more fluid volume to operate effectively. The stock master cylinder might not be able to displace enough fluid to provide an optimal pedal feel with this big brake kit. A 1-inch bore master cylinder is often recommended because it moves a greater volume of fluid with each pedal stroke, resulting in a firmer, more responsive pedal and ensuring the calipers receive adequate pressure. Like the proportioning valve, this is a separate but highly recommended upgrade.

Requires 16" or Larger Wheels

The sheer size of the 12-inch rotors and the Wilwood calipers necessitates larger wheels for proper clearance. Standard 14-inch or 15-inch Datsun Z wheels will not provide enough room for these components. You will need to ensure your Z-car is fitted with 16-inch or larger wheels to accommodate this upgrade.

Stock Lower Control Arm Trimming

Due to the massive size of the rotors, the stock lower control arm will need to be trimmed to clear the rotor. This is a common modification for big brake kits on Z-cars and is typically a straightforward process, but it does mean a permanent alteration to the original component. Visual guides (often found on YouTube, as mentioned by the vendor) are invaluable for this step.

Custom Made-to-Order Kit: Lead Times, Returns, and Warranty

This is a custom-made-to-order kit, which means it is not a mass-produced, off-the-shelf item. This has several implications:

• Production Lead Time: Please allow 4-6 weeks for the kit to be manufactured before it is ready to ship. Once produced, allow an additional two weeks for shipping. This extended waiting period is typical for bespoke performance parts.
• No Returns or Exchanges: Due to the custom nature of the kit, all sales are final. It is crucial to be absolutely certain of your purchase before ordering, as returns or exchanges are not accepted.
• No Warranty on Performance Parts: Performance parts are often subjected to extreme conditions, and as such, they typically come without a warranty. This is standard practice in the aftermarket performance industry.

International Shipping

For international buyers, be aware that this is a heavy kit, and shipping costs are significant, quoted at $300. This is an important factor to consider in the overall cost.

Non D.O.T. Approved & No Instructions

The kit is not D.O.T. (Department of Transportation) approved. While this doesn't necessarily mean it's illegal for road use in the UK (where modifications are generally permissible if safe and roadworthy), it signifies that it hasn't undergone the rigorous testing required for official D.O.T. certification. For dedicated track use, this is often irrelevant. Furthermore, the kit will not include paper instructions. Installation is described as simple, with ample video guides and links available on platforms like YouTube from the vibrant Datsun Z-car community. This highlights the DIY-friendly nature of the Z community and the expectation that buyers have some mechanical aptitude or access to a knowledgeable installer.

Why Upgrade Your Datsun Z-Car Brakes?

Upgrading the braking system on a classic Datsun Z-car offers a multitude of benefits that extend beyond mere stopping distance. It transforms the vehicle's driving characteristics and enhances its overall performance envelope.

• Enhanced Safety: Modern traffic conditions demand better braking. A performance brake kit drastically reduces stopping distances, providing a crucial safety margin in emergencies.
• Improved Track Performance: For those who enjoy track days or spirited driving, upgraded brakes are essential to prevent fade, maintain consistent performance lap after lap, and allow for later braking into corners, improving lap times.
• Better Pedal Feel and Modulation: The combination of stiffer stainless steel lines, a larger master cylinder (if upgraded), and multi-piston calipers provides a much firmer and more linear pedal feel, allowing the driver to more accurately modulate braking force.
• Reduced Brake Fade: Larger, vented, drilled, and slotted rotors, combined with high-performance pads and calipers, are far more effective at dissipating heat, significantly reducing the likelihood of brake fade during repeated heavy use.
• Modernisation: While maintaining the classic aesthetics, upgrading the braking system brings a critical aspect of the Z-car's performance up to modern standards, making it more enjoyable and confident to drive in contemporary environments.

Comparative Overview: Stock Z Brakes vs. Stage 2 Upgrade

To put the upgrade into perspective, let's consider the general characteristics of the original Datsun Z braking system versus this Stage 2 performance kit.

Frequently Asked Questions (FAQs)

Why should I upgrade my Datsun Z-car's brakes?

Upgrading your Z-car's brakes significantly improves stopping power, reduces brake fade, enhances pedal feel, and increases overall driving safety and confidence, especially for spirited driving or track use where the original brakes may be insufficient.

Is this kit D.O.T. approved for road use in the UK?

The kit is not D.O.T. approved. While this is primarily a US certification, it means the kit hasn't undergone specific government safety testing. In the UK, vehicle modifications are generally permissible as long as the vehicle remains roadworthy and safe. It is advisable to consult with a local MOT test centre or vehicle inspector if you have concerns about legality for public road use.

Do I need a new brake master cylinder with this upgrade?

It is strongly suggested. A 1-inch bore brake master cylinder is recommended to displace sufficient fluid volume for the larger Wilwood calipers, ensuring a firm and responsive pedal feel. The stock master cylinder might result in a spongy pedal or insufficient pressure.

What size wheels are required for this brake kit?

You will need 16-inch or larger wheels to clear the significantly larger 12-inch rotors and the Wilwood 4-piston calipers.

How long does it take to receive the kit after ordering?

As this is a custom made-to-order kit, please allow 4-6 weeks for manufacturing. Shipping time will then add an additional two weeks, so plan for a total lead time of approximately 6-8 weeks from order to delivery.

Can I install this brake kit myself?

Installation is described as simple, and the kit is a direct bolt-on. However, it requires trimming of the stock lower control arm and general mechanical aptitude. There are many helpful videos and resources available on YouTube from the Datsun Z-car community to guide you through the process. If you are not comfortable with brake system work, professional installation is recommended.

What does 'Stage 2 Performance Braking System' imply?

'Stage 2' typically indicates a significant upgrade beyond basic performance, often involving larger rotors and multi-piston calipers, designed for serious performance enthusiasts who demand superior stopping power for demanding driving conditions, including track use.

What is a proportion valve, and why might I need one?

A proportion valve balances the braking force between the front and rear axles. With a substantial upgrade to the front brakes, the front can become disproportionately powerful, leading to premature front wheel lock-up. A proportion valve allows you to adjust this balance, ensuring stable and effective braking under all conditions.

Conclusion

The Stage 2 Performance Braking System for the Datsun 240Z - 280Z is a comprehensive and potent upgrade designed to dramatically improve your classic Z-car's stopping capabilities. With its powerful Wilwood 4-piston calipers, huge 12-inch drilled, slotted, and vented rotors, and high-quality stainless steel lines, it addresses the limitations of the original braking system head-on. While it requires specific wheel clearance, potential master cylinder and proportioning valve upgrades, and involves a custom lead time, the enhanced safety and performance benefits make it a worthwhile investment for any serious Datsun Z enthusiast looking to truly unleash their vehicle's potential on the road or track.
