In the world of British construction and landscaping, a solid foundation is paramount. Whether you're laying a new driveway, constructing a pathway, or embarking on a larger building project, the integrity of your base material dictates the longevity and stability of the entire structure. This is where MOT Type 1 comes into its own, standing as the undisputed champion of sub-base aggregates across the UK.
MOT Type 1 sub-base is a highly versatile and essential crushed material, meticulously engineered to provide an incredibly strong and hardwearing foundation. It's the go-to choice for professionals and DIY enthusiasts alike, ensuring that whatever you build on top remains stable and robust for years to come. But what exactly is MOT Type 1, why is it so widely used, and what makes it the superior choice for your construction needs?
What Exactly is MOT Type 1?
At its core, MOT Type 1 is a high-quality, crushed aggregate material, typically ranging in size from 0-40mm. This means it contains a carefully graded mix of fines (small particles) up to larger stones, ensuring excellent interlocking properties when compacted. The material is most commonly derived from crushed granite, limestone, or sometimes basalt, depending on the quarry and local geological availability. This natural sourcing means that the exact colour and texture of MOT Type 1 can vary significantly based on your location; a batch from Scotland might look different to one from the South East of England, for example. While these aesthetic differences are noteworthy if you're considering the material for decorative purposes, they do not impact its structural performance.
The critical characteristic of MOT Type 1 lies in its conformity to the Department of Transport's Specification for Highway Works (SHW), specifically Clause 803. This standard ensures that the material meets stringent requirements for particle size distribution, strength, and durability, guaranteeing its suitability for use in high-performance applications such as roads and heavy-duty pavements. It's this adherence to a national standard that gives it its name – Ministry of Transport (MOT) Type 1 – signifying its approved quality and reliability.
The Unrivalled Strength and Compaction of MOT Type 1
The primary reason for MOT Type 1's widespread use is its exceptional ability to compact. Thanks to its specific grading – a mix of larger angular stones and smaller fines – when subjected to compaction, such as with a vibrating plate compactor or roller, the particles interlock tightly. This creates a dense, stable, and almost impermeable layer that is resistant to settlement and provides superb load-bearing capabilities. This high level of compaction is crucial for preventing future subsidence and ensuring a level, durable surface for the layers above.
Beyond its strength, MOT Type 1 also offers excellent drainage properties. While it compacts tightly, the nature of the crushed stone still allows for the controlled passage of water, preventing waterlogging and frost heave, which can severely damage overlying surfaces like asphalt, concrete, or block paving. This combination of strength, stability, and effective drainage makes it an ideal foundation material for virtually any outdoor construction project.
Key Properties & Benefits:
- Exceptional Strength: Provides a robust and durable foundation capable of supporting significant loads.
- Superior Compaction: Achieves high density, reducing the risk of settlement and creating a stable base.
- Effective Drainage: Prevents water accumulation, mitigating issues like frost heave and sub-base erosion.
- Versatility: Suitable for a vast array of applications, from domestic driveways to major infrastructure projects.
- Quality Assured: Conforms to strict national standards (SHW Clause 803), ensuring consistent performance.
- Cost-Effective: A reliable and long-lasting solution that reduces the need for frequent repairs or replacements.
Where is MOT Type 1 Used? Common Applications
Given its impressive properties, MOT Type 1 is a cornerstone material in numerous construction and landscaping ventures across the UK. Its durability and stability make it indispensable for creating reliable foundations.
- Driveways & Pathways: This is perhaps its most common domestic use. A well-compacted MOT Type 1 sub-base is essential for any driveway, whether it's finished with block paving, gravel, resin, or asphalt. It prevents rutting and provides a firm base that won't shift under vehicle weight.
- Road Construction: As its name suggests, MOT Type 1 is the standard sub-base for public roads and highways. Its ability to withstand heavy traffic loads and provide long-term stability is critical for infrastructure projects.
- Building Foundations: For smaller outbuildings, sheds, garages, and even some extensions, MOT Type 1 can form a strong and level base before the concrete slab or ground beams are laid.
- Patios & Decking Bases: To ensure your patio slabs remain level and your decking doesn't sink, a compacted layer of MOT Type 1 provides the perfect stable platform.
- Sports Pitches & Arenas: For certain types of sports surfaces that require excellent drainage and a firm base, MOT Type 1 is often specified.
- Hard Standings: Areas designed for parking heavy machinery, skips, or storage containers benefit immensely from the high load-bearing capacity of an MOT Type 1 sub-base.
Working with MOT Type 1: Installation Tips
Proper installation is key to harnessing the full potential of MOT Type 1. While the material itself is high-quality, its effectiveness hinges on correct preparation and compaction.
- Excavation: Dig out the area to the required depth, accounting for the MOT Type 1 layer, the final surface material, and any bedding layers. Ensure the ground below is firm and level.
- Geotextile Membrane (Optional but Recommended): Laying a permeable geotextile membrane (also known as a weed membrane or ground stabilisation fabric) before adding the MOT Type 1 can help prevent the sub-base from mixing with the underlying soil, improving drainage and stability.
- Laying the Aggregate: Spread the MOT Type 1 evenly across the excavated area. For larger projects or thicker layers, it's advisable to lay the material in lifts (layers) of no more than 100-150mm at a time. This allows for more effective compaction.
- Compaction: This is the most crucial step. Use a vibrating plate compactor (whacker plate) for smaller areas like driveways or pathways, and a roller for larger areas. Pass over the material multiple times in different directions until it is thoroughly compacted and no longer moves underfoot. You'll notice the surface becoming visibly denser and firmer.
- Checking Levels: Regularly check the levels with a spirit level or laser level to ensure a consistent fall for drainage and a level surface for the next layer.
Availability and Procurement
MOT Type 1 is readily available across the UK from builders' merchants, aggregate suppliers, and sometimes even directly from quarries. It's typically sold in two main formats to suit different project scales:
- Bulk Bags: These large bags usually weigh approximately 850kg, making them ideal for larger projects like driveways or significant landscaping work. Bulk bags offer excellent value for money for substantial quantities.

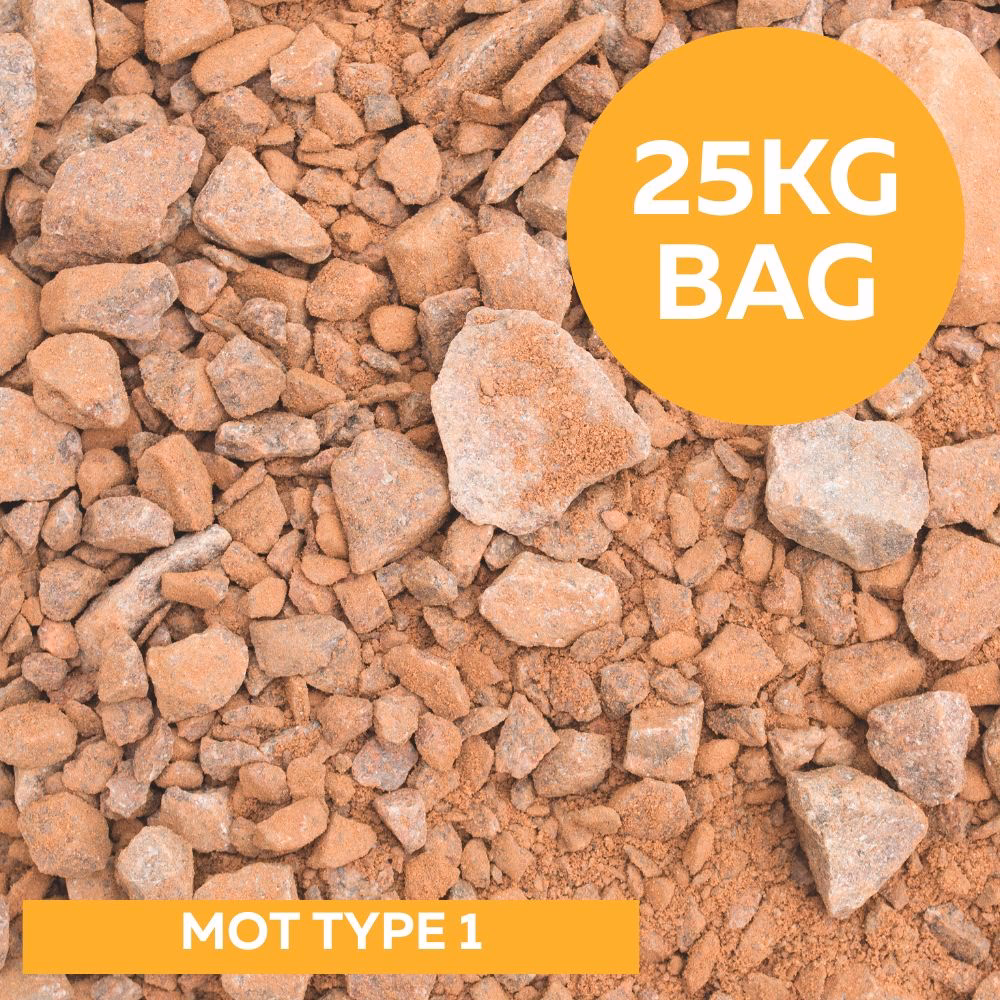

- 25kg Grab Bags: For smaller jobs, patching, or areas with difficult access, the more manageable 25kg grab bags are incredibly convenient. They are easier to transport and handle manually.
Prices for MOT Type 1 can vary based on your location (due to transport costs from quarries), the quantity purchased, and the supplier. Remember that all prices are typically subject to VAT.
| Feature | MOT Type 1 | General Crushed Concrete (Type 2/Recycled) | Sharp Sand |
|---|---|---|---|
| Composition | Crushed granite/limestone (0-40mm, graded) | Recycled crushed concrete/brick (various sizes, less consistent) | Washed, angular sand (0-4mm) |
| Primary Use | High-performance sub-base for roads, driveways, foundations | General fill, lower-spec sub-base, blinding layer | Bedding layer for paving, mixing with cement for mortar/concrete |
| Compaction Quality | Excellent, forms a very dense and stable layer | Good, but may not achieve the same density as Type 1 due to less consistent grading | Poor for sub-base alone, used for leveling/bedding |
| Drainage | Good, allows controlled water passage | Variable, can be good but less predictable than Type 1 | Poor when compacted, used to create permeable layers with other materials |
| Strength/Load-bearing | High, suitable for heavy loads and traffic | Moderate, suitable for lighter loads or secondary uses | Low, not a structural load-bearing material |
| Cost | Higher due to virgin material and strict grading | Generally lower due to recycled content | Varies, but typically lower than aggregates |
| Standards Conformance | Conforms to SHW Clause 803 | May conform to less stringent standards (e.g., SHW Clause 6F2/6F5) or none | Typically to BS EN 13139 |
Frequently Asked Questions about MOT Type 1
How much MOT Type 1 do I need?
To calculate the amount needed, measure the length, width, and desired depth of your area in metres. Multiply these three figures together to get the cubic metres (m³) required. For example, a 5m x 3m driveway with a 0.15m (150mm) sub-base would need 5 x 3 x 0.15 = 2.25m³. As a rough guide, one bulk bag (approx. 850kg) covers about 0.5m³ to 0.6m³ depending on compaction density. It's always wise to order slightly more than you calculate to account for variations and wastage.
Can I use MOT Type 1 for decorative purposes?
While MOT Type 1 is a naturally occurring material, its primary purpose is structural, not aesthetic. As mentioned, colours and textures vary significantly by location. If you're looking for a decorative finish, consider specific decorative aggregates like granite chippings, slate, or shingle, which are washed and graded for visual appeal.
What's the difference between MOT Type 1 and MOT Type 3?
Both are compliant with Ministry of Transport standards, but they have different grading. MOT Type 1 is 0-40mm and contains fines, making it ideal for high compaction and load-bearing. MOT Type 3 is typically 0-63mm and has a reduced fines content, making it 'permeable'. This means it allows water to pass through much more freely, making it suitable for SUDS (Sustainable Urban Drainage Systems) compliant driveways and areas where rapid drainage is paramount.
Why is compaction so important for MOT Type 1?
Compaction is vital because it locks the aggregate particles together, eliminating air voids and creating a dense, stable layer. Without proper compaction, the sub-base will settle over time, leading to cracks, dips, and an uneven surface in your driveway or path. It also maximises the material's load-bearing capacity.
Can I just lay MOT Type 1 directly onto soil?
While you can, it's highly recommended to prepare the ground properly first. This involves removing any topsoil, vegetation, and ensuring the ground is firm. For best results, consider laying a geotextile membrane beneath the MOT Type 1 layer. This prevents the sub-base from sinking into soft ground and helps maintain its integrity and drainage properties.
The Foundation of Success
In conclusion, MOT Type 1 is far more than just a pile of crushed stones; it's a meticulously graded and quality-controlled aggregate that forms the backbone of countless construction projects across the UK. Its exceptional standards, strength, and compaction capabilities make it the preferred choice for any application requiring a durable and stable sub-base. By understanding its properties and ensuring correct installation, you can guarantee a robust and long-lasting foundation for your next building or landscaping endeavour, ensuring that whatever you build on top stands the test of time.
