Car Alignment Costs: DIY vs. Professional

Ensuring your car's wheels are correctly aligned is paramount for safe driving, optimal tyre longevity, and efficient fuel consumption. However, the prospect of shelling out for a professional alignment, especially after significant suspension work like replacing tie rods or strut assemblies, can feel like a punch to the wallet. Many drivers find themselves in a quandary: pay the typical garage fee, which can easily creep up, or attempt the intricate task of alignment at home? This article delves into the costs associated with professional alignments in the UK and provides a detailed, practical guide for those brave enough to tackle a DIY alignment, potentially saving a substantial amount of money.

A car's wheel alignment refers to the adjustment of its suspension components to ensure the wheels are perpendicular to the ground and parallel to each other. When these angles are off, it can lead to a host of problems, from uneven tyre wear and poor handling to a crooked steering wheel and increased fuel consumption. Understanding the key alignment angles – Toe, Camber, and Caster – is fundamental to appreciating why precise adjustment is so crucial.

Understanding Car Alignment: The Core Concepts

Before diving into costs or DIY methods, it's essential to grasp the basic principles of wheel alignment. These three primary angles dictate how your tyres meet the road and significantly impact your vehicle's handling characteristics:

• Toe: This is the most critical adjustment for tyre wear. Imagine looking down at your car's wheels from above. If the front edges of the wheels are closer together than the rear edges, you have 'toe-in'. If they are further apart, it's 'toe-out'. Both too much toe-in or toe-out will cause tyres to scrub, leading to premature wear. The goal is usually a very slight toe-in for stability, or sometimes a slight toe-out for sharper turning in performance applications.
• Camber: This refers to the inward or outward tilt of the wheel when viewed from the front of the car. If the top of the wheel tilts outwards, it's 'positive camber'. If it tilts inwards, it's 'negative camber'. Excessive positive camber can lead to wear on the outer edge of the tyre, while excessive negative camber wears the inner edge. Negative camber is often used in performance setups to improve cornering grip.
• Caster: This angle describes the forward or backward tilt of the steering axis when viewed from the side of the vehicle. Positive caster means the top of the steering axis is tilted towards the rear of the car. This angle is crucial for steering stability, return-to-centre action of the steering wheel, and high-speed stability. It doesn't directly affect tyre wear as much as toe or camber, but incorrect caster can make the car feel unstable or heavy to steer.
• Thrust Angle: While not an adjustable angle in itself on most cars, the Thrust Angle indicates whether the rear wheels are tracking perfectly straight relative to the vehicle's centreline. If the rear wheels are not parallel to the front wheels (often due to a bent axle or misaligned subframe), the car will 'dog track', and the steering wheel will be off-centre even when driving straight.

How Much Does a Car Alignment Cost in the UK?

The cost of a professional car alignment in the UK can vary significantly depending on several factors, including the type of vehicle, the garage's location and reputation, and whether you require a two-wheel or four-wheel alignment. Generally, you can expect to pay anywhere from £75 to £100 for a standard four-wheel alignment. Some premium garages or specialist performance shops might charge more, especially if they offer more precise adjustments or cater to specific vehicle types.

It's important to note that this cost typically covers the alignment service itself. If your vehicle requires new parts – such as worn tie rod ends, control arms, or suspension bushes – before an alignment can be performed, these will be additional expenses. As experienced by many, including myself, undertaking major suspension repairs like replacing outer tie rods and strut assemblies often necessitates multiple alignments. Paying £75-£100 each time can quickly accumulate, making the prospect of a DIY approach highly appealing.

Factors Influencing Alignment Costs:

• Vehicle Type: Luxury cars, sports cars, or vehicles with complex suspension systems often incur higher alignment costs due to the specialised equipment or time required.
• Location: Garages in metropolitan areas or regions with higher operating costs typically charge more than those in rural areas.
• Two-Wheel vs. Four-Wheel Alignment: While some older vehicles only allow for front-wheel alignment, most modern cars, especially those with independent rear suspension, benefit from a four-wheel alignment. This comprehensive service is usually more expensive but ensures all four wheels are correctly aligned relative to each other and the vehicle's centreline.
• Required Adjustments: If the alignment is severely off, requiring significant adjustments or the freeing up of seized components, the garage might charge more for the extra labour.

The DIY Car Alignment Challenge: Is It For You?

The thought of performing your own car alignment might seem daunting, but with patience, the right tools, and a meticulous approach, it's entirely achievable. Many enthusiasts report that a carefully executed DIY alignment can often be more precise than what some shops offer, as garages might simply adjust to "within spec" rather than to specific, desired numbers.

Pros of DIY Alignment:

• Significant Cost Savings: The most obvious benefit is avoiding recurring alignment bills.
• Learning Experience: Gaining a deeper understanding of your vehicle's suspension geometry.
• Precision Control: The ability to fine-tune your alignment to exact specifications, rather than just within a broad factory tolerance.
• Convenience: No need to book appointments or spend time waiting at a garage.

Cons of DIY Alignment:

• Time and Patience: This is not a quick job. It requires careful measurement and multiple adjustments.
• Tools and Materials: An initial investment in specific tools is necessary.
• Risk of Error: Incorrect alignment can lead to rapid and irreversible tyre wear, compromised handling, and even safety issues. As a critical disclaimer: achieving a precise 1/16" total toe-in, which is often recommended, requires extreme accuracy. If you are unsure about achieving such precision, or if the thought of potentially damaging your tyres is a concern, professional alignment is undoubtedly the safer option.

Tools and Materials for a Home Alignment

Before you begin, gather the following essentials. Most are readily available and inexpensive:

• Four kitchen chairs (or sturdy, stable stands)
• Basic string or fishing line (fine and strong)
• Wide blade screwdriver or a similar sturdy pry tool
• 8 x 12-inch pieces of sheet aluminium (two per wheel, for slip plates)
• A small amount of oil (for the slip plates)
• A flat, true surface (e.g., a laminated piece of particle board, slightly smaller than your wheel diameter)
• Dial calipers or a precise ruler/tape measure
• Wrenches: 14mm (for strut bolts), 17mm (for inner tie rod), 24mm (for tie rod lock nut)
• Jack and jack stands (for camber/caster adjustment)

Step-by-Step DIY Alignment Guide

This guide will focus on adjusting camber, caster, and toe, which are the most common alignment parameters you can tackle at home.

Step 1: Vehicle Preparation and Slip Plates

Firstly, park your car on a level surface. It's crucial that the suspension is loaded as it would be when driving. To allow the tyres to rotate freely during toe adjustments without having to move the car, create simple slip plates:

1. Place one 12-inch square of sheet aluminium on the ground directly under each tyre.
2. Apply an ounce or two of oil to the centre of each aluminium square.
3. Place a second 12-inch square of aluminium on top of the oiled square. This creates an 'aluminium and oil sandwich' that allows the tyres to slide easily as you make adjustments, mimicking a professional alignment rack's slip plates.

Step 2: Camber and Caster Adjustment (Do This FIRST!)

Adjusting camber and caster should always precede toe adjustment, as altering these angles can affect toe. This process is typically done one side at a time.

1. Open your bonnet.
2. Jack up one side of the car just enough so that the tyre leaves the ground. Secure it safely with jack stands.
3. Locate the three 14mm bolts that hold the top of the strut assembly in place. Loosen these bolts just enough so you can turn them by hand.
4. Using a wide blade screwdriver or a sturdy pry bar, insert it into the large centre hole of the strut tower. Pry the centre nut towards the engine and the centre of the car (approximately a 45-degree angle away from the corner you're adjusting) as far as it will go. This action maximises negative camber and positive caster.
5. While maintaining the pry force, use your other hand to tighten one of the 14mm bolts back down firmly.
6. Release the pry bar and fully tighten all three 14mm bolts to their specified torque (typically around 20-25 ft/lbs).
7. Lower the car and repeat the process for the other side. Visually, standing at the fender looking straight down, your wheels should now have a noticeable slight negative camber.

Step 3: Setting Up for Toe Adjustment (The String Method)

The string method provides an excellent reference line for measuring Toe. This step requires precision.

1. Position one kitchen chair at each corner of the car, well in front of the front bumper and well behind the rear bumper.
2. Tie your string as close as possible to the hub centre height on each chair leg, ensuring the strings run perfectly straight along both sides of the car, passing by the wheels. The goal is an absolutely straight reference line parallel to the vehicle's true centreline.
3. Take your flat, true surface (e.g., particle board) and place it against the rear wheel. Using your dial calipers or ruler, measure the distance from the string to the board at the rear wheel. Note this measurement.
4. Move the board to the front wheel on the same side. Adjust the chair at that corner until the measurement from the string to the board at the front wheel exactly matches the rear wheel's measurement. This ensures your string line is parallel to the wheels on that side.
5. Repeat this process for the other side of the car. Now you have two perfectly straight, parallel reference lines running along each side of your vehicle.

Step 4: Measuring and Adjusting Toe

With your string lines set, you can now measure and adjust your toe angle. Remember, your car should be on the ground with the slip plates in place.

1. Place your flat board against the front wheel. You'll want to extend your measurement point as far from the hub centre as possible for greater accuracy. If using a shorter board, you might need to overlap it with a longer piece of material that extends over the tyre sidewalls.
2. Measure the distance from the string to the board at the farthest point in FRONT of the hub centre.
3. Then, measure the distance from the string to the board at the farthest point in BEHIND the hub centre.
4. Compare these two measurements. If the measurement behind the hub is significantly less than the measurement in front (meaning the back of the wheel is closer to the string), you have toe-in. If the opposite, you have toe-out. Ideally, for zero toe, these measurements should be identical. For a slight toe-in, the front measurement should be slightly less than the rear.
5. Adjusting the Tie Rods: To adjust the toe, you'll work with the inner and outer tie rod ends. First, loosen the 24mm lock nut on the tie rod. Then, using a 17mm wrench, rotate the inner tie rod.
• To increase toe-in (move the front of the wheel inwards relative to the rear), screw the inner tie rod INTO the outer tie rod end.
• To increase toe-out (move the front of the wheel outwards relative to the rear), screw the inner tie rod OUT OF the outer tie rod end.
6. Make small adjustments (e.g., a quarter or half turn at a time). After each adjustment, allow the suspension to settle by gently rocking the car or rolling it slightly forward and back on the slip plates, then re-measure. You'll be surprised how little adjustment is needed to make a significant difference. One full turn of a tie rod can equal approximately 6mm (0.2 inches) of toe adjustment.
7. Once you achieve your desired toe (e.g., zero toe, or a very slight 1/16" total toe-in), tighten the 24mm lock nut firmly.
8. Repeat for the other side.

Step 5: Steering Wheel Straightening (Thrust Angle Correction)

After achieving the desired toe on both sides, your steering wheel might still be crooked when driving straight. This indicates a thrust angle issue or simply that your individual wheel toe adjustments were not perfectly symmetrical.

1. Drive the car on a straight, level road and note how far off-centre your steering wheel is when the car is going perfectly straight.
2. If your steering wheel is turned to the left (e.g., 1/8 inch off), it means your wheels are pointing too far to the RIGHT. To correct this, you need to lengthen the tie rod on the passenger side (screw it OUT) and shorten the tie rod on the driver's side (screw it IN) by an equal amount.
3. If your steering wheel is turned to the right, your wheels are pointing too far to the LEFT. You'll need to shorten the passenger tie rod (screw it IN) and lengthen the driver tie rod (screw it OUT) by an equal amount.
4. Make very small, equal adjustments (e.g., a quarter turn or even less) to both tie rods. Test drive and repeat until your steering wheel is perfectly straight. This fine-tuning doesn't require the strings anymore.

Stock vs. Performance Alignment: What's the Difference?

Factory alignment specifications are designed for general driving conditions, prioritising stability, comfort, and tyre longevity for the average motorist. However, for enthusiasts or those participating in motorsports like autocross, these stock settings are often suboptimal. Performance alignments typically involve more aggressive settings, especially concerning camber and toe, to maximise grip during cornering.

As seen in the table, a stock Mazda 3 aims for slight toe-in both front and rear for straight-line stability. In contrast, a MazdaSpeed 3 set up for autocross might run significantly more negative camber in the front to enhance cornering grip and even slight toe-out to aid in rotation during tight turns. The rear might be set to zero toe to minimise drag and encourage rotation, whereas stock often has a touch of toe-in for stability.

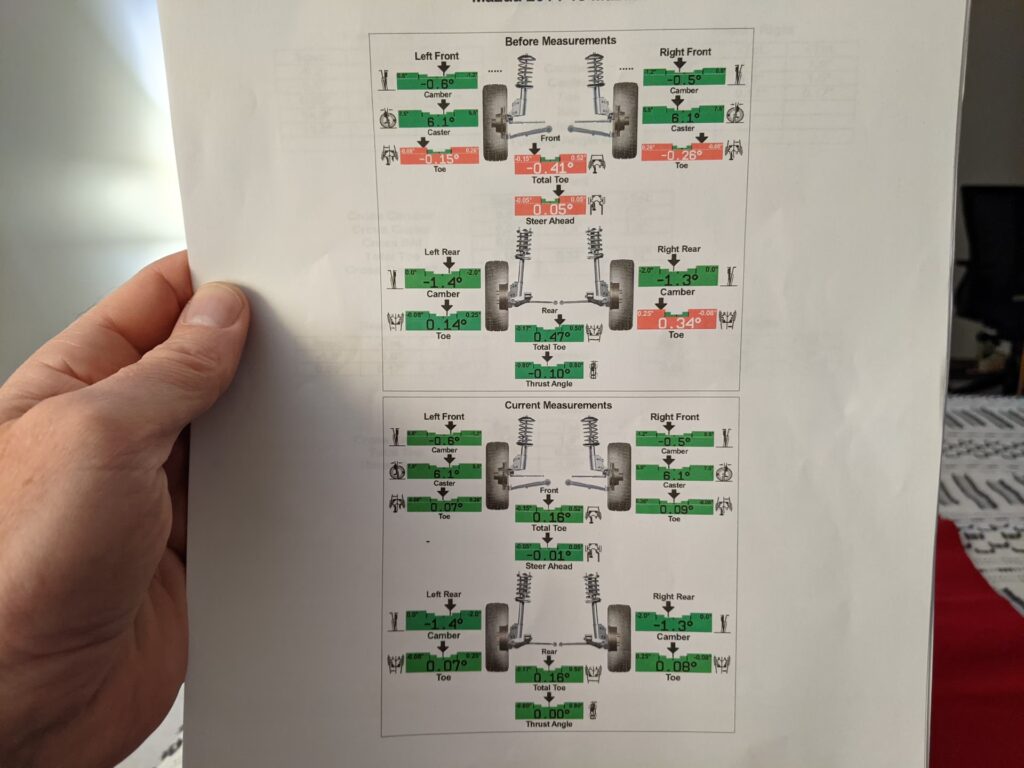

Factory Stock Alignment Specifications (Mazda 3/MS3 Unloaded Reference)

For those curious about precise factory settings, here are typical specifications (note: 1 degree = 60 arcminutes):

Professional Alignment vs. DIY: Making the Right Choice

The decision to go DIY or professional often boils down to budget, confidence, and the extent of the alignment issue. For minor tweaks after, say, a pothole incident, or if you're an avid DIYer with precision tools, doing it yourself can be rewarding and cost-effective. However, if you suspect major suspension damage, lack the necessary tools, or are simply uncomfortable with the precision required, a professional alignment is the sensible choice. Remember, a good shop will not just get it "in spec" but will work with you to achieve the specific numbers you desire, especially if you have custom requirements. Always ensure they provide a printout of the 'before and after' measurements.

Frequently Asked Questions (FAQs)

Q: How often should I get my car's alignment checked?

A: It's generally recommended to have your alignment checked annually or every 10,000 to 12,000 miles. However, you should get it checked sooner if you notice signs of misalignment, hit a large pothole, or replace any suspension components.

Q: What are the common signs of bad alignment?

A: Key indicators include uneven or rapid tyre wear, the vehicle pulling to one side, a crooked steering wheel when driving straight, or a loose/vibrating steering wheel.

Q: Can I perform a 4-wheel alignment at home with the string method?

A: Yes, the string method described is essentially a 4-wheel alignment reference. By setting the strings parallel to the rear wheels first, you establish a reference line for the entire vehicle, allowing you to align the front wheels relative to the rear and achieve a correct thrust angle.

Q: Is DIY alignment accurate enough for daily driving?

A: With meticulous attention to detail and precise measurements, a DIY alignment can be highly accurate, often exceeding the 'within spec' adjustments of some general garages. However, it requires patience and a good understanding of the principles.

Q: What are the risks of driving with incorrect alignment?

A: The primary risks are accelerated and uneven tyre wear, which can be costly. Beyond that, poor alignment compromises handling, reduces fuel efficiency, and can make the car unstable or unsafe, especially at higher speeds or during emergency manoeuvres.

Ultimately, whether you choose to brave the DIY route or opt for a professional service, maintaining correct wheel alignment is a vital aspect of car care that pays dividends in safety, performance, and the longevity of your tyres. While the DIY method offers substantial savings and a rewarding learning experience, it demands commitment to precision. Consider your comfort level and tool availability carefully before deciding to embark on your own alignment journey.
