Unlocking Your TDI Head Gasket Size: The UK Guide

When it comes to maintaining your TDI engine, understanding the specific components required for repairs is absolutely critical. One such component, often overlooked in its precise specification, is the head gasket. Unlike many parts that can be identified solely by your vehicle's model year or VIN, the correct head gasket for your TDI engine is determined by a unique characteristic: its thickness. This isn't just a minor detail; selecting the wrong thickness can lead to significant engine performance issues or even damage. The good news is, finding out exactly which head gasket your car needs is surprisingly straightforward once you know where to look and what to look for.

Engine manufacturers strive for incredible precision, but even with the tightest tolerances, slight variations can accumulate during the manufacturing process. Factors like minuscule differences in block height, or the exact size of pistons and bearings, necessitate different head gasket thicknesses to maintain optimal compression and clearances. This is why you can't rely on generic part numbers or your car's age alone; the decision on which thickness to use was often made during the original engine build. Fortunately, the method for identifying the correct thickness is built right into the gasket itself, denoted by a series of small, circular holes.

Why Head Gasket Thickness is Crucial for Your TDI

The head gasket forms a vital seal between the engine block and the cylinder head. It contains and separates the combustion gases, engine oil, and coolant, ensuring they don't mix or leak. The thickness of this gasket directly impacts the engine's compression ratio and the clearance between the pistons and the valves. If the gasket is too thin, it could lead to increased compression and potential piston-to-valve contact, especially in high-performance engines or those with specific modifications. Conversely, a gasket that is too thick will lower the compression ratio, which can reduce engine efficiency and power output. Given the inherent variations in engine component dimensions from the factory, multiple gasket thicknesses are produced to compensate and ensure each engine operates within its designed parameters. Replacing your head gasket with one of the incorrect thickness, even if it's for the correct engine code, can lead to costly and frustrating problems down the line, including poor running, excessive oil consumption, or even catastrophic engine failure.

Decoding the 'Holes' System: Your Guide to Head Gasket Size

Identifying the correct head gasket thickness for your TDI is made simple by a clever, factory-stamped indicator: small, circular holes on a tab of the gasket itself. These are not random markings but a precise code. The thickness of the gasket is denoted by the number of these "holes," typically appearing as “1 Hole,” “2 Hole,” or “3 Hole” thickness. It's crucial to understand that these are physical, circular perforations stamped into a small, protruding tab on the gasket, usually visible from the front of the engine. There are only three valid sizes: 1, 2, or 3 holes. If you encounter a tab with no holes, or more than three, you are likely looking at the wrong part of the gasket or an unrelated component. It's also important to note that any elongated or non-circular holes on the tab do not count towards the thickness designation; only the distinct, circular holes matter. This system provides a definitive way to ensure you're installing the exact replacement your engine requires.

Step-by-Step: Locating Your TDI's Head Gasket Thickness

Finding your head gasket thickness is a straightforward process that requires minimal tools and time. Follow these steps to correctly identify the 'hole' count on your TDI's existing head gasket:

Step 1: Prepare Your Vehicle

Begin by ensuring your vehicle is on a level surface and the engine is cool. Safety first!

Step 2: Open the Bonnet

Walk to the front of your vehicle and release the bonnet catch. Carefully lift the bonnet to gain access to the engine bay.

Step 3: Remove the Engine Cover

Most TDI models feature a plastic engine cover that needs to be removed to expose the engine components. On many models, this cover is secured by three 10mm nuts, often located under small, circular plastic caps arranged in a triangular pattern. Use a 10mm socket and ratchet to carefully remove these nuts, then lift the cover off and set it aside in a safe place.

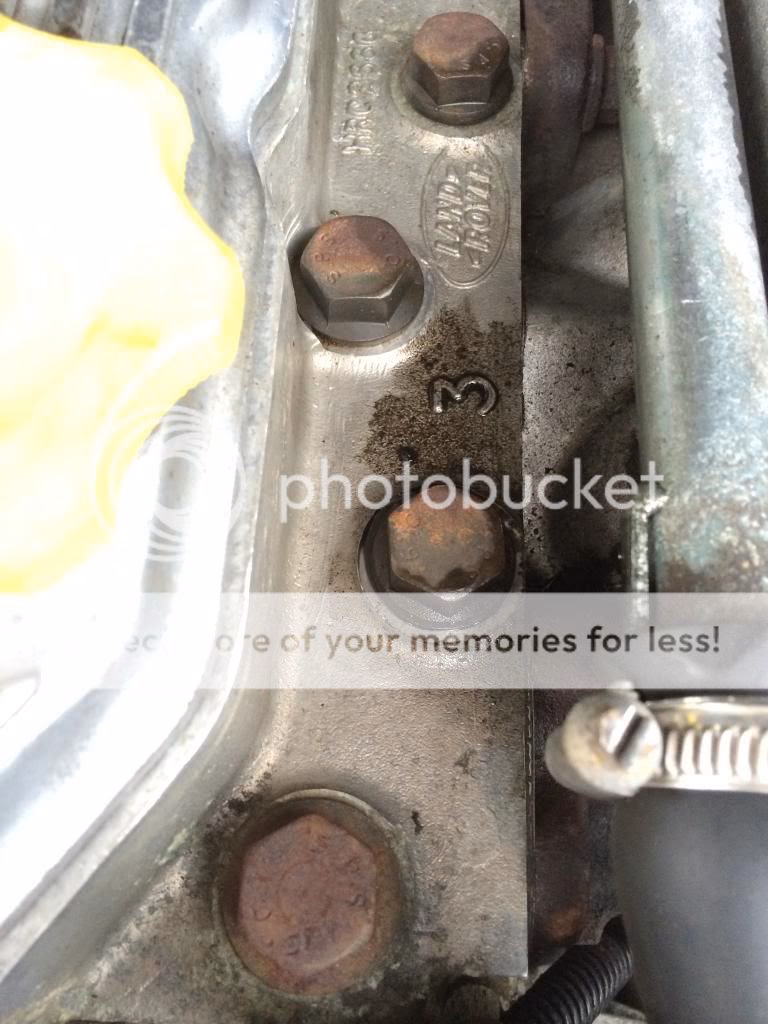

Step 4: Locate the Gasket Tab

With the engine cover removed, you will need to look into the engine bay. The specific location of the head gasket tab can vary slightly between TDI models, but generally, you'll be looking between the injection pump and the engine block. If your TDI model doesn't have an injection pump, your view will be unobstructed, making the tab even easier to spot. The tab is a small metal protrusion from the head gasket, often located towards the front or side of the engine block, just below the cylinder head line. It might be a bit dirty, so a torch can be helpful.

Step 5: Identify and Count the Holes

Once you've located the small metal tab, carefully examine it for the circular holes. These holes are usually clearly stamped into the tab. Count only the distinct, circular holes. Remember, elongated holes or any other non-circular markings do not count towards the gasket's thickness designation. The number of circular holes you count – one, two, or three – indicates the required head gasket size. For example, if you see two circular holes, you need a "2-hole" head gasket. If you find a tab with no holes, or with four or more holes, you are likely looking at the wrong part of the engine or an incorrect marking.

Common TDI Head Gasket Part Numbers by 'Hole' Count

To assist you further, here is a comprehensive table of common TDI engine codes, their corresponding vehicle models, and the OEM Part Number for each of the three head gasket thicknesses. Always double-check these part numbers with your supplier to ensure compatibility with your specific vehicle and engine code.

Frequently Asked Questions About TDI Head Gasket Thickness

Q1: Why can't I just use my car's VIN or model year to find the head gasket size?

While VINs and model years are excellent for identifying many vehicle components, they often don't provide the precise head gasket thickness. As discussed, small manufacturing variations in engine block height, piston size, and bearing clearances meant that the correct gasket thickness was often selected during the engine's original assembly to compensate. This specific selection is not typically encoded in a standard VIN lookup, making the 'holes' method the only reliable way to determine the exact gasket needed for your specific engine.

Q2: What happens if I install a head gasket of the wrong thickness?

Installing a head gasket that is too thin can lead to an increased compression ratio, potentially causing pre-ignition (knocking) or even piston-to-valve contact, which can severely damage your engine. Conversely, a gasket that is too thick will lower the compression ratio, resulting in reduced engine power, decreased fuel efficiency, and potentially rough running. In either scenario, engine longevity and performance will be negatively affected, making the correct thickness absolutely paramount.

Q3: Are there any other ways to identify the head gasket thickness if I can't see the tab?

Unfortunately, the 'holes' on the tab are the industry-standard and most reliable method for determining the original head gasket thickness on TDI engines. While professional mechanics might have access to specialised tools or databases, these often rely on the same underlying principle. If the tab is obscured or severely damaged, it might indicate a more extensive engine inspection is required, possibly involving partial disassembly to safely identify the correct part.

Q4: What tools do I need to find the head gasket size?

To find your head gasket size, you'll typically need a 10mm socket and a ratchet to remove the engine cover. A good torch (flashlight) can also be incredibly helpful to illuminate the area where the gasket tab is located, especially if it's in a tight or shadowy spot. No specialised diagnostic tools are required for this particular identification process.

Q5: Is replacing the head gasket a DIY job?

While identifying the head gasket thickness is a straightforward task for a competent DIY enthusiast, the actual replacement of a head gasket is a highly complex and labour-intensive job. It requires specialised tools, precise torque settings, timing adjustments, and significant mechanical knowledge. Incorrect installation can lead to severe engine damage. Therefore, head gasket replacement should almost always be left to experienced mechanics or automotive professionals.

In conclusion, correctly identifying your TDI's head gasket thickness is a vital step in ensuring the longevity and optimal performance of your engine. By understanding and utilising the simple 'holes' system, you can confidently source the correct replacement part, avoiding common pitfalls associated with incorrect gasket selection. This small effort upfront can save you significant time, money, and headaches down the road, keeping your beloved TDI running smoothly and efficiently for years to come. Always remember to prioritise accuracy and, when in doubt about the replacement process itself, consult with a qualified professional.
