Understanding Low Oil Pressure in Your Audi Q5 2.0T
Low oil pressure in an engine is a serious concern that, if left unaddressed, can lead to catastrophic damage. For owners of the 2012 Audi Q5 with the 2.0T engine, encountering this issue, particularly after performing significant maintenance such as replacing balance shafts, can be a perplexing and worrying experience. This article delves into the potential reasons behind low oil pressure in your Q5, with a specific focus on scenarios following balance shaft replacement, and provides a comprehensive guide to diagnosing and resolving the problem.
The symptoms described – 5 psi at idle after warm-up and a maximum of 25 psi – are indeed indicative of a significant oil pressure deficit. Optimal oil pressure is crucial for lubricating all moving parts within the engine, from the crankshaft and camshafts to the turbocharger and the balance shafts themselves. When pressure drops, these components can suffer from increased friction, heat, and premature wear.
The Role of Balance Shafts in Oil Pressure
The information provided highlights a critical point: the balance shafts in the Audi 2.0T engine have been implicated in oil pressure issues. The intake balance shaft, in particular, is noted to be one of the first components to suffer from low oil pressure. This is due to its design, which includes small plastic filters within its oil orifices. These filters can melt and congeal under low oil pressure conditions, leading to oil flow blockage and, consequently, the seizure of the balance shaft itself. This was the experience of one user who found their intake balance shaft seized.
The scenario presented involves replacing both balance shafts and performing a timing chain service. Following this, the vehicle now exhibits low oil pressure. This raises a crucial question: could the newly installed balance shafts be the cause of the low oil pressure? The suspicion is that the new balance shafts might be undersized, leading to a drop in oil pressure. While it might seem counterintuitive for new parts to cause such a problem, manufacturing tolerances, incorrect part specifications, or even a batch defect are possibilities that cannot be entirely ruled out without thorough investigation.
Troubleshooting Low Oil Pressure After Balance Shaft Replacement
When faced with low oil pressure post-balance shaft replacement, a systematic approach to troubleshooting is essential. Here’s a breakdown of potential causes and diagnostic steps:
- Incorrect Balance Shaft Installation or Part Number: While unlikely if performed by a reputable mechanic, double-checking that the correct part numbers for the balance shafts were used is paramount. Also, ensure they were installed precisely according to Audi's technical specifications. Any deviation in installation could impact oil flow dynamics.
- Defective New Balance Shafts: As mentioned, the possibility of the new balance shafts being undersized or having internal manufacturing defects that affect oil flow needs to be considered. This is a more complex issue to diagnose and might require removing the shafts for inspection or testing by a specialist.

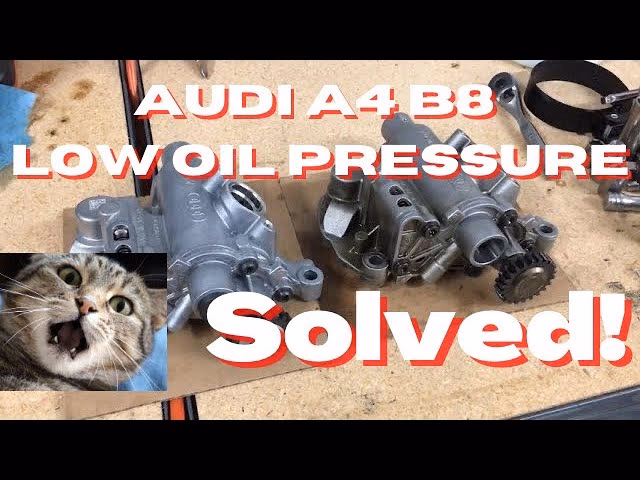

- Oil Pump Issues: The oil pump is the heart of the lubrication system. If the oil pump is failing or has been damaged during the balance shaft replacement process, it could lead to low oil pressure. Symptoms of a failing oil pump can include a gradual decrease in oil pressure over time or pressure that fluctuates significantly.
- Oil Filter or Oil Cooler Issues: A clogged oil filter will restrict oil flow, leading to reduced pressure. Similarly, if the oil cooler has been damaged or its lines are obstructed, it could also contribute to low pressure. Ensure the oil filter is the correct one for the vehicle and has been installed properly.
- Oil Level and Viscosity: While basic, ensuring the engine oil level is correct and that the oil's viscosity is as per the manufacturer's recommendation is fundamental. Using an oil that is too thin, especially when hot, can result in low pressure.

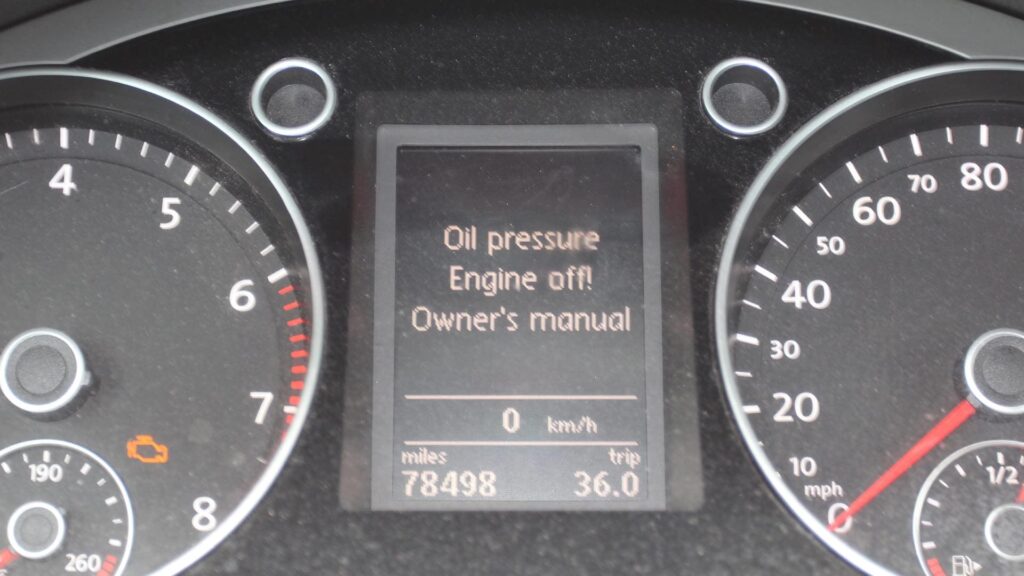

- Oil Pressure Sensor or Switch: A faulty oil pressure sensor or switch could be providing inaccurate readings, making it seem like there's low oil pressure when there isn't. However, given the distinct low pressure readings (5 psi at idle), this is less likely to be the sole cause if the engine is indeed exhibiting signs of inadequate lubrication.
- Internal Engine Wear: Although the balance shafts were replaced, underlying wear in other engine components, such as crankshaft or camshaft bearings, could contribute to low oil pressure. This is more common in higher mileage engines but can be exacerbated by previous low-pressure events.
The N428 Oil Control Valve and its Relation to Oil Pressure
The N428 oil control valve, also known as the camshaft adjuster solenoid, plays a role in managing oil flow to the camshaft actuators for variable valve timing. While not directly responsible for overall engine oil pressure, a malfunctioning N428 valve can indirectly affect how the engine performs under certain conditions and might be perceived as an oil pressure issue. One user reported replacing their N428 valve, even though they suspected the original was functioning correctly, after testing that it was receiving a signal.
The discussion also touches upon the oil filter drain valve. The observation that it unscrews easily and the spring felt reasonably stiff, with compressed but not damaged O-rings, suggests that this particular valve might not be the primary culprit for significant pressure drops. However, hardened O-rings could still contribute to minor leaks or inefficiencies.
Common Causes of Low Oil Pressure in Audi Engines
Beyond the specific scenario of balance shaft replacement, several common factors can lead to low oil pressure in Audi engines:
| Potential Cause | Description | Diagnostic Steps |
|---|---|---|
| Worn Oil Pump Gears | The oil pump gears wear down over time, reducing their efficiency in pressurising the oil. | Check oil pressure with a mechanical gauge. If consistently low, the oil pump may need replacement. |
| Worn Main Bearings or Rod Bearings | Excessive clearance between the crankshaft journals and the bearings allows oil to escape, reducing pressure. | Listen for knocking or rattling sounds from the engine. Oil pressure readings will be low, especially when warm. May require engine disassembly for inspection. |
| Clogged Oil Pickup Screen | Debris in the oil pan can block the oil pickup screen, restricting oil flow to the pump. | Inspect the oil pickup screen during an oil change. Clean or replace if found to be clogged. |
| Internal Oil Leaks | Cracked oil passages, faulty oil cooler seals, or worn internal components can cause oil pressure loss. | Requires careful inspection of engine components and oil passages. |
| Incorrect Oil Viscosity | Using oil that is too thin for the operating conditions will result in low pressure. | Ensure the correct viscosity oil (e.g., 5W-30, 0W-30 as per Audi specification) is used. |
What to Do If You Suspect Undersized Balance Shafts
If the evidence strongly points towards the new balance shafts being undersized, the course of action involves:
- Consulting the Repair Shop: If the work was done by a professional, discuss your findings and concerns with them. They should be able to investigate further, potentially by contacting the parts supplier or re-examining the installation.
- Verifying Part Numbers: Obtain the part numbers of the balance shafts that were installed and cross-reference them with Audi's official parts catalogue for your specific Q5 model and engine.
- Mechanical Oil Pressure Test: Have a trusted mechanic perform a test using a calibrated mechanical oil pressure gauge. This will provide a definitive reading, independent of the vehicle's electronic sensors. Compare these readings to the manufacturer's specifications at different RPMs and engine temperatures.
- Considering a Reputable Specialist: If the issue persists and the original repairer cannot resolve it, seeking a second opinion from an Audi specialist with extensive experience in these engines is advisable.
The seizure of the intake balance shaft due to melted plastic filters is a known failure mode. The possibility that replacement shafts could *cause* low pressure, rather than being a consequence of it, is a more unusual but not impossible scenario, especially if aftermarket or incorrectly specified parts were used.
Frequently Asked Questions
Q1: What are the normal oil pressure readings for a 2012 Audi Q5 2.0T?
Typically, at idle when warm, oil pressure should be around 20-25 psi, and at higher RPMs (e.g., 2500-3000), it should increase significantly, often to 50-60 psi or more, depending on the specific engine and oil used. The readings of 5 psi at idle and 25 psi max are definitely too low.
Q2: Can a faulty oil pressure sensor cause my Q5 to show low oil pressure?
Yes, a faulty sensor can provide incorrect readings. However, if the engine is making unusual noises or if you've recently experienced low oil pressure and the engine has run low on oil, it's crucial to verify the pressure with a mechanical gauge first before assuming the sensor is the sole issue.
Q3: Is it safe to drive my Audi Q5 with low oil pressure?
Absolutely not. Driving with low oil pressure deprives critical engine components of lubrication, leading to rapid and severe wear, potentially causing irreversible engine damage. It is best to stop driving the vehicle immediately and have it diagnosed.
Q4: If balance shafts seize, does that always mean low oil pressure?
A seized balance shaft is usually a consequence of low oil pressure, as the internal filters clog and cause the shaft to seize. However, as discussed, there's a theoretical possibility that improperly manufactured or specified replacement balance shafts could contribute to low oil pressure.
Q5: What is the function of the oil filter drain valve?
The oil filter drain valve is designed to allow oil to drain from the filter housing when the filter is replaced. If it doesn't seal properly or leaks, it could be a minor source of oil loss, but it's unlikely to cause the severe pressure drops described unless there's a significant internal fault.
Conclusion
Low oil pressure in your 2012 Audi Q5 2.0T, especially after a balance shaft replacement, requires immediate and thorough investigation. While the initial suspicion may fall on the recently replaced parts, a comprehensive diagnostic process should also consider the oil pump, oil filter, oil level, and the overall health of the engine's lubrication system. By systematically working through potential causes and employing accurate diagnostic tools, you can identify and rectify the problem, ensuring the longevity and reliability of your Audi Q5's engine.
