WWII Italian Autoblinda: The AB 40 & 41

During the tumultuous years of the Second World War, nations across the globe were rapidly developing and deploying new armoured fighting vehicles to gain a decisive edge on the battlefield. Italy, though perhaps not as prolific as some of its Axis and Allied counterparts in terms of sheer numbers, also contributed its own unique designs to the armoured warfare landscape. Among these was the Autoblinda series, a range of Italian armoured cars that saw significant service, particularly in the North African and Balkan theatres. The most prominent members of this family were the Autoblinda 40 (AB 40) and its more widely produced successor, the Autoblinda 41 (AB 41).

The Genesis of the Autoblinda

The story of the Autoblinda begins in 1937 when the Italian Ministry of War issued a specification for a new armoured car. The requirement was for a versatile vehicle capable of undertaking long-range patrols for colonial police forces and acting as a reconnaissance asset for the burgeoning armoured formations of the Italian Army. The need for such a vehicle became increasingly apparent as Italian commanders observed the effectiveness of British armoured cars operating in North Africa, highlighting a gap in their own mechanized capabilities. Previously, Italy had relied on motorcycles and even horse-mounted cavalry for reconnaissance duties, a reliance that was becoming increasingly anachronistic in the face of modern warfare.

In May 1939, a consortium formed by Fiat-SPA and Ansaldo-Fossati presented their proposal: the Abm 1. This prototype was showcased at the inauguration of the new Fiat Mirafiori plant near Turin. Two prototypes were built, one tailored for military use and the other for police duties. Following rigorous trials by the Army, the design underwent significant modifications. These included a redesigned front hull, recessed headlamps protected by armoured covers, improved ventilation systems, new cast spoked wheels, and shorter, flatter mudguards. By May 1940, the armoured car was officially standardised and adopted with the designation Autoblinda 40, leading to an initial order for 176 vehicles. The first AB 40s began to roll off the production lines and into service in March 1941.

Autoblinda 40: The Precursor

The initial iteration, the Autoblinda 40, was produced in relatively small numbers in 1940. Its armament consisted of two 8 mm Breda machine guns mounted in a turret. However, even as production commenced, there was a recognised need for more potent firepower. This led to the rapid redesign of the vehicle into the AB 41. The AB 40 and AB 41 were fundamentally the same chassis and hull, with the primary difference being the turret. Most of the 24 AB 40s that were built were subsequently converted to the AB 41 standard, effectively upgrading their combat capability.

Autoblinda 41: The Workhorse

The Autoblinda 41, named after its year of primary production, 1941, represented a significant improvement over its predecessor. Constructed with an all-riveted hull, the AB 41 was equipped with a four-wheel drive system and, notably, a four-wheel steering system. While this offered excellent manoeuvrability, the four-wheel steering proved to be somewhat troublesome in practical application. A clever design feature were the spare wheels mounted on its sides; these were free to rotate and could assist the vehicle in traversing rough terrain and overcoming obstacles.

The AB 41 was also highly adaptable. It could be fitted with special wheels and bogies, allowing it to operate on railway tracks, a capability that proved invaluable for anti-partisan operations in the Balkans. These rail-capable variants were designated AB 41 Ferroviaria and often featured sandboxes and rail guards to help clear the tracks.

Technical Specifications and Performance

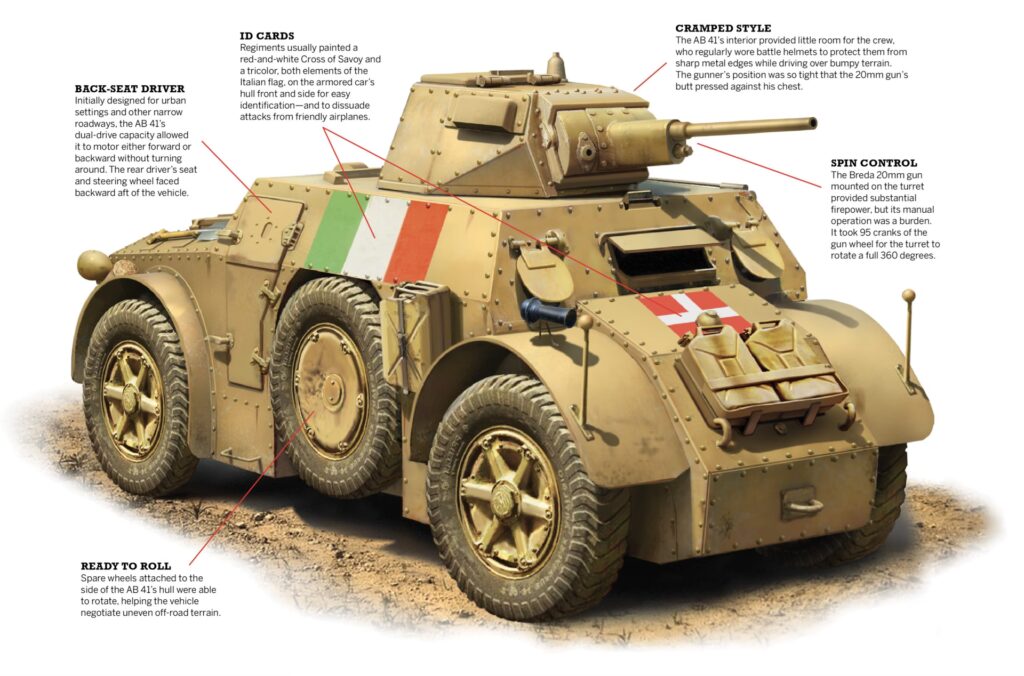

The AB 41 was powered by a 6-cylinder engine, initially producing 80 horsepower, later upgraded to 120 horsepower in 1942 models. This provided a top speed of approximately 70 km/h (45 mph) on roads. The vehicle featured a unique dual driving position, with a driver at both the front and rear of the vehicle, allowing for quick reversal of direction without needing to turn the entire vehicle around. This, combined with six forward and four reverse gears, contributed to its impressive manoeuvrability. The crew typically consisted of four men.

The armour protection of the AB 41 was rated at 15 mm on the front plates, offering a reasonable defence against small arms fire and shell splinters, though it was vulnerable to heavier anti-tank weapons. The overall design was considered well-thought-out for its era, providing good road and cross-country performance. However, like many vehicles of the period, there were some design shortcomings. These included difficult access to the engine for maintenance, an unprotected fuel tank, a one-man turret that could be a strain on the gunner, exposed traverse gears, and the lack of an interior bulkhead separating the engine compartment from the crew.

Despite these minor flaws, the AB 41 was generally regarded as a capable and one of the better armoured cars of its time. Its chassis even served as the basis for the SPA-Viberti AS.42, a more heavily armed variant. Approximately 550 AB 41 vehicles were built.

Armament

The standard armament of the AB 41 consisted of a potent 20 mm Breda 35 autocannon mounted in the turret, complemented by a coaxial 8 mm Breda machine gun. An additional 8 mm Breda machine gun was typically mounted in the hull, facing rearward, providing protection against pursuing enemy forces.

Combat History

The Autoblinda 41 saw extensive combat service throughout World War II, deployed in theatres including North Africa, Yugoslavia, Italy, Hungary, and even on the Eastern Front. The Italian Army primarily issued the AB 41 to its cavalry units, the Italian Africa Police (Polizia dell'Africa Italiana - PAI), and Bersaglieri formations. These vehicles were typically organised into reconnaissance battalions, often comprising three or four companies. Each armoured car company usually consisted of three platoons, with four armoured cars per platoon, plus additional vehicles for the company commander and headquarters, totalling between 42 and 56 AB 41s. These independent armoured car companies proved highly effective in their designated roles of reconnaissance, escort, and security duties.

The adaptability of the AB 41 was a key factor in its deployment across diverse environments. Its ability to be fitted with sand tyres for desert operations and its rail-running capability made it a versatile asset. The rail-converted AB 41 Ferroviaria variants were particularly useful for anti-partisan patrols in the rugged terrain of the Balkans. Following the Italian Armistice of Cassibile in September 1943, German forces seized approximately 57 AB 41s. The Germans continued to produce and operate these vehicles, designating them as the Panzerspähwagen AB41 201(i), and manufactured an additional 120 units.

The Unfulfilled AB 43

Plans were in motion to further upgrade the AB 41 with a more powerful 47 mm anti-tank gun, which would have resulted in the AB 43. However, these ambitious upgrade plans were unfortunately disrupted and ultimately derailed by the Armistice of Cassibile in September 1943, which marked Italy's surrender and the subsequent occupation by German forces. This meant that the more potent AB 43 never entered widespread production or service.

Post-War Service and Legacy

Even after the war, the Italian Army continued to utilise the AB 41. Its robust design and operational effectiveness ensured its place in the post-war Italian military for a time. Today, several examples of the Autoblinda 41 survive, preserved in museums and private collections, serving as tangible reminders of Italy's contribution to armoured car development during World War II.

Frequently Asked Questions

Why did the Italian Army use armoured cars?

The Italian Army, a pioneer in the use of armoured cars since 1912 with the FIAT Arsenale, highly valued them for their role in long-range reconnaissance for armoured divisions and for providing support to infantry actions. They were seen as essential for modern warfare's need for speed and battlefield awareness.

When did Italy start using armoured cars?

Italy was an early adopter, beginning its use of armoured cars in 1912. However, by the time Italy entered World War II in 1940, its mechanized forces were relatively small, and reconnaissance was often left to motorcycles and cavalry. The effectiveness of British armoured cars in North Africa spurred a greater demand for modern, fast reconnaissance vehicles, leading to the development of the AB 40 and its successors.

How many armoured vehicles did Italy make during WW2?

Italy produced over 550 Autoblinda vehicles during World War II. These armoured cars, with an approximate 8-ton weight and powered by a 120-horsepower engine, could reach speeds of up to 48 mph and had an operational range of nearly 250 miles, typically carrying a crew of four.

How many armoured cars were deployed during the Italian Civil War?

While the provided information doesn't directly detail the Italian Civil War, it notes that during the Great Partisan Insurrection on 25th April 1945, many AB series armoured cars, primarily AB 43s (though the text mentions AB43 as a planned upgrade, not a deployed variant in large numbers before the civil war), were captured by Italian Partisans. The logistical challenges of the civil war meant that only a limited number of armoured vehicles were generally deployed by partisan forces.
