Mazda 13B Rotary Rebuild Costs: Your UK Guide

The Mazda rotary engine, a marvel of automotive engineering produced from 1970 to 2012, holds a unique place in the hearts of enthusiasts. Known for its compact size, high-revving nature, and distinctive sound, it delivers an exhilarating driving experience. However, like any performance engine, the rotary eventually requires careful attention and, often, a rebuild to restore its peak performance and reliability. Understanding the costs involved and what goes into a professional rebuild is crucial for any owner contemplating this vital maintenance.

When considering a rebuild, it's not simply about replacing parts; it's about precision, expertise, and a deep understanding of the rotary's intricate design. Reputable builders, such as Pettit Racing with over three decades of experience and more than 2,000 rotary engines under their belt, offer comprehensive solutions tailored to your engine's specific needs, whether it's a standard refresh or a high-performance race build.

Understanding the Rotary Engine Rebuild Process

Embarking on a rotary engine rebuild is a significant undertaking that begins with a thorough assessment. For those able to bring their engine to a specialist workshop, the process typically starts with a detailed disassembly inspection and failure analysis. This crucial step, often taking between 20 to 40 minutes, allows experienced technicians to identify any internal damage to core components, especially if an apex seal has failed. Blown apex seals often lead to secondary damage, making this initial inspection invaluable.

Once the failure analysis is complete and all damaged components are identified, a precise, written quote for all necessary parts and the rebuild labour can be provided. This transparency ensures you understand the full scope and cost before any work commences. A standard rebuild process, from assessment to completion, generally takes between 5 to 10 working days, depending on the extent of damage and parts availability.

Cost Breakdown for Standard 13B Rebuilds

The cost of rebuilding a Mazda 13B rotary engine largely depends on the condition of your existing core parts and the level of service desired. If your main core components are within usable tolerances, a specialist like Pettit Racing can offer various stages of rebuilds. These services typically apply to nearly every two-rotor engine produced by Mazda between 1970 and 2012.

Pettit Racing's Stage One Rebuild

For as little as $4,500, you can get a street ported and blueprinted Pettit Stage One engine. This comprehensive package focuses on essential components to restore reliability and performance. It includes:

• All new rubber seals throughout the engine.
• Genuine Mazda apex seals.
• All new springs throughout the engine.
• Rotor housing exhaust porting.
• Exhaust sleeve modifications.
• Cooling channel machining.

This stage is ideal for engines needing a thorough refresh with a focus on core reliability and minor performance enhancements.

Pettit Racing's Stage Two Rebuild

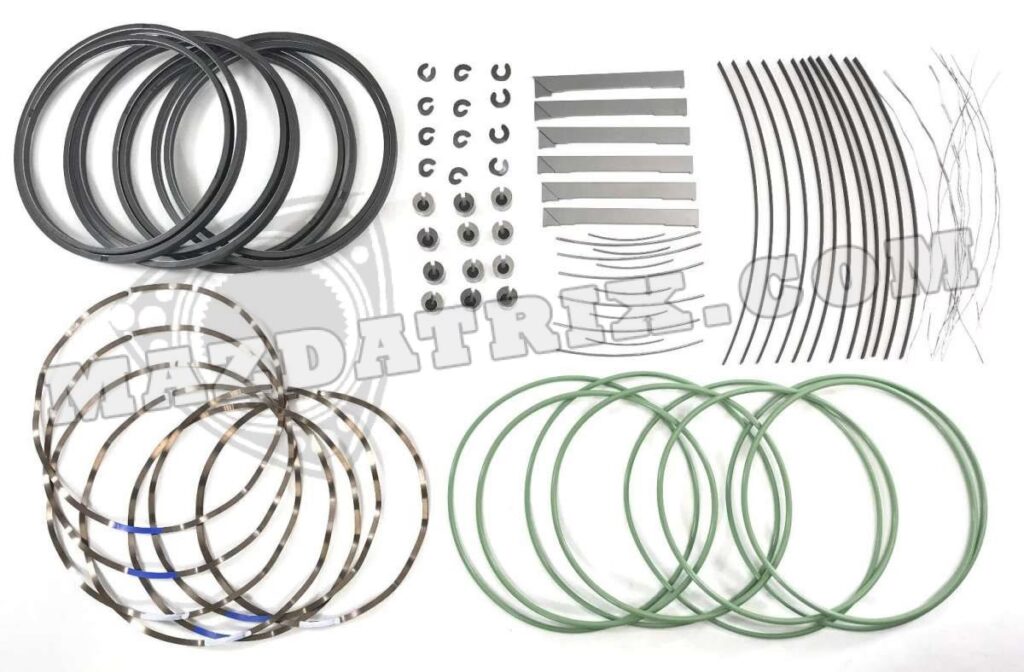

Stepping up to the Stage Two package costs $5,500 and includes all the benefits of Stage One, plus a full refresh of the metal seals. This means you also receive:

• New Mazda side seals.
• New corner seals.
• New rotor oil control rings.

This package offers a more complete overhaul, addressing all critical sealing surfaces for maximum longevity and performance, assuming your primary hard parts are still usable.

Three-Rotor (20B) Engine Rebuild Costs

For enthusiasts of the more powerful three-rotor 20B engines, rebuild services are also available, albeit at a slightly higher price point due to the added complexity and components:

Off-The-Shelf (OTS) Engine Options

What if you don't have a usable core engine, or you simply prefer a ready-to-install solution? Many specialists offer 'Off-The-Shelf' (OTS) engines. These are brand-new Mazda engines that are then meticulously rebuilt and modified to performance specifications before being shipped directly to your door, eliminating the need for a core exchange.

13B REW (RX-7 FD) OTS Engines

For the iconic 1993-2002 RX-7 FD, an OTS 13B REW engine built to Pettit Racing specifications costs $8,600, plus an additional $350 for shipping. These engines are constructed from brand-new Mazda 13B REW units and include:

• All brand new parts.
• No core charge.
• Street porting.
• Various proprietary Pettit modifications found in their typical rebuilds.

This option provides a fresh, high-performance engine straight out of the box, ready for installation.

13B Renesis (RX-8) OTS Engines

The 13B Renesis engine, found in the RX-8, also has OTS options available, built from new Mazda engines. These run a little more due to their specific design and modifications:

Every Pettit Built Renesis OTS engine is blueprinted and street ported with their proprietary modifications, which are designed to provide added cooling to the exhaust ports, minimising side housing surface deformation at the outer port edges, as well as the area around the leading spark plugs on the rotor housings. Additionally, these engines feature:

• Improved oiling system modifications.
• Main and rotor bearings clearanced to race specifications.
• Micro finish on all critical surfaces.
• Clean room assembly with genuine Mazda OEM apex seals.
• Static compression tested.
• Capped and skin sealed for shipping.

As part of the service, injectors are cleaned and flow tested, and the fuel system is pressure checked at no extra charge. For FD REW engines, including the fuel rail allows for testing and cleaning of those injectors as well.

Important Note for Renesis Engine Removal and Intake Servicing

When removing RX-8 Renesis engines, it is highly recommended to take numerous pictures of hose and wire harness routing and to accurately label the injector plugs to avoid mix-ups during reinstallation. Leaving the lower intake manifold and lower injectors on the engine is also advised. Renesis intakes often accumulate significant carbon buildup on all valves and inside the runners, making it easy to damage the auxiliary port tubes and linkage if the lower intake manifold is removed carelessly. Specialists carefully disassemble, clean, service, and index these components to ensure the auxiliary port valves open and close correctly. Furthermore, beneficial flow modifications are often performed to the plenum VDI area, followed by reassembly and testing of all valve operations.

Unleashing Power: Specialised Race Engine Builds

For those seeking even greater performance beyond typical street-ported configurations, specialists can delve into more radical race engine builds. These are typically not recommended for everyday street use due to their specific characteristics and maintenance requirements.

Peripheral Ports

While a typical build focuses on blueprinting and street porting for improved flow and efficiency with small changes in intake and exhaust port timing (benefiting fuel economy and power across RPM ranges), peripheral ports represent a more extreme modification. They offer characteristics similar to bridge ports but without interruption in the flow path, essentially creating one large opening much like the exhaust port. This setup requires the original side ports to be closed off and necessitates the fabrication of a custom intake manifold. Since torque and power move significantly higher into the RPM range with peripheral ports, there's an increased likelihood of oil foaming, which can potentially damage bearings. Therefore, the use of dry sump lubrication systems is highly recommended for these configurations.

Bridge Ports

Bridge ports are a common topic among rotary enthusiasts, particularly for naturally aspirated rotaries used in road racing and drag racing where peripheral ports might be banned. The primary focus of bridge porting is performance above 6000 RPM, with little to no concern for street drivability. It's considered the easiest way to lengthen the port opening time on naturally aspirated engines, moving the powerband up in the RPM range and adding power.

However, bridge ports introduce an interruption in the intake flow, causing violent turbulence that can be very challenging to tune effectively. To fully capitalise on this type of port, a nearly open exhaust with minimal or no back pressure is required. It's also not uncommon for spark plugs to foul with these port types.

Despite the significant effort, machining, and often poor life expectancy, the expected horsepower gains with turbocharged or supercharged rotaries from bridge porting are roughly equivalent to adding just one or two pounds of boost. Consequently, bridge porting is generally not a good idea for street use unless you enjoy the associated compromises and potential issues. As these modifications shift torque and power higher in the RPM range, the increased revs are more likely to cause oil foaming, which can lead to smoking and damage to engine bearings. For both peripheral and bridge ports, a dry sump lubrication system is highly recommended to mitigate these risks.

Ensuring Longevity: Caring for Your Rebuilt Rotary

The longevity of your rebuilt rotary engine is fundamentally dependent on proper care and maintenance. Following a few simple guidelines can significantly extend its lifespan and ensure continued performance:

• Never Overheat the Engine: Overheating is a rotary engine's worst enemy and can quickly lead to catastrophic damage. Monitor your coolant temperatures diligently.
• Easy Warm-ups and Cool-downs: Allow your engine to warm up gently before applying significant load or boost. Similarly, let it cool down gradually after spirited driving, avoiding immediate shutdowns.
• Keep Oil Clean and Free of Fuel Smell: Regular oil changes with high-quality oil are paramount. A strong fuel smell in the oil indicates potential issues and should be addressed immediately.
• Premix Fuel Lube: To maximise performance and longevity, always premix a high-quality fuel lube, such as Protek-R, with every tank of fuel. For standard boost levels (up to 16 lbs), a ratio of 100:1 (approximately 1 ounce per gallon of fuel) is recommended. For boost levels above 16 lbs, increase the ratio to 70:1 (approximately 1.8 ounces per gallon of fuel).

Frequently Asked Questions (FAQs)

How long does a Mazda 13B rebuild typically take?

Once your engine has been assessed and a quote approved, the standard time to completion for a professional rebuild is usually between 5 to 10 working days, depending on the extent of the work and parts availability.

What happens if my core engine parts are severely damaged?

If your main core parts are found to be beyond usable tolerance during the disassembly inspection, a specialist will provide an accurate written quote for the replacement parts needed. In cases of extensive damage or if you don't have a core, 'Off-The-Shelf' (OTS) engines built from new Mazda components are an excellent alternative.

Are peripheral or bridge ports suitable for street use?

Generally, no. While they offer significant power gains at high RPMs, their characteristics (such as high rev requirements, increased oil foaming risk, specific exhaust needs, and potential tuning challenges) make them impractical and often uncomfortable for daily street driving. They are primarily designed for dedicated race applications.

Why is premixing fuel lube important for rotary engines?

Premixing provides additional lubrication to the apex seals and rotor housings, which is crucial for the rotary engine's unique design. This extra lubrication helps reduce wear, improves sealing, and significantly contributes to the engine's overall longevity and reliability, especially under high-performance conditions.

What's the main difference between a Stage One and Stage Two rebuild?

A Stage One rebuild focuses on replacing all rubber seals, apex seals, and springs, along with essential porting and cooling modifications. A Stage Two rebuild includes everything in Stage One but further refreshes all metal seals, including side seals, corner seals, and rotor oil control rings, offering a more complete overhaul of the engine's sealing components.

Can I get a brand new engine if I don't have a core for a rebuild?

Yes, many specialists offer 'Off-The-Shelf' (OTS) engines. These are built from brand-new Mazda engines and are meticulously modified and blueprinted to performance specifications, providing a ready-to-install solution without the need for an existing core.
