Unleashing the 13B: The Ultimate Tuning Guide

For enthusiasts across the UK, the Mazda 13B rotary engine holds a legendary status, a testament to its unique design and exhilarating performance capabilities. We frequently receive enquiries from our readers, keen to understand the optimal modifications for this engineering marvel. This guide aims to delve into the world of 13B tuning, outlining the most impactful upgrades and highlighting common mistakes to avoid, ensuring your journey to enhanced driving fun is both successful and sustainable.

The Mazda 13B engines are incredibly popular tuning platforms, and with a carefully considered selection of uprated enhancements – such as a professional remap, turbo upgrades, and precise porting – you can significantly elevate your driving experience. Our objective here is to provide a thorough review of 13B tuning, summarising the most effective upgrades and focusing on those that deliver the best power gains for your investment.

It's crucial to understand a fundamental principle of rotary engine tuning: the ability to allow air to enter the engine as quickly and smoothly as possible. Therefore, extensive porting of the engine and increasing the turbo's capacity are often the primary methods employed by professional tuners to unlock significant power increases. Unlike conventional piston engines, the rotary operates on a different set of principles, demanding a specialised approach to modifications.

Addressing Inherent 13B Characteristics and Potential Issues

While the 13B offers immense tuning potential, there are specific characteristics and potential issues unique to rotary engines that must be meticulously addressed, especially when pursuing high performance. Ignoring these can lead to costly failures and diminish the engine's reliability.

The Challenge of Gear Walk in 13B Engines

One notable concern for rotary engines, particularly under high stress, is 'gear walk'. This phenomenon describes the tendency of the rotor's internal gear to separate from the stationary gear within the engine, especially at high RPMs and elevated engine temperatures. Mazda recognised this, increasing the number of pins from 9 (pre-1985) to 12 in later models. However, on highly tuned engines, gear walk can still be an issue. Thankfully, aftermarket tuners have developed innovative methods, such as 'pinning' the rotors, to prevent this separation, ensuring the integrity of the rotating assembly even under extreme conditions. Addressing this proactively is key to engine longevity.

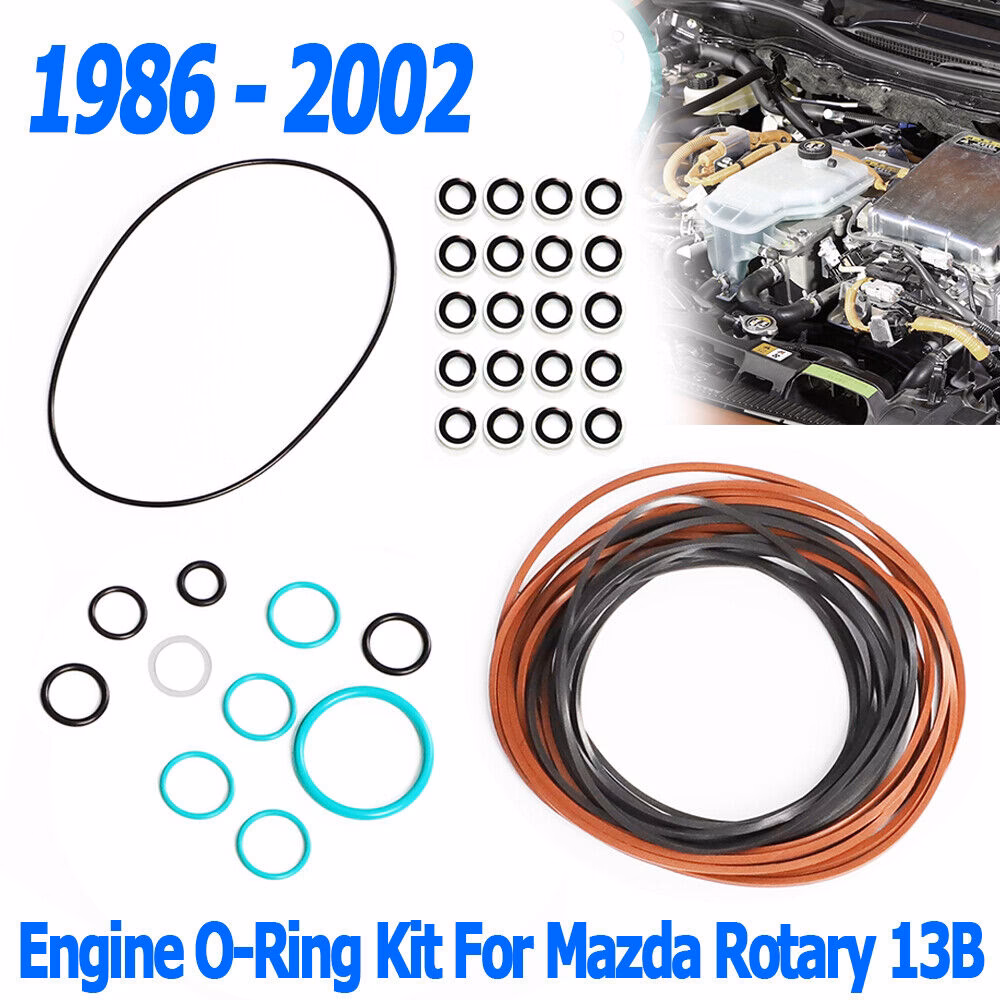

Ensuring Perfect Seal Integrity

For any serious power increase in a rotary engine, the seals around the engine components must be absolutely perfect. This isn't just about using oversized seals; it's about ensuring the rotor itself is perfectly flat. This level of precision requires a specialist. Most conventional machine shops lack the specific equipment and expertise to work to the incredibly tight tolerances required for rotary rotors and their seals (apex seals, side seals, corner seals). An imperfect seal will lead to significant power loss and potential engine damage, making professional preparation paramount.

Optimising Oil Supply for High-Performance Rotaries

A heavily tuned rotary engine will inevitably exhibit higher internal engine speeds, faster turbo spool-up times, and generate considerably more heat. This increased operational intensity demands a fresh look at the engine's oil supply. We strongly recommend installing a race-spec dry sump oil system on these engines. A dry sump system ensures consistent oil pressure and supply to all critical components, regardless of G-forces or engine orientation, and also aids in heat dissipation, which is vital for rotary engine health.

Furthermore, when selecting a camshaft (if applicable, though rotary engines don't use conventional camshafts, this refers to porting profiles and characteristics that mimic camshaft effects in piston engines), you should ideally match your expected horsepower range to your typical driving style. For a car used daily, a mild 'fast road' porting profile would be more appropriate than an aggressive race-spec setup, balancing performance with drivability.

Ultimately, the ECU map, along with the fuel injectors and fuel pump, will dictate the achievable torque gains. These components work in harmony to control the engine's fueling and ignition, directly impacting its performance output.

Essential 13B Tuning Modifications & Upgrades

When considering the best parts for your 13B engine, our focus is on modifications that yield the most significant power gains relative to their cost and complexity. Here's a breakdown of the key areas:

ECU Map Tuning & Remaps: The Foundation of Performance

For modern 13B engines, particularly the Renesis in the RX-8, an aftermarket ECU is often required to deviate from the OEM map. Regardless of the engine variant, remapping is arguably the most vital step in your tuning project. It allows you to fully maximise the benefits of all other modifications. You can expect substantial power increases: typically 10-20% on naturally aspirated (NASP) engines and a remarkable 30-40% on turbocharged units. A custom map optimises fuel delivery, ignition timing, and boost pressure (for forced induction), ensuring all components work in perfect harmony.

Strengthening Internal Engine Components

Tuned cars, especially those pushing significant power, will invariably expose weak points in the drivetrain and engine. Common areas include the turbochargers (if fitted), clutch, and internal engine components. While most 13B engines can handle mild tuning, TorqueCars strongly recommends upgrading internal components before these weaknesses manifest as failures. This preventative measure ensures reliability and allows for higher power outputs safely.

Mods That Remove Restrictions: Airflow is Key

Any restriction in the intake or exhaust system will directly impede your engine's performance. Therefore, upgrading to a better-flowing air filter or induction kit and a less restrictive exhaust system is crucial. Where legal, sports catalysts are an excellent option, offering improved flow without sacrificing emissions compliance. Turbocharged engines also greatly benefit from intercooler upgrades. These resist heat soak for longer periods, ensuring denser, cooler air reaches the engine, which is vital for sustained performance.

Mods That Improve Fuelling: Matching Air with Fuel

Every serious tuning project aims to increase the air supply to the engine, but fuel supply is equally vital and must precisely match the increased air volume the engine can utilise. A fuel pump and injector upgrade are standard modifications. In many cases, the fuel pressure regulator will also need upgrading to maintain consistent fuel pressure under high demand. Ensuring adequate fuel delivery is non-negotiable for safety and power.

Mods to Provide Better Airflow: Maximising Engine Breathing

Increasing the air supply is just as essential as improving fuelling. For rotary engines, this often involves extensive head modifications (which, for a rotary, means porting and polishing the rotor housings and intake/exhaust manifolds). While piston engines get '5-angle valve jobs' and 'bigger valves', rotaries benefit from carefully designed porting and potentially larger intake/exhaust runners. Adding or upgrading forced induction (a better flowing turbocharger or supercharger) is the most direct way to dramatically improve air intake and consequently, power. Fast road 'cams' in rotary terms refer to the specific porting profiles.

Progressive 13B Tuning Stages

Tuning the 13B can be approached in stages, allowing for progressive power gains and component upgrades. Each stage builds upon the previous one, unlocking more potential.

Stage 1 13B Modifications: Entry-Level Performance

• Remaps/Piggyback ECU: Essential for optimising air/fuel ratios and ignition timing.
• Sports Exhaust Manifold: Improves exhaust gas flow from the engine.
• Drilled & Smoothed Airbox: A budget-friendly way to improve intake flow.
• Panel Air Filters: Offer better filtration and flow than standard paper filters.
• Intake Headers: Improved design for smoother air delivery to the engine.

These modifications focus on removing basic restrictions and optimising the engine's existing capabilities, offering noticeable gains in responsiveness and mild power increases.

Stage 2 13B Modifications: Significant Power Gains

• Induction Kit: Provides a less restrictive path for air into the engine.
• Ported and Polished Engine: A crucial rotary modification, optimising the internal pathways for air and exhaust gases.
• High Flow Fuel Injectors: Deliver more fuel to match increased air.
• Fuel Pump Upgrades: Ensures adequate fuel pressure and volume.
• Sports Catalyst & Performance Exhaust: Further improves exhaust flow and reduces back pressure.

Stage 2 builds on Stage 1, focusing on engine breathing and fuel delivery, preparing the engine for more substantial power gains through internal improvements and more aggressive flow management.

Stage 3 13B Modifications: Ultimate Performance

• Internal Engine Upgrades: This includes more aggressive porting (e.g., bridgeport, peripheral port), ensuring the rotor and housing integrity for high power.
• Adding or Upgrading Forced Induction: Installing a larger turbocharger, a supercharger, or upgrading an existing turbo system for maximum boost.
• Twin Charging Conversions: Combining a supercharger and turbocharger for broad power delivery.
• Engine Balancing & Blueprinting: Precision assembly and balancing of engine components for reliability and efficiency at high RPMs.

A professional remap will help unlock the full potential of all the upgrades you've done to your 13B, especially at Stage 3. It will usually give around 30% more power on turbocharged vehicles and you can expect to see around 15% on NASP engines, but actual power output often depends on the specific upgrades fitted and the overall condition of your engine. The goal in any tuning task is to feed more air and fuel into each rotor housing.

The structure and flow rate of the intake headers (or intake manifold in rotary terms) can significantly impact fuel mixing and power output on the 13B. We commonly find that OEM intake manifolds are ripe for aftermarket upgrades, though a few factory designs offer reasonably good flow. Adding a 13B larger 'valve' kit (referring to port sizes in a rotary context), performing port matching, and professional head flowing (rotor housing porting) will significantly boost performance. As an added benefit, these foundational airflow improvements raise the potential for even greater performance gains from other subsequent modifications.

Turbo Upgrades for the 13B: Boosting Performance

For NASP (naturally aspirated) 13B engines, adding a turbo requires substantial work and consideration. We have separate guides that delve into the pros and cons of this route. However, for 13B engines already equipped with forced induction, upgrades are relatively straightforward, as turbocharged engines are often built with stronger, forged components from the factory.

The more air you can force into an engine, the more fuel it can burn, and upgrading the induction with a larger or more efficient turbocharger yields massive power gains. However, every engine has power limits. It's imperative to discover these restrictions and fit stronger rotors, crankshaft, and other engine components to safely withstand the increased power. We have seen instances where enthusiasts spend a fortune on turbocharger upgrades for their 13B, only for the entire setup to fail shortly after hitting the roads due to neglecting internal strengthening. This highlights the importance of a holistic approach.

Larger capacity turbochargers will typically suffer from more 'bottom-end lag' (turbo lag), meaning they take longer to spool up and deliver boost. Smaller turbochargers spool up much more quickly, offering immediate responsiveness, but they don't have the top-end power potential of larger units. Thankfully, the turbo market is constantly evolving. We commonly find advanced designs like variable vane turbos, where the vane profile adjusts according to engine speed to minimise lag and maximise top-end performance. Twin-scroll turbos are another excellent innovation; they divert exhaust gases into two separate channels, flowing them at differently angled vanes within the turbo. This design also helps with the engine's scavenging effect, further improving efficiency.

It's not uncommon for the air flow sensor (MAP/MAF/AFM) on the 13B to become a limitation when significantly more air is being pulled into the engine. Standard OEM air sensors often limit power at a much lower level than the engine's potential. Upgrading to a 4-bar air sensor, for example, can cope with considerably larger power gains, allowing the ECU to accurately meter fuel for higher airflow. Adding a supercharger or an additional turbo (twin-charging) can provide huge performance gains, though these setups are typically more complex to implement and tune. Our articles on twin-charging offer more detailed insights if you're considering this advanced option.

Uprating 13B Fuel Injectors & System

You must ensure that your engine is never starved of fuel. Therefore, a thorough review and upgrade of the fuelling system are essential when you anticipate a torque increase of 20% or more. We recommend over-specifying your injectors' flow rate. As a general rule of thumb, add about 20% capacity when fitting new injectors; this accounts for potential injector deterioration over time and provides a bit of spare capacity should the engine ever demand more fuel than initially calculated. Bosch and Tomei fuel systems are highly popular choices for RX-7 projects and for good reason; they are renowned for their reliability and ability to capably handle the fuel requirements for boost levels of 13 PSI or more. It's common sense, but always ensure your new fuel injectors are compatible with the type of fuel your car uses (e.g., petrol, ethanol blends). The entire fuel delivery system, from the pump to the regulator, must be capable of sustaining the required pressure and volume under peak demand.

Best 13B Performance Exhausts

You should definitely look to upgrade your exhaust system if the existing factory unit is creating a restriction in exhaust gas flow. The 13B exhaust gets incredibly hot, and in some race situations, the exhaust system has been known to increase in length by a surprising amount due to thermal expansion. This highlights why quality counts immensely here. Opting for a cheap, poorly constructed exhaust is a false economy as it simply won't last under the extreme conditions a tuned rotary generates. While most factory exhausts offer decent flow for modest power gains, once you start pushing the power levels, a better-flowing aftermarket exhaust becomes a necessity.

However, resist the temptation to fit the largest exhaust you can find. An excessively large diameter can actually slow down the exhaust flow rate, negatively impacting scavenging and torque. For optimal power gains, exhaust diameters are usually between 1.5 to 2.5 inches. The design, internal baffling, and material quality are far more critical than simply the bore size. Typically, the main restrictions in stock exhaust systems are the catalyst converters and any restrictive silencers. Installing a faster-flowing high-performance sports catalyst (where legal) and a well-designed performance exhaust system will effectively alleviate these restrictions, allowing the engine to breathe more freely and produce more power.

13B Engine Power Performance & Applications

The Mazda 13B engine has seen several iterations, each with its own characteristics and power outputs, influencing their tuning potential:

The Renesis, while still a 13B, replaced the earlier Wankel designs and offered significantly improved efficiency, approximately 50% more over previous designs, while maintaining strong power figures. Each variant offers a unique starting point for tuning, with the turbocharged versions (13B-DEI, 13B-RE, 13B-REW) generally offering the easiest path to substantial power increases due to the inherent design for forced induction.

Common Challenges and Maintenance for the Tuned 13B

While the 13B engine is renowned for its smooth power delivery and high-revving nature, its unique design also means it has specific maintenance requirements, especially when modified. If regularly serviced and properly maintained, 13B engines are generally very reliable and exhibit few inherent issues.

However, regular oil changes are absolutely vital for the 13B, particularly when the engine has been modified and is producing more power than the manufacturer intended. The rotary engine's design injects oil directly into the combustion chambers for lubrication and sealing, meaning it consumes oil. This oil, exposed to combustion, degrades quickly. High temperatures and increased stresses from tuning accelerate this degradation. Using the correct, high-quality oil and adhering to a strict, frequent oil change schedule is the single most important factor in ensuring the longevity and reliability of your tuned 13B. Neglecting oil changes is a common cause of premature apex seal wear and engine failure.

Beyond oil, meticulous attention to the cooling system is paramount. Tuned rotaries generate more heat, and an efficient cooling system (including a high-capacity radiator, upgraded hoses, and a properly functioning thermostat) is crucial to prevent overheating, which can lead to catastrophic seal failure. Furthermore, consistent monitoring of engine parameters via gauges (oil pressure, oil temperature, water temperature, boost pressure, wideband air/fuel ratio) is highly recommended for any tuned 13B owner. These provide crucial feedback on engine health and can alert you to potential issues before they become severe.

Frequently Asked Questions About 13B Tuning

Q: How much power can I realistically expect from my Mazda 13B?

A: Power gains vary significantly based on the engine variant and the extent of modifications. Naturally aspirated 13B engines (like the Renesis in the RX-8) can see 15-25% gains with comprehensive tuning. Turbocharged 13B variants (such as the 13B-REW in the FD RX-7) can achieve 50-100% or even more with major upgrades like larger turbos, extensive porting, and strengthened internals. It's crucial to balance power goals with reliability and budget.

Q: Is tuning a 13B expensive compared to piston engines?

A: Tuning a 13B can be more expensive due to the specialised knowledge and parts required. Rotary-specific mechanics often charge higher labour rates, and components like professional porting, dry sump systems, and high-quality apex seals are not cheap. However, the unique driving experience and power-to-weight ratio often justify the investment for enthusiasts.

Q: How often should I service a tuned 13B engine?

A: More frequently than a stock engine. For a highly tuned 13B, oil changes should be performed every 3,000 miles or every 6 months, whichever comes first, using high-quality synthetic oil specifically formulated for rotaries. Spark plugs, ignition coils, and fuel filters should also be inspected and replaced more regularly. Regular compression tests are also advisable to monitor engine health, especially apex seal condition.

Q: Can I daily drive a highly tuned 13B?

A: Yes, but it depends on the extent of the tune. A mild 'fast road' tune with a good remap and basic bolt-ons can be perfectly suitable for daily driving. However, extreme modifications like aggressive porting (e.g., bridgeport or peripheral port) or very large turbo setups can make the car less practical for daily use due to increased noise, fuel consumption, and potentially less refined low-end power delivery. Reliability also becomes more sensitive to diligent maintenance.

Q: What is the biggest mistake people make when tuning a 13B?

A: The biggest mistake is often neglecting the supporting modifications and proper maintenance required for increased power. Simply bolting on a larger turbo without upgrading the fuel system, strengthening internals, or ensuring perfect seal integrity will almost certainly lead to engine failure. Another common error is using inexperienced tuners or trying to cut corners on critical components. A holistic, professional approach is essential.

Q: What is 'porting' and why is it important for a rotary?

A: Porting in a rotary engine refers to modifying the intake and exhaust ports on the rotor housings. Unlike piston engines with valves, rotaries use openings in the housing. Porting involves enlarging and reshaping these openings to improve airflow into and out of the combustion chambers. It's crucial because it directly affects how efficiently the engine 'breathes', impacting power, torque, and rev characteristics. Aggressive porting can yield significant power gains but may affect low-end torque and idle stability.

Q: Why are oil systems so crucial for the 13B?

A: The 13B's unique design relies on oil for both lubrication and sealing of the apex seals. Oil is injected directly into the combustion chamber, meaning it is consumed during operation. This makes oil quality and level absolutely critical. A high-performance 13B generates significant heat and internal stresses, demanding a robust oil supply system, often leading to recommendations for dry sump systems, upgraded oil coolers, and frequent oil changes to maintain engine health.

Conclusion: The Path to a Potent 13B

Tuning the Mazda 13B engine is a rewarding endeavour that can transform your driving experience. Its unique rotary design, while demanding a specialised approach, offers incredible potential for power and performance. The key to a successful and reliable build lies in understanding the engine's inherent characteristics, addressing potential weaknesses proactively, and investing in quality modifications alongside professional tuning and diligent maintenance.

From fundamental airflow enhancements like porting and exhaust upgrades to critical fuelling adjustments and advanced forced induction setups, each modification plays a vital role. Remember, a comprehensive approach, where every component is harmonised through a precise ECU remap, is far more effective than isolated upgrades. Prioritise engine reliability as much as power, and always seek advice from experienced rotary specialists. With the right knowledge and careful execution, your 13B can become a truly formidable machine on the road or track, delivering exhilarating performance and the unmistakable thrill of rotary power.
