JD 1025R Hydraulic Oil Change: What You Need to Know

Many John Deere 1025R owners find themselves pondering the necessity and timing of their first hydraulic oil change. The common practice, passed down through word-of-mouth and older service recommendations, often suggests an initial change at the 50-hour mark. However, recent information from John Deere has shifted this perspective. Let's delve into what the manufacturer advises and what this means for your tractor's upkeep.

The Evolution of the Service Schedule

Historically, the John Deere 1025R service schedule included a recommendation for a hydraulic oil change at 50 hours of operation. This was often coupled with the transmission service. However, it's crucial to note that John Deere revised its service charts in 2017. The updated schedule now designates the transmission service as the primary maintenance point every 200 hours, with no mandatory hydraulic oil change specified at the 50-hour interval. This change has led to some confusion among owners who are accustomed to the older recommendations.

Why the Change? Speculation and Reality

The exact reasons behind John Deere's updated service schedule are not always explicitly stated, but common speculation points towards advancements in manufacturing and assembly processes. It's believed that changes in how the tractors are assembled, potentially involving a reduction in the use of RTV (Room Temperature Vulcanizing) sealant, have played a role. RTV sealant, when used excessively, can break down over time and find its way into the transmission sump, often accumulating on the suction filter. The theory suggests that the revised assembly methods minimise this issue, thereby reducing the need for an early-stage flush and fluid change to clear out any potential debris.

The majority of small metal shavings generated during the initial break-in period, which are large enough to cause significant wear, are typically captured by the hydraulic oil filter. Furthermore, the suction screen and magnets integrated into the hydraulic system are designed to trap larger particles, preventing them from reaching critical components like the implement or steering hydraulic pumps. This built-in protection system reinforces the idea that the 50-hour hydraulic oil change might not be as critical as once thought.

Is the 50-Hour Hydraulic Oil Change Necessary for Your 1025R?

Ultimately, the decision to perform a hydraulic oil change at 50 hours rests with you, the owner. While John Deere no longer mandates it, performing this service is not inherently detrimental. Assuming the procedure is carried out correctly, the primary consequence of performing the service earlier than required is a financial one – it will cost you money in terms of new hydraulic fluid and filters.

Many owners still choose to follow the older 50-hour recommendation, followed by changes at 200-hour intervals, aligning with the transmission service. This approach offers an added layer of assurance and can be seen as a proactive measure. If you are someone who prefers to err on the side of caution, especially with a new (or new to you) tractor, there's no harm in performing the early service. However, it's important to be informed about the manufacturer's current recommendations.

Understanding the Hydraulic System Capacity

A key consideration when performing a hydraulic oil change is the sheer volume of fluid involved. The John Deere 1025R typically holds close to four gallons of hydraulic oil. This is a substantial amount, and you'll need an appropriately sized drain pan to manage the old fluid. Many owners find that a single large drain pan isn't sufficient and opt to use two pans, transferring fluid from a larger one to a smaller, more manageable one as it drains. This ensures that you don't overflow your collection vessel.

Preparing for the Hydraulic Oil Change

To ensure a more complete and efficient hydraulic oil change, proper preparation is key. Here are some important steps:

• Lower the 3-Point Hitch: Before you begin draining the fluid, ensure the 3-point hitch is fully lowered. This action helps to drain the hydraulic fluid from the 3-point hitch actuator, leading to a more thorough fluid exchange.
• Accessing Components: With the 3-point hitch in the lowered position, it becomes significantly easier to access the suction screen. For many owners, attempting to reach the suction screen with the 3-point hitch raised is nearly impossible.

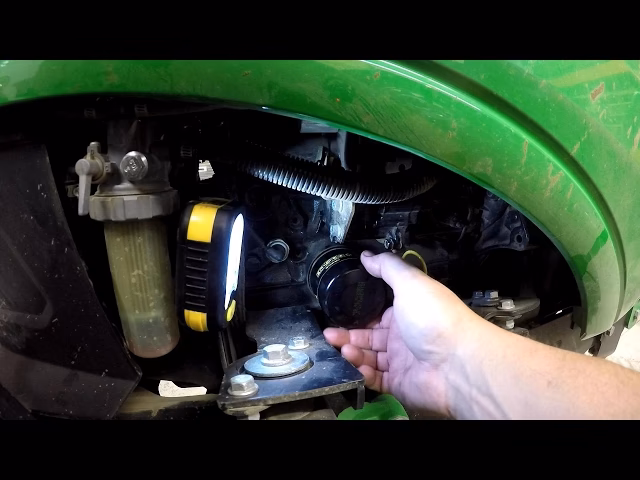

• Removing the Mower Deck: If your tractor is equipped with a mower deck, it's almost always necessary to remove it to gain adequate access to the hydraulic oil filter. Trying to remove the filter with the deck in place can be a frustrating and sometimes impossible task.

The Draining and Refilling Process

Once you've prepared your tractor, the draining and refilling process can commence. As mentioned, you'll be dealing with a significant volume of oil. Start by positioning your drain pans and carefully removing the drain plug. Allow the bulk of the fluid to drain. After the initial flow slows down, approximately after the first 2.5 gallons or so have been collected, it's advisable to start adding the new fluid in smaller, more controlled quantities. This approach helps prevent overfilling. It's considerably easier to add a little more fluid if needed than it is to drain out excess fluid, so take your time with the refilling process. Monitor the dipstick closely as you add the new oil; the level can rise quite rapidly from empty to full.

Post-Change Procedures and Checks

After you've completed the oil change and refilled the system, you might experience a temporary lack of hydraulic function upon the initial startup. This is a common occurrence and is usually resolved quickly. To remedy this, try cycling the Power Take-Off (PTO) engagement a few times and operate the 3-point hitch by raising and lowering it. These actions help to circulate the new fluid throughout the system and purge any trapped air. Once you're confident that the fluid has circulated properly, re-check the hydraulic oil level on the dipstick and top up if necessary to reach the correct operating range. Always ensure you are using the correct type and specification of hydraulic fluid as recommended by John Deere for your 1025R.

Key Takeaways for Your 1025R Hydraulic Oil Service

Here’s a summary of what you need to consider:

Frequently Asked Questions

Q1: Do I really need to change the hydraulic oil at 50 hours on my John Deere 1025R?
John Deere revised their service schedule in 2017 and no longer mandates a 50-hour hydraulic oil change. While not required, some owners still choose to do it for added peace of mind.

Q2: What type of hydraulic oil should I use?
Always refer to your John Deere 1025R owner's manual for the specific type and grade of hydraulic fluid recommended. Using the correct fluid is crucial for the longevity and performance of your tractor's hydraulic system.

Q3: How much hydraulic oil does the 1025R take?
The John Deere 1025R holds approximately four gallons of hydraulic oil.

Q4: What should I do if I have no hydraulic function after the oil change?
This is usually a temporary issue. Start the tractor and cycle the PTO and 3-point hitch a few times to circulate the new fluid and purge air from the system. Re-check the fluid level afterwards.

Q5: Is it okay to do the hydraulic oil change myself?
Yes, it is a manageable task for most DIY mechanics. Ensure you have the correct tools, sufficient drainage capacity, and follow the proper procedure outlined in your owner's manual or reliable service guides. Proper disposal of the old hydraulic fluid is also essential.

In conclusion, while the 50-hour hydraulic oil change for your John Deere 1025R may no longer be a mandatory manufacturer requirement, understanding the reasons behind the updated schedule and the process itself empowers you to make informed decisions about your tractor's maintenance. Whether you choose to perform it early or stick strictly to the 200-hour intervals, ensuring the job is done correctly will contribute to the reliable operation of your machine.
