When undertaking any work on your vehicle's fuel system, particularly involving fuel injection lines, the correct sizing of your hose clamps is paramount. A clamp that is too loose will inevitably lead to fuel leaks, potentially causing performance issues, fire hazards, and significant damage to your vehicle and its surroundings. Conversely, a clamp that is excessively tight can damage the fuel hose, compromising its integrity and leading to premature failure. This guide will demystify the world of fuel injection hose clamps, focusing on their sizes and how to ensure you select the perfect fit for your needs.
Understanding Fuel Injection Hose Clamp Sizing

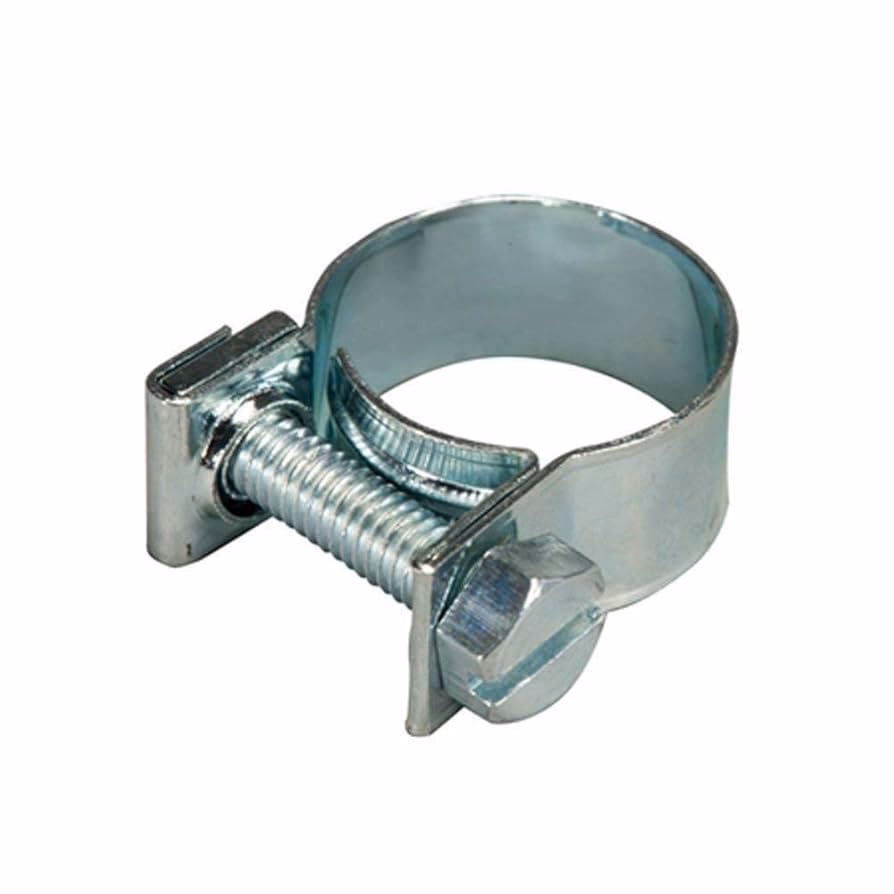

Fuel injection hose clamps, often referred to as fuel line clamps or worm gear clamps, are designed to provide a secure and leak-free connection between fuel injection hoses and their respective fittings. The sizing of these clamps is critical and is typically indicated by the diameter of the hose they are intended to secure. The provided information lists several common sizes, demonstrating this principle:
- FI4: 1/4" Fuel Injection Hose Clamp - As the designation suggests, this clamp is designed for fuel injection hoses with an inner diameter of 1/4 inch.
- FI6: 5/16" Fuel Injection Hose Clamp - This clamp is intended for hoses with a 5/16 inch inner diameter.
- FI8: 3/8" Fuel Injection Hose Clamp - This clamp is suitable for hoses measuring 3/8 inch in inner diameter.
- FI10: 10mm - 12mm Fuel Injection Hose Clamp - This clamp is designed to accommodate a range of metric sizes, specifically hoses with an inner diameter between 10mm and 12mm. This highlights the importance of checking both imperial and metric measurements when sourcing parts.
The "FI" prefix in the item numbers likely stands for "Fuel Injection," and the subsequent number indicates the nominal size in either inches or millimeters. It's important to note that hose clamps often have an adjustable range, meaning a single clamp might fit a small spectrum of hose diameters. However, for optimal performance and safety, it's always best to use a clamp that is as close to the specified hose diameter as possible.
Why the Right Size Matters: The Consequences of Mismatch
The consequences of using the wrong size fuel injection hose clamp cannot be overstated. Let's delve into the specific issues that can arise:
Leaks and Fire Hazards
A clamp that is too large will not be able to exert sufficient pressure around the hose and fitting. This will leave small gaps, allowing highly flammable fuel to escape. Even a minor drip can accumulate and, with the presence of heat or a spark, can ignite, leading to a serious fire. The smell of petrol is a clear indicator of a potential leak, and it should be addressed immediately.
Hose Damage and Premature Failure
Conversely, forcing a clamp that is too small onto a hose can cause significant damage. The excessive pressure can crush the hose material, creating weak points. This can lead to the hose splitting or bursting under the normal operating pressure of the fuel system. Such failures can occur unexpectedly, often at inconvenient times and places, and can be costly to repair.
Performance Degradation
Even if a leak isn't immediately catastrophic, a poorly secured hose can affect fuel delivery. Inconsistent fuel pressure due to minor leaks can lead to rough idling, hesitation during acceleration, poor fuel economy, and a general reduction in engine performance. The engine's computer (ECU) relies on precise fuel delivery, and any deviation can trigger error codes and illuminate the check engine light.
Types of Fuel Injection Hose Clamps
While the size is crucial, understanding the different types of clamps can also be beneficial:
Worm Gear Clamps
These are the most common type. They feature a metal band with a screw mechanism that tightens the band around the hose. The "worm" screw engages with slots in the band, allowing for precise adjustment. They offer a good balance of clamping force and ease of use.
Spring-Loaded Clamps
Often found on European vehicles, these clamps maintain consistent pressure even as the hose expands or contracts due to temperature changes. They are applied using a special tool.
Ear Clamps (O-Clamps)
These have a single ear that is crimped or squeezed to create the clamping force. They are typically single-use and require a specific crimping tool.
How to Measure for the Correct Fuel Hose Clamp
Selecting the right clamp size is straightforward if you follow these steps:
- Identify the Hose: The most crucial step is to accurately identify the inner diameter of the fuel injection hose you need to clamp. If the hose is already installed, you might need to remove it to measure.
- Use a Caliper: For the most accurate measurement, use a pair of digital or Vernier calipers. Measure the inside diameter of the hose.
- Consult Your Vehicle's Manual: Your vehicle's owner's manual or a workshop manual specific to your make and model will often provide the exact specifications for fuel line sizes and the recommended clamp types.
- Check the Fitting: Sometimes, the fitting itself will have markings or specifications that can help you determine the correct hose size it is designed for.
- Consider the Clamp's Range: When purchasing a clamp, look at its specified adjustment range. Ensure that your hose's inner diameter falls comfortably within this range, ideally towards the middle for maximum effectiveness.
Common Fuel Injection Hose Clamp Sizes and Their Applications
Here's a quick reference table for common fuel injection hose clamp sizes, keeping in mind that manufacturers may use slightly different designations:
| Item Code (Example) | Hose Inner Diameter (Imperial) | Hose Inner Diameter (Metric Approximation) | Typical Application |
|---|---|---|---|
| FI4 | 1/4" | ~6.35 mm | Smaller fuel lines, vacuum lines |
| FI6 | 5/16" | ~7.94 mm | Common fuel injection lines |
| FI8 | 3/8" | ~9.53 mm | Larger fuel injection lines, some coolant hoses |
| FI10 | N/A | 10mm - 12mm | Metric fuel injection lines |
| FI12 | 1/2" | ~12.7 mm | Larger diameter hoses, often for fuel return or vapour lines |
It is crucial to remember that these are general guidelines. Always verify the specific requirements for your vehicle.
Frequently Asked Questions (FAQs)
Q1: Can I reuse an old fuel injection hose clamp?
It is strongly recommended not to reuse old fuel injection hose clamps. The metal can fatigue, the screw mechanism can become stripped, or the band can lose its integrity, compromising its ability to hold a secure seal. Always use new, correctly sized clamps for fuel system work.
Q2: What is the difference between a fuel injection hose clamp and a regular hose clamp?
While both serve to secure hoses, fuel injection hose clamps are typically made from corrosion-resistant materials like stainless steel and are designed to withstand the higher pressures and the corrosive nature of modern fuels. They also often have a smoother band to prevent damage to the more specialized fuel injection hoses.
Q3: How tight should a fuel injection hose clamp be?
A fuel injection hose clamp should be tightened until it is snug and you can no longer see any gaps between the hose and the fitting. Overtightening can damage the hose. For worm gear clamps, you will feel increasing resistance as you tighten. Stop when the clamp is firm and secure.
Q4: What if my hose size isn't listed?
If your specific hose size isn't listed, measure the inner diameter accurately with calipers. Then, consult a reputable auto parts supplier or a clamp manufacturer's catalogue. They will have a wider range of sizes available and can help you find the correct clamp. Always err on the side of caution and choose a clamp that offers a secure fit without excessive pressure.
Conclusion
The seemingly small detail of fuel injection hose clamp size plays a significant role in the safety and performance of your vehicle's fuel system. By understanding the sizing conventions, the potential consequences of errors, and the methods for accurate measurement, you can ensure a reliable and leak-free connection. Always prioritize quality parts and meticulous installation for the longevity and safety of your vehicle.
