Enhancing Your Bike's Braking Power & Precision

Ensuring your bicycle's braking system is in optimal condition isn't just about control; it's paramount for your safety and confidence on any terrain. Whether you're navigating urban streets, tackling challenging trails, or simply enjoying a leisurely ride, effective stopping power is non-negotiable. This comprehensive guide delves into two distinct yet equally crucial components that can significantly impact your bike's braking prowess: the ingenious Box Two brake post extenders, designed to fine-tune your rim brake setup, and the diverse world of disc brake rotors, exploring how their size, design, and material directly influence your ability to slow down and stop with precision.

The Ingenious Solution: Box Two Brake Post Extenders

Have you ever found yourself struggling to get that perfect brake pad alignment on your rim brakes, perhaps after upgrading components or noticing a slight misalignment with your frame? The Box Two brake post extenders offer a remarkably clever solution to a common problem faced by cyclists using cantilever or V-brakes. These aren't just simple spacers; they are precision-engineered components designed to provide that crucial extra bit of adjustment for your brake pads without forcing you into the costly and often impractical realm of changing your bike frame.

Specifically, Box Two brake post extenders are meticulously NC-machined from robust 6061-T6 aluminium, a material renowned for its excellent strength-to-weight ratio and corrosion resistance, making it ideal for bicycle components. Their primary function is straightforward yet highly effective: they effortlessly mount onto your frame's existing cantilever brake bosses. Once installed, they extend these mounting points, providing an additional 0.630 inches (approximately 16mm) of brake arm positioning.

This seemingly small extension can make a monumental difference. For older frames, or those with less common geometries, achieving ideal brake pad contact with the rim can sometimes be a challenge. Brake pads might sit too high or too low on the rim, leading to inefficient braking, accelerated pad wear, or even damage to the tyre or rim itself. The Box Two extenders bridge this gap, allowing you to reposition your brake arms and consequently your brake pads, ensuring they make full, flush contact with the braking surface of your wheel's rim. This results in fine-tuning for your braking system, leading to improved modulation, and extended life for your brake pads and rims.

Installation is typically a straightforward process, requiring only basic bike tools. You simply unbolt your existing brake arms from the frame's bosses, thread the extenders onto the bosses, and then reattach your brake arms to the extenders. It's a non-permanent modification that offers significant benefits for fine-tuning your V-brake or cantilever brake system. They are particularly popular in BMX racing and other disciplines where precise brake setup is critical for performance and safety, but their utility extends to any bicycle utilising cantilever or V-brakes where pad alignment needs a little extra help. Consider these extenders if you're experiencing inconsistent braking, excessive pad wear on one part of the rim, or simply can't achieve that perfect pad-to-rim alignment with your current setup. They are a cost-effective alternative to more drastic frame modifications or component changes.

Unravelling Disc Brake Rotors: Size, Design, and Performance

Shifting gears from rim brakes, let's delve into the world of disc brakes, a system that has revolutionised bicycle stopping power, especially in off-road disciplines and increasingly on road and gravel bikes. At the heart of any disc brake system is the disc brake rotor, a circular metal component that attaches to the hub of your bicycle wheel. This rotor serves as the crucial braking surface against which the brake pads, housed within the caliper, clamp down to create friction and slow your bike.

Disc brake rotors are far from a 'one-size-fits-all' component. They are manufactured in a vast array of sizes and designs, each tailored to specific riding disciplines, terrain types, and rider preferences. While the simplest rotors are often stamped from a sheet of stainless steel, more advanced and costly versions employ complex constructions designed to enhance braking performance, manage heat, and reduce overall weight. Understanding the nuances of rotor size and design is key to optimising your disc brake setup.

Disc Brake Rotor Sizes Explained: Does Size Truly Matter?

The question 'Does a 140mm rotor make a better braking performance?' leads us directly into the critical discussion of rotor sizing. In general terms, when it comes to disc brakes, the answer is often: bigger is generally better for outright stopping power and heat management. Here's why:

The job of a disc brake rotor is to convert the kinetic energy of your moving bicycle into thermal energy through friction, thereby slowing the wheel's momentum. This process inevitably generates heat. A larger rotor has a greater surface area, which allows it to absorb and dissipate more heat before it reaches a critical temperature where braking power begins to diminish – a phenomenon known as 'brake fade'. Effective heat dissipation is crucial for consistent and reliable braking.

Furthermore, a larger rotor provides a longer lever arm for the brake caliper to act upon. This increased leverage means that for the same clamping force from the caliper, a larger rotor generates more stopping torque at the wheel. This translates to greater braking power with less effort at the lever, offering enhanced control and reduced hand fatigue, particularly on long descents or during aggressive riding.

However, the 'bigger is better' adage isn't absolute. While larger rotors offer superior power and heat dissipation, they also come with increased weight and can sometimes be overkill for certain applications or lighter riders. This is why rotors are available in a spectrum of sizes, typically ranging from 140mm up to 220mm, each suited to different scenarios:

So, to directly address the 140mm question: a 140mm rotor does not inherently provide 'better' braking performance in terms of raw power or fade resistance compared to larger rotors. Its 'better' aspect lies in its lightweight nature, making it suitable for disciplines where every gram counts, such as road racing or cyclocross, where extreme braking demands are less frequent or sustained than, say, downhill mountain biking. For these applications, it strikes an optimal balance between necessary stopping power and minimal weight, contributing to overall bike efficiency without compromising safety for its intended use.

Disc Brake Rotor Design and Materials

Beyond size, the design and material composition of a rotor play a crucial role in its performance. Most rotors are crafted from high-quality stainless steel, chosen for its durability and consistent braking surface across various conditions. However, the intricacies of their design contribute significantly to their effectiveness:

• Cut-outs and Recessed Slots: The distinctive patterns and holes you see on a rotor are not merely aesthetic. They serve a vital purpose: to clear water, mud, and other debris from between the brake pad and the rotor, ensuring consistent grip and preventing contamination. These cut-outs also help dissipate heat and shed weight without compromising structural integrity. They are strategically placed to maximise surface area for cooling while maintaining strength.
• Heat Dissipation Strategies: Managing heat is paramount for consistent braking performance. Manufacturers employ several ingenious methods:
  • Thicker Rotors: As seen with SRAM's HS2 rotors, a marginal increase in rotor thickness (e.g., from 1.8mm to 2.0mm) can significantly boost heat capacity and fade resistance. A thicker rotor can absorb more heat before its temperature rises to critical levels, maintaining consistent performance on long descents.
  • Floating Rotors: Borrowing a concept from motorcycles, these rotors feature a stainless steel braking surface riveted to a lighter aluminium carrier. This 'floating' design allows for minor expansion and contraction of the braking surface under heat, reducing the likelihood of warping and improving heat dissipation. The aluminium spider acts as a heat sink, drawing heat away from the braking surface.
  • Sandwich Construction (e.g., Shimano Ice-Tech): Shimano's innovative Ice-Tech rotors utilise a three-layer sandwich construction, typically with an aluminium core flanked by two stainless steel outer layers. Aluminium is an excellent heat conductor, pulling heat away from the braking surface and dissipating it through strategically placed cooling fins (in some designs), dramatically improving fade resistance and overall heat management.

Disc Brake Rotor Mounting Standards: Center Lock vs. 6-Bolt

The way a rotor attaches to your wheel's hub is critical for a stiff and strong braking interface. Two primary mounting standards dominate the market:

• 6-Bolt Standard: This is arguably the most common and widely adopted standard across various bicycle types. The rotor is secured to the hub using six Torx bolts, arranged in a circle around the axle. It's a robust, reliable, and relatively simple system that offers excellent clamping force. While installing or removing a 6-bolt rotor can be a bit tedious due to the multiple bolts, it doesn't require any highly specialist tools beyond a suitable Torx key (often T25). This widespread availability of tools and components makes it a popular choice. Adapters are available to convert Center Lock hubs to accept 6-bolt rotors, offering versatility for riders with specific rotor preferences.
• Center Lock Standard: Developed by Shimano, this system uses a splined interface on the hub where the rotor slides on. A threaded lockring then screws onto the hub, securing the rotor firmly in place. Center Lock is often praised for its quicker installation and removal process compared to 6-bolt, as it only involves tightening or loosening one lockring. This can be a significant time-saver for mechanics or riders who frequently swap wheels. However, it requires a specific tool – either a Shimano HyperGlide-style cassette tool or a bottom bracket tool, depending on the lockring type. While potentially faster for mechanics, the tool requirement can be a minor hurdle for home mechanics without the right kit.

Compatibility between your hub and rotor mounting standard is non-negotiable. You cannot mount a 6-bolt rotor on a Center Lock hub without an adapter, nor vice-versa. Always check your wheel hub's standard before purchasing new rotors.

Compatible Pads and Rotor Longevity

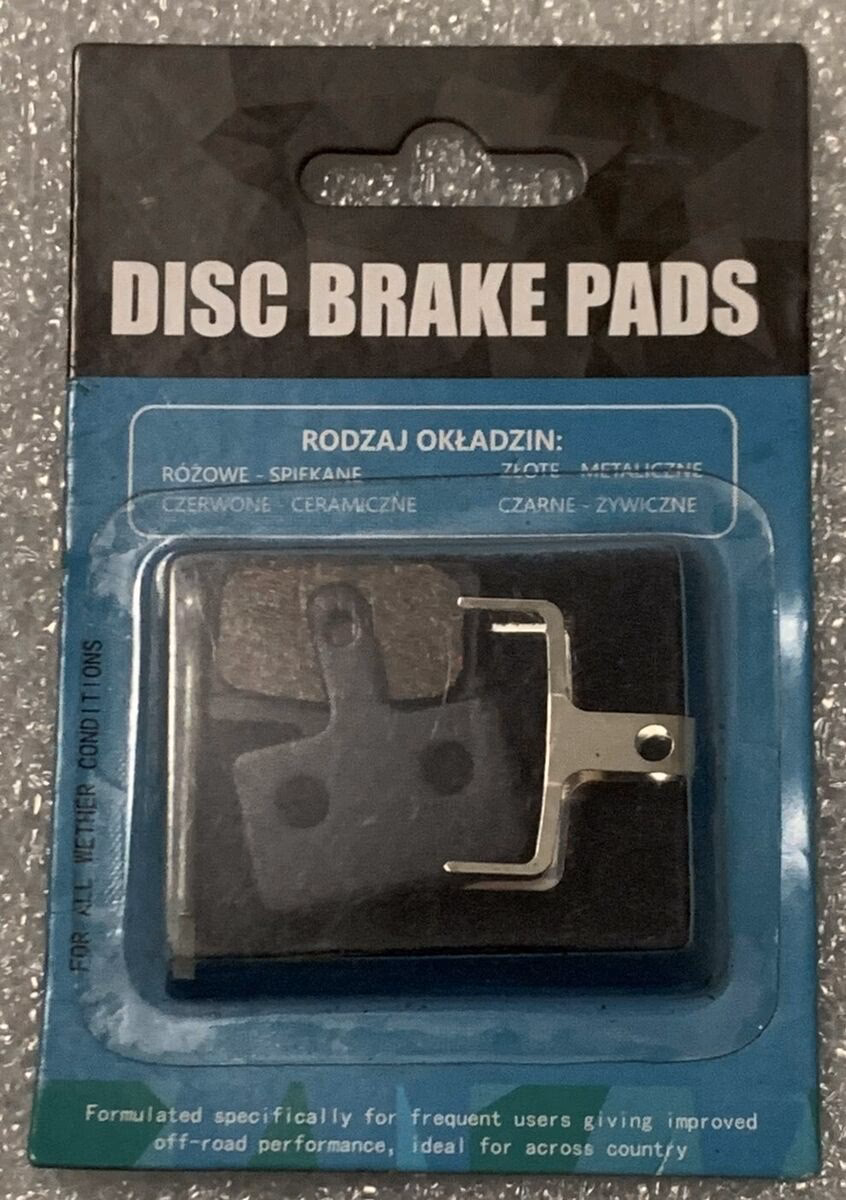

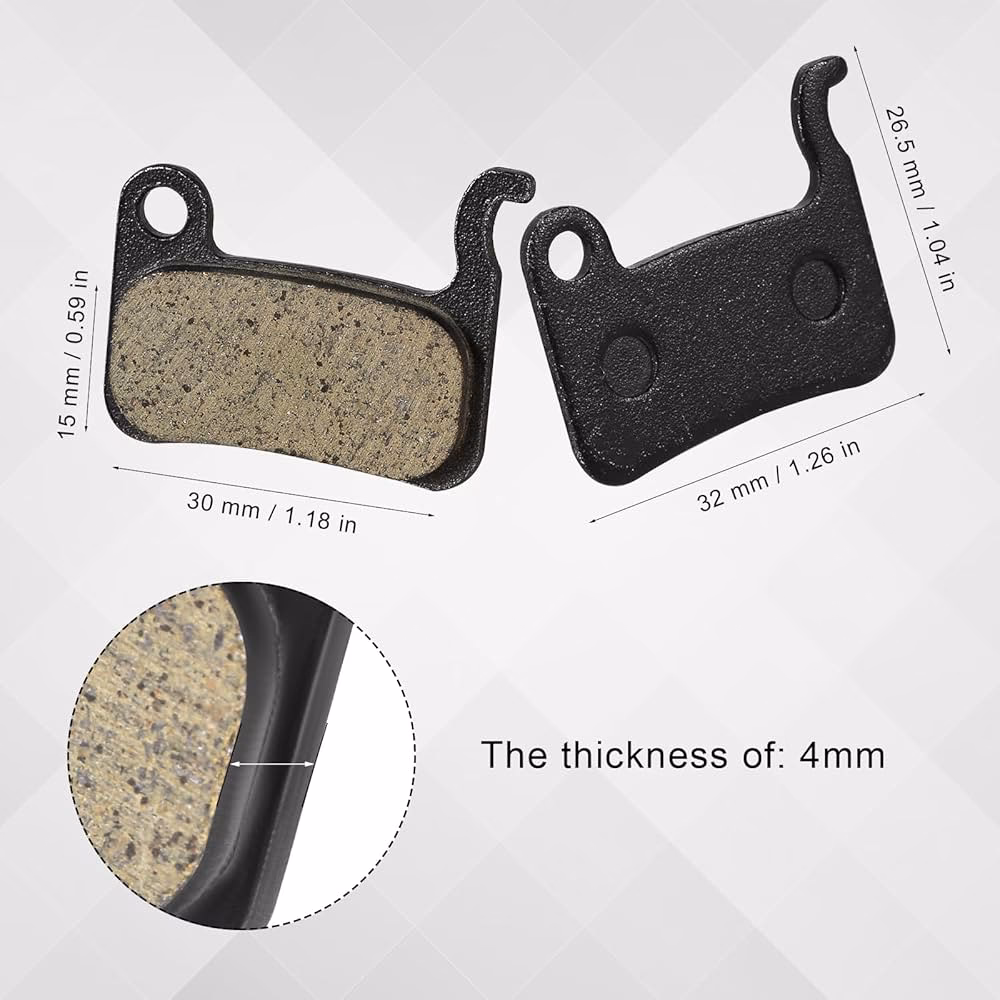

While this article focuses on rotors, it's worth a quick mention that your choice of brake pads also influences overall braking performance. Three main types exist: organic (resin), sintered (metallic), and semi-metallic. Each has distinct properties regarding initial bite, modulation, noise, and wet weather performance. Crucially, you can generally run any pad compound with any brake rotor, provided you follow the critical step of properly bedding in new pads to the rotor. This process creates a transfer layer of pad material onto the rotor surface, optimising friction and preventing glazing, which can lead to squealing and reduced performance.

Like brake pads, rotors are consumable parts that wear out over time. The friction generated during braking gradually erodes material from the rotor surface. It's imperative to regularly inspect your rotors for signs of wear. A key indicator is thickness. Most manufacturers specify a minimum thickness for replacement. For instance, Shimano rotors, typically 1.8mm thick new, should be replaced when they reach 1.5mm or thinner. SRAM similarly advises replacement when wear exceeds 0.3mm or when the thickness falls below the minimum value stamped on the rotor itself. Ignoring worn rotors can lead to diminished braking power, increased heat issues, and potential safety risks. Look for deep grooves, discolouration (indicating overheating), or visible cracks, any of which warrant immediate replacement.

How to Choose the Right Disc Brake Rotors

When contemplating new disc brake rotors, several factors should guide your decision:

1. Brand Compatibility (Initial Consideration): While many third-party brands produce excellent aftermarket rotors compatible with various brake systems, it often makes sense to initially consider rotors from the same manufacturer as your brake calipers. This ensures optimal design synergy and can sometimes lead to better overall system performance and reduced noise.
2. Mounting Standard: This is non-negotiable. Your existing wheels dictate whether you need 6-bolt or Center Lock rotors. Check your hubs before purchasing to avoid compatibility issues.
3. Rotor Size (The Performance Factor):
   • Frame and Fork Clearance: Crucially, always consult your bike frame and fork manufacturer's specifications for the maximum rotor size they are rated to accommodate. Exceeding this limit can lead to clearance issues with the frame, fork, or even your legs, or worse, structural damage to your frame/fork dues to excessive leverage. This information is usually available on the manufacturer's website or in your bike's manual.
   • Riding Needs Assessment: Do you experience frequent brake fade on long, steep descents? Do you wish for more stopping power with less lever effort? If so, sizing up your rotors (within your frame/fork's limits) is often the most impactful upgrade for improved performance. Remember, a larger front rotor paired with a slightly smaller rear rotor is a common and effective setup for many mountain bikes, as the front brake handles the majority of stopping force during deceleration. Consider your riding style, terrain, and even your body weight when making this decision. Heavier riders or those tackling aggressive trails will benefit more from larger rotors.
   • Adapter Requirements: Be aware that upsizing your rotors will almost certainly require new brake caliper mount adapters to correctly position your caliper over the larger rotor. These are specific to rotor size (e.g., +20mm, +40mm) and fork/frame mount type (Post Mount, IS Mount). Ensure you purchase the correct adapter for your specific setup.

Making an informed decision about your rotors, much like understanding the utility of brake post extenders, directly contributes to a safer, more enjoyable, and ultimately more confident riding experience. Proper maintenance and component selection are key to unlocking your bike's full braking potential.

Frequently Asked Questions About Braking Components

Are Box Two brake post extenders compatible with all V-brakes or cantilever brakes?

Box Two extenders are designed to mount onto existing cantilever brake bosses found on most frames. While they offer universal fit in terms of the boss interface, their utility is specific to V-brakes and cantilever brakes. They won't work with disc brakes. Always ensure your brake arms themselves have enough adjustment range to accommodate the 16mm extension once the extenders are installed.

Can I use a larger disc brake rotor than my bike originally came with?

Yes, often you can, but with critical caveats. You MUST check your frame and fork manufacturer's specifications for the maximum rotor size they are rated to accept. Exceeding this limit can void warranties and, more importantly, lead to unsafe conditions due to excessive stress on the frame or fork mounts. If your frame/fork can accommodate a larger rotor, you will also need to purchase the correct brake caliper adapter to ensure proper alignment of your caliper over the larger disc.

How often should I replace my disc brake rotors?

Rotor replacement frequency depends heavily on riding style, terrain, and conditions. Aggressive riders on steep terrain will wear rotors faster. The key is to regularly check the rotor's thickness against the manufacturer's minimum specified thickness (often stamped on the rotor itself). Also, inspect for cracks, excessive scoring, or warping. If the rotor is visibly damaged, excessively worn, or if you experience significant brake fade even after pad replacement and bleeding, it's time for a new one. If in doubt, consult a professional bike mechanic.

Will a larger rotor automatically improve my braking performance?

A larger rotor generally provides more stopping power and better heat dissipation, which can certainly improve overall braking performance, especially in demanding situations like long descents. However, it's part of a holistic braking system. Other factors like brake pad compound, caliper quality, proper bleeding of hydraulic systems, and correct setup (e.g., bed-in process) also play significant roles. A larger rotor with poorly maintained calipers or glazed pads won't perform optimally.

Is Center Lock or 6-bolt better?

Neither standard is inherently 'better' in terms of raw braking performance. Both offer a secure and reliable mounting. Center Lock typically offers faster installation/removal but requires a specific tool. 6-bolt is very common, robust, and only needs a Torx key, making it accessible for many home mechanics. Your wheel hubs will dictate which standard you need to use, so choose rotors that match your hub's interface.

Ultimately, whether you're optimising your traditional rim brakes with a clever solution like Box Two brake post extenders or fine-tuning your disc brake setup with the right rotor size and design, a deep understanding of your bike's braking components empowers you to ride with greater confidence and control. Invest in regular maintenance, choose components wisely, and enjoy the peace of mind that comes with reliable stopping power on every ride.
