Navigating WRX Brake Setups: A UK Guide

For many enthusiasts across the UK, the Subaru Impreza WRX represents a pinnacle of accessible performance, offering thrilling drives and a distinctive rumble. However, delving into the specifics of its maintenance, particularly the braking system, can sometimes feel like navigating a complex maze. This is especially true for owners of the late 2002 and early 2003 models, where a myriad of factory brake pad combinations can turn a simple upgrade purchase into a frustrating ordeal. Understanding the precise setup on your vehicle isn't just about saving money; it's crucial for ensuring optimal stopping power and, most importantly, your safety on the road. This comprehensive guide aims to clear the fog, providing a year-by-year breakdown and practical advice to help you confidently identify and maintain your WRX's braking system.

The 2002 WRX: A Clear Starting Point

Let's begin with the simpler times. For all Subaru Impreza WRX models manufactured and sold as 2002 model year vehicles, the brake setup was consistent and straightforward. These cars were equipped with a specific combination of brake pads that, thankfully, didn't present the same identification challenges as later models. Owners of a 2002 WRX can expect to find D721 pads fitted to the front calipers and D770 pads on the rear. This standardisation made purchasing replacement pads or upgrading to performance alternatives relatively uncomplicated. If you own a 2002 model, consider yourself fortunate to have a clear-cut scenario when it comes to your braking components. This consistency provides a solid baseline before we delve into the complexities that emerged shortly thereafter.

The Confounding 2003 Transition: A Tale of Four Setups

The year 2003 introduced a significant twist in the WRX brake saga, creating a notorious period of confusion for owners and parts suppliers alike. While typically a new model year signifies a clear cut-off for specifications, Subaru's production schedule in 2002 led to a perplexing overlap. Starting in July of 2002, even though these vehicles were designated as 2003 models, Subaru decided to introduce new brake calipers for both the front and rear axles. This change brought with it new pad designs: the D929 for the front and D1004 for the rear.

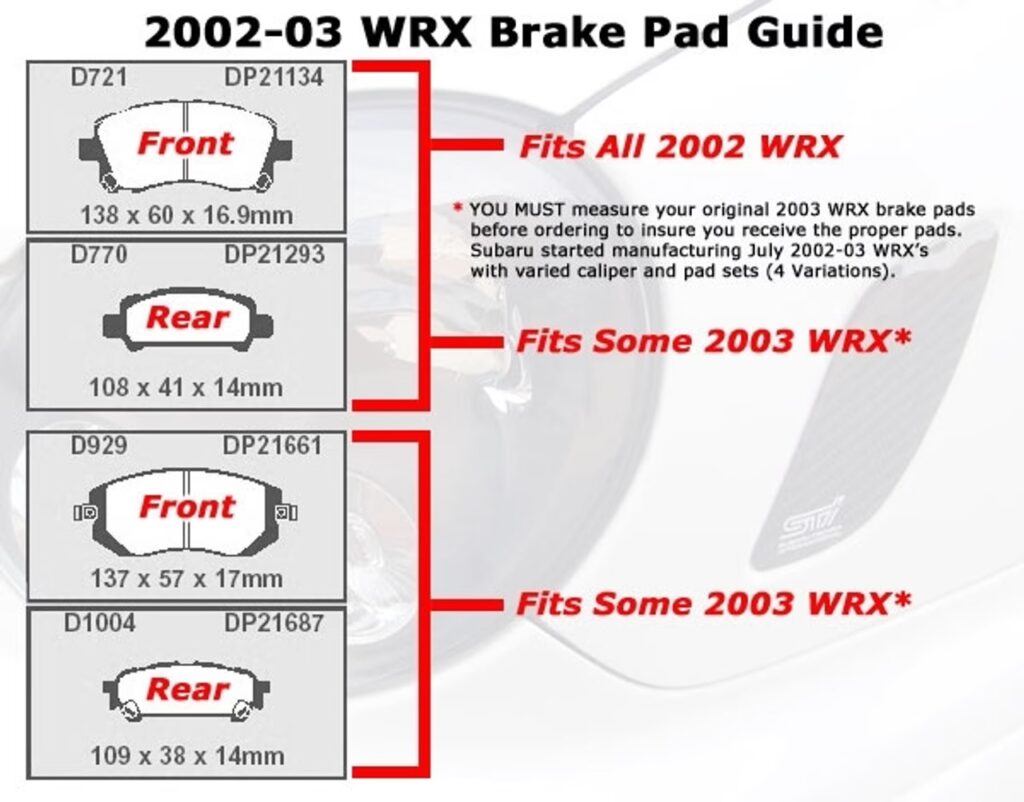

However, the transition wasn't immediate or uniform, resulting in a bewildering array of four possible brake setups for early 2003 WRX cars. This meant that the exact combination of pads on your vehicle depended on when it rolled off the production line and which batch of components was being used at that very moment. The four variants that emerged from this transitional period are as follows:

1. The 'Legacy' Setup: Some early 2003 cars retained the full 2002 specification, meaning they were equipped with the D721 front pads and D770 rear pads. This was essentially a continuation of the previous year's standard.
2. Front Old, Rear New: Another permutation saw vehicles fitted with the older D721 front pads, but combined with the newly introduced D1004 rear pads. This mix-and-match scenario was a direct result of the phased introduction of new components.
3. Front New, Rear Old: Conversely, some cars received the new D929 front pads, yet surprisingly retained the older D770 rear pads. This variant further complicates the picture, highlighting the non-linear nature of the transition.
4. The 'Future' Setup: Finally, some 2003 models were fully updated, featuring the new D929 front pads and the new D1004 rear pads. This combination would eventually become the standard for subsequent model years, but its presence in early 2003 cars alongside the other three options is what causes so much head-scratching.

These four possibilities make purchasing brake pads or complete brake kits for a 2003 WRX a genuine challenge. Without knowing your specific configuration, you risk ordering the wrong parts, leading to delays, frustration, and potential safety compromises. The easiest, and arguably only, reliable way to determine which setup your 2003 WRX possesses is to physically inspect the pads after removing the wheels and measure them. Generally, any 2003 WRX models produced after July 2003 are more likely to have settled into the new D929 front and D1004 rear setup, which then became the standard until 2005.

2004-2005: A Return to Simplicity

Thankfully, after the complexities of the 2003 model year, Subaru brought back a degree of standardisation to the WRX braking systems. For all 2004 and 2005 model year WRX vehicles, the brake pad setup became consistent once more. These models uniformly utilised the D929 front pads and the D1004 rear pads. This period of consistency provided a much-needed respite for owners and parts suppliers, making replacement and upgrade choices straightforward. If you own a 'blob-eye' WRX from 2004 or 2005, you can be confident that you have the more modern of the 'bug-eye'/'blob-eye' era brake setups, simplifying your maintenance and upgrade path significantly compared to the 2003 models.

2006 Onwards: The FHI Evolution

As the WRX continued to evolve, so too did its braking systems. With the introduction of the 2006 model year, Subaru made another significant change, moving away from the previous standard pad types to a new, more robust setup. From 2006 onwards, the WRX adopted the FHI 4/2 pot brake system. This refers to a four-piston caliper at the front and a two-piston caliper at the rear, a notable upgrade in braking performance and feel. Corresponding with this change in caliper design, the brake pads also shifted to new specifications. The 2006+ WRX models, featuring this FHI 4/2 pot setup, use D460 pads for the front and D461 pads for the rear. This marked a clear departure from the earlier generations, providing a distinct and easily identifiable brake system for these later models. This upgrade was a welcome enhancement for many enthusiasts, offering improved stopping power and a more aggressive brake feel straight from the factory.

Understanding FMSI Numbers and Why They Matter

Throughout this discussion, we've referred to pad numbers like D721, D929, D1004, and so on. These are FMSI (Friction Materials Standards Institute) numbers. FMSI provides a standardised naming convention for brake pad shapes and sizes, irrespective of the manufacturer. This standardisation is incredibly useful because it allows parts manufacturers to produce pads that are guaranteed to fit specific calipers, even if the original equipment manufacturer (OEM) part number is different. When you're shopping for replacement or upgrade pads, knowing your FMSI number is paramount. It ensures you're buying a pad with the correct dimensions and mounting points for your specific caliper, preventing costly errors and ensuring proper fitment and performance. The complexity of the 2003 WRX models highlights why understanding these numbers and, crucially, verifying them on your actual vehicle, is so vital.

Identifying Your WRX Brake Setup: The Definitive Guide

Given the potential for confusion, especially with the 2003 models, the most reliable method for identifying your WRX's brake setup is a hands-on approach. Simply knowing your car's model year isn't enough for those tricky transitional periods. Here’s a step-by-step guide to ensure you get it right:

1. Safety First: Ensure your vehicle is on a flat, stable surface. Engage the handbrake and use wheel chocks for added security. Never work under a vehicle supported only by a jack. Use axle stands.
2. Remove the Wheels: Loosen the wheel nuts (or lug nuts) while the car is on the ground. Jack up the front of the vehicle (or rear, depending on which pads you need to check first) and securely place it on axle stands. Fully remove the wheels to gain clear access to the brake calipers.
3. Visual Inspection: Once the wheel is off, you'll see the brake caliper and the pads within it. Look for any visible markings on the pads themselves. Sometimes, the FMSI number might be stamped or printed on the backing plate of the pad. However, this isn't always reliable, especially on older or heavily used pads where markings might have worn off.
4. Measure the Pads: This is the most definitive step. Carefully remove one of the brake pads from the caliper. You might need to remove a retaining pin or spring clip, depending on your caliper design. Once the pad is out, use a set of calipers or a precise ruler to measure its key dimensions. The critical measurements typically include:
• Length: The overall horizontal length of the pad's backing plate.
• Height: The vertical height of the pad's backing plate, including any 'ears' or tabs.
• Thickness: While less critical for identifying the *type* of pad, measuring the friction material thickness is important for assessing wear.
5. Compare to Known FMSI Dimensions: With your measurements in hand, you can then compare them to readily available FMSI dimension charts online. While we cannot provide direct links here, a quick search for "FMSI brake pad dimensions" will lead you to resources that list the exact measurements for D721, D770, D929, D1004, D460, and D461 pads. Matching your measurements to these charts will definitively tell you which FMSI pad type you have.
6. Repeat for Front and Rear: Remember to perform this identification process for both the front and rear axles, as the 2003 models, in particular, could have different combinations.

This method, though requiring a little effort, is the only foolproof way to ensure you're ordering the correct parts for your WRX, saving you time, money, and potential safety concerns down the line.

Upgrading Your WRX Brakes

Once you've accurately identified your WRX's brake setup, the world of upgrades opens up. Many WRX owners seek to enhance their braking performance for various reasons, whether it's for track days, spirited driving, or simply greater confidence in daily use. Upgrades often involve:

• Performance Brake Pads: Moving beyond OEM pads to those designed for higher friction, better fade resistance, and improved initial bite. These are typically categorised for street, track, or dual-purpose use.
• Upgraded Brake Discs (Rotors): Replacing standard discs with slotted, drilled, or two-piece rotors can improve heat dissipation, reduce fade, and sometimes shed unsprung weight.
• Braided Brake Lines: Replacing the standard rubber hoses with stainless steel braided lines can reduce pedal sponginess by preventing expansion under pressure, leading to a firmer, more consistent pedal feel.
• Brake Fluid: Upgrading to a higher boiling point brake fluid is essential for track use or very spirited driving, as it resists boiling under extreme heat, which can lead to a complete loss of pedal.

Remember, any brake upgrade should be considered as a system. Ensuring compatibility between pads, discs, and even calipers (if you go down that route) is vital for balanced and effective braking. Always consult reputable performance parts suppliers and, if unsure, seek professional advice.

Comparative Table of WRX Brake Setups

To summarise the various configurations, here's a handy table:

Frequently Asked Questions (FAQs)

Q: Why is the 2003 WRX brake setup so complicated?

A: The 2003 model year marked a transitional period where Subaru introduced new caliper designs and corresponding pad types (D929 front, D1004 rear). However, the rollout wasn't immediate or uniform. Vehicles produced in late 2002 (as 2003 models) could have been assembled with leftover 2002 components, new 2003 components, or a mix of both, leading to four distinct factory configurations.

Q: Can I just guess my 2003 WRX brake setup based on its build date?

A: While generally, cars made after July 2003 are more likely to have the D929/D1004 setup, it's not foolproof. The only truly reliable way to confirm your setup is to physically inspect and measure your existing brake pads. Guessing can lead to ordering incorrect parts, which is a waste of time and money.

Q: What are FMSI numbers and why are they important for brake pads?

A: FMSI (Friction Materials Standards Institute) numbers are standardised codes that define the exact shape and dimensions of a brake pad. They are crucial because they ensure that a replacement pad will physically fit into your caliper, regardless of the brand or specific vehicle application. Knowing your FMSI number guarantees compatibility.

Q: My WRX is a 2006 model. Does it have the same brake setup as a 2005?

A: No, the 2006 WRX models saw a significant change. They transitioned to an FHI 4/2 pot caliper setup, which uses different pad types: D460 for the front and D461 for the rear. This is a distinct upgrade from the 2004-2005 setup (D929 front, D1004 rear).

Q: Do I need to measure both front and rear pads to be sure?

A: Yes, especially for 2003 model year WRXs. Due to the transitional nature of that year's production, it was possible for vehicles to have a mix of older and newer pad types on the front and rear axles simultaneously. For all other years (2002, 2004-2005, 2006+), while the front and rear setups are consistent for that model year, it's still good practice to confirm both.

Q: Can I upgrade my WRX brakes if I have one of the older setups?

A: Absolutely! Once you've accurately identified your current brake setup (e.g., D721/D770 or D929/D1004), you can explore a wide range of aftermarket performance pads and discs designed for your specific FMSI pad shape. These can significantly improve stopping power and fade resistance for spirited driving or track use.

Conclusion

While the Subaru Impreza WRX is celebrated for its performance, its braking system, particularly during the early 2000s, can present a puzzle for owners. The variations in factory brake pad setups, especially in the pivotal 2003 model year, underscore the importance of accurate identification. Relying solely on your car's model year can lead to frustrating mistakes and potentially compromise your vehicle's safety. By understanding the distinct FMSI pad numbers associated with each period – the D721 and D770 of 2002, the transitional D929 and D1004 combinations of 2003, and the more modern D460 and D461 of the FHI 4/2 pot system from 2006 onwards – you empower yourself to make informed decisions. The definitive method remains a hands-on approach: remove those wheels, measure your pads, and compare them to the FMSI standards. This diligence will ensure that your iconic Subaru WRX continues to stop as effectively and safely as it accelerates, keeping you confidently on the road for years to come.
